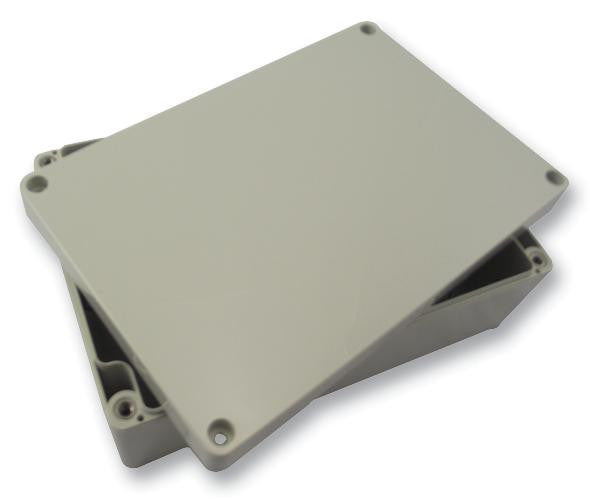

- Ideally suited for mounting printed circuit boards or DIN rail mounted components
- Manufactured from general purpose ABS plastic which carries a flammability rating of UL94 HB
- Light grey in colour (RAL7035)
- Gasketed lid with "tongue and groove" construction, protecting against access of oil, dust and water
- Gasket is factory poured using high temperature UL listed silcon gasket material
- Designed to meet IP66 and NEMA 4, 4X, 12 and 13 ratings
- Lid secured with self captivating M4 stainless steel machine screws (included)
- Lid screws threaded into integral stainless steel bushings
- Threaded M3 internal brass inserts and/or standoffs designed for M3.5 or #6 self tapping screws
- Vertical P.C. card guides are moulded
- Internal DIN rail mounting tabs
Product details
| External Depth - Imperial |
2.4" |
| Body Colour |
Grey |
| External Width - Metric |
120mm |
| Enclosure Type |
Multipurpose |
| NEMA Rating |
NEMA 4, 4X, 12, 13 |
| External Height - Metric |
180mm |
| External Height - Imperial |
7.1" |
| External Width - Imperial |
4.7" |
| Product Range |
- |
| IP Rating |
IP66 |
| External Depth - Metric |
60mm |
| Enclosure Material |
ABS |
Other details
| Brand |
HAMMOND |
| Part Number |
1554HGY |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| 3D Product Image EN |
|
