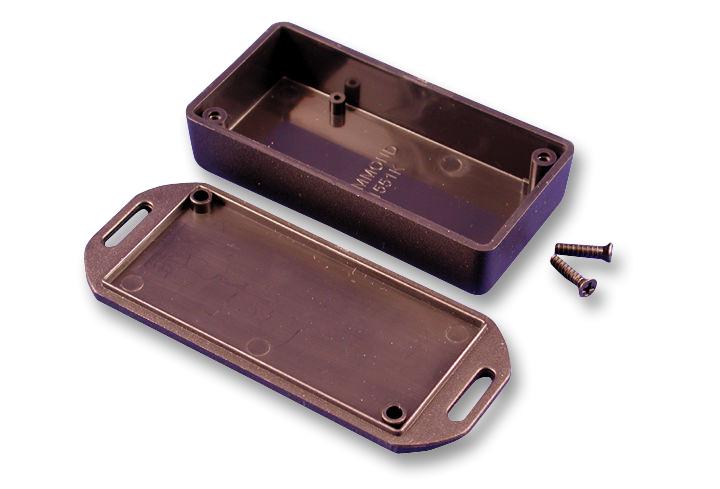

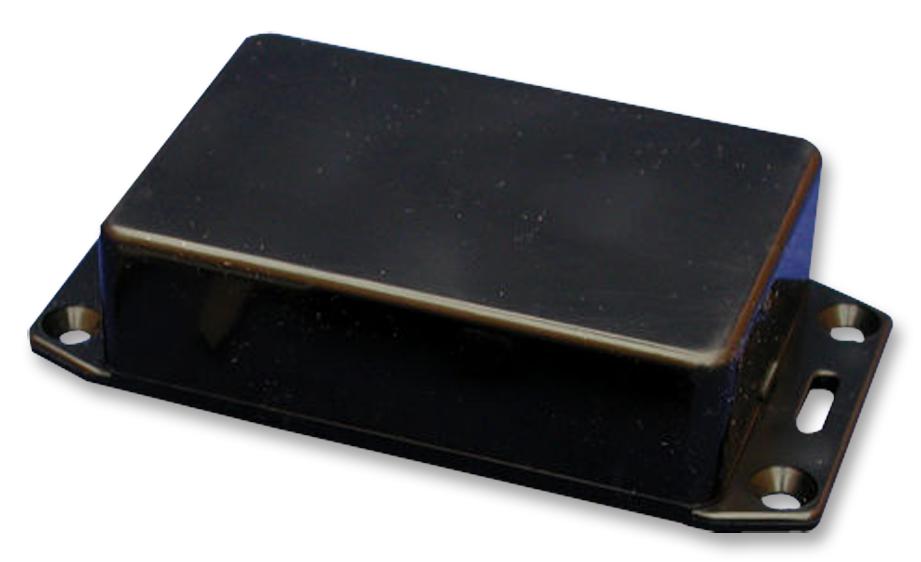

The 1551LFLBK is a miniature flanged lid Enclosure ideally suited for mounting small printed circuit boards or used as potting boxes. The lap joint construction provides protection against access of dust and splashing water. The flanged lid is perfect for wall or shelf mounting or suspending with a tie wrap.
- Satin texture finish
- Complete with lid and two self tapping screws
- Screws are colour matched to enclosure
- 2 PC board standoffs moulded into interior
Applications
Industrial
Contents
Box, Lid and 2x Cover screws.
Product details
| Enclosure Type |
PCB Box |
| Enclosure Material |
ABS |
| External Height - Metric |
80mm |
| External Width - Metric |
40mm |
| External Depth - Metric |
15mm |
| IP Rating |
IP54 |
| Body Colour |
Black |
| NEMA Rating |
- |
| External Height - Imperial |
3.15" |
| External Width - Imperial |
1.57" |
| External Depth - Imperial |
0.59" |
| Product Range |
- |
| No. of Switch Holes |
- |
Other details
| Brand |
HAMMOND |
| Part Number |
1551LFLBK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
