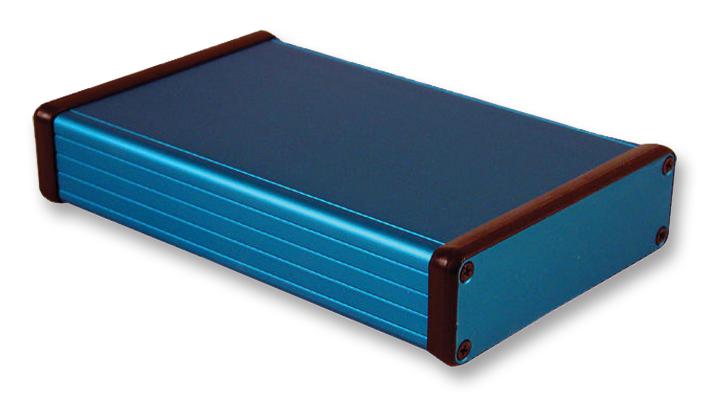

The 1455 series enclosures from Hammond are extruded aluminium enclosures with metal end plates suitable for electronic instruments and PCB boards. These enclosures are part of electronic equipments used in any industry for hazardous application.
- Designed to house PCB boards or for equipment interfacing
- Sized for standard Eurocards
- PCB sliding into internal slots extruded in the enclosure body
- Rugged body constructed from extruded aluminium with 1.5mm thickness
- Allows easy access to the interior of enclosure
Applications
Industrial, Safety
Product details
| Enclosure Type |
Small |
| Enclosure Material |
Extruded Aluminium |
| External Height - Metric |
27.45mm |
| External Width - Metric |
103mm |
| External Depth - Metric |
160mm |
| IP Rating |
IP54 |
| Body Colour |
Blue |
| NEMA Rating |
- |
| External Height - Imperial |
1.2" |
| External Width - Imperial |
4.06" |
| External Depth - Imperial |
6.3" |
| Product Range |
1455 Series |
Other details
| Brand |
HAMMOND |
| Part Number |
1455L1601BU |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
