Description

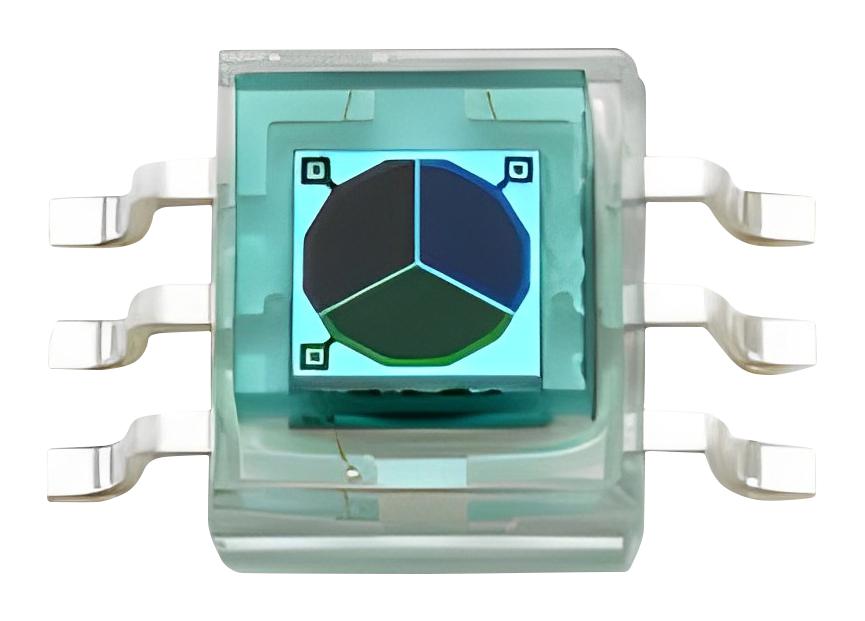

S9032-02 is a colour sensor moulded into a plastic package having a 3-channel (RGB) photodiode sensitive to the blue (λp=460nm), green (λp=540nm) and red (λp=620nm) regions of the spectrum. The S9032-02 has a 3-segment (RGB) circular photosensitive area of �2mm.
- 3-channel (RGB) Si photodiode
- Surface-mount small plastic package
- Spectral response range close to the human eye sensitivity
- No sensitivity in the near IR region
- Photosensitive area: 3-segment (RGB) circular photosensitive area of �2mm
- Peak sensitivity wavelength is 460nm blue, 540nm green, 620nm red
- Photosensitivity is 0.18A/W blue, 0.23A/W green, 0.16A/W red
- 0.1nA dark current, 40pF terminal capacitance, 0.2μs rise time
- Operating temperature range from -25 to +85°C
Product details
Other details
| Brand | HAMAMATSU |
| Part Number | S9032-02 |
| Quantity | Each |
| Technical Data Sheet EN |  |
