Description
Hall Technologies DSCV3 WP Overview

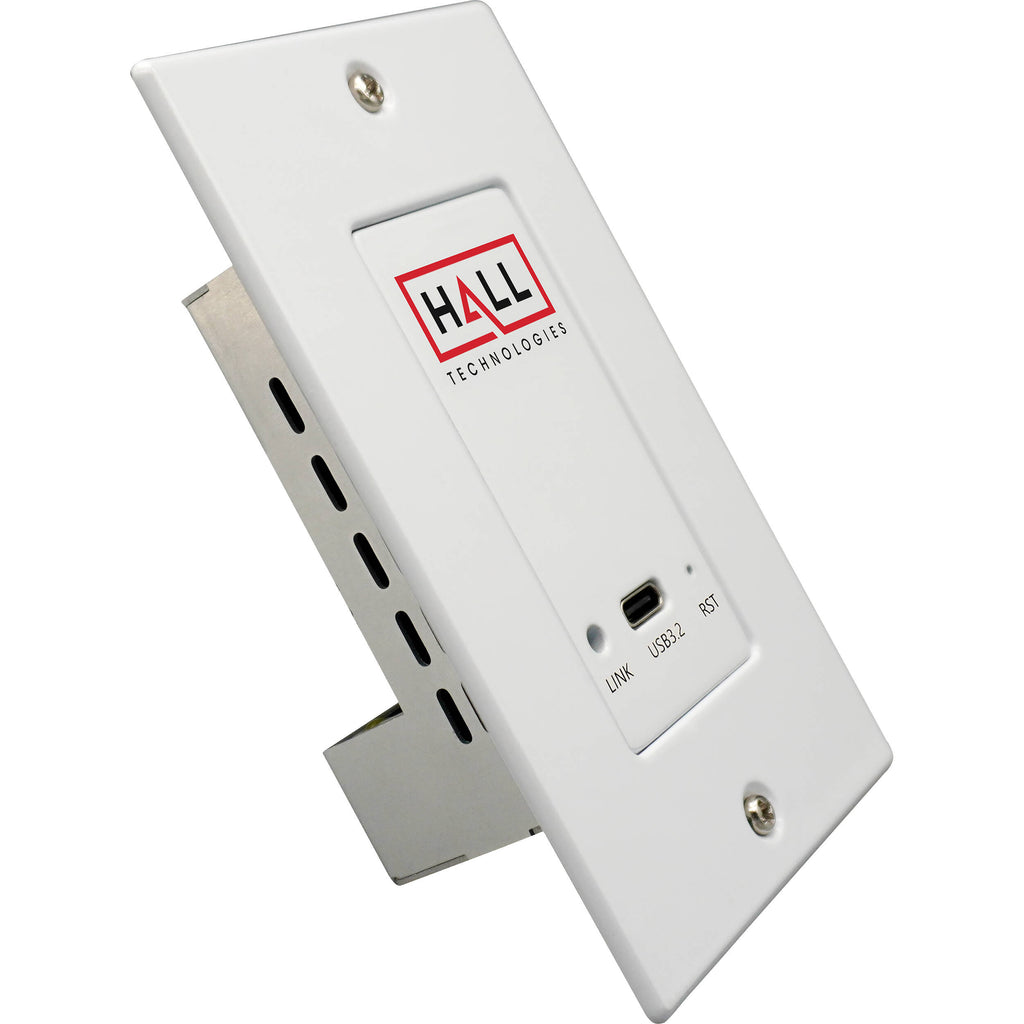

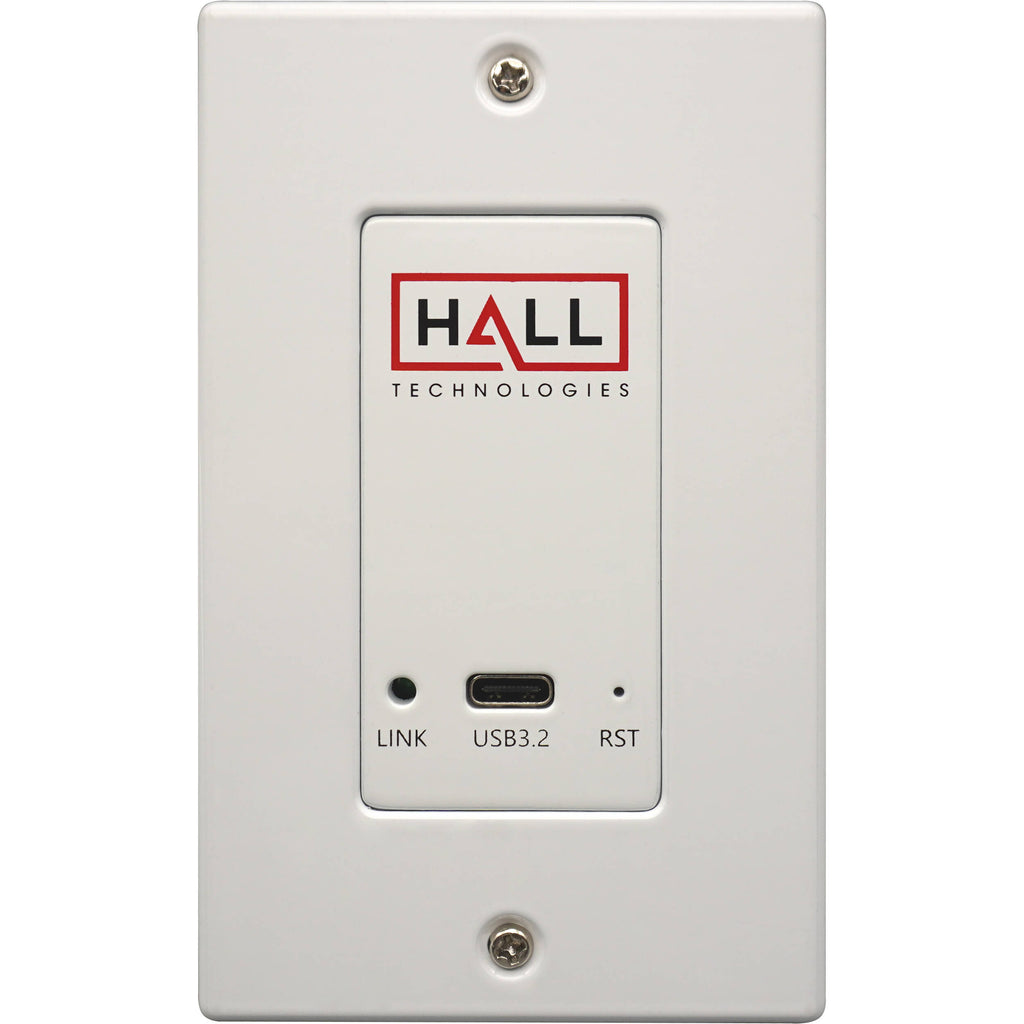

Transmit data up to 295' over HDBaseT using the Discovery Series 3 USB 3.2 over HDBaseT Transmitter Wall Plate from Hall Technologies. The wall plate can transmit data up to 5 Gb/s and features a USB-C 3.2 input, RS-232 passthrough, and an RJ45 HDBaseT output to a separately available receiver, such as the DSCV3-RX or DSCV3-RX-WP. The 1-gang wall plate is designed for US wall plate installation.
Additional Details
- One USB-C input and one HDBaseT output
- Supports USB and RS-232 passthrough via HDBaseT port
- Plate can be powered by a receiver with power supply module using PoH
- Extend data up to 295' away with 5 Gb/s data transfer rate over HDBaseT
UPC: 656750713648
- Hall Technologies Discovery Series 3 USB 3.2 over HDBaseT Transmitter Wall Plate
- Face Plate (1-Gang US)
- 4-Pin Terminal Block Connector
- 2 x Mounting Screw
- Limited 3-Year Manufacturer Warranty
-
ReceiversEssential
Hall Technologies DSCV3 WP Specs
Interfaces
| Transmission I/O |
1x USB-C (3.2)
1x RJ45 (HDBaseT) 1x Block 4-Pin (RS-232) Input/Output |
| Power I/O |
1x Block 4-Pin (12 VDC at 1 A) Input
|
Transmission
| Max Transmission Distance |
295.3' / 90 m (via Cat 6a/7)
|
| Supported Cable Types |
Cat 5e/6/6a/7
|
| Video Bandwidth |
5 Gb/s
|
Power
| PoE Support |
Yes: PoE Proprietary
|
General
| Dimensions |
4 x 1.7 x 1.5" / 101.6 x 44.4 x 38.1 mm
|
| Weight |
0.3 lb / 140 g
|
Packaging Info
| Package Weight |
0.755 lb
|
| Box Dimensions (LxWxH) |
6.5 x 5.8 x 2"
|
