Description

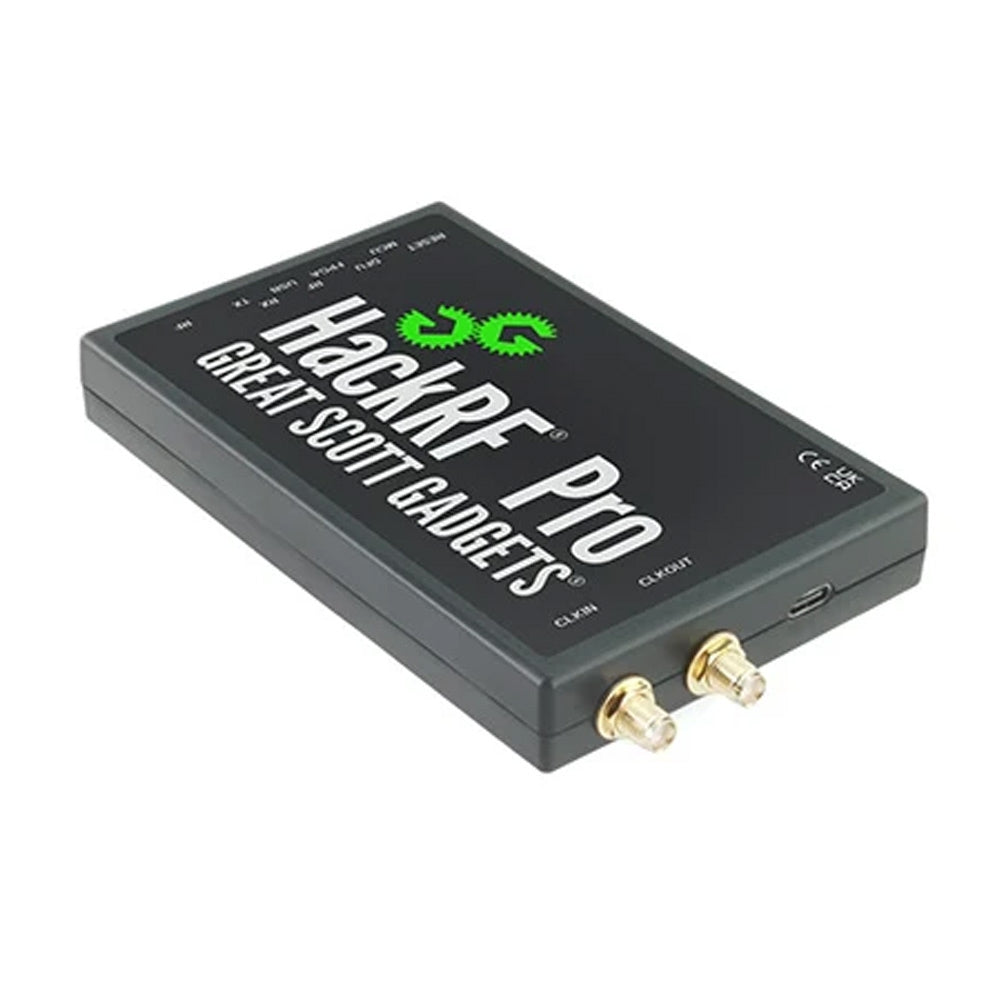

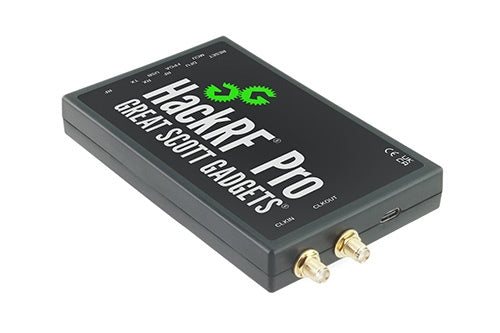

The HackRF Pro is the next-generation open-source SDR from Great Scott Gadgets, now featuring a 100 kHz to 6 GHz range, a built-in TCXO for high stability, and improved RF performance.
Features & Specs
-
100 kHz to 6 GHz operating frequency
-
Tunable from 0 Hz to 7.1 GHz
-
Half-duplex transceiver
-
Up to 20 million samples per second
-
8-bit quadrature samples (8-bit I and 8-bit Q)
-
Compatible with GNU Radio, SDR#, and more
-
Software-configurable RX and TX gain and baseband filter
-
Software-controlled RF port power (50 mA at 3.3 V)
-
SMA RF connector
-
SMA clock input and output for synchronization and triggering
-
Convenient buttons for programming
-
Internal pin headers for expansion
-
High-Speed USB 2.0 with Type-C connector
-
USB-powered
-
Open source hardware
New & Upgrades Features:
- Wider operating frequency range
- Improved RF performance with flatter frequency response
- Modern USB Type-C connector
- Built-in TCXO crystal oscillator for superior timing stability
- Logic upgrade from a CPLD to a power-efficient FPGA
- Elimination of the DC spike
- Extended-precision mode with 16-bit samples for low sample rates (typical ENOB: 9-11)
- Half-precision mode with 4-bit samples at up to 40 Msps
- More RAM and flash memory for custom firmware
- Installed shielding around the radio section
- Trigger input and output accessible through clock connectors
- Cutout in the PCB provides space for future add-ons
- Improved power management
- Enhanced RF port protection
- Facility to hardware-disable transmit mode
Features & Specs
-
100 kHz to 6 GHz operating frequency
-
Tunable from 0 Hz to 7.1 GHz
-
Half-duplex transceiver
-
Up to 20 million samples per second
-
8-bit quadrature samples (8-bit I and 8-bit Q)
-
Compatible with GNU Radio, SDR#, and more
-
Software-configurable RX and TX gain and baseband filter
-
Software-controlled RF port power (50 mA at 3.3 V)
-
SMA RF connector
-
SMA clock input and output for synchronization and triggering
-
Convenient buttons for programming
-
Internal pin headers for expansion
-
High-Speed USB 2.0 with Type-C connector
-
USB-powered
-
Open source hardware
New & Upgrades Features:
- Wider operating frequency range
- Improved RF performance with flatter frequency response
- Modern USB Type-C connector
- Built-in TCXO crystal oscillator for superior timing stability
- Logic upgrade from a CPLD to a power-efficient FPGA
- Elimination of the DC spike
- Extended-precision mode with 16-bit samples for low sample rates (typical ENOB: 9-11)
- Half-precision mode with 4-bit samples at up to 40 Msps
- More RAM and flash memory for custom firmware
- Installed shielding around the radio section
- Trigger input and output accessible through clock connectors
- Cutout in the PCB provides space for future add-ons
- Improved power management
- Enhanced RF port protection
- Facility to hardware-disable transmit mode
