GyroVu GVM-5004H Overview

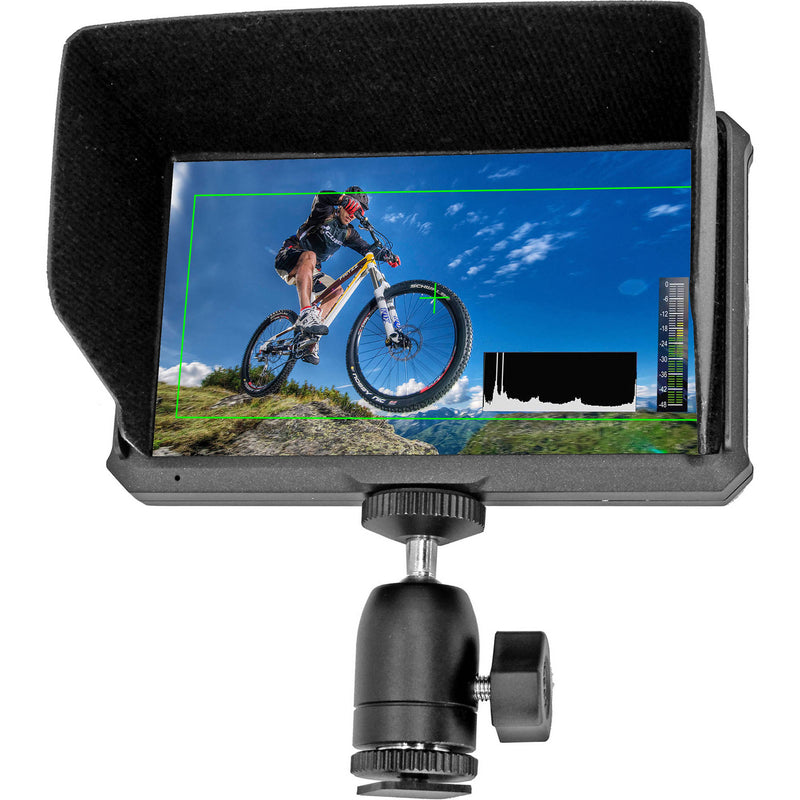

Help compose your videos with the GyroVu Ultra Lightweight 5" On-Camera Monitor. Using an 8-bit 1920 x 1080 IPS LCD panel, focusing by eye is possible, and critical focus can be achieved using the zoom function. Since this monitor is lightweight, using it atop a small mirrorless camera won't add bulk to a compact setup. The HDMI input can accept 4K resolutions, letting the camera provide a sharp image to use for framing. For power, this monitor includes two L-series batteries and a charger. Additionally, the battery plate supports LP-E6 batteries, in addition to L-series batteries. Included with the monitor are a sun hood for blocking reflections and glare, a shoe mount ball head for placing the monitor atop your camera, and a mini-HDMI to HDMI cable.

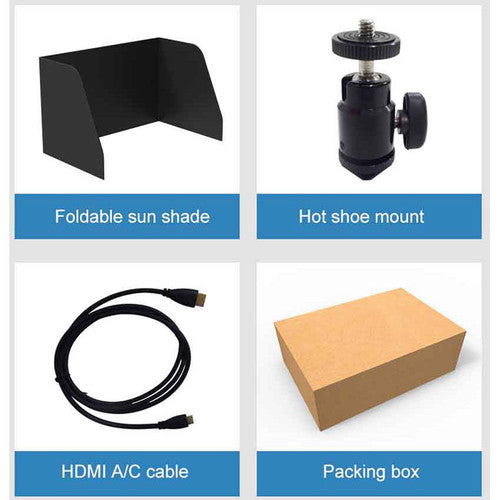

In the Box
- GyroVu Ultra Lightweight 5" On-Camera Monitor with Battery Kit
- Folding Sun Hood
- Shoe Mount Ball Head
- Mini-HDMI to HDMI Cable

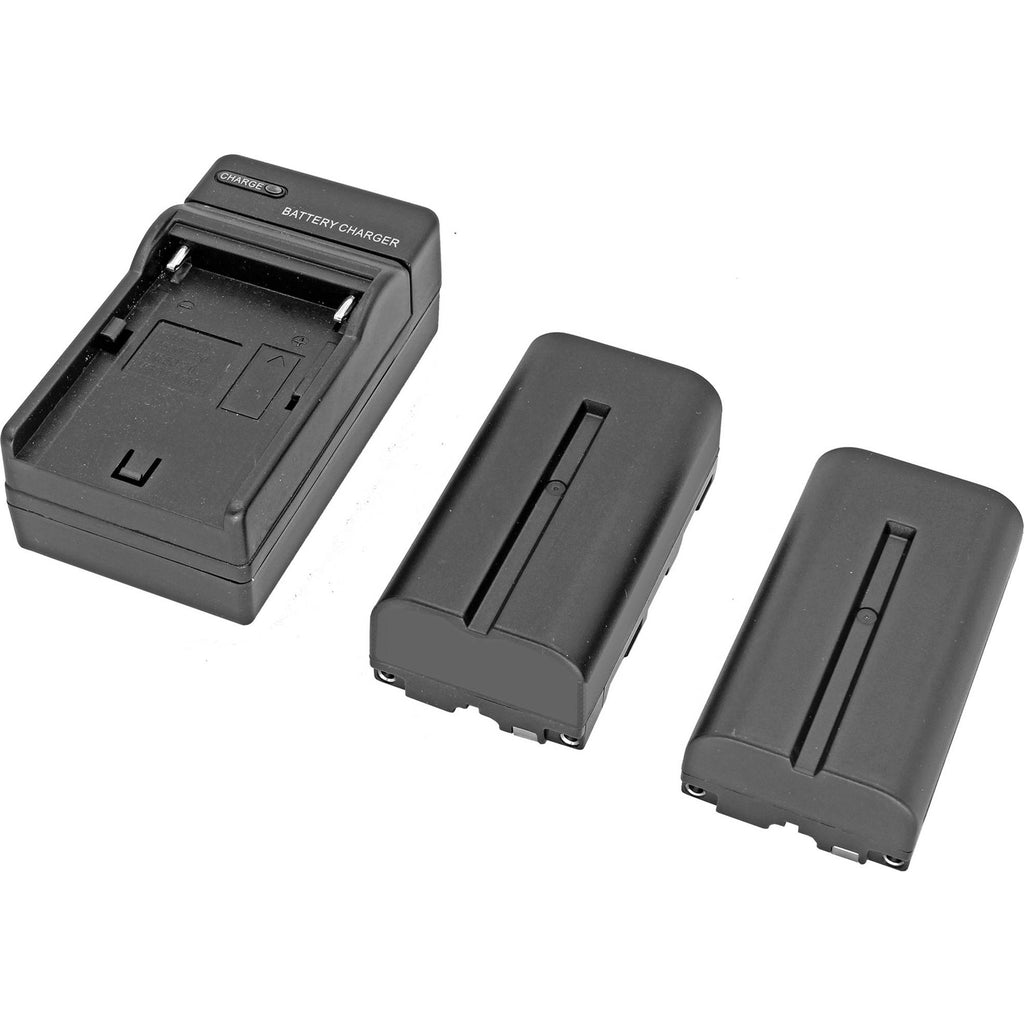

- 2 x L-Series Battery
- L-Series Charger
- Limited 1-Year Manufacturer Warranty
GyroVu GVM-5004H Specs
Display
| Panel Type |
IPS-Type LCD |
| Display Size |
5.0" / 12.7 cm |
| Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Viewing Angle |
Horizontal: 170°
Vertical: 170° |
| Touchscreen |
No |
| Maximum Brightness |
400 nits / cd/m2 |
| Contrast Ratio |
1000:1 |
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) |
441 ppi |
| Real-Time LUT Monitoring |
No |
| Image Controls |
Histogram, Screen Markers, Zebra |
| Video I/O |
1 x HDMI 1.4b Input
1 x HDMI 1.4b Output |
| Embedded Audio |
HDMI: 2-Channel |
| Audio I/O |
None |
| Built-In Speaker |
None |
| Power I/O |
1 x Barrel Input |
| Other I/O |
None |
| Media/Memory Card Slot |
None |
Format Support
| Video Format |
HDMI
DCI 4K: 24
UHD 4K: 24/25/30 |
Power
| DC Input Power |
7 to 24 VDC |
| Battery Type |
1 x LP-E6 or L-Series |
| Operating Current |
600 mA (Typical) |
| Power Consumption |
9 W (Maximum) |
Mounting
| Mounting |
3 x 1/4"-20 Female |
Environmental
| Operating Temperature |
-4 to 122°F / -20 to 50°C |
| Storage Temperature |
-22 to 158°F / -30 to 70°C |
General
| Dimensions |
5.1 x 3.1 x 0.9" / 13 x 8 x 2.4 cm |
| Weight |
4.16 oz / 118 g |
Packaging Info
| Package Weight |
1.15 lb |
| Box Dimensions (LxWxH) |
7 x 6 x 5" |
