- 5" 1920 x 1080 IPS LCD
- HDMI Input and Output
- DCI and UHD 4K Resolution Support
- Focus and Composition Tools
- L-Series / LP-E6 Battery Plate
- Includes Sun Hood and Mini-HDMI Cable
- Shoe Mount Ball Head

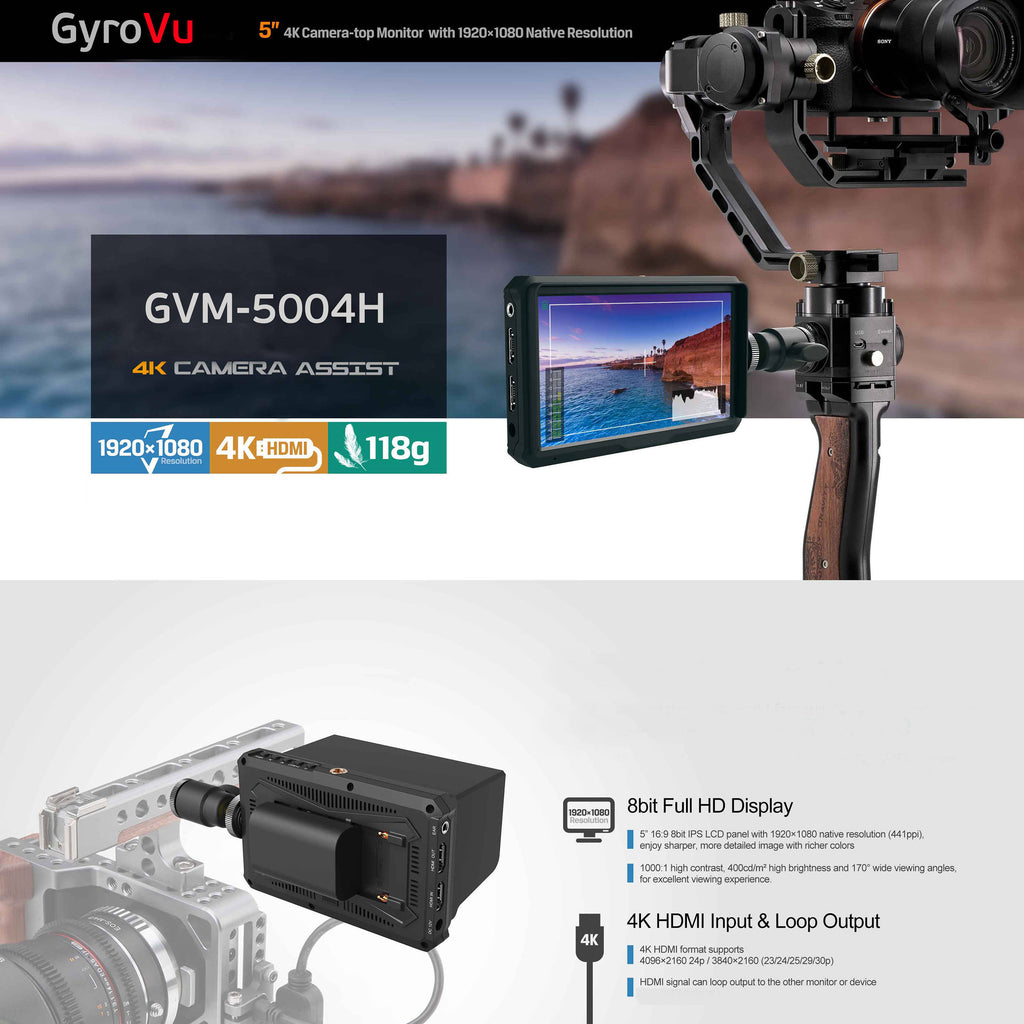

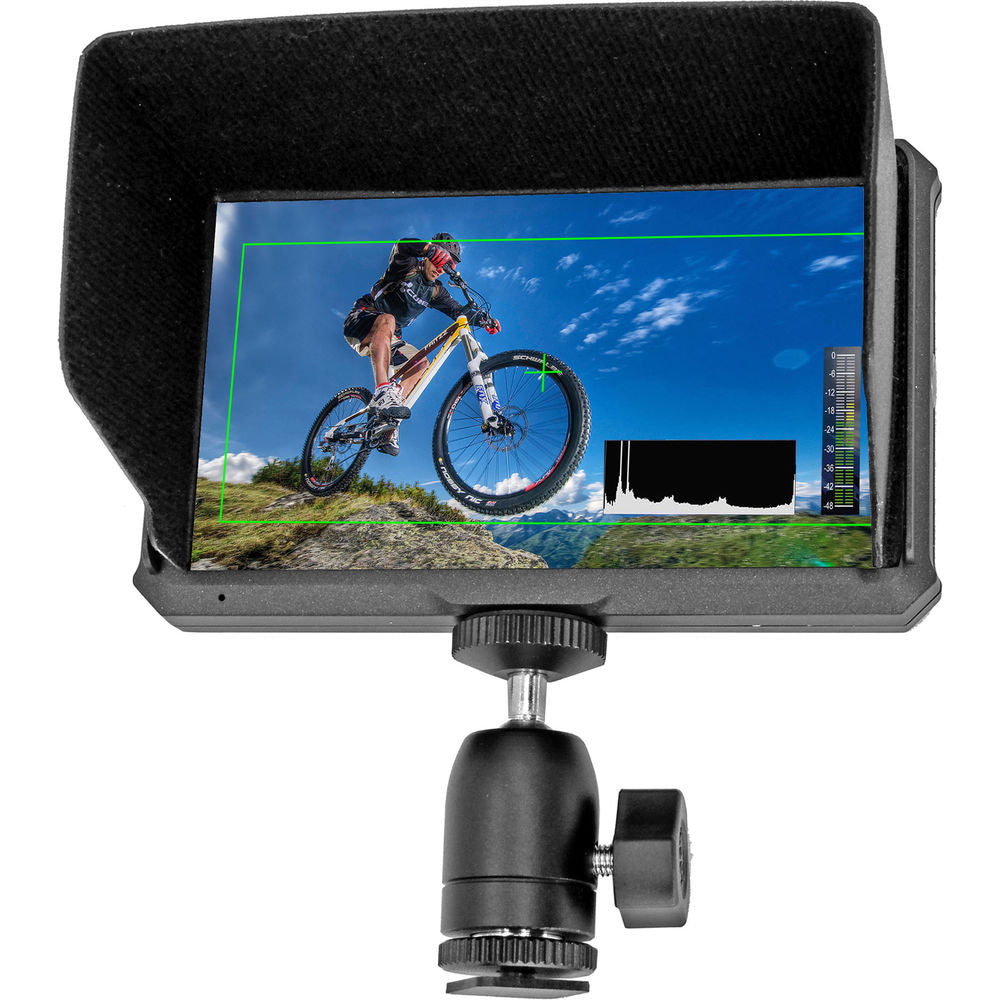

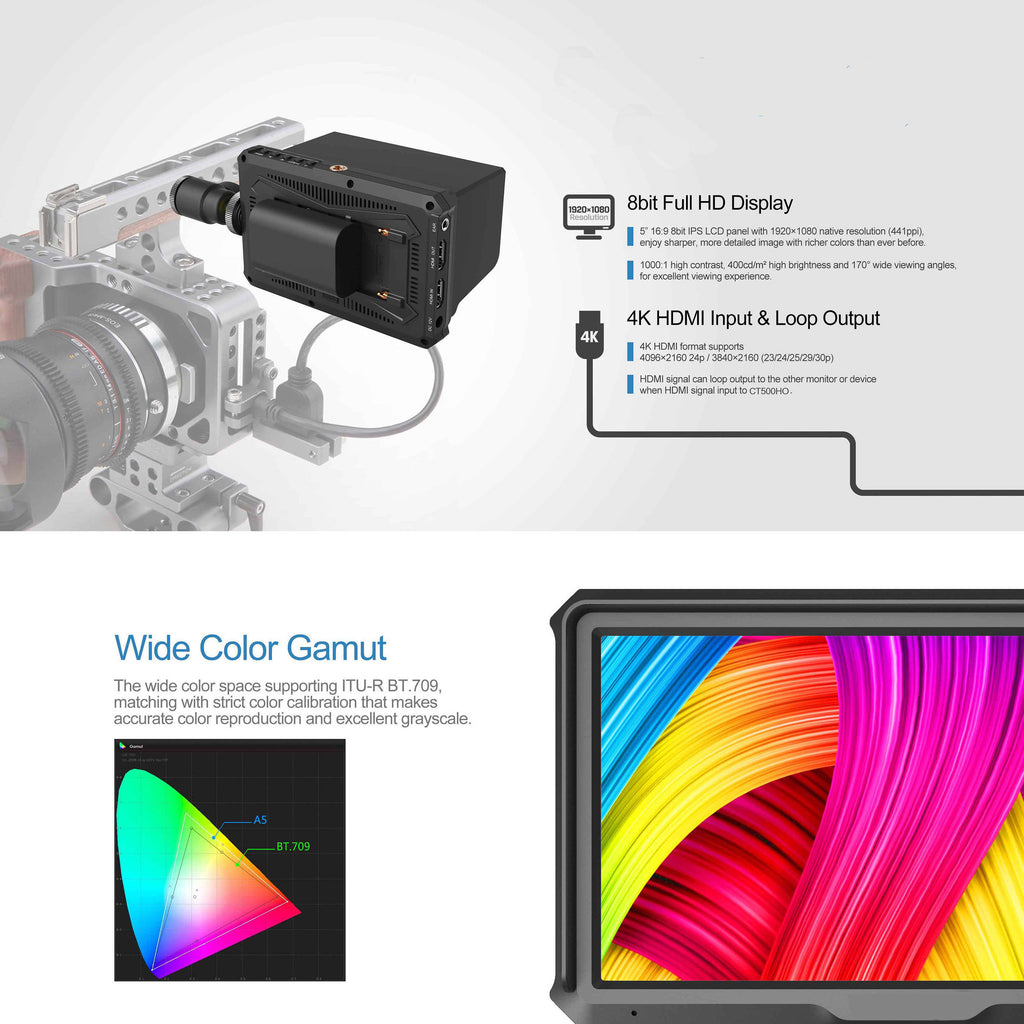

Help compose your videos with the GyroVu Ultra Lightweight 5" On-Camera Monitor . Using an 8-bit 1920 x 1080 IPS LCD panel, focusing by eye is possible, and critical focus can be achieved using the zoom function. Since this monitor is lightweight, using it atop a small mirrorless camera won't add bulk to a compact setup. The HDMI input can accept 4K resolutions, letting the camera provide a sharp image to use for framing. For power, the monitor's battery plate will accept either L-series batteries or LP-E6 batteries. Included with the monitor are a sun hood for blocking reflections and glare, a shoe mount ball head for placing the monitor atop your camera, and a mini-HDMI to HDMI cable.
UPC: 647603938806

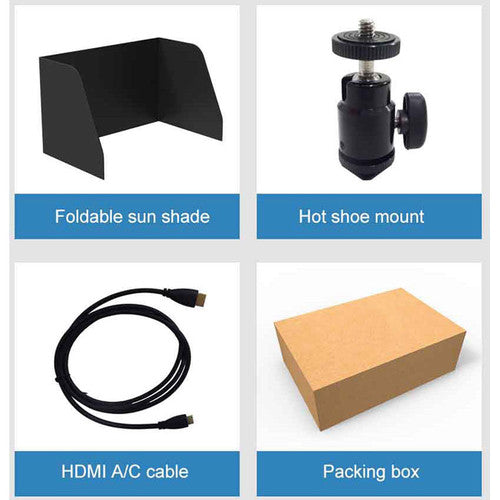

In the Box
GyroVu Ultra Lightweight 5" On-Camera Monitor
Folding Sun Hood Shoe Mount Ball Head Mini-HDMI to HDMI Cable Limited 1-Year Warranty | Display |
| Panel Type | IPS-Type LCD |
| Display Size | 5.0" / 12.7 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170°
Vertical: 170° |
| Touchscreen | No |
| Maximum Brightness | 400 cd/m 2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 441 ppi |
| Color Gamut | Not Specified by Manufacturer |
| LUT Support | No |
| Image Controls | Histogram, Screen Markers, Zebra |
| I/O |
| Video | 1 x HDMI 1.4b (HDMI Type A) Input
1 x HDMI 1.4b (HDMI Type A) Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio | None |
| Built-In Speaker | None |
| Power | 1 x Barrel Input |
| Other I/O | None |
| Card Slot | None |
| Format Support |
| Video Format | HDMI
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30 |
| Power |
| DC Input Power | 7 to 24 VDC |

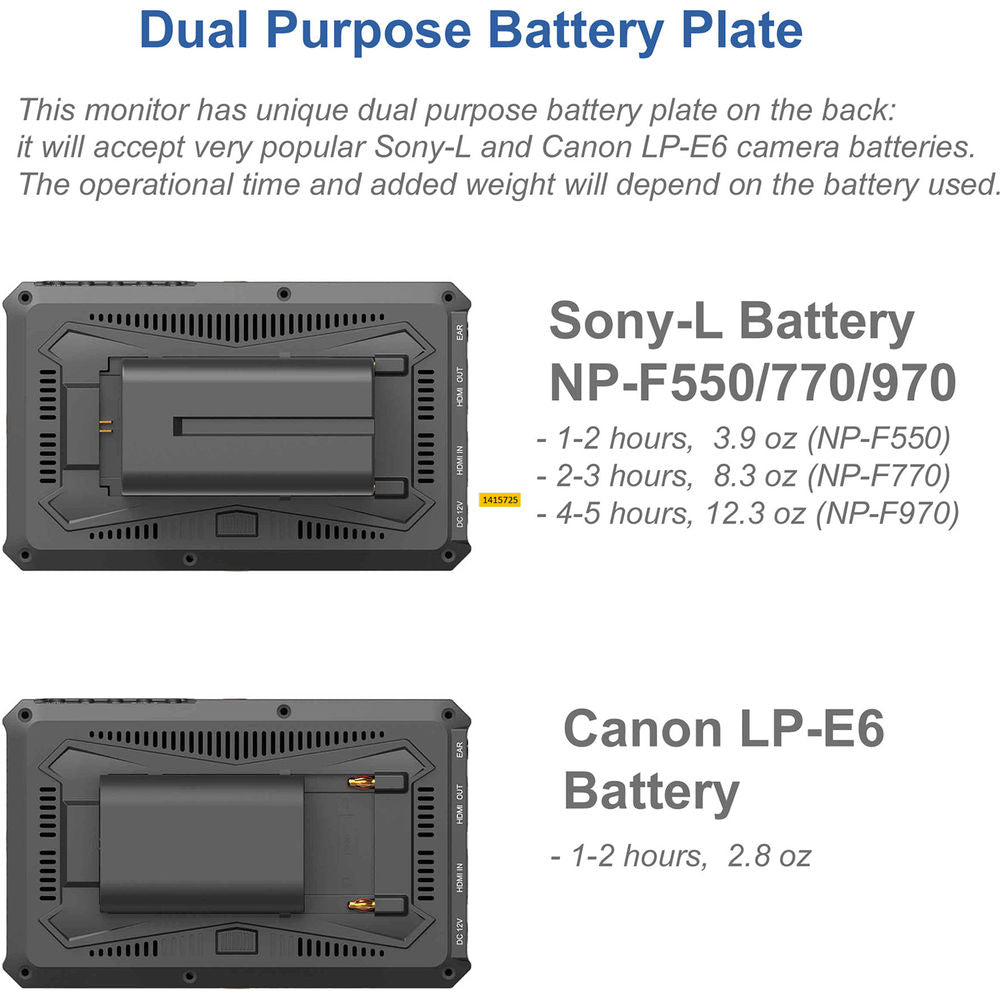

| Battery Type | 1 x LP-E6 or L-Series |
| Operating Current | 600 mA (Typical) |
| Power Consumption | 9 W (Maximum) |
| Environmental |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| General |

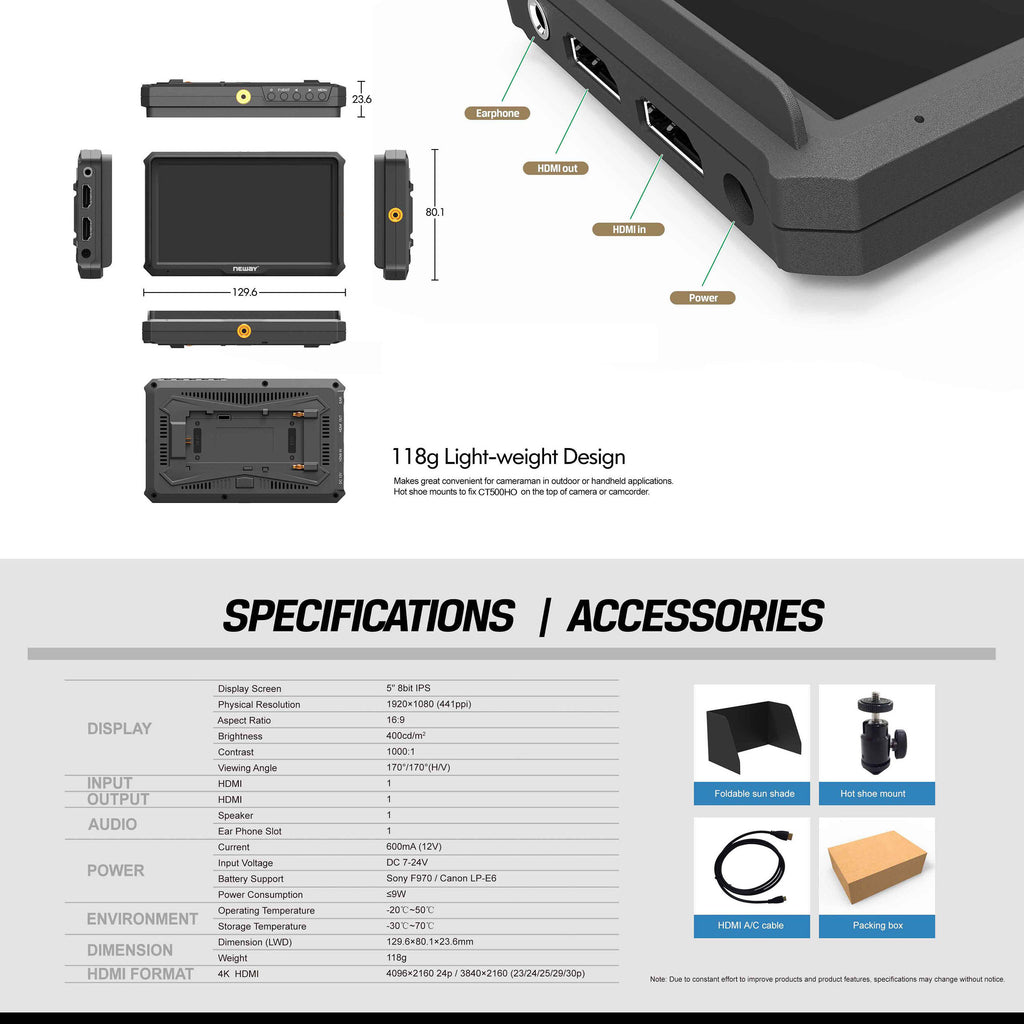

| Dimensions (W x H x D) | 5.1 x 3.1 x 0.9" / 13.0 x 8.0 x 2.4 cm |
| Weight | 4.16 oz / 118 g |
| Packaging Info |
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.6" |
