- Lightweight 5" On-Camera Monitor
- DCI 4K Support, 1920 x 1080 Resolution
- HDMI Input and HDMI Loop Out
- Dual LP-E6 or L-Series Battery Mount
- Wide 8-Bit Color Gamut
- 1000:1 Contrast Ratio, 400 cd/m²
- 170° Viewing Angle
- Includes Carbon Fiber Clamp Mount
- HDMI Cable, Sun Hood, Shoe Mount

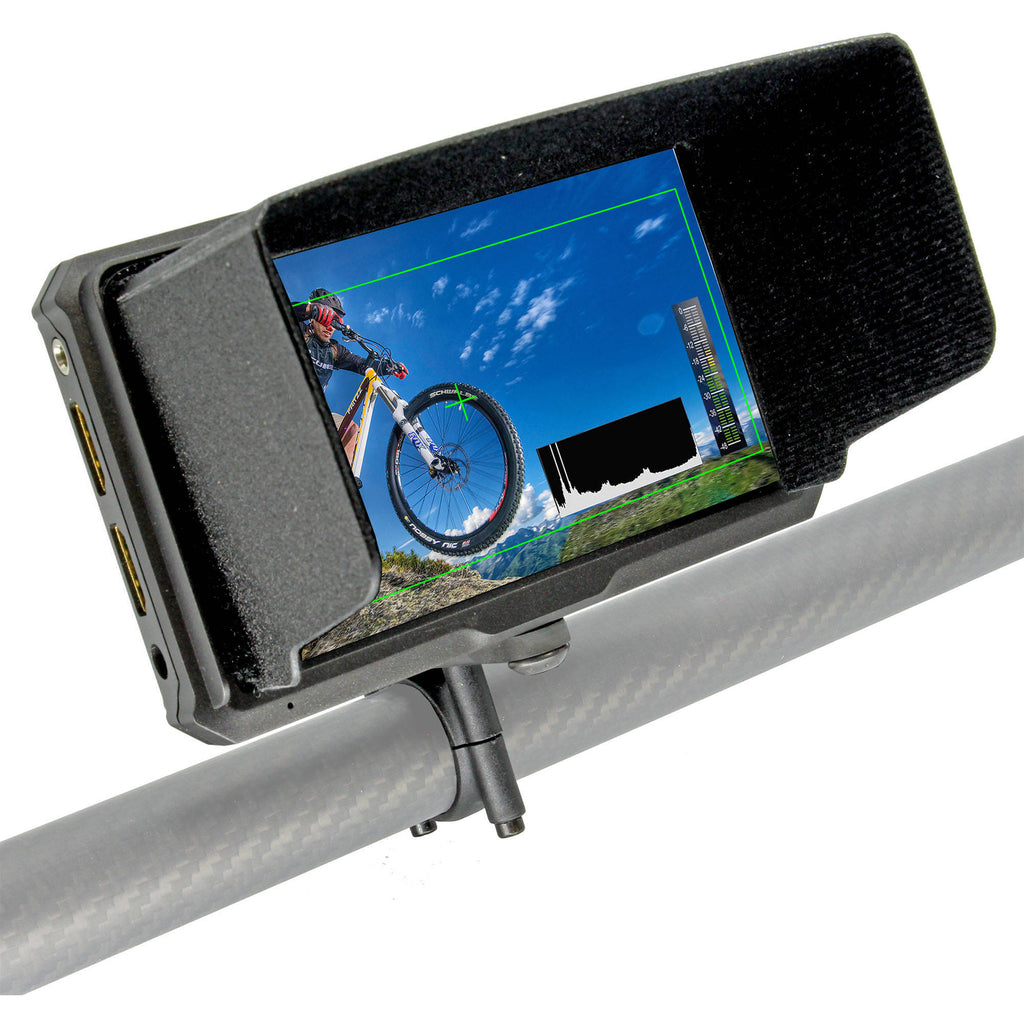

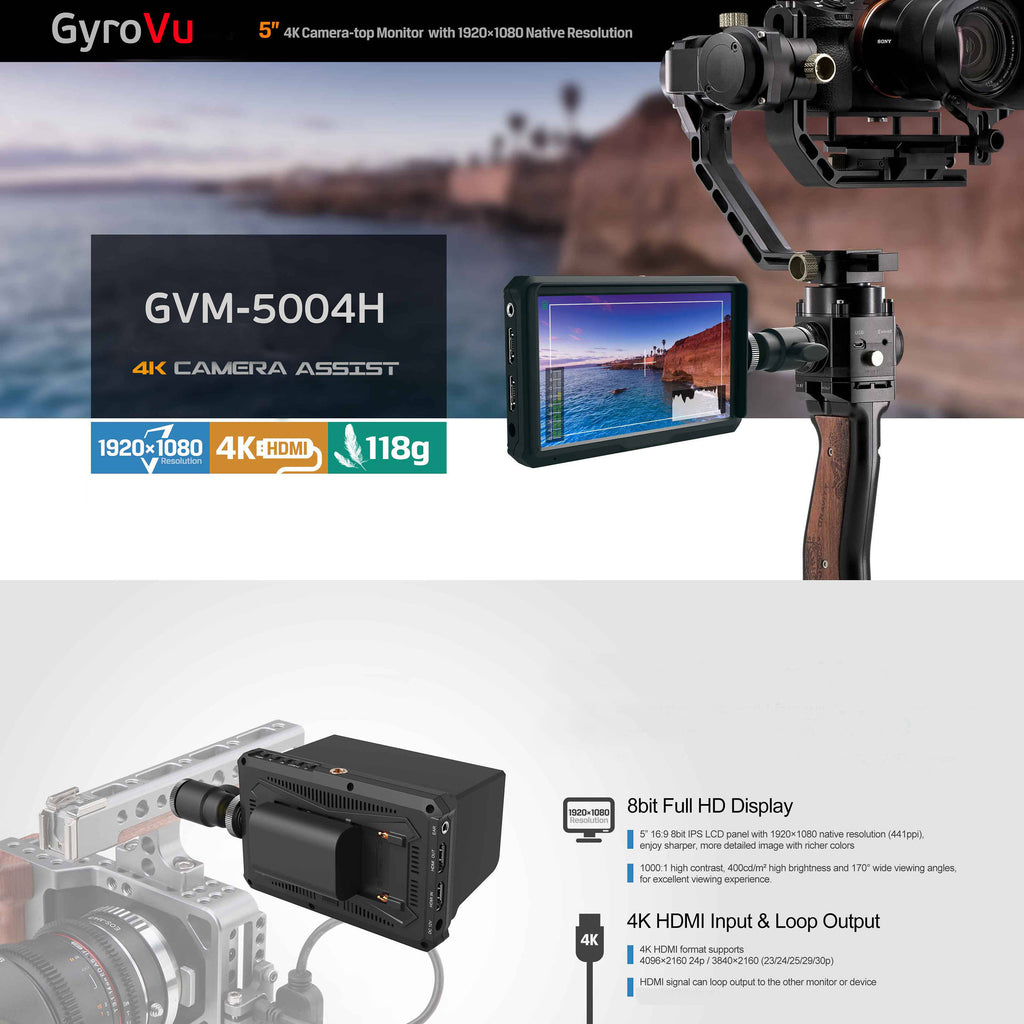

Monitor your videos and compose your shots with the GyroVu Lightweight 4K 5" On-Camera HDMI Monitor , which includes a carbon fiber clamp mount that fits rods up to 30" in diameter for DJI Ronin Series gimbal stabilizers. Using an 8-bit 1920 x 1080 IPS LCD panel with a 1000:1 contrast ratio, 400 cd/m² brightness, and a 170° viewing angle, focusing by eye is possible, and critical focus can be achieved using the pixel zoom function. Since this monitor is lightweight, using it atop a small mirrorless camera won't add bulk to a compact setup.

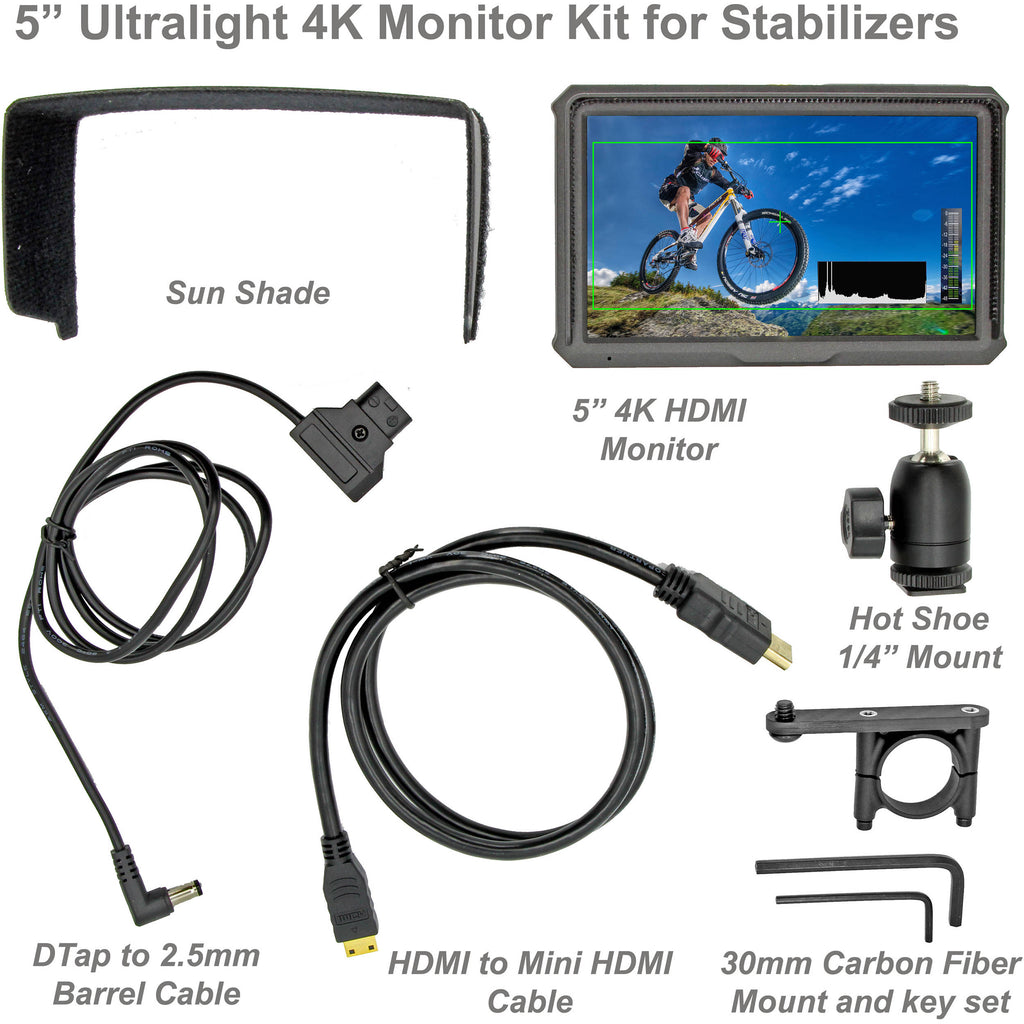

The HDMI input accepts DCI and UHD 4K resolutions, allowing the camera provide a sharp image to use for framing. The monitor's dual-purpose battery plate will accept either L-series batteries or LP-E6 batteries. A carbon fiber clamp mount that fits rods up to 30" in diameter is included, designed to attach to the handle of a DJI Ronin Series stabilizer. Also included are a sun hood for blocking reflections and glare, a shoe mount with a ball head for placing the monitor atop your camera, a D-Tap to 25mm barrel power cable, two Allen wrenches to tighten the mount screws, and a mini-HDMI to HDMI cable.
- Lightweight 5" on-camera monitor with 1920 x 1080 resolution; accepts up to DCI and UHD 4K HDMI input and active loop out.

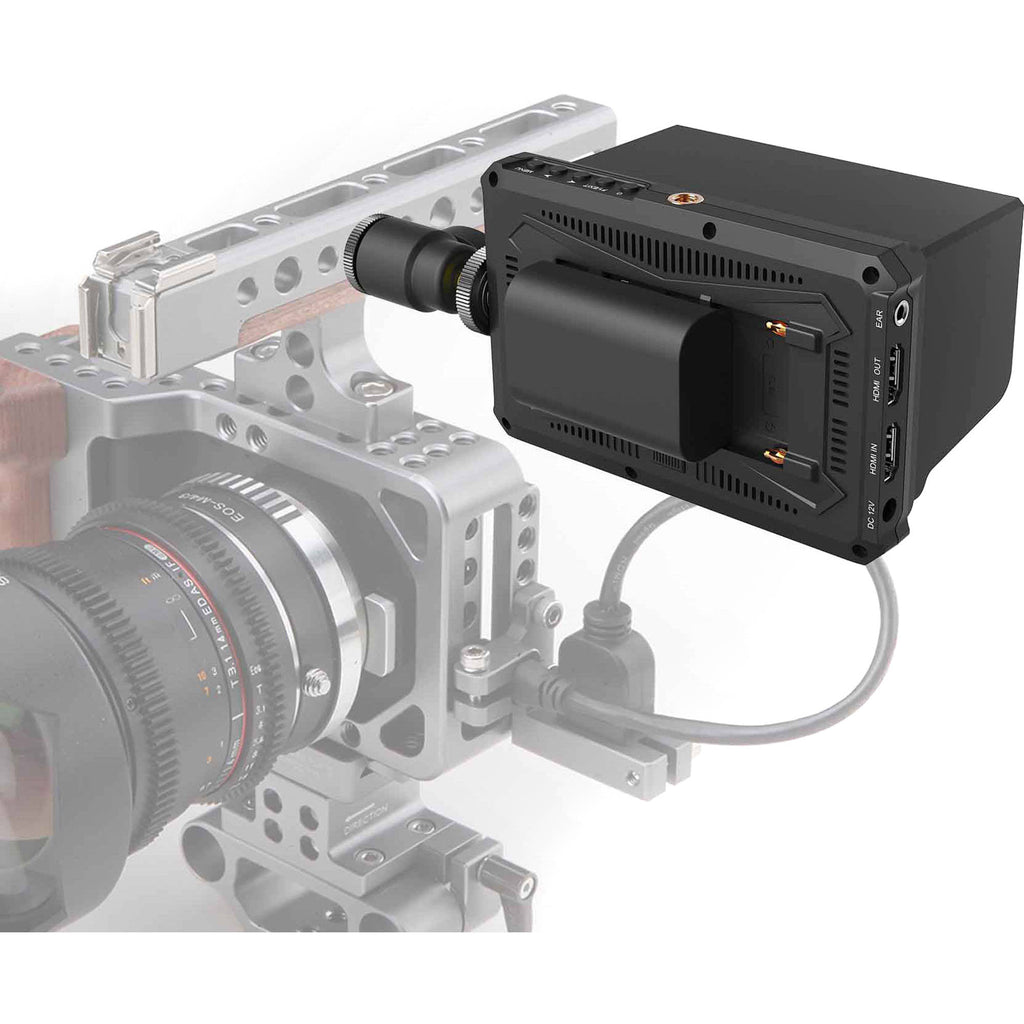

- Dual battery plate accepts two Sony L-series or two Canon LP-E6 batteries.

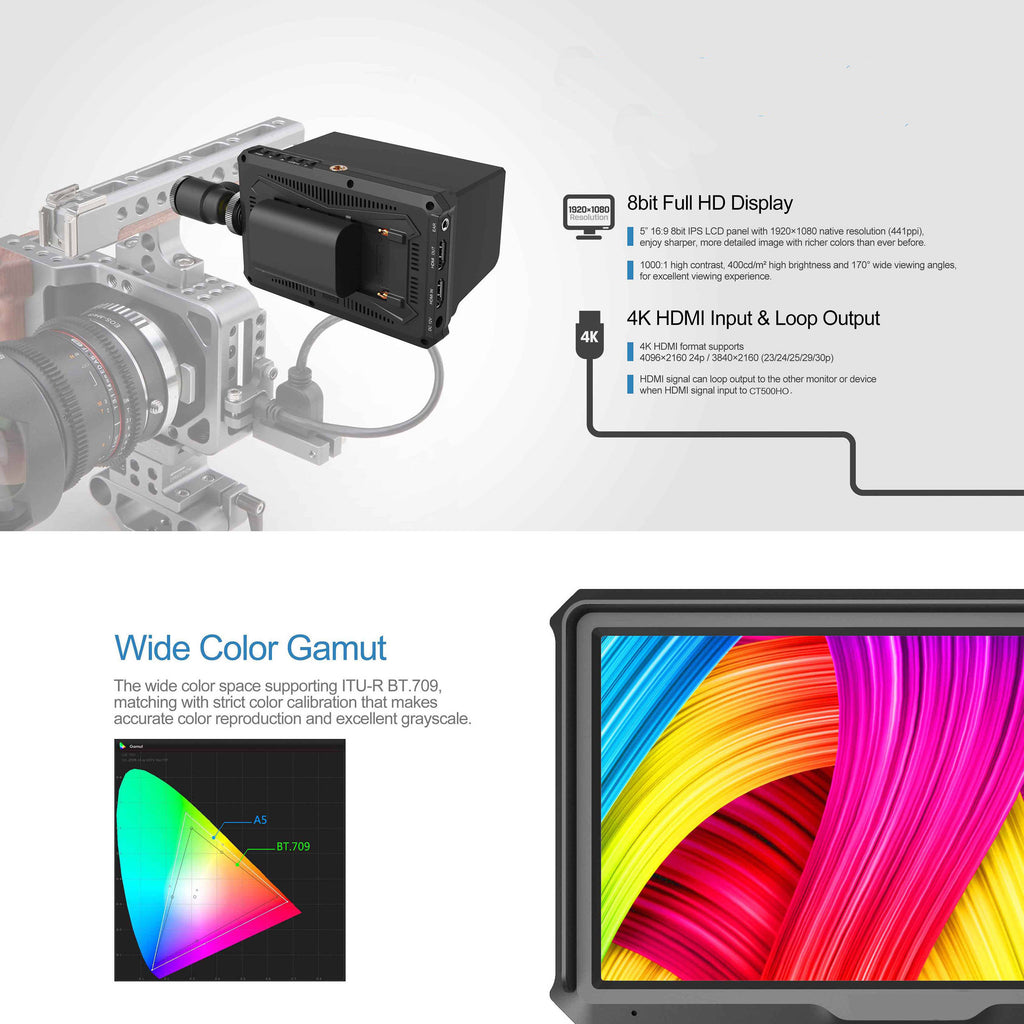

- Wide color gamut, 400 cd/m², 1000:1 contrast ratio, 170° viewing angle.
- Features include histogram, 2-channel audio monitoring, zebra, safety zones, pixel zoom, and more.
- Audio features include a built-in stereo speaker and a headphone jack.

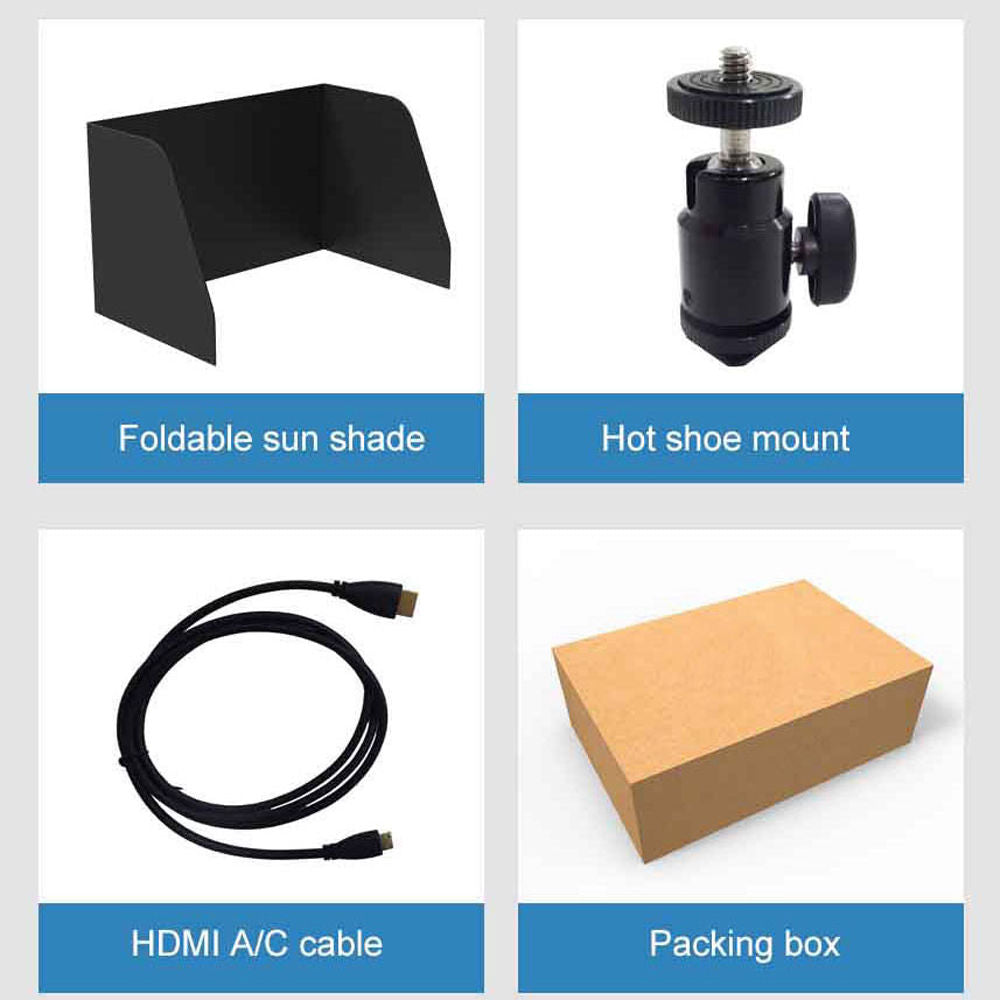

- Includes a monitor hood, HDMI cable, a shoe mount adapter, and a carbon fiber clamp mount that fits rods up to 30" in diameter designed to mount your monitor on a DJI Ronin Series handle. Allen wrenches and screws are included to attach the mount.
UPC: 647603939049

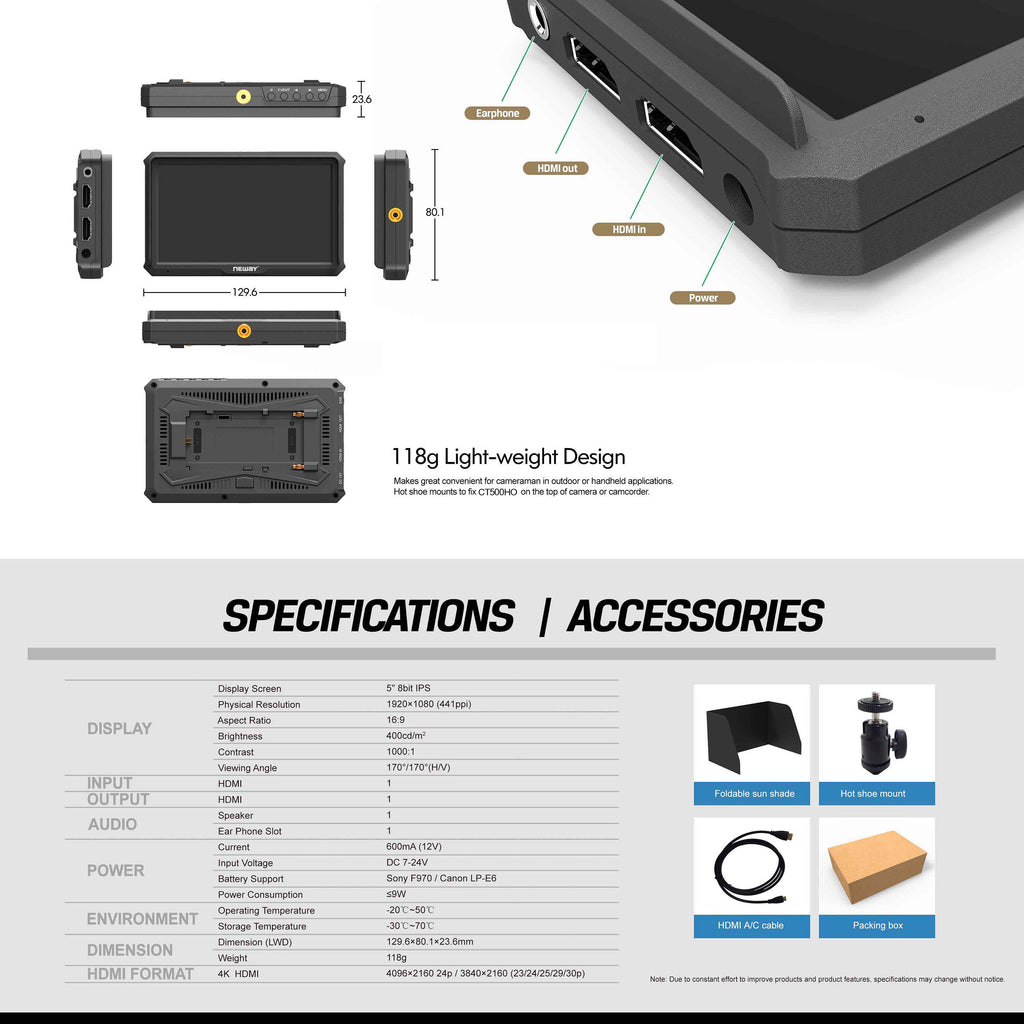

GyroVu GVM-5004H-R2 specs
| Display |
| Panel Type | IPS-Type LCD |
| Display Size | 5.0" / 12.7 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170°
Vertical: 170° |
| Touchscreen | No |
| Maximum Brightness | 400 cd/m 2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 441 ppi |
| LUT Support | No |
| Image Controls | Histogram, Pixel-to-Pixel Zoom, Screen Markers, Zebra |
| I/O |
| Video | 1 x HDMI 1.4b (HDMI Type A) Input
1 x HDMI 1.4b (HDMI Type A) Output |
| HDCP Support | No |
| Embedded Audio | HDMI: 2-Channel |
| Audio | 1 x 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power | 1 x Barrel Input |
| Other I/O | None |
| Card Slot | None |
| Format Support |
| Video Format | HDMI (8-Bit)
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30 |
| Power |
| DC Input Power | 7 to 24 VDC at 600 mA |
| Battery Type | 2 x LP-E6 or L-Series |
| Power Consumption | 9 W (Typical) |
| Environmental |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| General |
| Dimensions (W x H x D) | 5.1 x 3.2 x 0.9" / 12.95 x 8.13 x 2.29 cm |
| Weight | 4.2 oz / 119 g |
| Packaging Info |
| Package Weight | 1.265 lb |
| Box Dimensions (LxWxH) | 6.9 x 4.9 x 2.55" |
