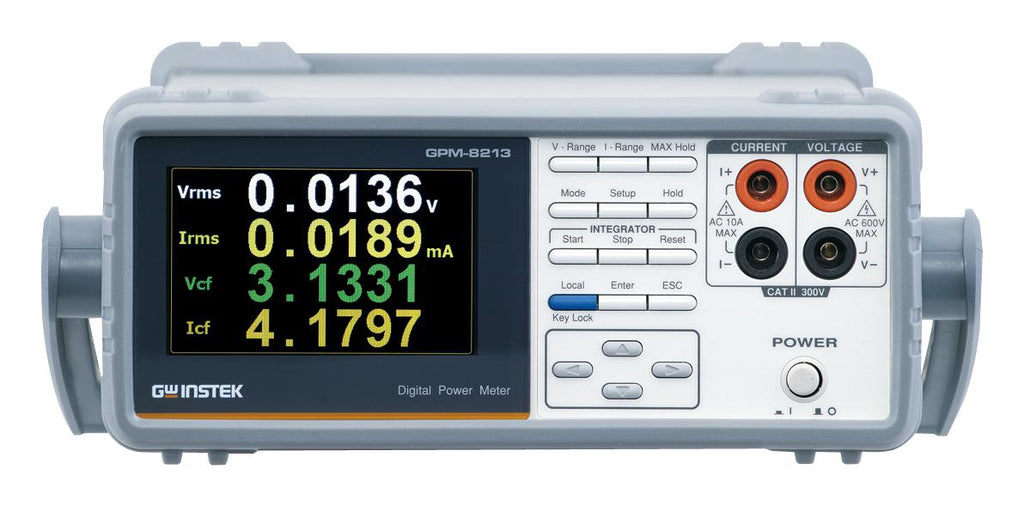

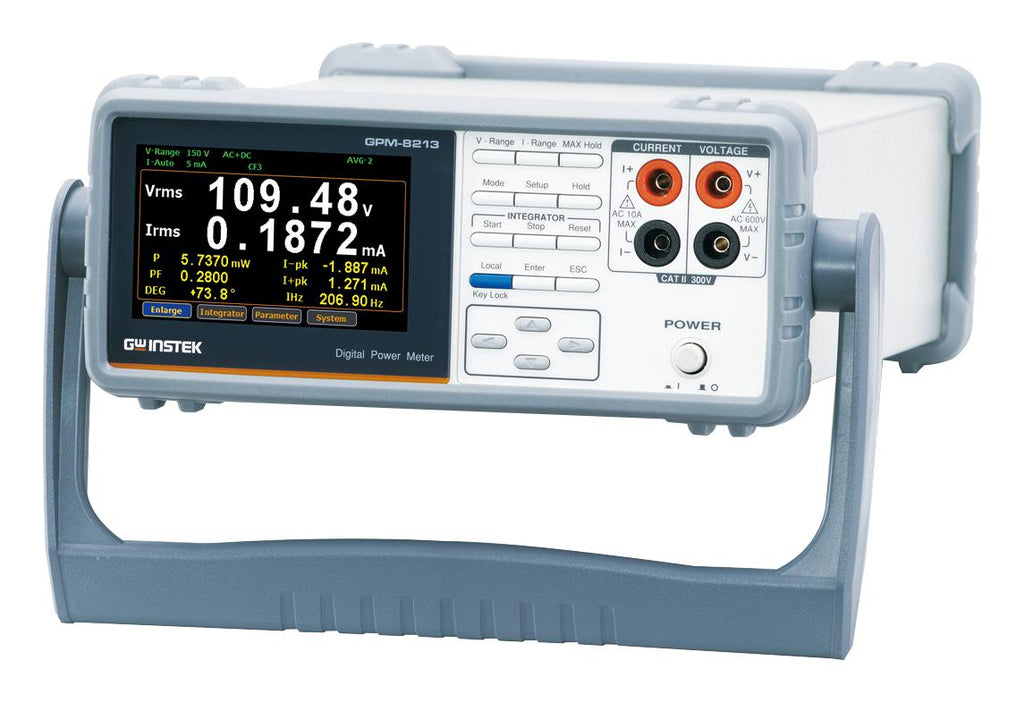

Digital power meter designed specifically for single-phase (1P/2W) AC power supply's power measurements. It comes with two data display modes standard display (displaying 2 major measurement items + 6 minor measurement items) and simple display (displaying test data of four different measurement items).
- 4" TFT LCD
- 19 power measurement parameters
- Integral measurement function and high-accuracy voltage/current/power measurement capabilities
- Front panel test terminal
- RS-232C, USB device, LAN standard interface
Applications
Test & Measurement
Contents
Digital power meter, Safety sheet x 1, Power cord x 1, Test lead GTL-209 x 1 CD x 1 (user manual/ USB driver).
Footnotes In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Product details
| Analyser Functions |
Current, Crest Factor, Frequency, Harmonics, Integration, Power, Voltage |
| No. of Channels |
2 Channel |
| Voltage Range rms |
600V |
| Bandwidth |
6kHz |
| External Height |
110mm |
| External Width |
270mm |
| External Depth |
350mm |
| Product Range |
- |
Other details
| Brand |
GW INSTEK |
| Part Number |
GPM-8213 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
