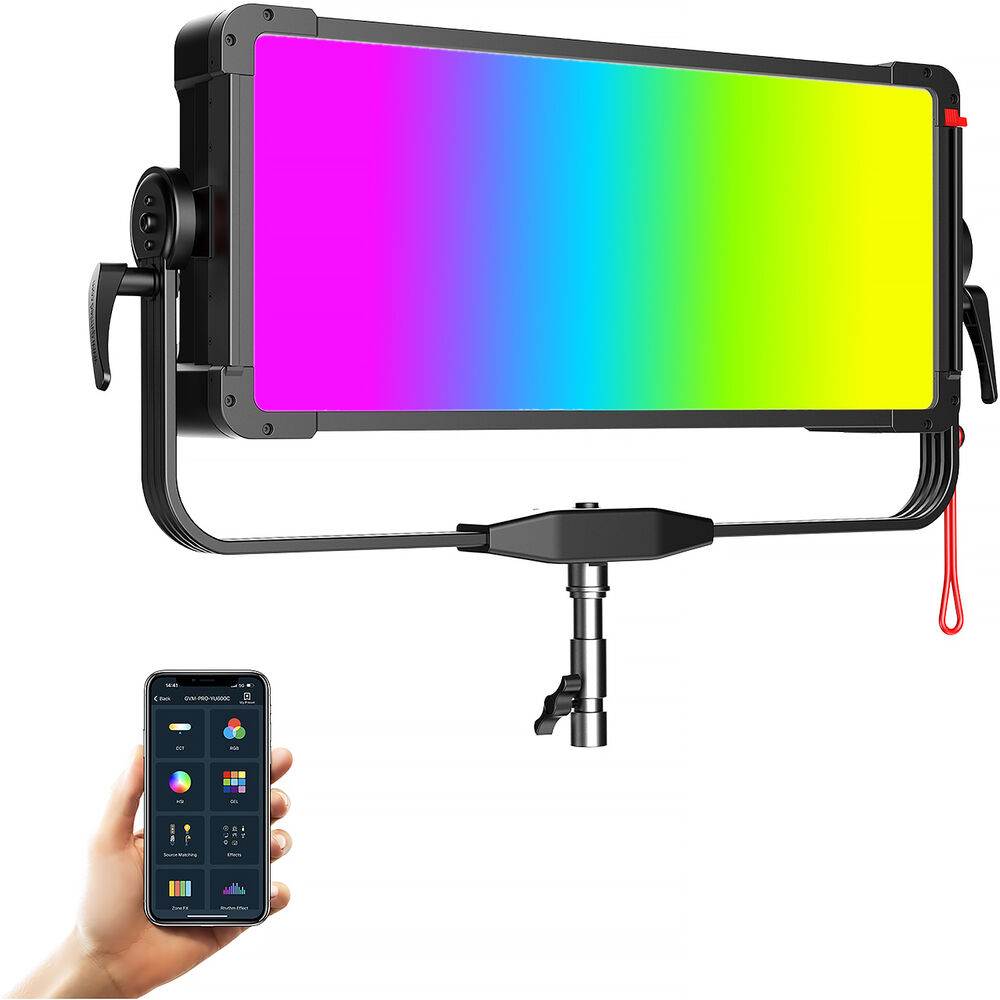

GVM YU600C PRO RGB LED Light Panel

Strongest Output

Delivering high performance for film and television, the soft panel emits up to 16,000 lux at 3.3' (5600K)�the brightest fixture of GVM'S YU series. The panel runs on universal 100-240 VAC power with its included cable.

Intensity & Color Accuracy

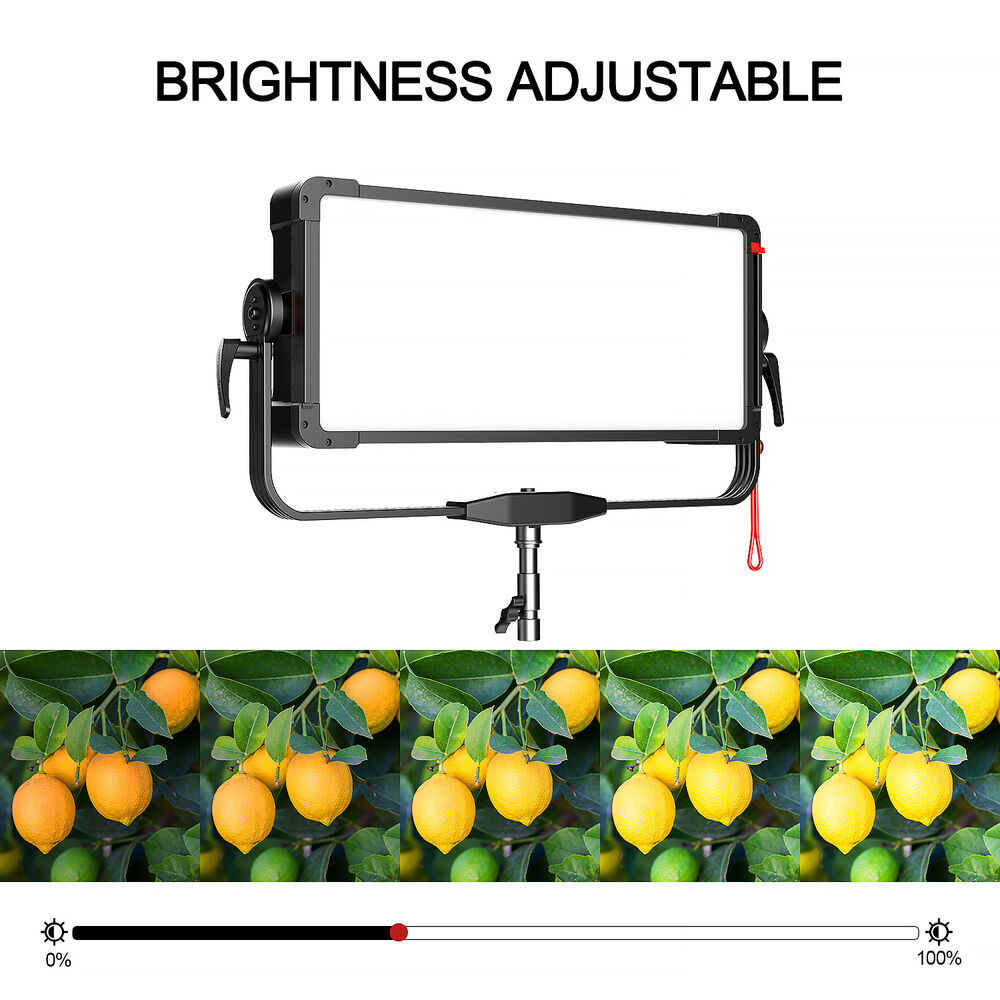

This cinematic light has an algorithm that maintains consistent brightness for all color temperatures with smooth dimming from 0 to 100%. Users can accurately adjust the brightness by 0.1% so they can get exactly the right brightness level for what they want. Besides that, a high CRI of 97 ensures advanced proficiency in color reproduction.

Four Dimming Curves

The YU600C PRO has four dimming curves: Linear, Exponential, Logarithmic, and S-Curve to give you precise control over output, which is useful in TV/entertainment production sets.

20 Lighting Effects

Choose from a wide range of effects to unlock popular creative lighting simulations, including party, cop car, hue loop, ambulance, bad bulb, paparazzi, lightning, candle, TV, CCT loop, pulsing, strobe, fire engine, SOS, fireworks, explosion, color switch, color replacement, color shift, and color gradient.

12 Matching Light Sources

Light source matching allows you to select from 12 styles of light to quickly match your shooting scenes, such as halogen, studio lamps, daylight, sunset/sunrise, overcast sky, and others.

Selectable Light Modes

• CCT mode adjusts light intensity and color temperature.
• RGB and HSI modes adjust the hue, saturation, and light intensity, providing 0 to 360° control for millions of colors.
• GEL color paper mode supports ROSCO and LEE filter adjustments.

Control Methods

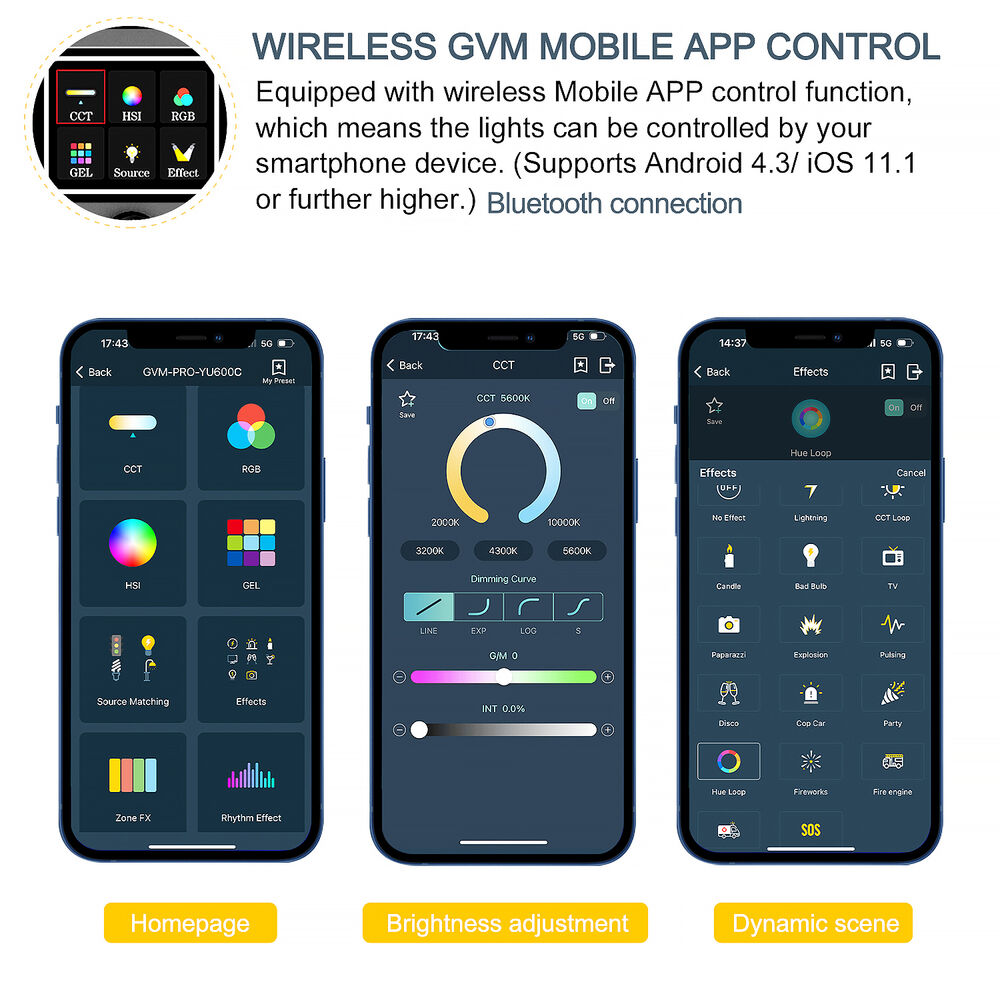

All of the fixture's adjustments can be made locally on the unit, remotely thanks to the YU600C PRO's built-in DMX512 support, or wirelessly from your smartphone using a dedicated app.

• A multifunctional LCD screen on the rear of the panel displays vital settings and parameters.
• Integrated manual control buttons can handle various aspects, such as brightness level and color temperature.

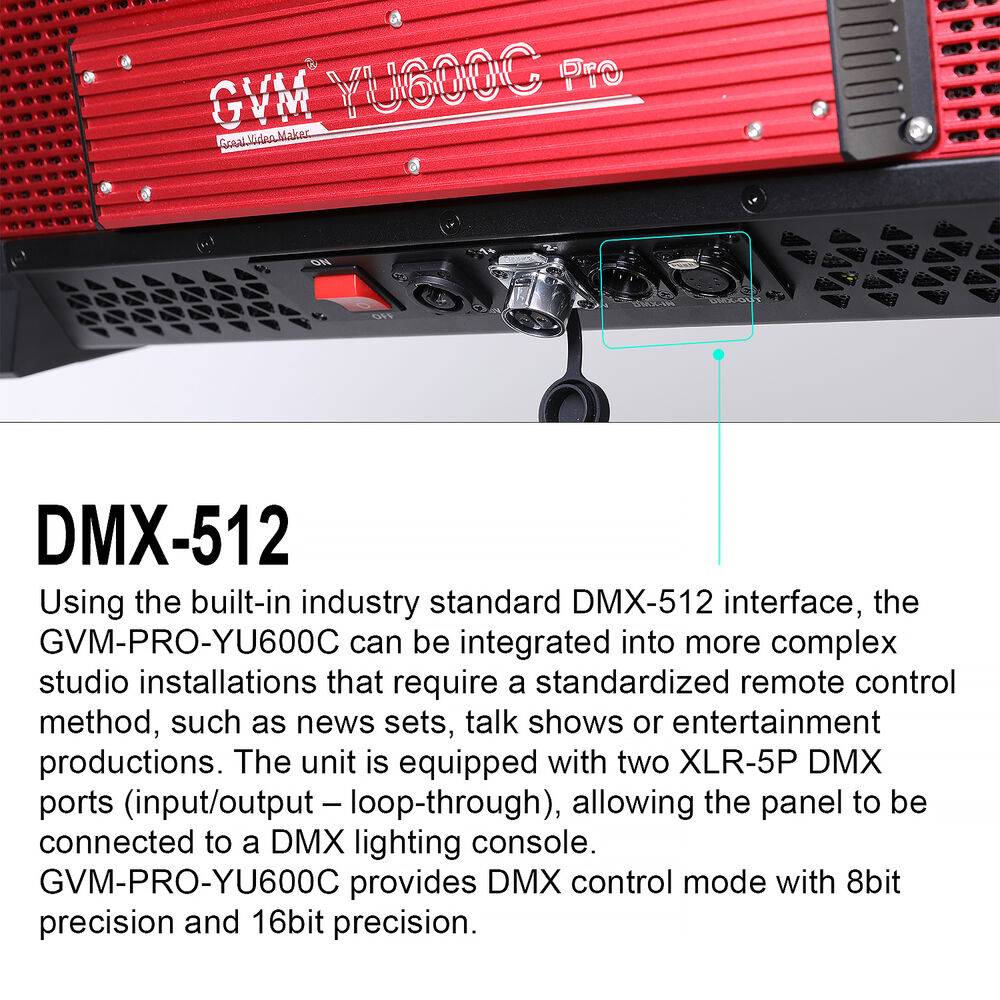

• The panel enables DMX control mode with low-accuracy 8-bit and 16-bit high accuracy.

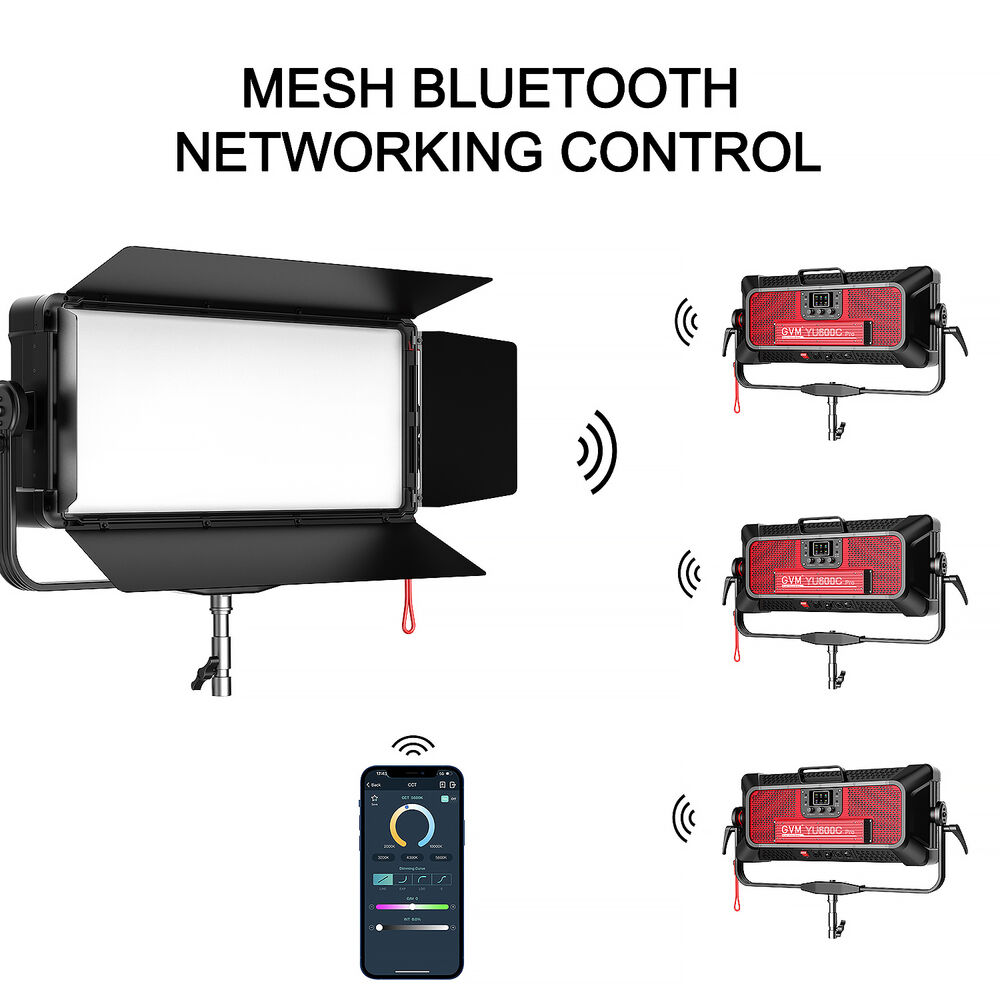

• GVM brand devices that support Bluetooth networking can be used for group control.



Additional Details

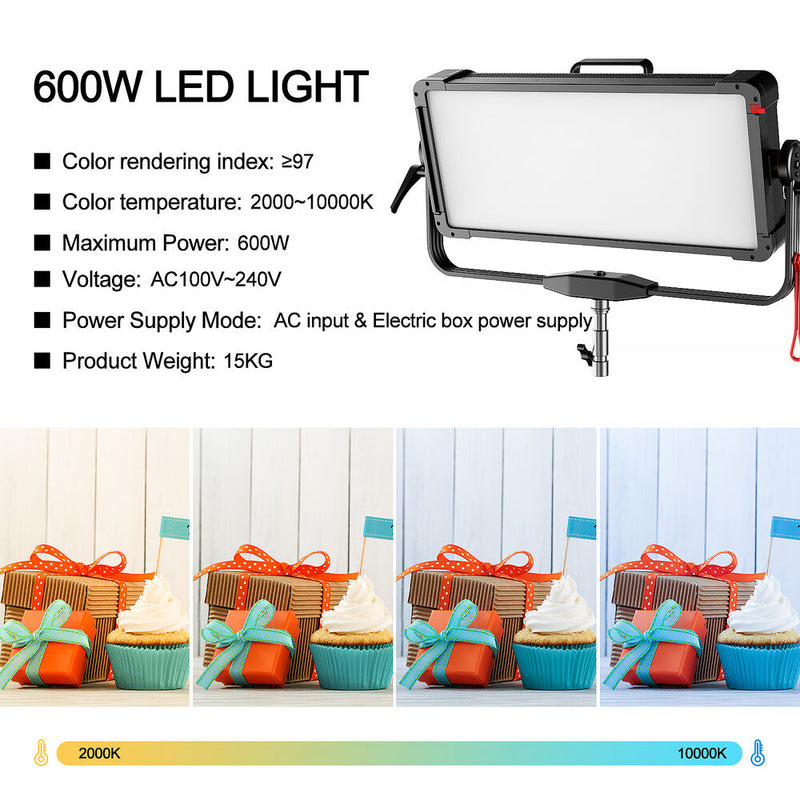

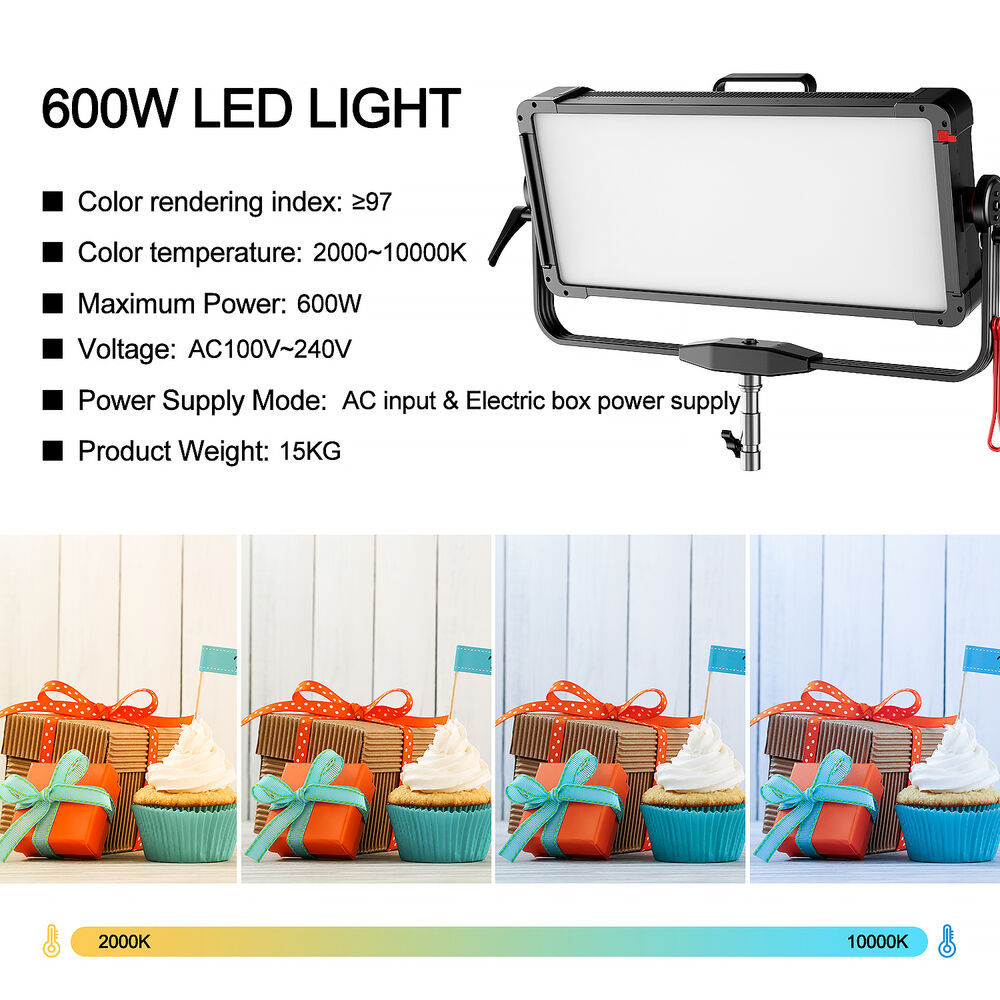

• 600W power output
• 3120 LED lamp beads

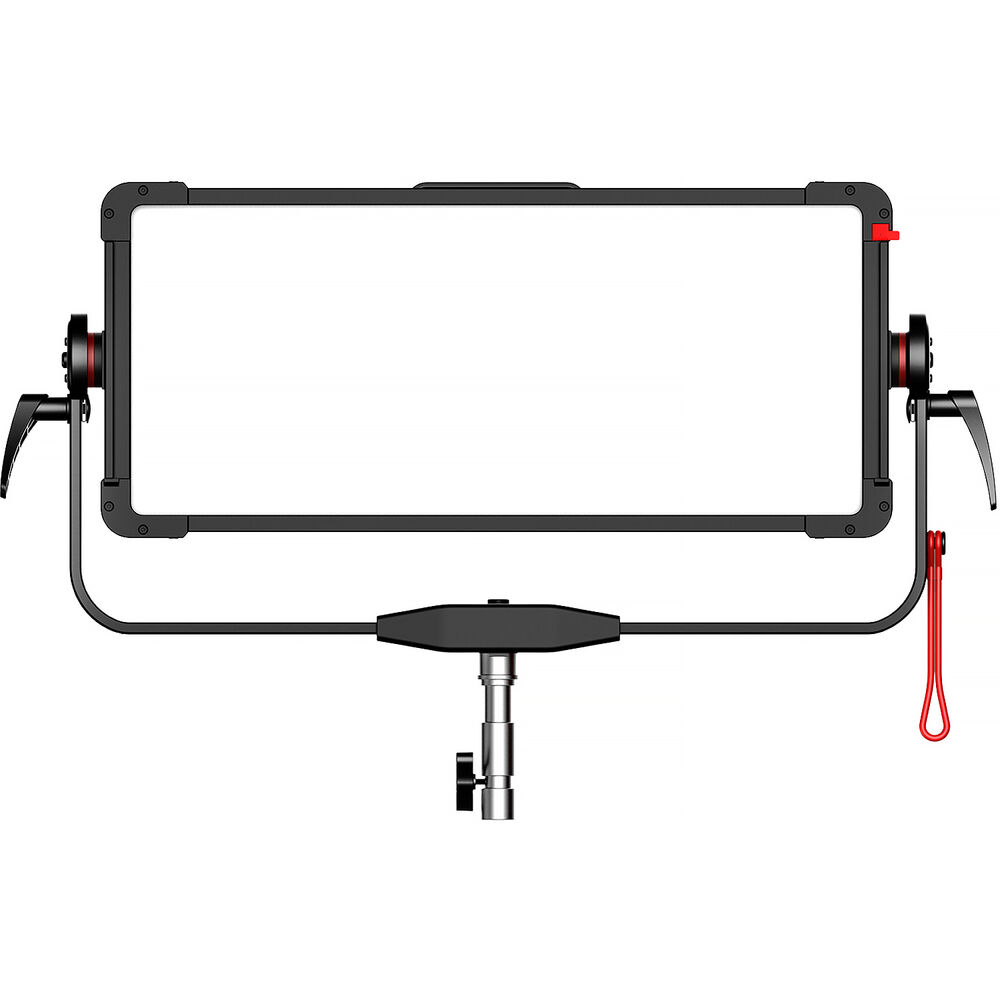

• U-shaped bracket
• Aluminum alloy housing
• Accepts optional modifiers, including barndoors and grid
• Includes a robust carry case to store and safely transport the panel

GVM Pro YU600CSpecs

Item Type	1x LED Light Panel
Included Storage Case	Yes
Photometrics	2000K: 1161 fc / 12,500 Lux at 3.3' / 1 m* 2700K: 1170 fc / 12,600 Lux at 3.3' / 1 m* 3200K: 1439 fc / 15,500 Lux at 3.3' / 1 m* 4300K: 1402 fc / 15,100 Lux at 3.3' / 1 m* 5100K: 1458 fc / 15,700 Lux at 3.3' / 1 m* 5600K: 1486 fc / 16,000 Lux at 3.3' / 1 m* 4552 fc / 49,000 Lux at 1.6' / 0.5 m 6500K: 1458 fc / 15,700 Lux at 3.3' / 1 m* 7500K: 1393 fc / 15,000 Lux at 3.3' / 1 m* 8500K: 1300 fc / 14,000 Lux at 3.3' / 1 m* 10000K: 1309 fc / 14,100 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer
Color Temperature	2000 to 10,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 97
Dimming	Built-In Dimmer  � 0 to 100%
Front Accessory Mount	Proprietary
Wireless Remote Control Type	Bluetooth
Power Source	AC Power (Cable Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	600 W
Fixture Mounting	1x 5/8" Receiver (Via Yoke Mount)

Item Type	1x LED Light Panel
Included Filters	Soft Diffusion (Built-In)
Included Storage Case	Yes
Photometrics	2000K: 1161 fc / 12,500 Lux at 3.3' / 1 m* 2700K: 1170 fc / 12,600 Lux at 3.3' / 1 m* 3200K: 1439 fc / 15,500 Lux at 3.3' / 1 m* 4300K: 1402 fc / 15,100 Lux at 3.3' / 1 m* 5100K: 1458 fc / 15,700 Lux at 3.3' / 1 m* 5600K: 1486 fc / 16,000 Lux at 3.3' / 1 m* 4552 fc / 49,000 Lux at 1.6' / 0.5 m 6500K: 1458 fc / 15,700 Lux at 3.3' / 1 m* 7500K: 1393 fc / 15,000 Lux at 3.3' / 1 m* 8500K: 1300 fc / 14,000 Lux at 3.3' / 1 m* 10000K: 1309 fc / 14,100 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer
Color Temperature	2000 to 10,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 97
Dimming	Built-In Dimmer  � 0 to 100%
Cooling System	Fan
Beam Angle	180°
Built-In Flash	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Wireless Remote Control Type	Bluetooth
Mobile App Compatible	Yes: Android & iOS Functionality: Remote Control

Power Source	AC Power (Cable Included)
Inputs/Outputs	1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output
Input Power	100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	Yes
Power Consumption	600 W

Yoke Type	Manually-Operated Yoke
Fixture Mounting	1x 5/8" Receiver (Via Yoke Mount)

Display	LCD
Environmental Resistance	No
Materials	Aluminum, Plastic (Housing)
Dimensions	32.3 x 20.6 x 6.5" / 82 x 52.3 x 16.5 cm (Fixture Panel)
Weight	33.1 lb / 15 kg

Package Weight	68.3 lb
Box Dimensions (LxWxH)	37.5 x 26 x 12.5"
