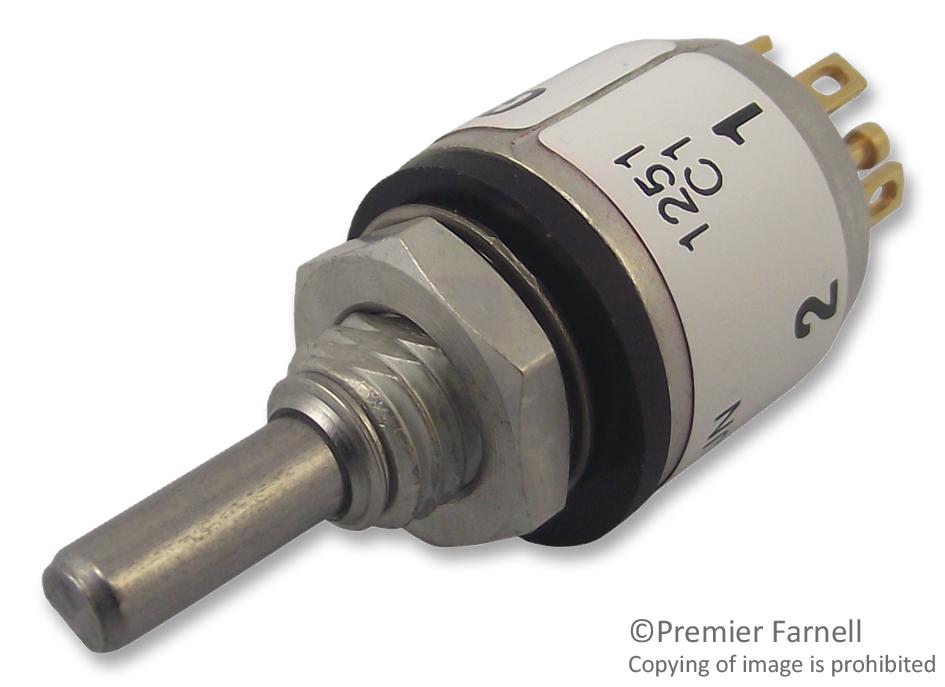

The 51P22-01-1-16N is a single-pole sixteen-throw (SP16T) 1-deck Rotary Switch with PC mount terminals and non-shorting contacts. The 51 series switch is made up of thermoset base, nylon detent rotor, tin-zinc plated zinc bushing, gold-plated over silver plate brass common ring, gold-plated precious metal alloy rotor contact, silicone rubber panel seal, fluoro-silicone shaft seal and tin-zinc-plated brass mounting nuts.
- Positive shaft grounding for EMI/RFI shielding
- Stainless steel shaft, stop blades and nickel-plated steel detent balls
- 20mR Maximum contact resistance
- 1000MR Minimum insulation resistance
Applications
Industrial
Product details
| No. of Switch Positions |
16 Position |
| No. of Poles |
1 Pole |
| Angle of Throw |
22.5° |
| Contact Current AC Max |
150mA |
| Contact Voltage AC Max |
220V |
| Product Range |
51 Series |
| Illumination |
Non Illuminated |
| Contact Current DC Max |
200mA |
| Contact Voltage DC Max |
28V |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
GRAYHILL |
| Part Number |
51P22-01-1-16N |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
