Description
Grace Design M905 Overview

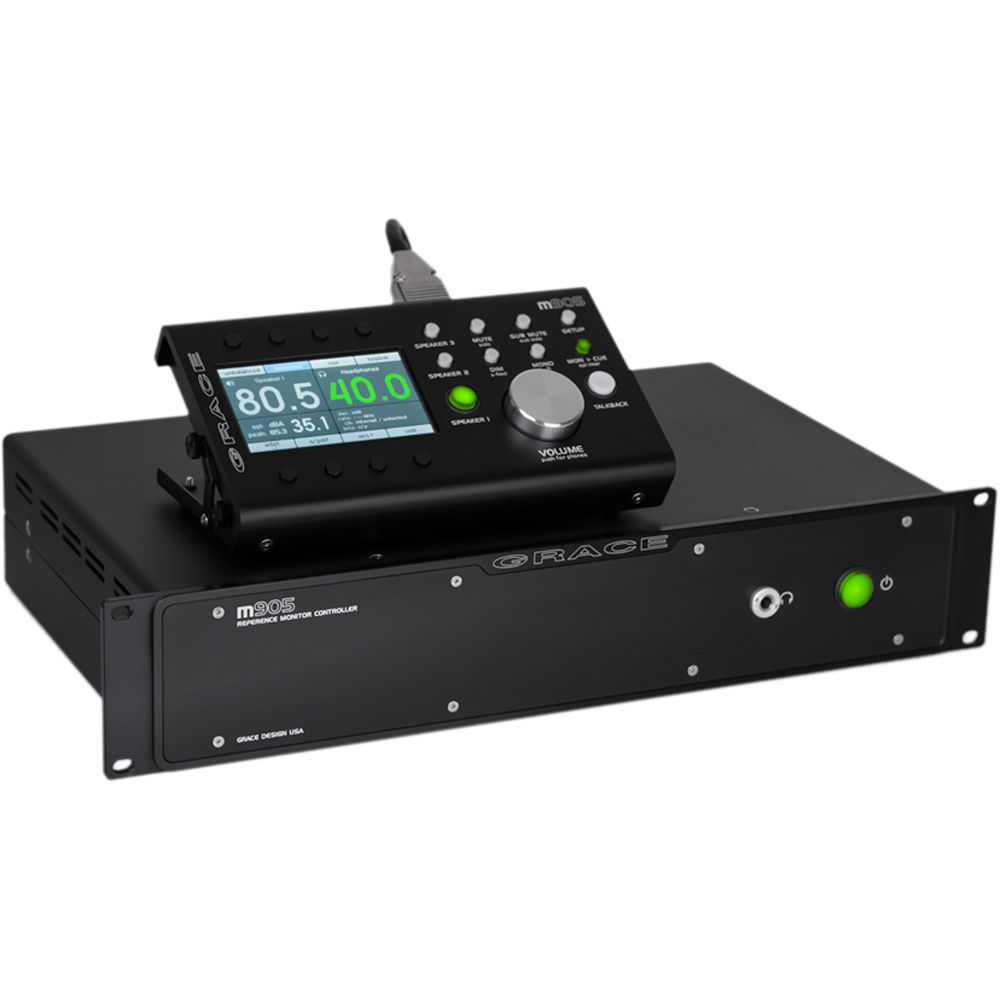

The black Grace Design m905 is a reference monitor controller and high-quality digital-to-analog converter, designed to deliver mastering-quality monitoring to your home or professional studio.
Featuring balanced and unbalanced analog inputs, and AES, S/PDIF and ADAT digital inputs, the m905 allows you to switch between a variety of input sources. Additionally, the unit has three stereo pairs of balanced speaker outputs with two assignable mono sub outputs, giving you a versatile selection of monitoring options when mixing or mastering.
In the Box
- Grace Design m905 Reference Monitor Controller (Black)
- Audio Control Unit (ACU)
- Remote Control Unit (RCU)
- RCU Tilt Base and Accompanying Hardware
- 25' Serial Cable
- 6' AC Power Cable
- Rubber Feet and Rack Screws
- Limited 5-Year Manufacturer Warranty
Grace Design M905 Specs
| THD + N |
At Maximum Volume, 1 kHz, 22 Hz to 22 kHz BW
+20 dBu Out: <0.0008% +10 dBu Out: <0.0008% 0 dBu Out: <0.002% |
| Distortion |
Inter-Modulation Distortion SMPTE / DIN 4:1 50 Hz, 7 kHz
At +20 dBu Out: <0.002% At 0 dBu Out: <0.0015% |
| Frequency Response |
Balanced Inputs +/-3 dB: 3 Hz to 1.25 MHz
Unbalanced Input +/-3 dB: 3 Hz to 275 kHz |
| Dynamic Range |
20 to 22 kHz Bandwidth: 118 dB
20 to 22 kHz Bandwidth and A-Weighting Filter: 121 dB |
| Output Noise |
20 to 22 kHz Bandwidth, at -20 dB Gain: -99 dBu
20 to 22 kHz Bandwidth and A-Weighting Filter, at -20 dB Gain: -102 dBu |
| Deviation |
Phase Deviation:
20 Hz to 20 kHz: <10° 10 Hz to 100 kHz: <19° |
| Cross Talk |
Crosstalk Any Channel:
100 Hz: <104 dB 1 kHz: <100 dB 20 kHz: <79 dB |
| Balanced Input |
For Balanced Input:
60 Hz: >90 dB 1 kHz: >85 dB 10 kHz: >70 dB |
| Gain Range |
-104 dB to +13 dB
|
| Channel |
Channel Tracking Accuracy: +/-0.1 dB
|
| Maximum Output Level |
+26 dBu
|
| Maximum Input Level |
Balanced Inputs: +29 dBu
Unbalanced Inputs: +21 dBu |
| Impedance |
Balanced Inputs: 88 kOhms
Unbalanced Inputs: 53 kOhms Balanced Outputs: 300 Ohms Minimum Load Impedance: 300 Ohms |
| Mic Pre Gain |
External Talkback Mic Preamp Gain: +7 dB to +70 dB in 1 dB steps
|
| Output Level |
User Selectable (0 dBFS): -76 dBu to +24 dBu in 0.5 dB steps
Fixed output trim range: (0.5 dB steps) |
| THD + N |
1 kHz, -1 dBFS, (0 dBFS = +20 dBu), 20 to 22 kHz Bandwidth: 0.0006%
|
| Dynamic Range |
20 to 22 kHz Bandwidth, 0 dBFS = +20 dBu (AES 17 filter): 117 dB
20 to 22 kHz Bandwidth, 0 dBFS = +20 dBu (A-weighted): 119 dB |
| Lock Range |
AES3 / SPDIF:
44.1 kHz +/-400 Hz 48 kHz +/-700 Hz 88.2 kHz +/-1200 Hz 96 kHz +/-1300 Hz 176.4 kHz +/-2000 Hz 192 kHz +/-2000 Hz TOSLINK: 44.1 kHz +/-400 Hz 48 kHz +/-700 Hz 88.2 kHz +/-1200 Hz 96 kHz +/-1300 Hz ADAT: 8 Channels at 44.1 kHz and 48 kHz 4 Channels at 88.2 kHz and 96 kHz (s/mux) 44.1 kHz +/-50 Hz 48 kHz +/-70 Hz 88.2 kHz +/-50 Hz 96 kHz +/-70 Hz USB: 44.1 kHz 48 kHz 88.2 kHz 96 kHz 176.4 kHz 192 kHz DSD64 2.8224 MHz DSD128 5.6448 MHz |
| Capture Bandwidth |
s-Lock Capture Range
44.1 kHz: +/- 6 Hz 48 kHz: +/- 7 Hz 88.2 kHz: +/- 14 Hz 96 kHz: +/- 20 Hz 176.4 kHz: +/- 24 Hz 192 kHz: +/- 30 Hz |
| Word Clock |
Impedance (switchable): 75 Ohms / 1 MOhms
Minimum Voltage: 3V peak to peak Maximum Voltage: 5V peak to peak Word Clock Frequencies Supported: 44.1, 48, 88.2, 96, 176.4, 192 kHz Superclock Frequencies Supported: N/A |
| Power Consumption |
60 W
|
| Input Voltage |
100 to 240 VAC 50-60 Hz
|
| Dimensions |
Main Chassis IEC 2U: 3.50 x 10.50 x 17.00" (8.89 x 26.67 x 43.18 cm)
Remote Control Unit: 8.90 x 5.10 x 2.20" (22.61 x 12.95 x 5.59 cm) |
| Weight |
Main Chassis: 7.80 lb (3.54 kg)
Remote Control Unit: 2.20 lb (1.00 kg) |
| Package Weight |
20 lb
|
| Box Dimensions (LxWxH) |
26.3 x 18.5 x 11"
|
