Description
Grace Design M108DANTE-UPG Overview

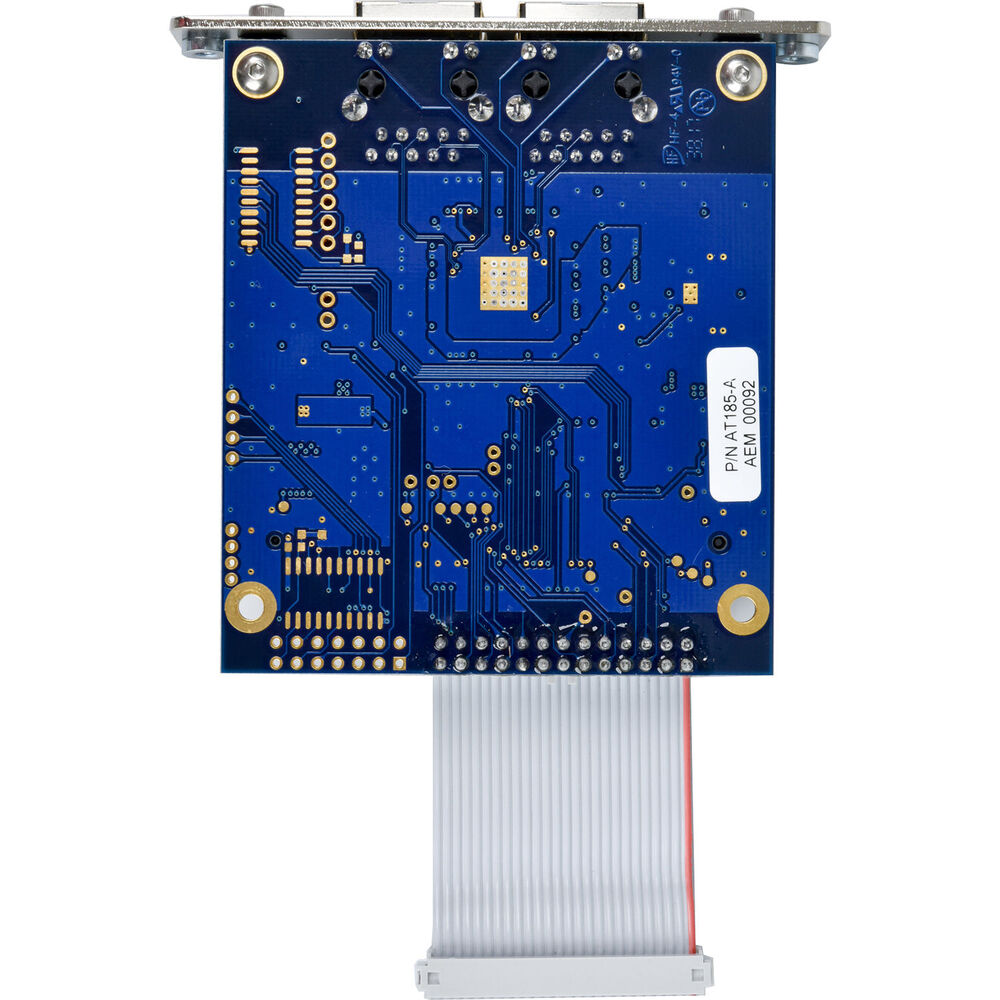

The Grace Design Dante Option Module for m108 Microphone Preamplifier/ADC (Upgrade) enables Dante connectivity for your m108 unit. It provides eight channels of outputs and inputs to other Dante-enabled devices, at sample rates up to 192 kHz, and is ideal for use in live, studio, broadcast, and commercial installation applications. This upgrade is designed for m108 units that are in the field and requires customer installation. New m108 customers can choose a factory-installation option at point of purchase.
This option is powered by the Dante Brooklyn II module, which provides fast synchronization, low-jitter clocking, and ultralow latency. It allows for four unique clock architecture concepts, with the module functioning either as a clock master or clock slave. The Dante Option Module features two Gigabit Ethernet ports for operating the m108 in full redundant mode.
- Allows easy connectivity to a Dante audio network for your m108 Microphone Preamplifier / ADC
- 8-channel A/D option for streaming audio at up to 192 kHz, to other Dante-enabled devices
- Dante Brooklyn II module

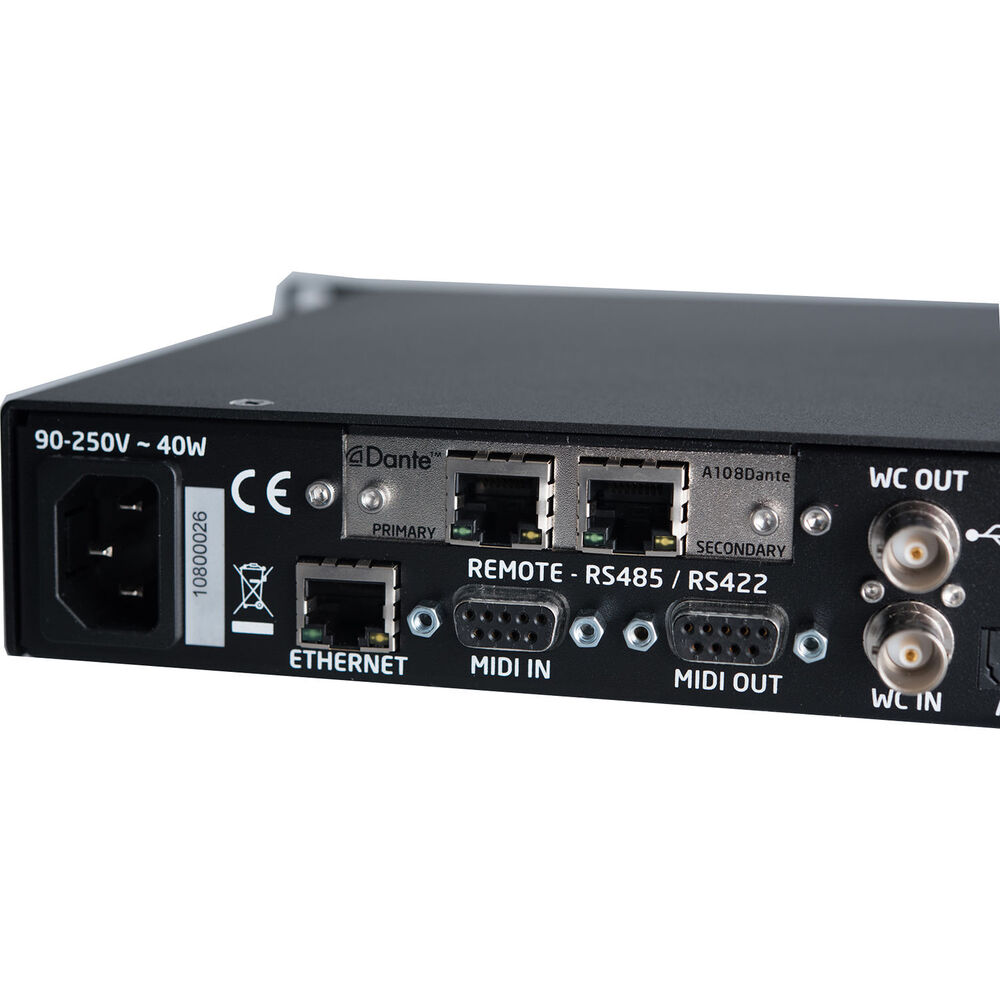

- Two Gigabit Ethernet ports allow the m108 to operate in full redundant mode
- Brooklyn II card is Dante Clock Slave
- ADC clock source is Dante
- ADC is clocked from Brooklyn II
- Brooklyn II card is Dante Clock Slave
- ADC clock source is Word or Word 75 Ohms
- ADC is clocked from External Word Clock
- Brooklyn II is Dante Clock Master
- Dante External sync is Internal
- ADC clock source is Internal
- m108 is System Master using Internal Clock
- Brooklyn II is Dante Clock Master
- Dante ext. sync is Word or Word 75 Ohms
- ADC clock source is Word or Word 75 Ohms
- m108 is System Master using External WC IN
In the Box
- Grace Design Dante Option Module for m108 Microphone Preamplifier / ADC (Upgrade)
- Limited 5-Year Manufacturer Warranty
Grace Design M108DANTE-UPG Specs
| Compatibility |
Grace Design m108
|
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Global Positioning (GPS, GLONASS, etc.) |
Yes
|
| Power Source |
Proprietary Interface (Built-In)
|
| Mounting |
Back: 1 x Card Slot with Ribbon Connector
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.465 lb
|
| Box Dimensions (LxWxH) |
11.7 x 7.1 x 2.2"
|
