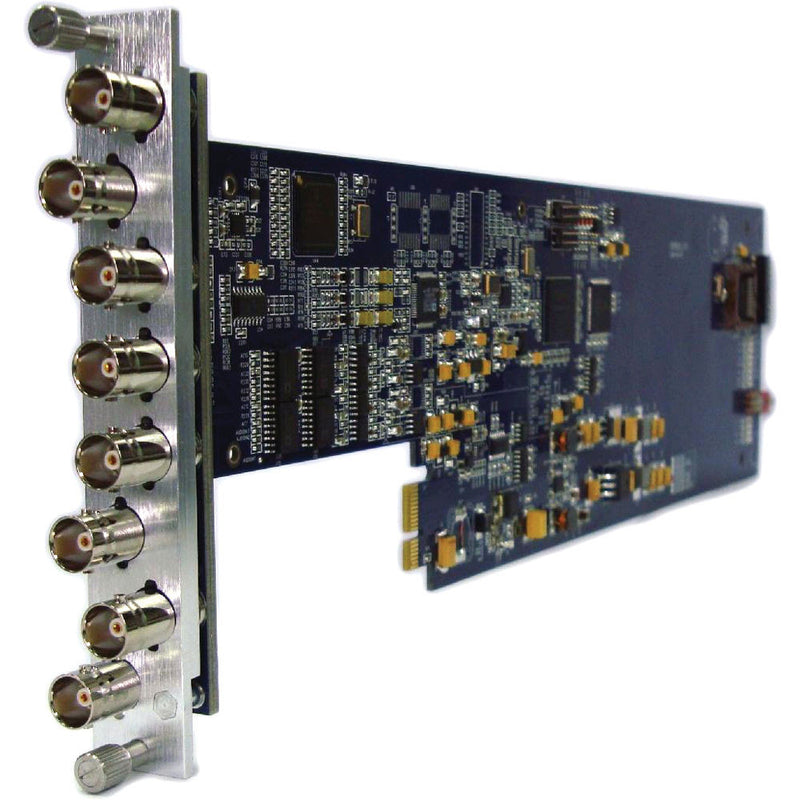

The Gra-Vue XIO 9020ENS 1x4 SD-SDI to Composite Video Converter with Frame Sync is a modular converter card designed to be used in a XIO 1U or 3U Modular Platform Chassis (sold separately). It converts one SDI signal (625i 50 and 525i 60 format) to 4 analog composite video signals and also outputs 2 SD-SDI loop signals. The output signals go through frame sync processing.
The XIO 9020ENS Converter provides automatic signal equalization for long cable applications (up to 656� over Belden 1694A). This improves the signal quality and reduces signal loss generally caused due to long distance transmission of the input source. The LED lights on the module indicate the status of input signal and power supply to let you know the signal and power status immediately. The converter also supports SNMP, and can be real-time managed and monitored by the XIO NET Network Management Module (sold separately) via Ethernet.
- Supports 625i 50 and 525i 60 input formats
- Provides an individual Ref interface and frame sync processing
- Supports hot swapping / hot plugging
- Automatic signal equalization for long cable applications (up to 656' (200m) over Belden 1694A)
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- For use in broadcasting systems, studios, and other professional fields
In the Box
Gra-Vue XIO 9020ENS 1x4 SD-SDI to Composite Video Converter with Frame Sync
| Digital Video Input |
| Interface | Input: 1 x SD-SDI, BNC |
| Impedance | 75 ? |
| Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s |
| Reference Input |
| Input Type | Analog composite video |
| Interface | 1 x Ref, BNC |
| Standard | PAL/NTSC |
| Digital Video Output |
| Output Interface | 2 x SDI, BNC |
| Impedance | 75 ? |
| Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s |
| Level | 800 mV � 5% |
| Jitter | <0.2 UI (100 kHz) |
| Indicator |
| Status Indicators | Signal status and power (indicated by shining or extinguishing of the green LED) |
| General |
| Transmission Distance | Up to 656' (200 m) over Belden 1694A |
| Dimensions | 14.30 x 3.90 x 0.03" (365.00 x 100.00 x 1.00 mm) |
| Weight | 6.5 oz (185.0 g) |
| Packaging Info |
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
