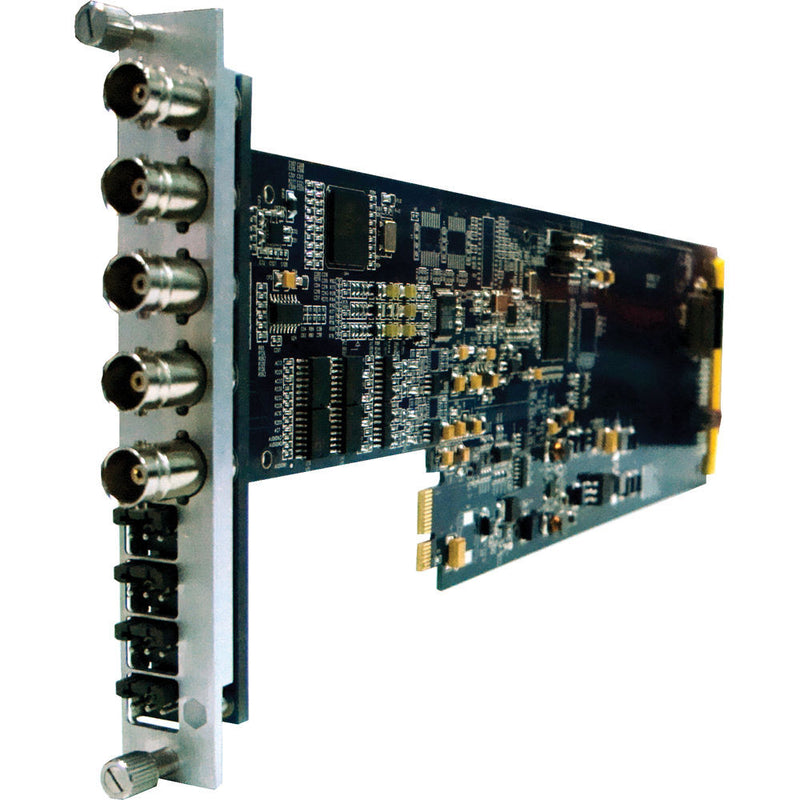

The Gra-Vue XIO 9020ENC-4AUD SD-SDI to Dual Composite Video & Audio Converter is a modular converter card designed to be used in either the XIO 1U or 3U Modular Platform Chassis (sold separately). It converts a single SDI signal (625i 50 and 525i 60 format) to 2 analog composite video signals and also outputs one SDI loop signal. In addition, 2 analog audio stereo signals are extracted from the SDI input. This de-embedded audio can be selected through a DIP switch and used as input for crossing output, mixing output, and other similar applications.
The XIO 9020ENC-4AUD Converter provides automatic signal equalization for long cable applications (up to 656� over a Belden 1694A cable). This improves the signal quality and reduces signal loss caused due to long distance transmission of the input source. The LED lights on the module indicate the status of input signal and power supply, to let you know the signal and power status immediately. This converter also supports SNMP and can be real-time managed and monitored via the XIO NET Network Management Module (sold separately).
- Supports 625i 50 and 525i 60 input formats
- Supports hot swapping / hot plugging
- Allows selection of de-embedded audio group through a DIP switch
- Automatic signal equalization for long distance transmission over coax (up to 656' (200m) using Belden 1694A)
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET
- For use in broadcasting systems, studios, and other professional fields
In the Box
Gra-Vue XIO 9020ENC-4AUD SD-SDI to Dual Composite Video & Audio Converter
| Digital Video Input |
| Interface | Input: 1 x SD-SDI, BNC |
| Impedance | 75 ? |
| Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s |
| Digital Video Output |
| Output Interface | 1 x SDI, BNC |
| Impedance | 75 ? |
| Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s |
| Level | 800 mV � 5% |
| Jitter | <0.2 UI (100 kHz) |
| Analog Video Output |
| Output Interface | 2 x CVBS, BNC |
| Impedance | 75 ? |
| Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s |
| Analog Audio Outputs |
| Output Interface | 4 x 3-pin, balance |
| Impedance | 600 ? |
| Maximum Level | 24 dBu (0 dBFs) |
| Indicator |
| Status Indicators | Signal status and power (status indicated by shining or extinguishing of the green LED) |
| General |
| Transmission Distance | Up to 656' (200 m) over Belden 1694A |
| Dimensions | 14.30 x 3.90 x 0.03" (365.00 x 100.00 x 1.00 mm) |
| Weight | 6.5 oz (185 g) |
| Packaging Info |
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
