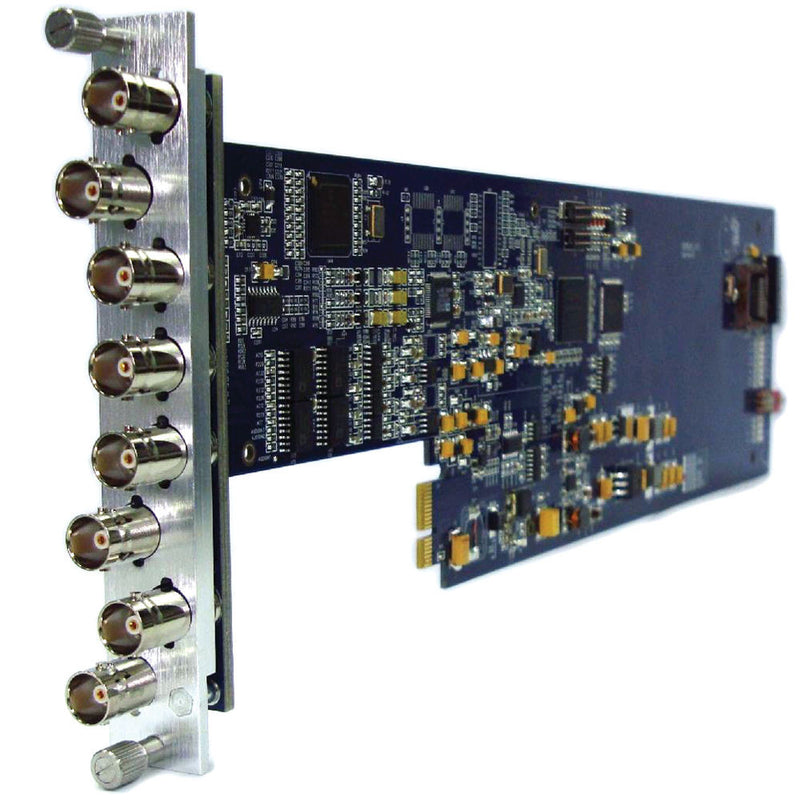

The Gra-Vue XIO 9010DES Composite Video to 4 x SD-SDI Converter Card with Frame Sync is based on the XIO Modular Platform. It installs into and is powered by either the XIO-1U or XIO-3U Chassis. This unit converts a single analog composite video signal to 4 identical SDI signals with frame sync processing. It supports NTSC and PAL standards.
The LED lights on the module indicate the status of input signal and power supply, in order to let the user know the status immediately. This analog video to SD-SDI converter also supports SNMP. It can be managed in real-time and monitored by XIO NET, the Network Management Module, via Ethernet.
�
�
- Single analog composite video input, 4 identical SDI outputs
- Provides an individual Ref interface and frame sync processing
- Supports NTSC and PAL standards
- Hot Swappable Plugs
- Provides 3 kinds of sync modes: INT, single EXT, and Global EXT
- 10-bit processing
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be managed in real-time and monitored by XIO NET via Ethernet
- Widely used in broadcasting systems, studios, and other professional fields
In the Box
Gra-Vue XIO 9010DES Composite Video to 4 x SD-SDI Converter Card with Frame Sync
| Analog Video Input |
| Interface | Input: 1 x CVBS, BNC |
| Impedance | 75 ? |
| Standard | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s |
| Loss | Reflection: >40 dB, 5.8 MHz |
| Reference Input |
| Input Type | Analog composite video |
| Interface | Input: 1 x Ref, BNC |
| Format | 625i 50 SMPTE 259M-C 270 Mb/s |
| Digital Video Output |
| Output Interface | 4 x SDI, BNC |
| Impedance | 75 ? |
| Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s |
| Level | 800 mV � 5% |
| Jitter | <0.2 UI (100 kHz) |
| Indicator |
| Status Indicator | Signal status indicator and power indicator (Indicated by shining or extinguishing of the green LED) |
| Power |
| Power Consumption | 2 to 3 W |
| Physical |
| Dimensions | 14.30 x 3.90 x 0.03" (365.00 x 100.00 x 1.00 mm) |
| Weight | 6.5 oz (185 g) |
| Packaging Info |
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
