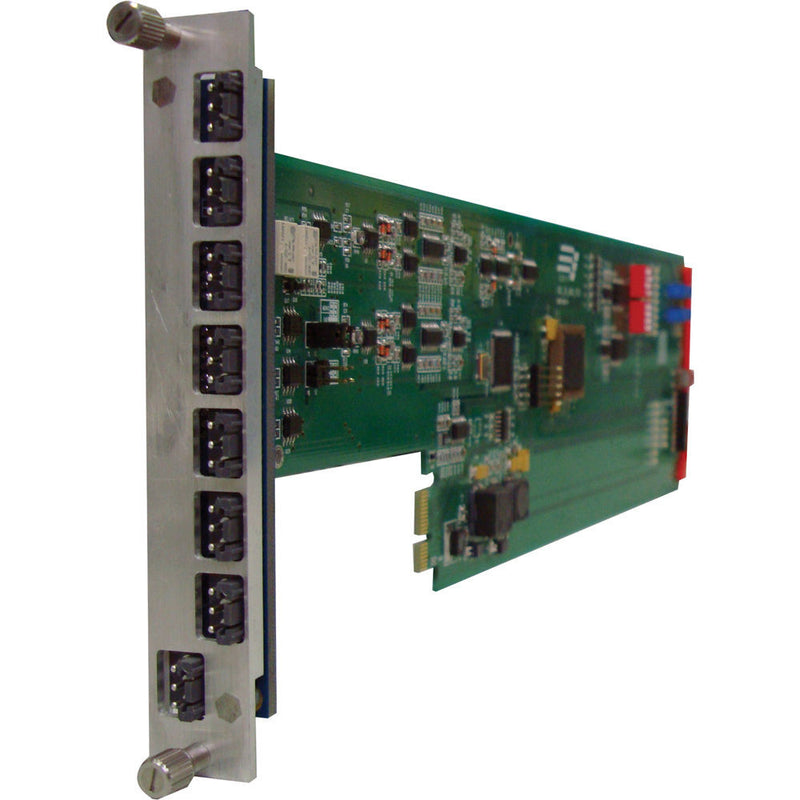

The XIO 9001ADA Analog Audio Distribution Amplifier distributes both analog audio inputs to 3 seperate outputs for a total of 6 audio outputs. The interface for output and input is a 3-pin balanced interface. It installs into and is powered by either the XIO-1U or XIO-3U Chassis. It features a wide signal gain range which can be controlled from the card�s edge. It also adopts an independent output driver with good output isolation and crosstalk suppression.
The XIO 9000ADA Amplifier provides automatic signal equalization, which can significantly improve signal quality and reduce signal loss caused by transmission of the input source over long distances. The LED lights on the module indicate input signal and power supply, in order to let the user know of the status immediately. The amplifier also supports SNMP. It can be managed and monitored in real-time by XIO NET, a Network Management Module, via Ethernet.
- Dual analog audio inputs both distributed to 3 seperate outputs for a total of 6 outputs
- 3-pin interface for input and output
- Hot Swappable Plugs
- Adjustable signal gain from -6 to 27 dB
- Provides automatic signal equalization for long cable applications
- Equipped with LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in realtime by XIO NET (sold separately) via Ethernet
- For use in broadcasting systems, studios, and other professional fields
In the Box
Gra-Vue XIO 9001ADA 2-Input 6-Output Analog Audio Distribution Amplifier
| Analog Audio Inputs |
| Input Connectors | 2 x 3-pin balanced audio inputs |
| Impedance | 600 ? |
| Frequency Response | <�0.05 dB, 20 Hz to 20 kHz |
| Analog Video Output |
| Output Connectors | 6 x 3-pin balanced audio outputs |
| Gain Range | -6 to +27 dB |
| Impedance | 600 ? |
| Status Indicator | Signal status indicator, power indicator (Green LED) |
| Power |
| Power Consumption | 2 to 3 W |
| Packaging Info |
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
