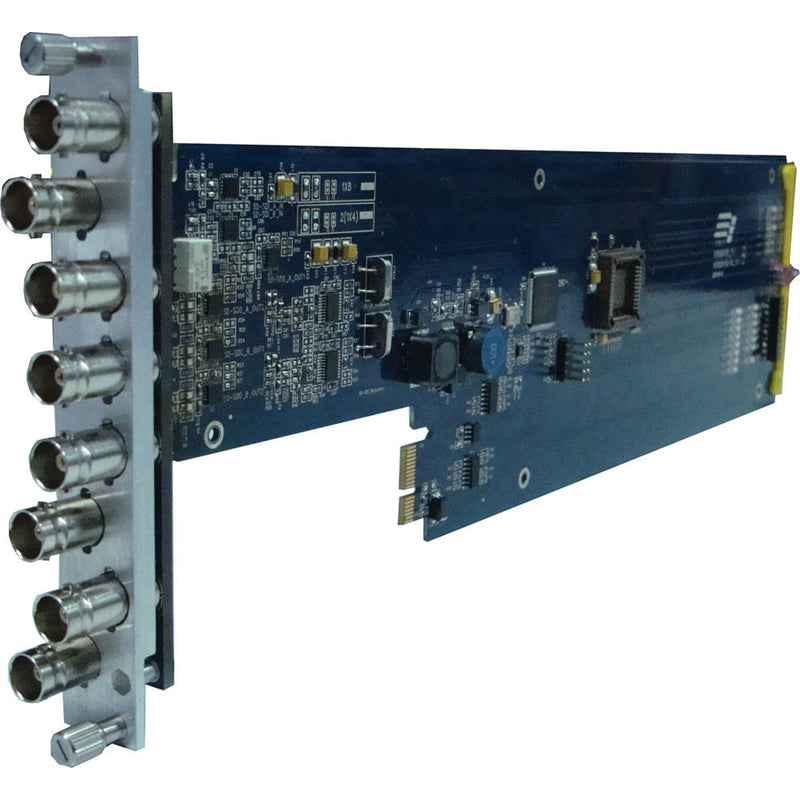

The Gra-Vue XIO 9000VSD-RC 1 x 7 SD-SDI / ASI Signal Distribution Amplifier distributes 1 SD-SDI signal to 7 outputs with re-clocking. It supports SD-SDI input signals with embedded audio and automatic input detection of 525i 60 and 625i 50. It can also process and distribute ASI signals.
The XIO 9000VSD-RC Distribution Amplifier provides automatic signal equalization and re-clocking for long cable applications. This improves the signal quality and reduces signal loss caused by long distance transmission of input sources. The LED lights on the module indicate the status of input signals and power supply. The amplifier also supports SNMP and can be real-time managed and monitored via the XIO NET Network Management Module (sold separately) via Ethernet.
- One SD-SDI signal input & 7 SD-SDI signal outputs with re-clocking
- Supports automatic input detection of 625i 60 and 625i 50
- Supports SD-SDI signals with embedded audio
- Supports processing and distribution of ASI signals
- Supports hot swap plug
- Broadcast quality with inner 10-bit processing
- Provides automatic signal equalization and re-clocking for long cable applications
- Features LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- Can be mounted in a 1 or 3RU configuration
- For use in broadcasting systems, studios, and other professional fields
In the Box
Gra-Vue XIO 9000VSD-RC 1 x 7 SD-SDI / ASI Signal Distribution Amplifier with Re-clocking
| Digital Interface |
| Impedance | 75 ? |
| Format | 525i 60, 625i 50 |
| Loss | Reflectio Loss: <15 dB, 270 MHz |
| Maximum Cable Length | <656' (200 m, Belden 1694A) |
| Output Interface | 7 x BNC, SD-SDI / ASI |
| Impedance | 75 ? |
| Format | 525i 60, 625i 50 SMTPE 259M-C 270 Mb/s |
| Level | 800 mV, �5% |
| Jitter | <0.2 UI, 100 kHz |
| Status Indicator | Signal status and power indicators (indicate status by shining or extinguishing of the green LED) |
| Power |
| Power Consumption | 2 to 3 W |
| Packaging Info |
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
