Description

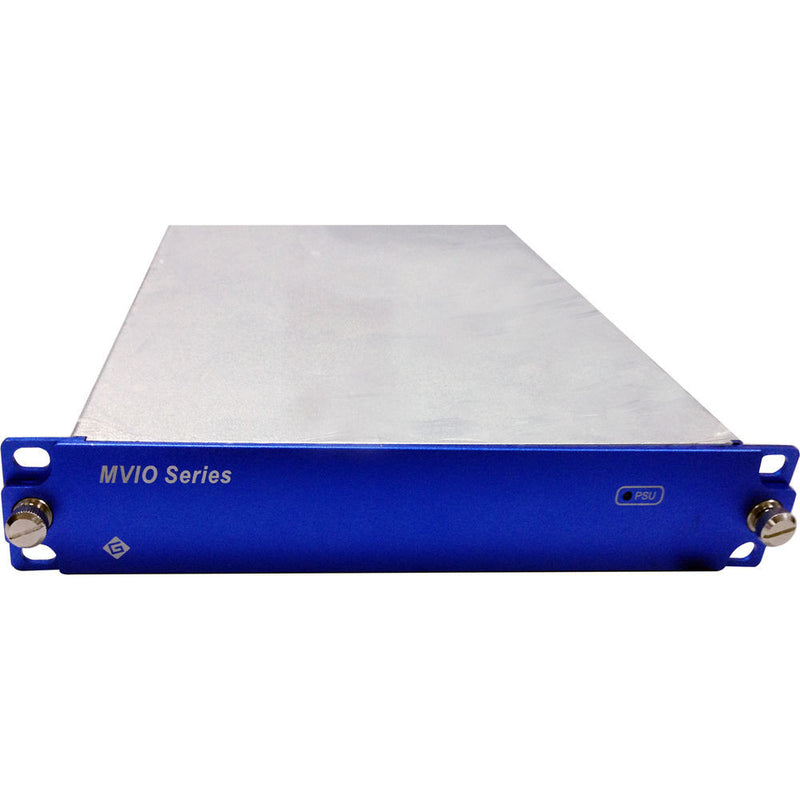

The MVIO VSD-HD-DC from Gra-Vue is a standalone 1U half-rack HD-SDI video down-converter that converts one HD-SDI signal to two identical SD-SDI signals with frame sync processing. It supports AFD and manual ratio adjustment (bar/stretch/crop), and features advanced de-interlacing technology to generate high-quality HD-SDI signals. The MVIO VSD-HD-DC supports and automatic detection of input format. Additionally, the unit provides a HD/SD-SDI loop through for passing the source signal to an additional device. It also has a built-in web server that supports SNMP, letting you mange and monitor your signals in real-time on your computer via an Ethernet connection.
-
- Automatic signal equalization
- Individual Ref interface and frame sync processing
- Supports 625i50, 525i60, 720p, 1080i, 1080p
- Automatic detection of input format
- AFD and manual adjustment (bar/stretch/crop)
- H-phase and V-phase adjustable
- Built-in web server support SNMP
| Input | |
|---|---|
| Video Input | 2 x HD/SD-SDI (BNC, 75 ohm) |
| Standard | SIMPTE 259M-C SMPTE 292M SMPTE 344M SMPTE 425 |
| Format | 625i 576i 720p 1080i 1080p |
| Output | |
|---|---|
| Video Output | 1 x HD/SD-SDI loop-though (BNC, 75 ohm) 2 x SD-SDI (BNc, 75 ohm) |
| Format | 625i 576i |
| Level | 800 mV � 5% |
| Jitter | < 0.2 UI (100 KHz) |
| General | |
|---|---|
| Power | 110 to 240 VAC, 50/60 Hz, 60 W |
| Operating Temperature | 41 to 77�F (5 to 25�C) |
| Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
