Description

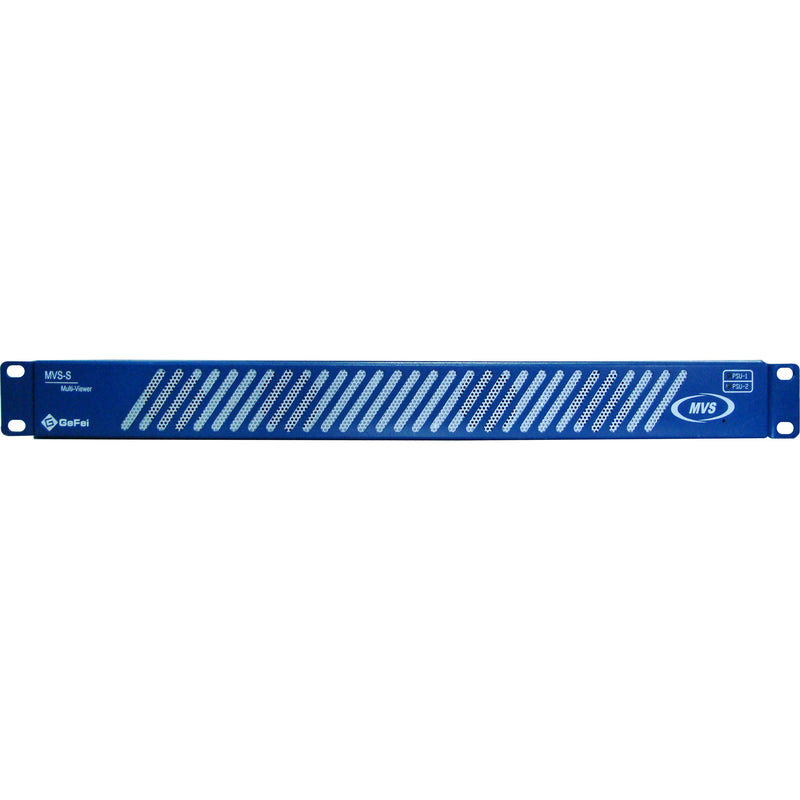

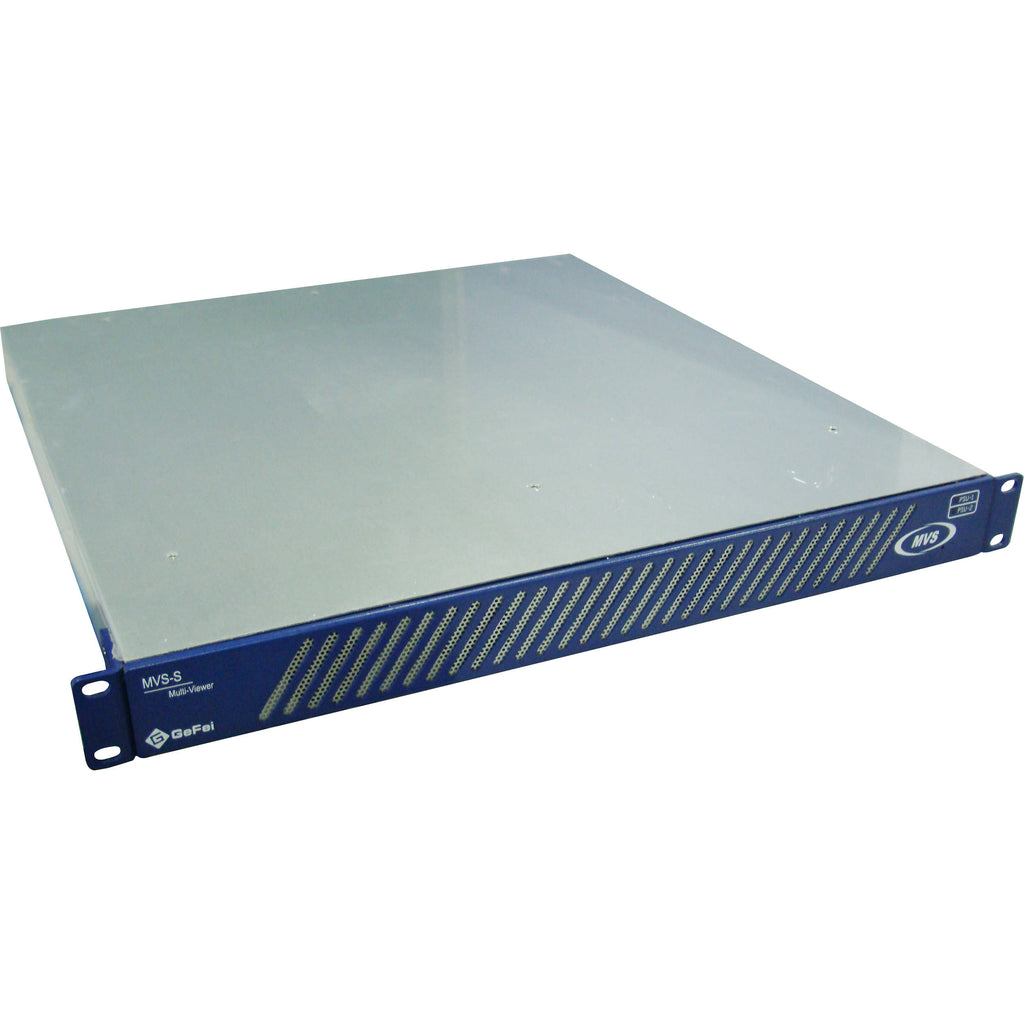

The Gra-Vue VIO MVS-8HD 1U MULTIVIEWER is a 1RU standalone multi-viewer system. It supplies 8-channel HD/SD/CVBS and 1 DVI/HDMI/VGA auto adaptive inputs. It also supplies 1 DVI/HDMI (up to 1920x1080) with 1 duplicated HDSDI output. This multiviewer also features dual redundant power supplies, real time audio/video monitoring, dynamic UMD & tally, and a UV meter.
�The built-in WEB server in this multiviewer provides an easy control and supports SMNP and TSL protocols. This multiviewer is a suitable display solution for broadcast and pro AV applications.
- Displays up to 9 video channels
- Supports HD/SD-SDI signal with embedded audio, 525i,625i, 720P, 1080i, 1080P auto adapting
- Supports composite video with analog audio, PAL and NTSC auto adapting
- Up to 1920 x 1080 P60 output resolutions
- Flexible output options?4:3, 16:9, customized aspect ratio, supports 4:3 or 16:9 safe maker
- Selectable air timer and countdown timers, analog and digital clock styles
- Enlarge any channel to full screen
- Dynamic UMDs and tally
- Programmable multi-color static UMD
- Supports format display of input signal, AFD information, UV meter
- Alarm for frozen or black video, video losing, and audio silence or losing
- Built-in Web server via RJ45
- SNMP, TSL, GPS serial timing
- Standard 1U frame with dual redundant power supplies
- Professional DSP accelerated image processing
In the Box
Gra-Vue VIO MVS-8HD 1U Multiviewer
- Limited 1-Year Warranty

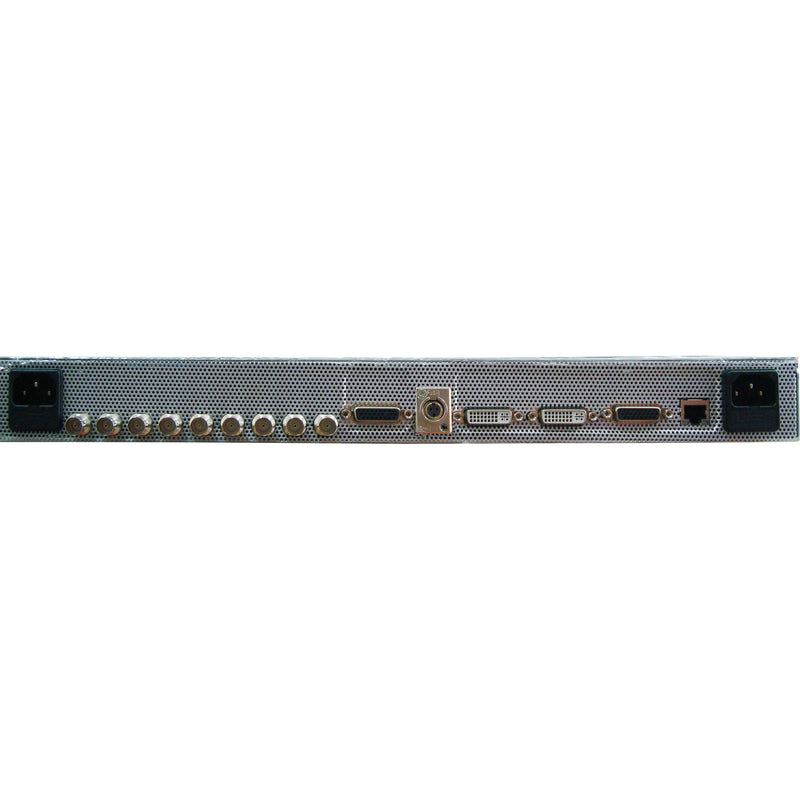

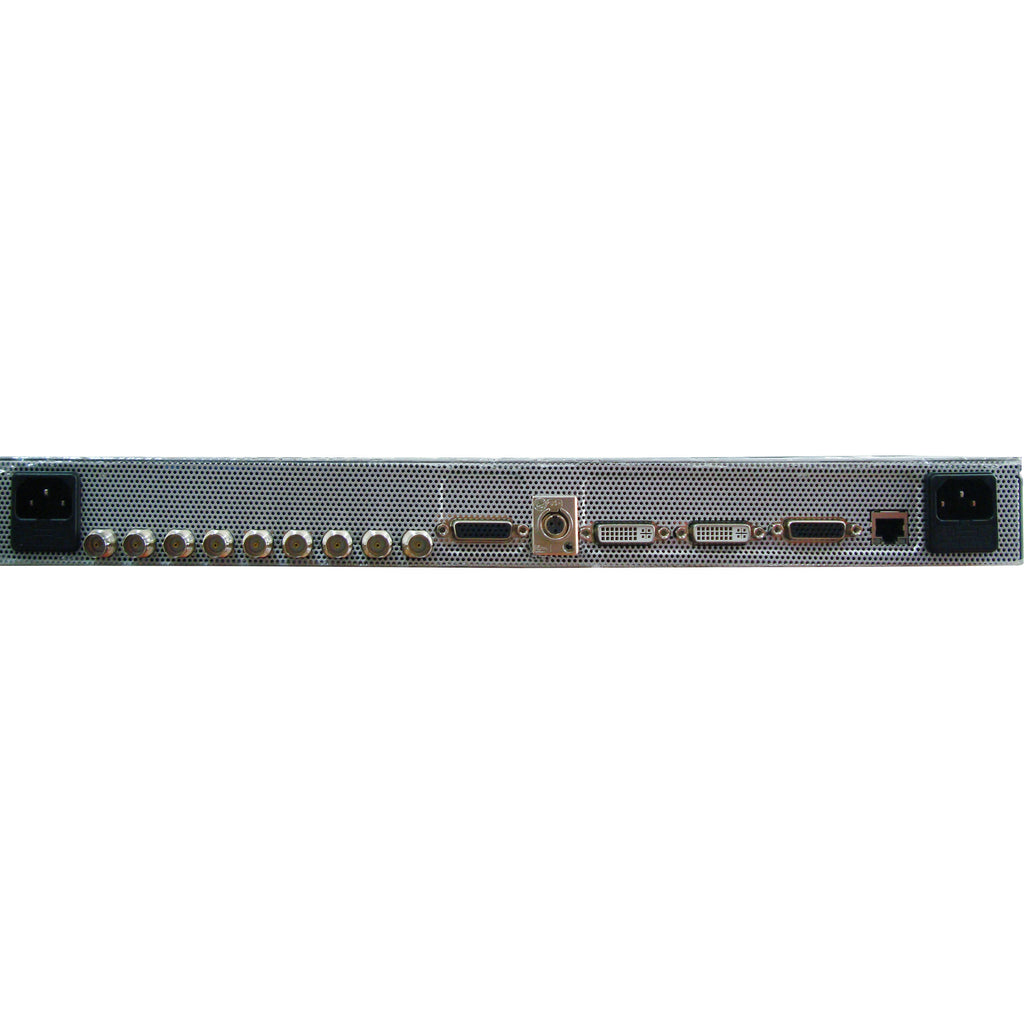

| Video Input | 8 x BNC (HD (3G) / SD / CVBS) + DVI-I x 1 (DVI / HDMI / VGA) |
| Input Format | SD: 480i, 576i HD: 720p, 1080i, 1080p CVBS: PAL & NTSC |
| Video Output | 1 x DVI-I (female, supports HDMI protocol), 1 x BNC (HDSDI) |
| Output Format | DVI: 1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 900, 1680 x 1050, 1600 x 1200, 1920 x 1080 SDI: 720p, 1080i, 1080p |
| Analog Audio I/O | DB26 x 1, 8-channel balance audio in, 1 stereo audio out |
| Control | RJ 45 Ethernet for built-in in Web server, TSL SMNP protocol DB26 - RS-232 / GPI LTC, XLR, EBU code |
| Power | Dual 120 W, 110 to 250 VAC, 2.5 A |
| Dimensions | 17.24 x 14.48 x 1.73" (438.00 x 368.00 x 44.00 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 21.0 lb |
| Box Dimensions (LxWxH) | 23.25 x 22.5 x 6.15" |
