Description

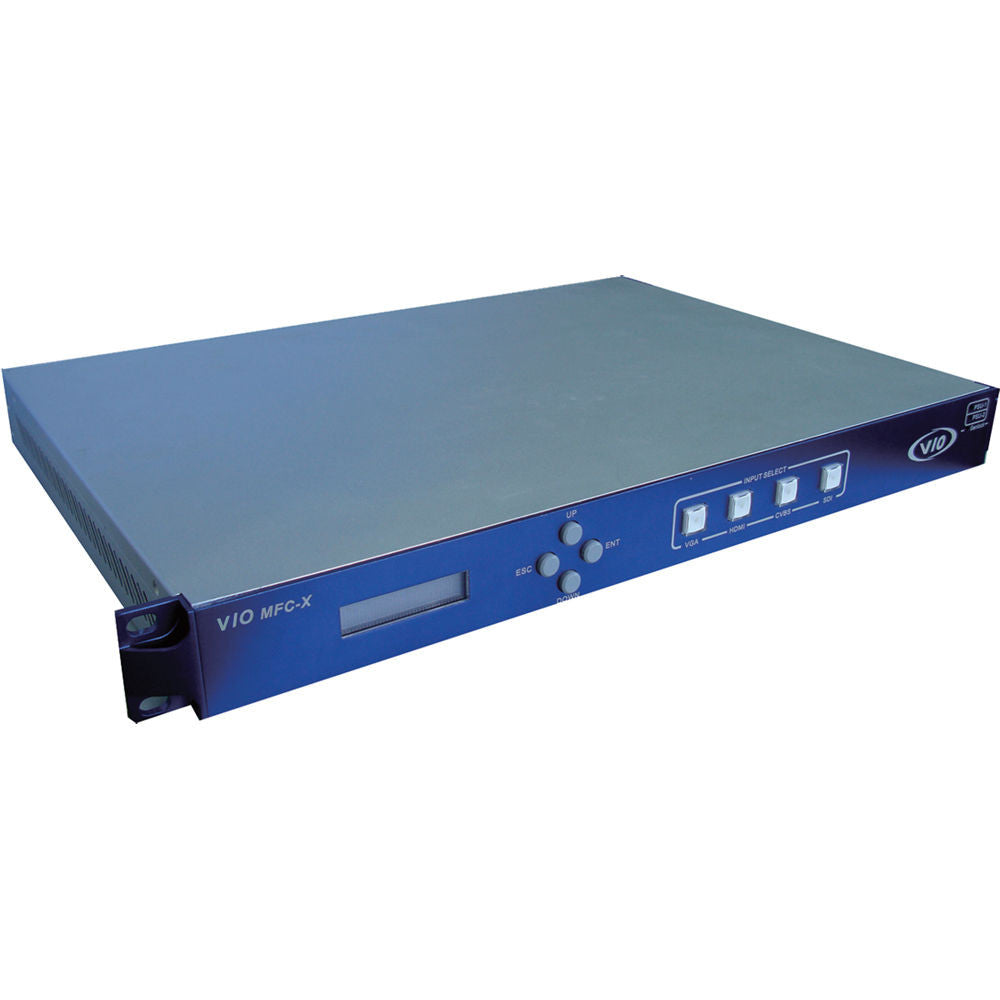

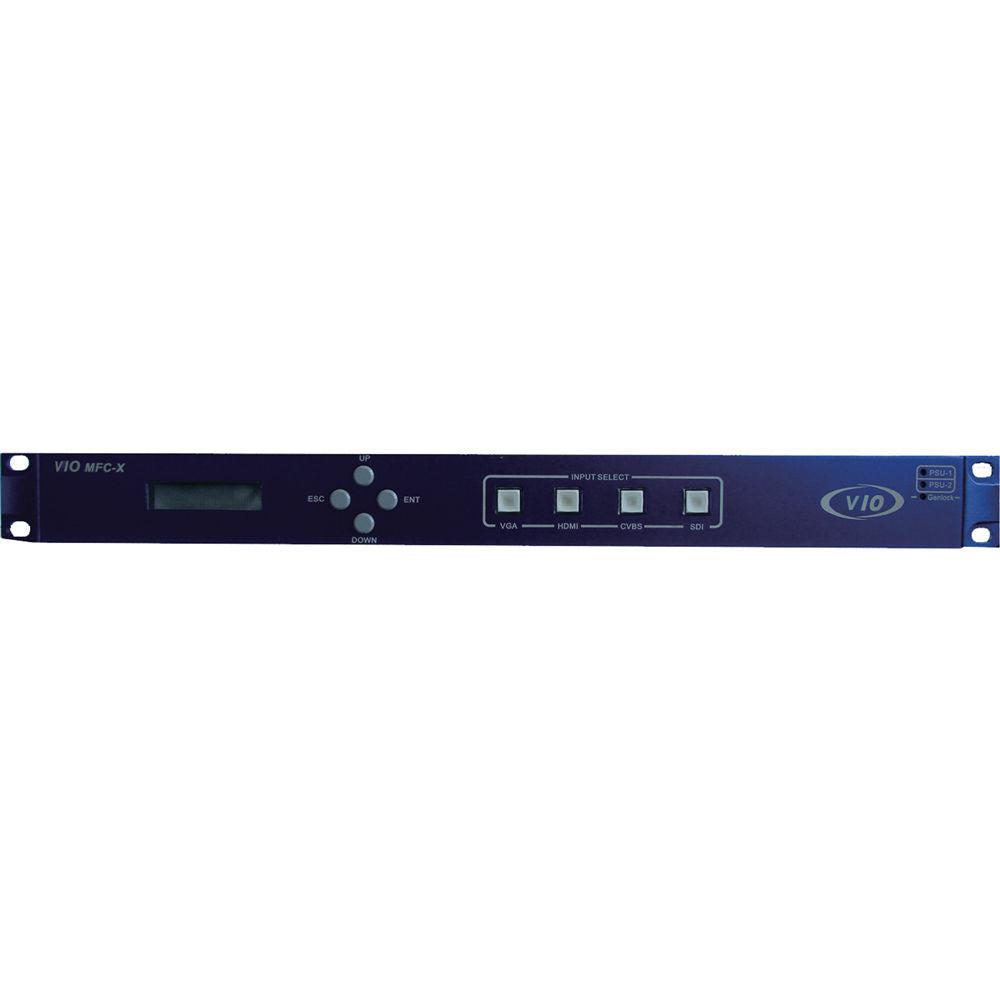

The Gra-Vue VIO MFC-X Universal Multi-Format Converter is based on the 1RU chassis and acts as a bridge between broadcasting and IT areas. This converter features an LCD menu, control button, and LED indication on the front panel. CVBS output and audio input/output are sold separately.
- Support various format for VGA and DVI (HDMI) input. Up to 1920 x 1080 for DVI (HDMI) input and 1600 x 1200 for VGA input
- Besides inner sync, genlock with full phasing control for V-phase and H-phase locks HD/SD-SDI output to black burst
- For up/down conversion, adopt AFD auto-sensing or manual setting (Crop/Bar/Stretch)
- Magnify the selected image area though the Web server. Support moving and adjusting the magnified area pixel by pixel
- Multi-level anti-flicker
- 4 preset layouts for all parameter settings
- Provide flexible adjustment for luminance, saturation, contrast, detail, noise reduction
In the Box
Gra-Vue VIO MFC-X Universal Multi-Format Converter
- Limited 1-Year Warranty
| Input | |
|---|---|
| VGA | Connector: DB15 Female Resolution: 640 x 480/60/75; 800 x 600/60/75; 1024 x 768/60/75; 1152 x 864/60/75; 1280 x 768/60; 1280 x 800/60; 1280 x 960/60; 1280 x 1024/60; 1360 x 768/60; 1440 x 900/60; 1600 x 900/60; 1600 x 1200/60 |
| HDMI | Connector: DB24 female Resolution: 720p 50/59.94/60; 1080i 50/59.94/60; 1080p 30/29.97/25/24/23.98; 1080p 50/59.94/60; 800 x 600 x 60; 1024 x 768 x 60; 1280 x 720 x 50/60; 1280 x 768 x 60; 1280 x 800 x 60; 1280 x 960 x 60; 1280 x 1024 x 60; 1366 x 768 x60; 1920 x 1080 x 60/50 |
| SD & HD | Connector: BNC 75 ? Format: SMPTE 259M-C 270 Mb/s; SMPTE-292M 1.485 Gb/s; SMPTE-425 2.970 Gb/s SD: 625i 50; 525i 60 HD: 720p 50/59.94/60; 1080i 50/59.94/60; 1080p 30/29.97/25/24/23.98; 1080p 50/59.94/60 |
| Analog Video | Connector: BNC 75 ? Format: SMPTE 259M-C 270 Mb/s 625i 50 |
| HD/SD-SDI | Connector: BNC 75 ? Format: SMPTE 292M, 1.485 Gb/s; SMPTE 259M-C 270 Mb/s 625i 50, 525i 59.94,720p 50/59.94/60; 1080i 50/59.94/60,1080p 25/30 Return loss:>15 dB Signal Level: 800 mV � 10% Overshoot:<80 mV Jitter:<0.2 UI Rise and fall time:<500 ps DC offset: 0 V � 500 mV |
| Output | |
|---|---|
| VGA | Connector: DB15 Female Resolution: 800 x 600/60p; 1024 x 768/60p; 1280 x 800/60p; 1280 x 960/60p; 1280 x 1024/60p; 1360 x 768/60p |
| HDMI | Connector: DB24 female Resolution: 720 x 576/60p; 800 x 600/60p; 1024 x 768/60p; 1280 x 720/60p; 1280 x 768/60p; 1280 x 1024/60p; 1360 x 768/60p; 1400 x 1050/60p; 1600 x 1200/60p; 1920 x 1080/50p; 1920 x 1080/60p |
| Genlock | 1xBB In, BNC SMPTE 259M-C 270 Mb/s 625i 50 |
| Control Interface | 1 x RJ-45 10/100/1000M auto-adapting |
| Power | 2 x 120 W 100 to 256 VAC 50 to 60 Hz |
| Dimensions | 17.3 x 19.0 x 1.7" (440.0 � 483.0 � 45.0 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
