Description
The MVIO VSD-HD 1 x 7 HD/SD-SDI/ASI Digital Video Signal Distribution Amplifier with Reclocking from Gra-Vue is a digital video distribution amplifier. The unit provides HD/SD/ASI signals with reclocking over a maximum distance of 328' using a Belden 1694A cable. It supports HD-SDI signals (SMPTE-292M) and SD-SDI signals (SMPTE 259M) as well as compressed/uncompressed SDI video signals. It features one BNC HD/SD/ASI signal input and seven BNC outputs. The unit's BNC output 1 is a bypass signal output. The unit's internal LED indicates signal status.
- 1RU half-rack rackmount
- One HD/SD video signal input to seven HD/SD video signal outputs
- Support SD: 270 Mb/s
- Support HD: 1.485, 1.485/1.001 Gb/s
- MVIO VSD-HD has one loop through
- Compatible with DVB-ASI signal
- Provides LED lights to indicate signal status
In the Box
Gra-Vue MVIO VSD-HD 1 x 7 HD/SD-SDI/ASI Digital Video Signal Distribution Amplifier with Reclocking
- IEC Power Cable
- Limited 1-Year Warranty

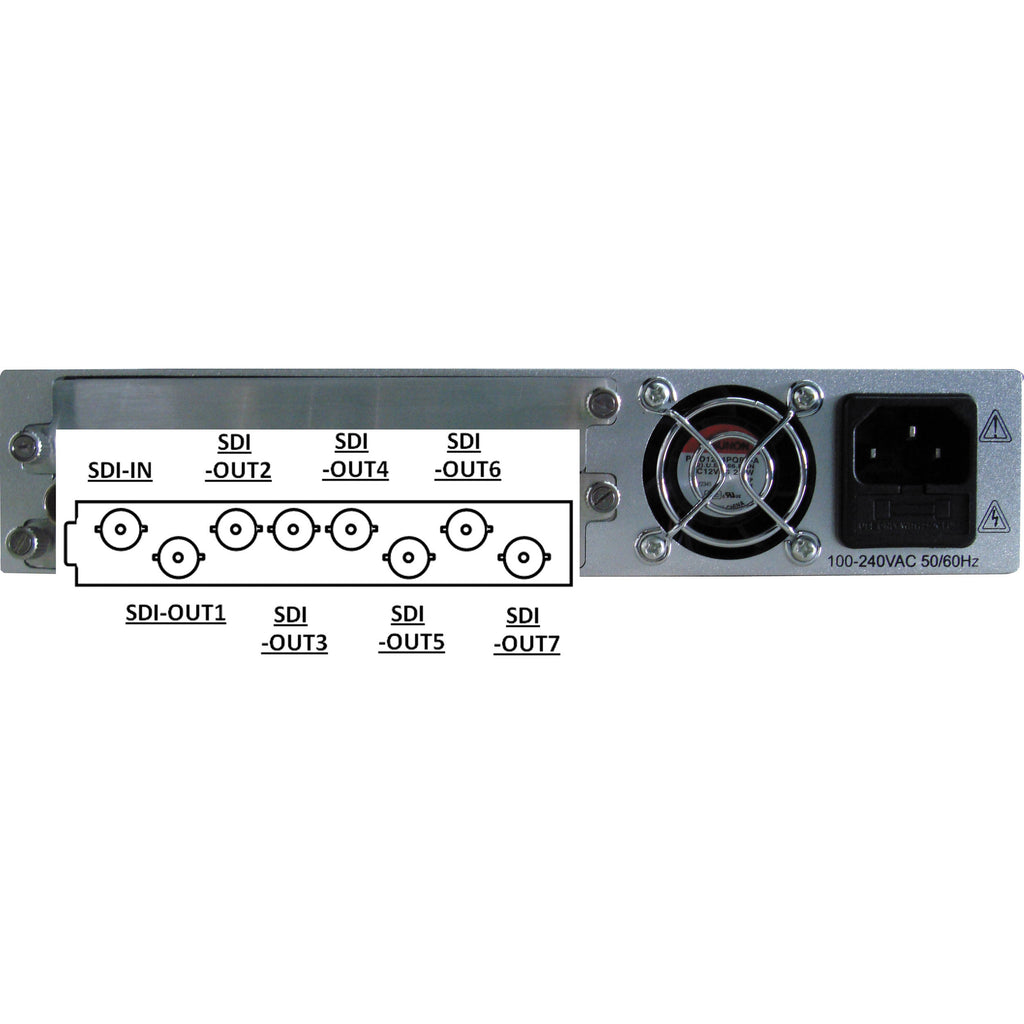

| Connectors | 1 x BNC, HD/SDI/ASI input 7 x BNC, HD/SDI/ASI output 1 x IEC, power input |
| Format | SMPTE 292M 1.485, 1.485/1.001 Gb/s SMPTE 259M-C; 270 Mb/s EN50 083-9 DVB-ASI; 270 Mb/s |
| Return Loss | > 15 dB up to 270 MHz |
| Impedance | 75 ? |
| Signal Level | 800 mV � 10% |
| Overshoot | < 80 mV |
| Jitter | < 80 mV |
| Maximum Cable Length | 328' (100 m) with Belden 1694A |
| Power | 120 - 240 VAC, 50/60 Hz |
| Status Indicators | 1 x LED, PSU indicator 1 x LED, internal signal indicator |
| Power Consumption | 60 W |
| Dimensions (W x D x H) | 8.66 x 16.92 x 1.73" (22 x 43 x 4.4 cm) |
| Weight | 14.6 lb (6.6 kg) approximate |
| Packaging Info | |
|---|---|
| Package Weight | 8.35 lb |
| Box Dimensions (LxWxH) | 21.968 x 13.858 x 7.559" |
