Description

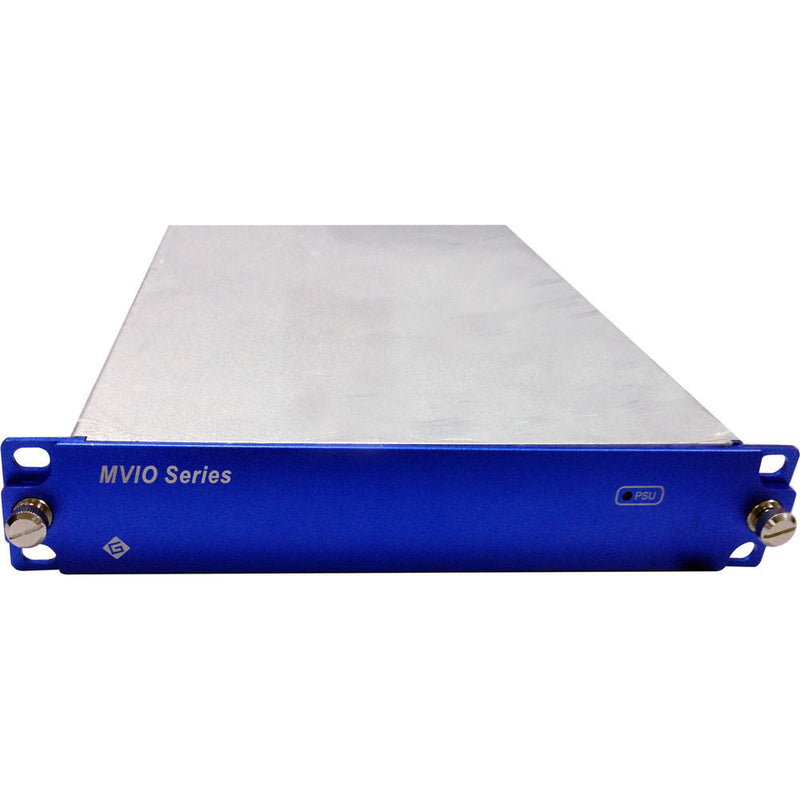

The MVIO EMB-4AUD SD-SDI 4-Channel Analog Audio Embedder from Gra-Vue is a half-rack 1RU standalone embedder which embeds two stereo analog audio source signals into a single SDI stream. It features two identical SDI outputs so that the video with the newly embedded audio may be delivered to two destinations without requiring a separate distribution amplifier. The unit also outputs one analog composite video signal for monitoring, or other applications. The embedding mode and channels to which the audio is embedded is user-defined, and may be set using DIP switches on the unit. The embedder supports 625i50 and 525i60 formats.
The MVIO EMB-4AUD provides automatic signal equalization for cable runs up to 656' (Belden 1694A), which can improve the signal quality and reduce the signal loss caused by long distance transmission of the input source. The LED lights on the module indicate the status of input signal and power supply. The unit supports SNMP and can be real-time managed and monitored by XIO NET, an optional network management module, via Ethernet.
- Supports 625i 50 and 525i 60 input formats
- Audio embed mode may be selected via DIP switches
- Provides automatic signal equalization to enable cable runs up to 656' using Belden 1694A
- Supports hot swapping of connectors
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time using XIO NET via Ethernet
- For use in broadcasting systems, studios, and other professional video applications
- Can be mounted in a half-rack wide space
- Limited 1-Year Warranty
| SDI Input | 1 x BNC female, SD-SDI, 75 ohms |
| Maximum Cable Length | 656' (200 m) using Belden 1694A |
| Analog Audio Input | 4 x 3-pin terminal block, balanced Maximum Level: +24 dBu (0 dBFs) |
| SDI Output | 2 x BNC female, SD-SDI Impedance: 75 ohms Level: 800 mV�5% Jitter: <0.2 UI (100 kHz) |
| Analog Video Output | 1 x BNC, CVBS, 75 ohms |
| Supported Formats | SD: 625i50, 525i60 |
| Supported Standards | SMPTE 259M-C (270 Mb/s) |
| LED Indicators | 1 x green, signal status 1 x green, power |
| Power | 110 - 240 VAC, 60 W |
| Operating Temperature | 41 to 77�F (5 to 25�C) |
| Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
