Description
- Delays HD-SDI Video up to 20 Seconds
- Dual Mirrored HD/SD-SDI Outputs
- SD/HD-SDI Loop-Through Output
- RS-232 Port for Remote Operation
- Half-Width 1RU Rackmoutable Form Factor

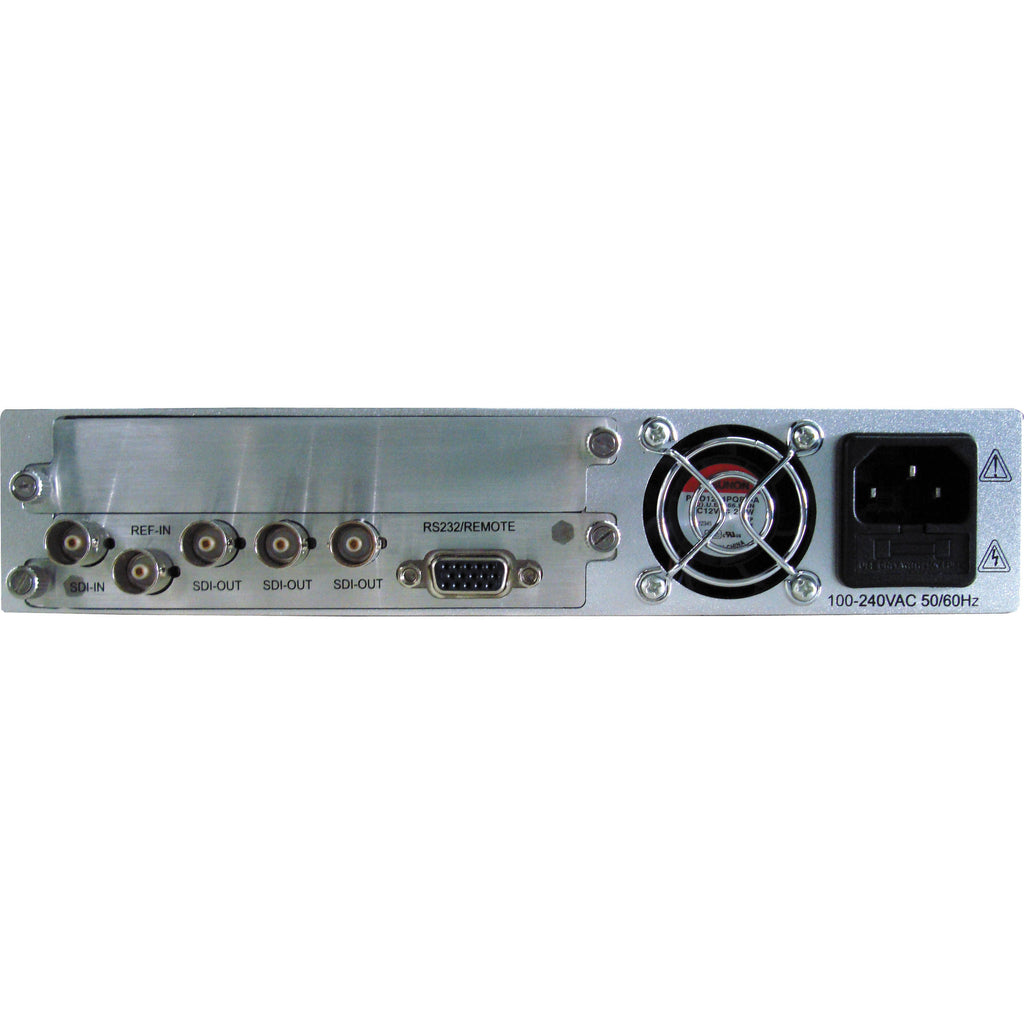

The MVIO Delay HD/SD-SDI Signal Delay Device from Gra-Vue enables delaying an HD-SDI signal up to 20 seconds. Common applications for signal delay include live production scenarios where the audio is out of sync or to seamlessly mix footage being captured locally with a satellite feed. The original un-delayed signal is looped back out along with two mirrored HD/SD-SDI outputs of the delayed signal.
- Supports SD-SDI and HD-SDI along with embedded audio
- The delay can be adjusted frame-by-frame
- Audio mute button eliminates embedded audio if desired
- RS-232 port for remote operation
- Automatic signal bypass with device powered off
- Supports SNMP Web protocol
- Half-wide 1U rackmountable chassis
In the Box
Gra-Vue MVIO Delay HD/SD-SDI Signal Delay Device
- Limited 1-Year Warranty
| Connectivity | |
|---|---|
| Input | 1 x HD/SD-SDI on BNC Impedance: 75 ohm |
| Outputs | 1 x HD/SD-SDI loop-out 2 x HD/SD-SDI on BNC Impedance: 75 ohm Level: 800 mV �5% Jitter: < 0.2 UI at 100 KHz |
| Supported Resolutions | 525i 625i 720p 1080i: 50, 59.94, 60 1080p: 23.98, 24, 25, 29.97 |
| Reference | 1 x Composite BNC input Impedance: 75 ohm |
| Network | 1 x RS-232 on DB-9 female |
| Performance | |
|---|---|
| Maximum Delay | 20 seconds for HD-SDI |
| General | |
|---|---|
| Power Requirements | 110 to 250 VDC |
| Power Consumption | 36 W |
| Operating Temperature | 41 to 77�F / 5 to 25�C |
| Rack Height | 1 RU |
| Dimensions | 8.6 x 17 x 1.9" / 219 x 432 x 48 mm |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 7.5 lb |
| Box Dimensions (LxWxH) | 23.0 x 19.4 x 6.6" |
