| ₹ 134385.0 includes GST and import duties. | |
| B2B customers can avail ₹ 20493.71 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

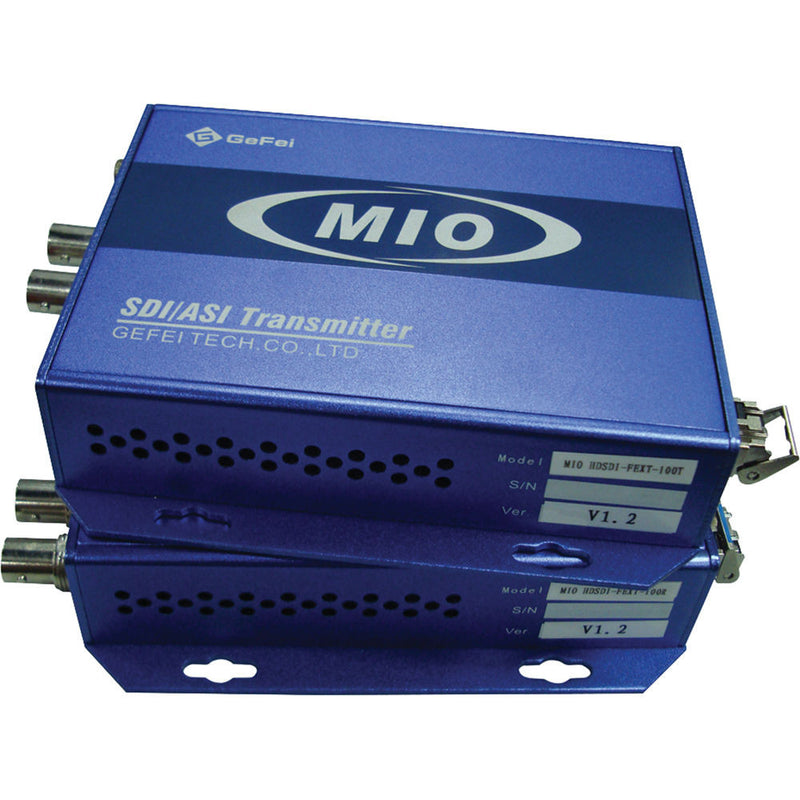

The Gra-Vue MIO HDSDI-FEXT Optical Fiber Transmitter transfers good quality SDI / ASI signal up to a distance of 12.43 miles (20km) using the single mode LC / PC interface optical fiber. This transmitter comes with MIO HDSDI-FEXT-100 R SDI / ASI optical receiver. It supports embedded audio SDI signals.
- Supports 720p, 1080i, and 1080p input resolution
- Highly stable transmission with anti-interference ability up to a distance of 12.43 miles (20km) without image distortion
- Supports transmission embedded audio / data SDI signal
- Single mode LC / PC interface optical fiber supported
- Provides coaxial cable loop out
- Supports the next level equipment cascade use
- Supports different clock styles such as analog clock, digital clock, countdown clock, and start time
- Used in applications such as broadcast system, studio system, and other professional transmission
In the Box
Gra-Vue MIO HDSDI-FEXT Optical Fiber Transmitter
- MIO POWER-12V1A-NA Power Adapter (U.S.A)
- Limited 1-Year Warranty
| Transmitter | |
|---|---|
| Input Interface (TX) | 1 x HD / SDI BNC connector |
| Video Format | SD: 625i 50, 525i 60 HD: 720p 50 / 59.94 / 60, 1080i 50 / 59.94 / 60, 1080p 30 / 29.97 / 25 / 24 / 23.98, 1080p 50 / 60 |
| Output | 1 x LC / PC 1 x SDI loop, BNC connector |
| Wavelength | 1310 nm |
| Power | -2 dBm |
| Transmission Distance | 12.43 miles (20 km) |
| Receiver | |
|---|---|
| Input | 1 x LC / PC |
| Wavelength | 1310 nm |
| Output | 2 x SDI, BNC connector |
| Power | 12 VDC, 1 A |
| Dimensions | 4.84 x 3.62 x 1.14" (123.00 x 92.00 x 29.00 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.3 lb |
| Box Dimensions (LxWxH) | 11.0 x 7.0 x 6.0" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 131697.3 |
| 3-5 | ₹ 130353.45 |
| 5-10 | ₹ 127665.75 |
| 10+ | ₹ 124978.05 |
Bulk discount will be automatically applied during checkout based on quantity.
