Description

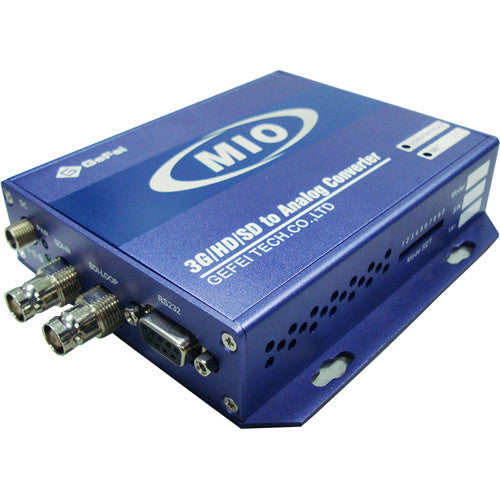

Based on the Mini BOX platform, the Gra-Vue MIO ENC-HD-AUD 3G/HD/SD to Analog Video and Audio Converter converts 3G/HD/SD-SDI to analog composite video signal, analog component video signal, S-video signal, or HD YUV signal. It also supports input formats of 525i 60, 625i 50, 720p, 1080i, and 1080p. It can extract 1 analog audio stereo signal from a single serial digital signal. It supplies the loop function, which ensures the extension of additional devices.
The LED lights on the Mini BOX indicate the status of the input signal and power for prompt user notification. The de-embedded audio channels and analog video output mode can be selected through a DIP switch. However, this converter cannot change the frame frequency, that is, the frame frequency of output signal is the same as the one of input signal. Known for its compact function, this converter is widely used in a variety of environments, like TV programs, post production, studios, broadcast, etc.�
- Input signal for SD-SDI, 1.5 Gb/s HD-SDI, and 3.0 Gb/s HD-SDI
- 1 analog audio stereo signal extracted from a single serial digital signal

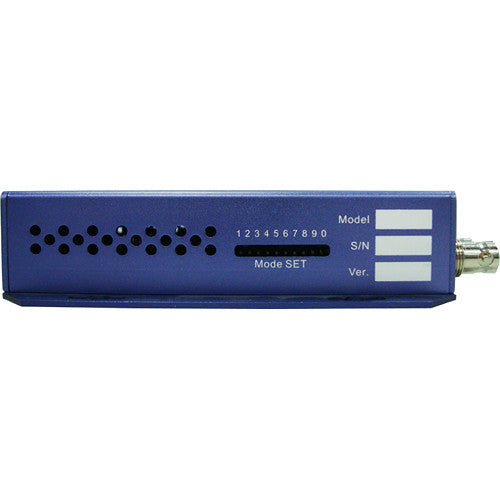

- Select the mode of analog output (CVBS/YUV/YC) freely via a DIP Switch
- Supports self-defined de-embedded audio channel via a DIP switch
- All audio interfaces adopt a 3-PIN connector, balanced output

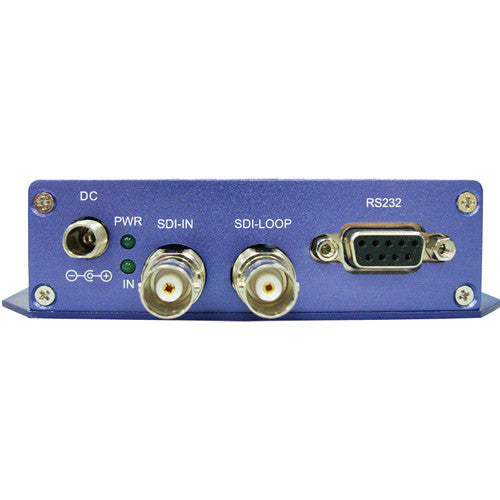

- Supply real-time input signal status and power indicator denoted by green LED
- Support loop function with power on
- MIO POWER-12V1A-NA Power Adapter (U.S.A)
- Limited 1-Year warranty
| Digital Video Input | |
|---|---|
| Interface | 1 x 3G/HD/SD-SDI, BNC connection |
| Impedance | 75 ? |
| Format | 525i 59.94, 625i 60 720p 50/59.94, 1080i 50/59.94 1080p 50/59.94 � |
| Analog Video Output | |
|---|---|

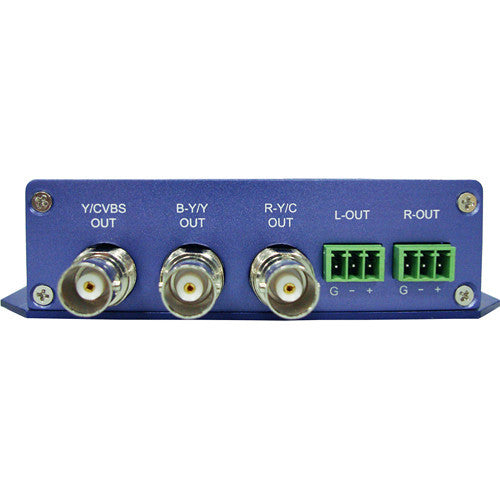

| Output Interface | 3 x BNC connection Can be set as CVBS/YUV /YC output mode |
| Impedance | 75 ? |
| Digital Video Output | |
|---|---|
| Interface | Loop Output: 1 x 3G/HD/SD-LOOP, BNC connection |
| Impedance | 75 ? |
| Format | SMPTE 259M-C ; 270 Mb/s SMPTE-292M ; 1.485 Gb/s SMPTE-425 ; 2.970 Gb/s |
| Level | 800 mV � 10% |
| Rise Time | 750 to 1500 ps (20 to 80%) |
| Fall Time | 750 to 1500 ps (20 to 80%) |
| Difference Between Rise & Fall | ?500 ps |
| Jitter | <0.2 UI |
| Analog Audio Outputs | |
|---|---|
| Output Interface | 2 x 3-pin (balanced) |
| Impedance | 600 ? |
| Power | |
|---|---|
| Power Consumption | 12 VDC, 1 A |
| Dimensions | 4.84 x 3.62 x 1.14" (123.00 x 92.00 x 29.00 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 11.0 x 7.0 x 3.0" |
