Description

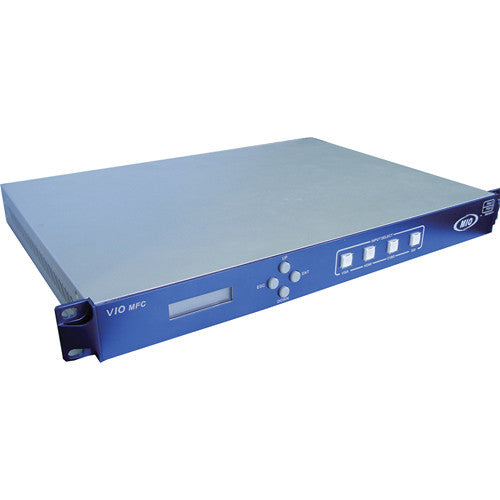

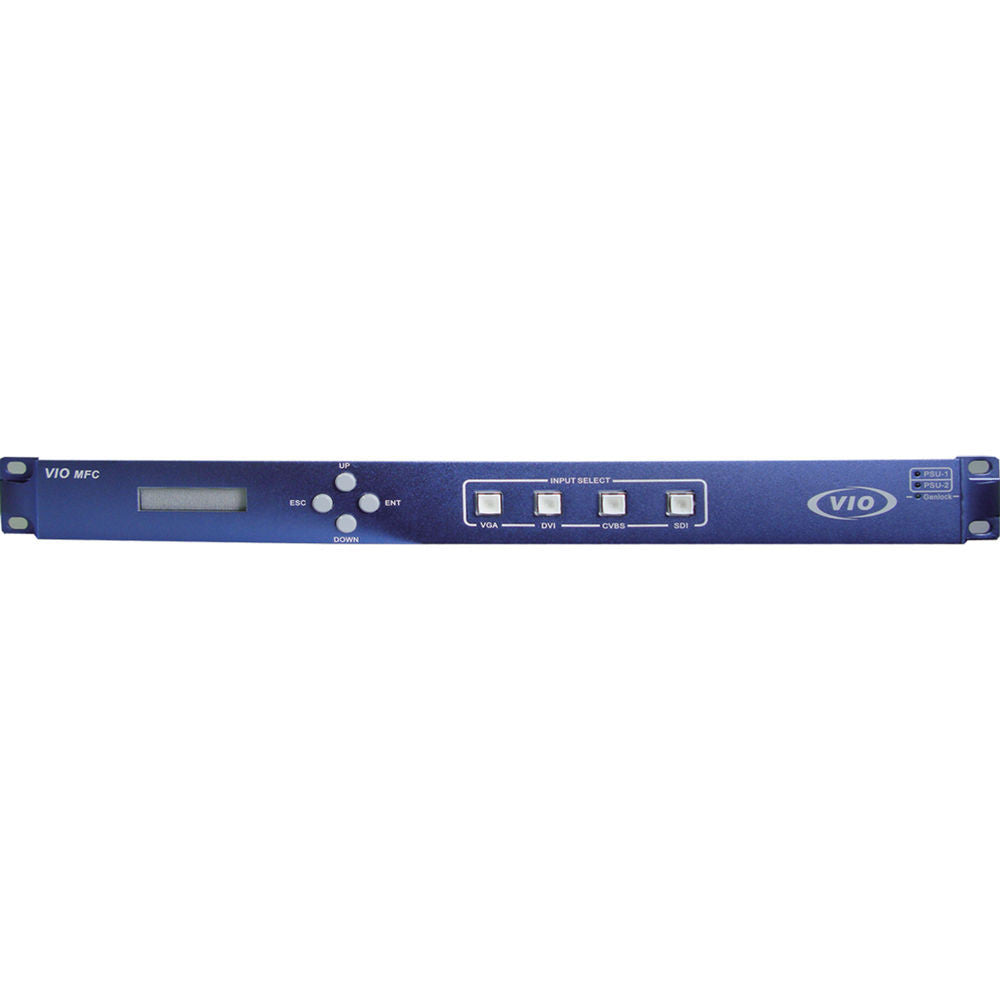

The Gra-Vue DVI / HDMI / VGA Signal to HD / SD-SDI Converter with Genlock is VIO MFC series format converter based on 1RU chassis. It is a bridge between broadcasting and the IT area. It supports the LCD menu, control button, and LED indication on the front panel. The CVBS output and audio input / output are sold separately.
- Support various formats for VGA and DVI (HDMI) input. Up to 1920 x 1080 for DVI (HDMI) input and 1600 x 1200 for VGA input
- Besides inner sync, genlock with full phasing control for V-phase and H-phase, locks HD / SD-SDI output to black burst
- For up / down conversion, adopt AFD auto-sensing or manual setting (crop / bar / stretch)
- Magnify the selected image area though the Web server
- Support moving and adjusting the magnifying area, pixel by pixel
- Multi-level anti-flicker
- Provide flexible adjustment for luminance, saturation, contrast, detail, and denoise
- Preset layouts for all parameter settings
In the Box
Gra-Vue DVI / HDMI / VGA Signal to HD / SD-SDI Converter with Genlock
- Limited 1-Year Warranty
| Input | Input: VGA input number: 1 Connector: DB15 Female Resolution: 640 x 480 / 60 / 75, 800 x 600 / 60 / 75, 1024 x 768 / 60 / 75, 1152 x 864 / 60 / 75, 1280 x 768 / 60, 1280 x 800 / 60, 1280 x 960 / 60, 1280 x 1024 / 60, 1360 x 768 / 60, 1440 x 900 / 60, 1600 x 900 / 60, 1600 x 1200 / 60 DVI / HDMI Input Number: 1 Connector: DB24 Female Resolution: 720p 50 / 59.94 / 60, 1080i 50 / 59.94 / 60, 1080p 30 / 29.97 / 25 / 24/ 23.98, 1080p 50 / 59.94 / 60, 800 x 600 x 60, 1024 x 768 x 60, 1280 x 720 x 50 / 60, 1280 x 768 x 60, 1280 x 800 x 601, 280 x 960 x 60, 1280 x 1024 x 60, 366 x 768 x 60, 920 x 1080 x 60 / 50 |
| Output | HD / SD-SDI Output Number: 2 Connector: BNC 75 ? Format: SMPTE 292M, 1.48 Gb/s SMPTE 259M-C 270 Mb/s 625i 50, 525i 59.94, 720p 50 / 59.94 / 60,1080i 50 / 59.94 / 60,1080p 25 / 30 Return Loss: �15dB Signal Level: 800 mV �10% Overshoot: �80 mV Jitter: �0.2 UI Rise and Fall Time: �500/sec DC Offset: 0 V �500 mV Analog Video Output Interface (Sold Separately) Number :4x CVBS BNC 75 ? Audio Input / Output Interface (Sold Separately) Digital Input Number: 2 Connector: BNC 75 ? unbalanced Format: AES-3 SMTPE 276M Analog Input NumberL : 2 Connector: 3-pin 600 ? Balanced Analog Output NumberL: 2 Connector: 3-pin 600 ? Balanced |
| Genlock | 1x BB In, BNC SMPTE 259M-C 270 Mb/s, 625i / 50, 525i 59.94 |
| Control Interface | 1x RJ45 10 / 100 / 1000M auto-adapting |
| Power | 2x 120 W, 100 to 256 VAC, & 50 to 60 Hz |
| Dimensions | 17.32 x 19.01 x 1.77" (440.00 � 483.00 � 45.00 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
