Description

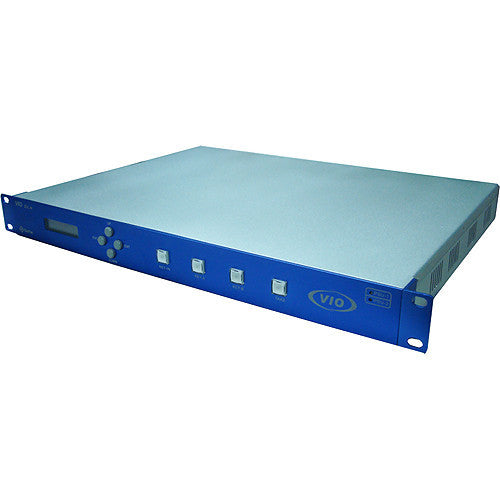

The Gra-Vue Dual Channel HD / SD-SDI Keyer and Logo Generator is a complete HD / SD Keyer with inner Logo insertion that will key 1 or more (up to 4) static / animated bugs over an HD or SD video signal. It has a built-in web server and through the Internet explorer browser; you can create logos via importing TGA / TAG series / AVI / MOV etc. format pictures.
The size of each logo is variable and ranges from 1/25th to full screen. The position and transparency of the logo are programmable. It provides SDI output for preview, 2 SDI program outputs where 1 is a bypass output without power supply. You can control keys down or up freely and easily. It is suitable for the on-air environment.
- Embedded HD / SD-SDI compatible
- 20-bit processing
- 100% linear keying with adjustable transparency
- Supply clean output and preview output
- EDH inserted on program output
- Auto timing of program, key, and fill
- Supply GPI and RS-232 / 422 control interface, LTC timing
- Supply RCP for remote control

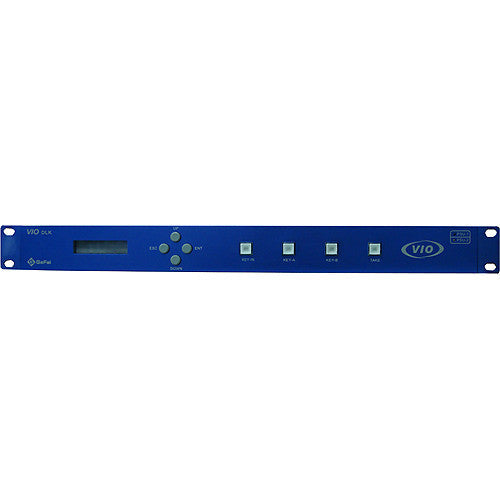

- Full control and status is provided from the front panel display
- Built-in web server
- Support SNMP (Simple Network Management Protocol)
- Standard 1U frame with redundant PSU unites and fans
- Limited 1-Year Warranty
| Reference | Signal Style: Tri-level or NTSC / PAL bi-level synchronization Input Interface: 1x BNC, 75 ? Output Interface: 1x BNC loop output |
| Video Input | PGM: Input Interface: 1x HD / SD-SDI, BNC, 75 ? |
| Video Output | Output Interface: 4x HD / SD-SDI, BNC, 75 ? (2x PGM output, 1 is bypass) (1x clean output and 1x preview output) |
| Digital Video Output | FILL: Output Interface: 2x HD / SD-SDI, BNC, 75 ? |
| Digital Video Output | KEY: Output Interface: 2x HD / SD-SDI, BNC, 75 ? |
| Control Interface | Network: 1x RJ45 1000M Ethernet GPI: 2x GPI Serial: 1x DB15 RS232 LTC: 1x XLR |
| Power | 2x 120 W, 100 to 256 VAC, 50 to 60 Hz |
| Dimensions | 17.32 x 19.01 x 1.77" (440.00 � 483.00 � 45.00 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 17.64 lb |
| Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
