The Gra-Vue 32 x 32 HD & SD Router is a digital signal switcher suitable for middle to small sized broadcasting system designed by Gefei Technology. The switching system adopts field blank switching and supplies independent external synchronization interface.
The separation of the host and remote control panel makes it convenient to use. The host is 1U chassis, with dual power, supports simultaneous control by 2 remote control panels; through RS-232, you can control the host by professional software on a PC.
- 20-bit digitization processing, high quality, high stability ensures the safety and reliability of broadcasting
- Supports independent 32-channel bus outputs, and SD/HD inputs auto sensing
- Supports external BB using field vanishing, switching, processing to ensure the switching without flicker and noise
- The host can be configured to support simultaneously, controlled by 2 RCP through RS-485
- Convenient to control through RS-232 with software
- 3U chassis, with dual power
In the Box

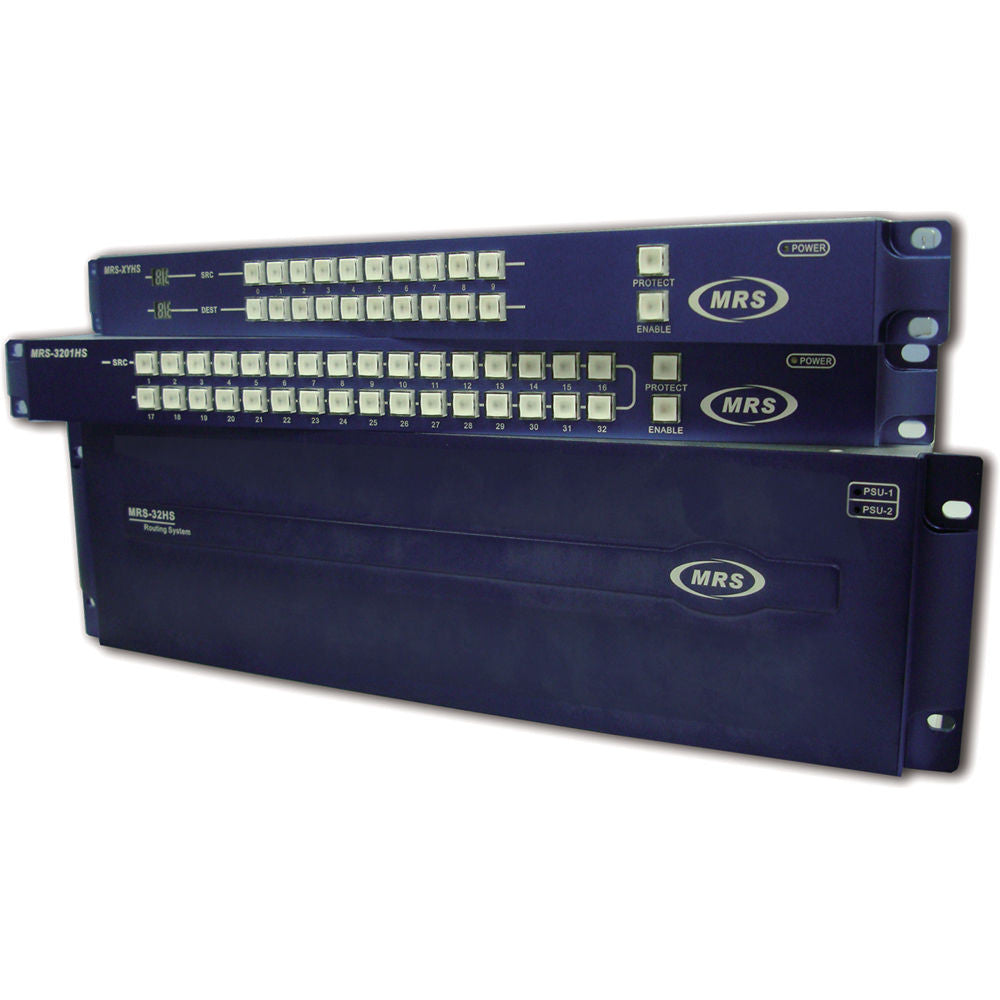

Gra-Vue 32 x 32 HD & SD Router with X+Y Remote Control Panel
- X+Y Remote Control Panel
- Limited 1-Year Warranty
| Host Input Interface |
| Input | 32SD / HD-SDI |
| Format | 525i30 625i25 720P50 720P60 720P60/M 1080i50
1080i60 1080i60/M 1080sf24 1080sf24/M
1080P241080P24/M 1080P25 1080P30 |
| Host Controller Interface |
| Connector | 1 x RS-232 DB9 male
4 x RS-485 BNC |
| Power | 2 x 120 W |
| Dimensions | Size: 1.73 x 51.96 x 3.14" (44.00 x 1,320.00 x 80.00 mm) |
| Packaging Info |
| Package Weight | 30.86 lb |
| Box Dimensions (LxWxH) | 24.0 x 24.0 x 12.0" |
