Gossen Mavoprobe Overview

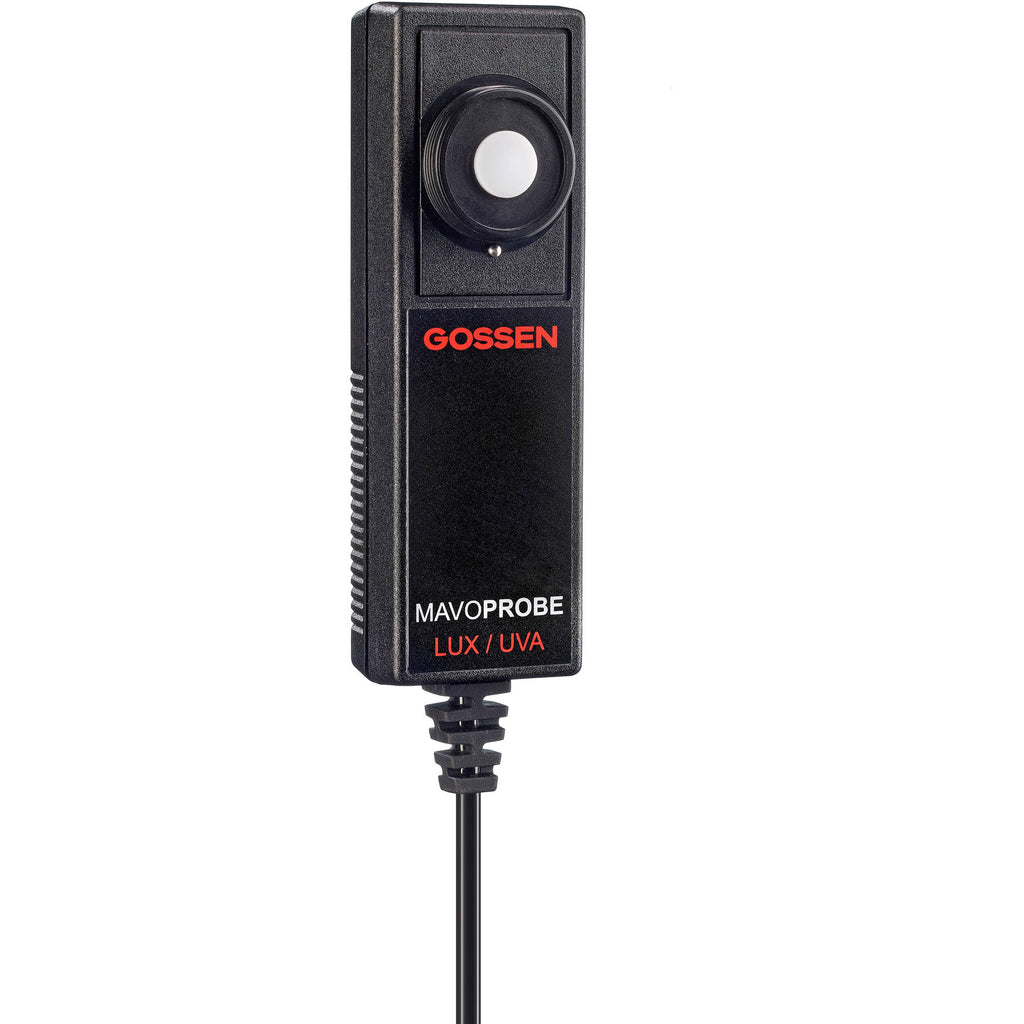

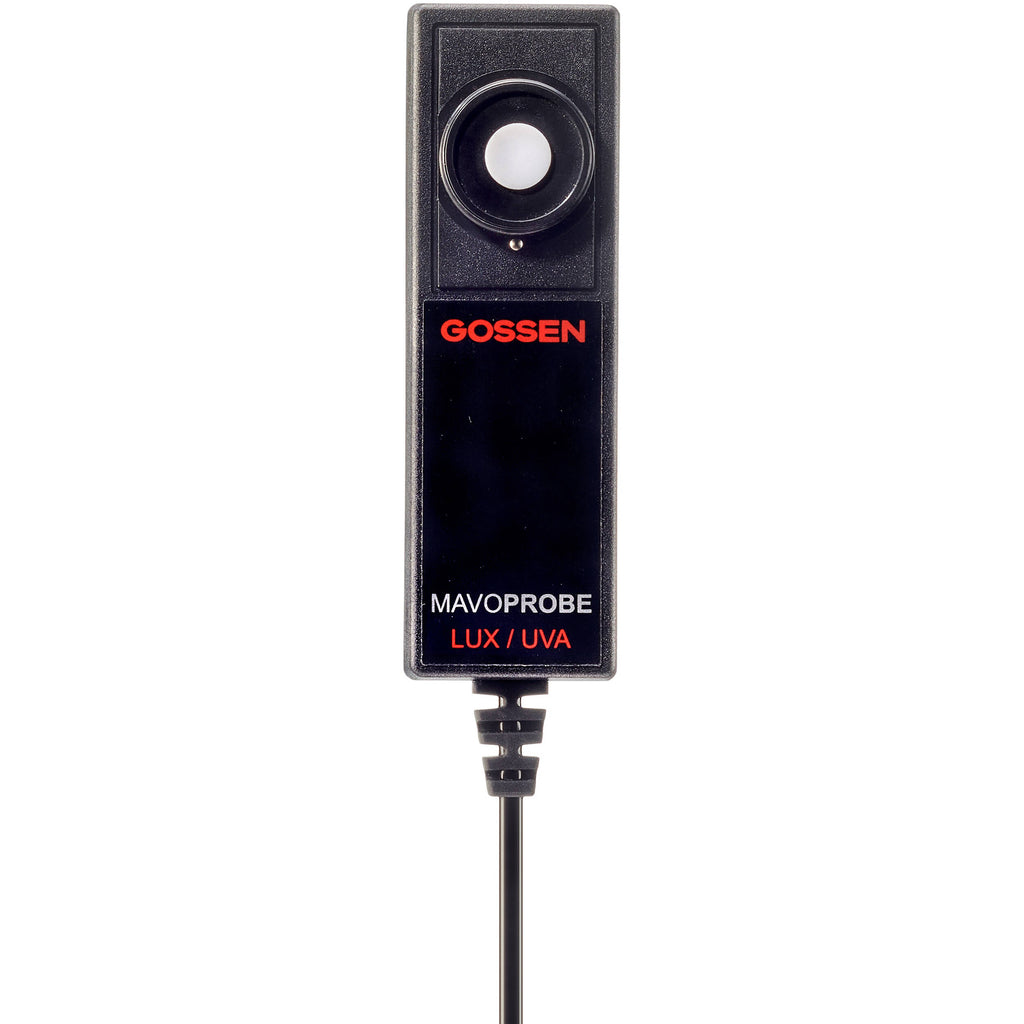

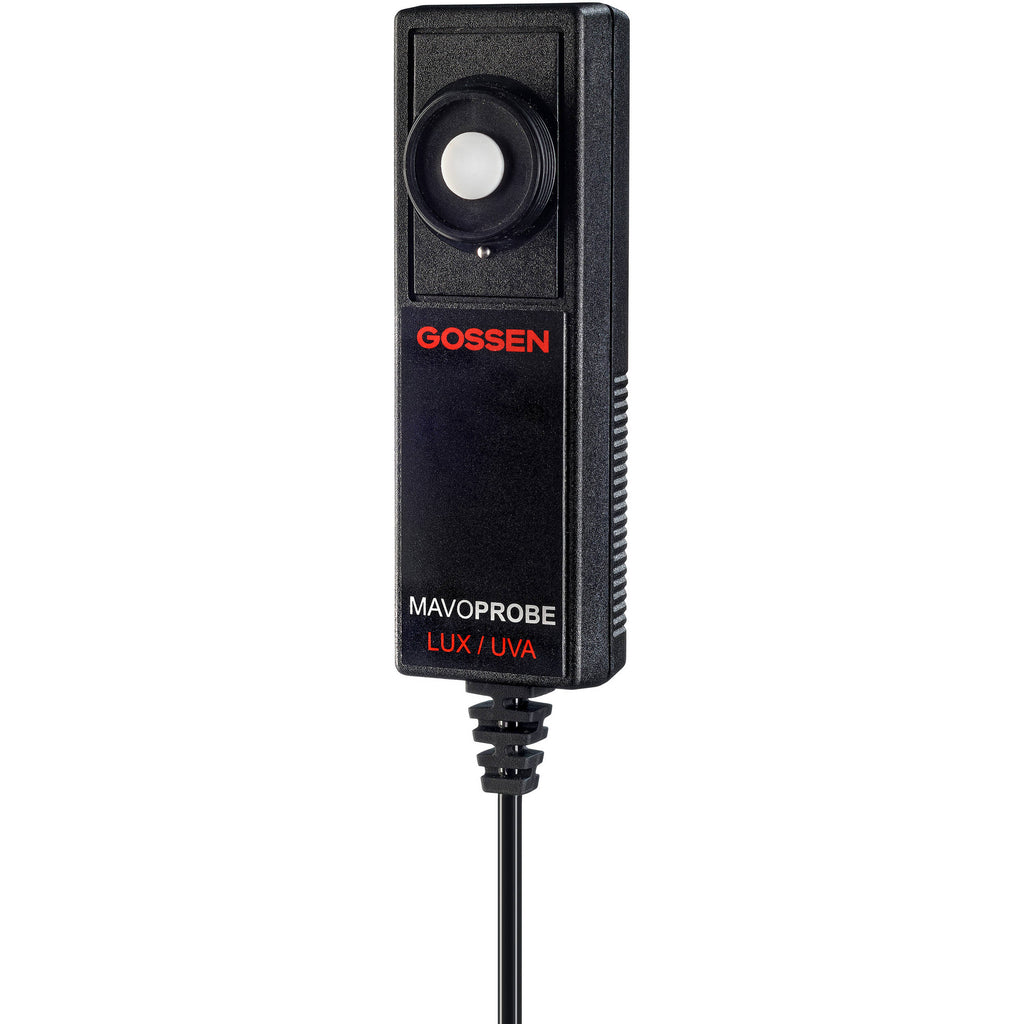

The MAVOPROBE LUX / UVA from Gossen is a digital measurement attachment for and powered by the MAVOMASTER that provides precision photometrics in a wide variety of residential, commercial, and industrial uses. Its sensitivity range runs from 0.01-199,900 lux, or 0.001-19,990 fc, with an accuracy of ±3%, measuring illuminance in accordance with class B per DIN 5032-7, DIN EN 13032-1 appendix B, and ISO/CIE 19476, and measurement of UV-A irradiance in accordance with DIN EN ISO 3059 and ASTM E2297. Equipped with color correction for a spectral response that is matched to that of the human eye, integrated cosine correction is also included to assure that oblique incident light is evaluated correctly.
The USB 2.0 interface allows MAVOPROBES to directly interface with a computer using an optional USB adapter cable. The measuring probes can also be consolidated using a USB hub and supplied with voltage from a power pack. Extension cords for the MAVOMASTER are also available separately in three different size
In the Box
- Gossen MAVOPROBE LUX / UVA
- Sensor Protection Cap
- Limited 2-Year Manufacturer Warranty
Gossen Mavoprobe Specs
Metering
| Light Reading Method |
Incident |
| Light Readings |
Footcandle
Lux |
| Illuminance Range |
0.001 to 199,990 Lux / 0 to 18,579.1 fc |
| Luminance Range |
0.001 to 199,990 fL / 0.01 to 1,999,900 cd/m² |
Physical
| Receptor Element |
Silicon Photodiode |
| Media Card Reader |
None |
| Tripod Mounting Thread |
None |
General
| Battery |
None |
| Radio System |
None |
| Dimensions |
4.5 x 1.3 x 1.1" / 115 x 33 x 27 mm |
| Weight |
4.1 oz / 115.0 g |
