| ₹ 120600.0 includes GST and import duties. | |
| B2B customers can avail ₹ 18391.5 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

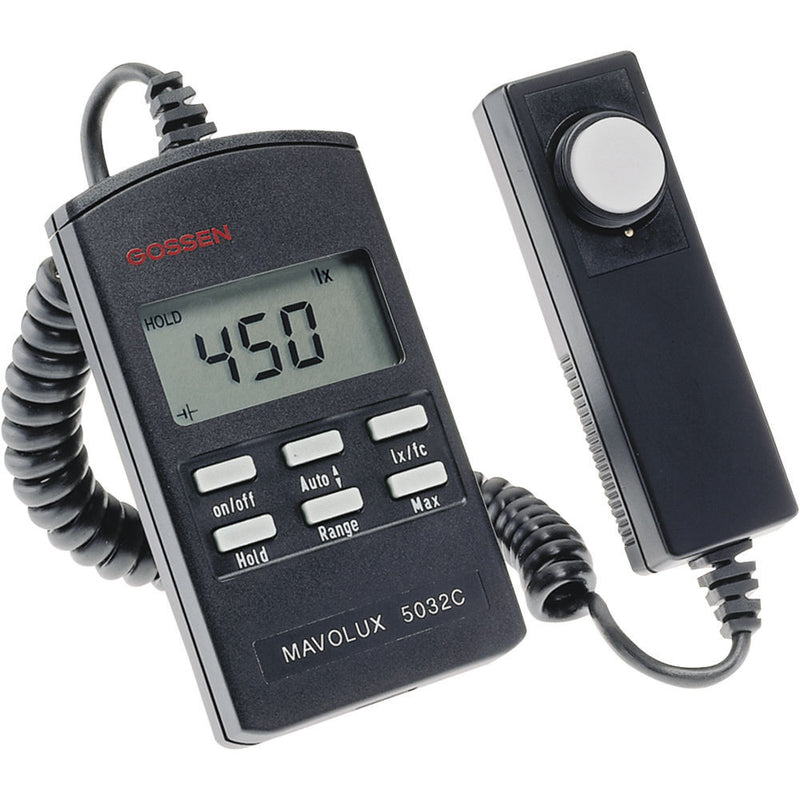

The Gossen Mavolux 5032C is a handy, easy to use, highly accurate light meter capable of measuring illumination in either footcandles or lux. Candelas/m2 and footlamberts can also be measured with the optional luminance attachment (4141).
The Mavolux 5032C is equipped with color correction, so that its spectral response is matched to that of the human eye, in accordence with DIN 5032, part 7, class C. Integrated cosine correction is included in order to assure that oblique incident light is also evaluated correctly.
Digital Luxmeters and Footcandle meters for industry, trade, electricians, architects, institutes, inspection authorities and also photo and film studios meet classifications of DIN 5032/T7 and CIE no. 69. Even very strong light (e.g. from car headlights) can be measured without any additional accessories.
Automatic/Manual Measuring Range Selection
- Either Lux or footcandles can be selected as a measured quan-tity. The measuring range is matched automatically to the mea-sured quantity. The current measuring range can be locked by pressing a key, or any one of four measuring ranges can be selected manually.
Hold Function
- The current measurement value can be held at the display by pressing the data hold key.
MAX Function
- The largest measurement value which occurs after this function has been activated is stored to memory in order to determine maximum illuminance or luminance.
- Lux measuring in solid, easy-handling form
- Useful for electricians, designers, decorators or gardeners
- Illuminance can be measured in Lux or Footcandles
- Luminance can be measured in candles per square meter (cd/m2) or Footlamberts (fL) with optional luminance attachments
- Wide measuring ranges
- High resolution
- Meets Standards DIN 5032/T7 and CIE no. 69
- Silicon photo diode with V(l) filter, colour corrected, spectral response adapted to that of the human eye
- Rugged instrument design, easy operation
- Leather ever-ready case included
- Calibration certificate available (optional)
| Measuring System | Silicon cell |
| Measuring Modes | Autorange, range hold, manual range, readings in Lux (lx)/footcandle (fc), hold function and max-function for read out |
| Receptor Head | Light collector surface at diffuser (20mm diameter); Permanently connected coiled cord attaches meter to sensor; Length 5ft. (approx.) |
| Angle of Coverage | Not available |
| Aperture/Shutter Priority | Not available |
| Display Readout | 7-segment digital LCD (50 x 25mm; character height is 13mm), "OL" (Overload) is displayed: RESOLUTION
|
| ISO Range | Not available |
| f/Stop Display Range | Not available |
| Shutter Speed - Ambient | Not available |
| Shutter Speed - Flash | Not available |
| EV Range (ISO-100) | Measuring Ranges: 0.1 to 199900 lux (lx) in 4 ranges, 0.01 to 19990 footcandles (fc) |
| Cine Speed | Not available |
| Exposure Memory | Not available |
| Shadow/Highlight Calculation | Not available |
| Brightness Difference | Luminance measurement with luminana attachment: 1 to 999000 cd/m2; 0.1 to 199900 fl;
|
| Flash to Ambient Ratio | Not available |
| Multiple Flash | Not available |
| Exposure Calibration | Not available |
| Power Source | 1.5v alkaline "AA" (battery life about 75 hours, approx. 2500 measurements); Battery test and low voltage indication |
| Dimensions | Meter: 2.5 x 4.75 x .75" (63.5 x 120.65 x 19.05mm) without case; Sensor: 1.25 x 4.18 x 1.18" (31.75 x 106.17 x 29.97mm) |
| Weight | 7 oz (200 g) (without battery - approx.) |
| Specialties | Optional Accessories: Luminance attachments for cd/m2 or fl: Calculator disc for reading shutter speeds and f/stops in photographic use |
| Packaging Info | |
|---|---|
| Package Weight | 5.05 lb |
| Box Dimensions (LxWxH) | 14.9 x 12.5 x 4.5" |
- Case
- One "AA" battery
Bulk Discount
| Quantity | Price |
| 2 | ₹ 118188.0 |
| 3-5 | ₹ 116982.0 |
| 5-10 | ₹ 114570.0 |
| 10+ | ₹ 112158.0 |
Bulk discount will be automatically applied during checkout based on quantity.
