Godox WMICS1 PRO TX Overview
Designed for mobile journalists, videographers, and vloggers, the Godox WMicS1 Pro TX is a bodypack wireless transmitter and lavalier microphone designed to be used with the WMicS1 Pro RX receiver (available separately). It delivers reliable transmission with a clear sound at a distance up to 328' for streaming or recording dialogue, interviews, lectures, and speech for mobile journalists, YouTube/Instagram creators, TikTok personalities, vloggers, and more.
This Pro version of the transmitter offers full metal housing on the components, an improved OLED display that is easily seen in both daylight and darkness, and an adjustable antenna that allow for better positioning to improve reception. A removable metal clip makes it easy to attach the unit to a belt or clothing. Included is an omnidirectional lavalier mic with a foam windscreen.
The system offers 96 frequencies in the UHF range to choose from to avoid wireless signal interference. The transmitter operates on two AA batteries, but can also be powered via USB.
All-Metal Bodypack Transmitter with Lavalier Mic
- The compact bodypack transmitter offers a durable metal housing and is equipped with an On/Off switch that doubles as a mute button.
- The transmitter features an easy-to-read OLED display that indicates the mic's input level, muting, and battery life.
- RF power can be switched between 40mW for maximum transmission distance or 10mW for maximum battery life.
- The lavalier microphone features an omnidirectional pickup pattern that helps to deliver consistent audio levels even when the subject turns away from the mic.
- You can fold and rotate the antenna to improve signal transmission.

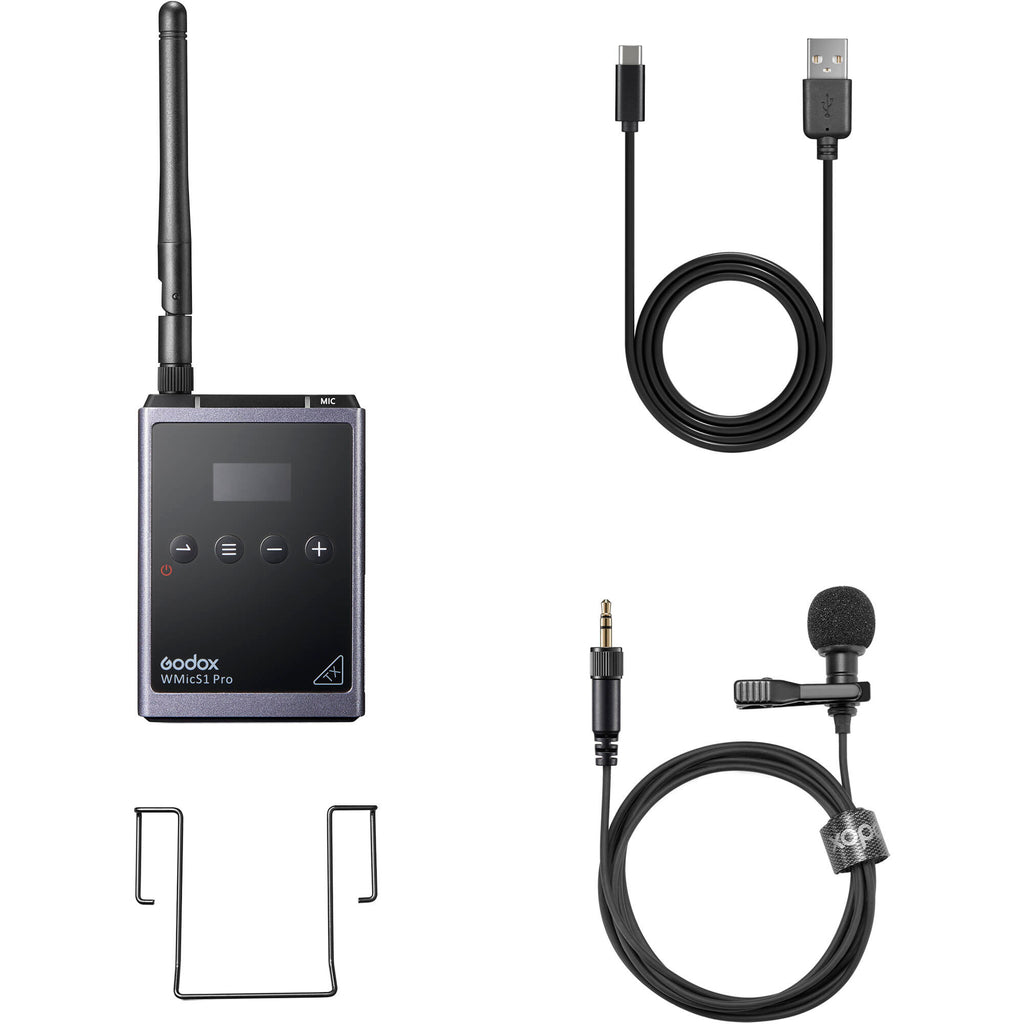

In the Box
- Godox WMicS1 Pro TX UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)
- Omni Lavalier Microphone
- Belt Clip
- USB Charging Cable
- Foam Windscreen
Godox WMICS1 PRO TX Specs
| Wireless Technology |
Analog UHF |
| RF Frequency Band |
514 to 596 MHz |
| RF Channel Scanning |
Manual |
| Max Operating Range |
328.1' / 100 m (Line of Sight) |
| Max Transmitters per Band |
2 |
| Built-In Recorder |
No |
| Latency |
12 ms |
Transmitter
| Transmitter Type |
Bodypack |
| RF Output Power |
10 / 40 mW |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Input (Lockable) |
| Included Cable Connector |
None |
| Muting |
Off/On Switch |
| Auto-Level Control |
No |
| Sync Method |
Manual |
| Antenna |
1 x 1/4 Wave External, Fixed |
| Power Requirements |
Battery, Bus Power (USB) |
| Battery Type |
2 x AA (Not Included) |
| USB/Lightning I/O |
1 x USB-C (Bus Power) |
| Display & Indicators |
1 x OLED (Audio Level, Channel, Mute) |
| Operating Temperature |
32 to 122°F / 0 to 50°C |
| Dimensions |
2.5 x 7.8 x 0.8" / 63 x 198 x 21 mm |
| Weight |
7.5 oz / 212 g |
Microphone
| Microphone Type |
Lavalier |
| Sound Field |
Mono |
| Polar Pattern |
Omnidirectional |
| SNR |
70 dB |
| THD |
< 5% |
| Outputs |
1 x 1/8" / 3.5 mm TRS Male |
Packaging Info
| Package Weight |
0.805 lb |
| Box Dimensions (LxWxH) |
8.8 x 5.5 x 1.6" |
