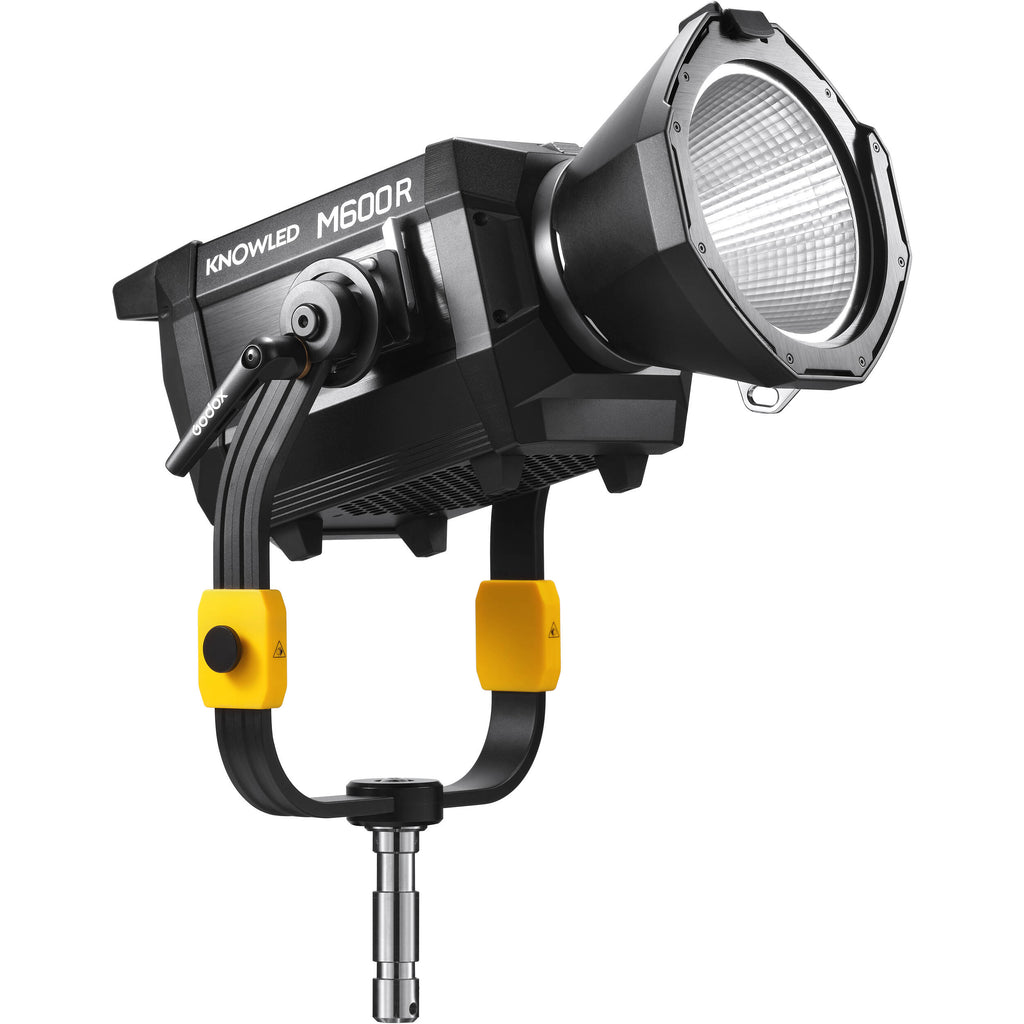

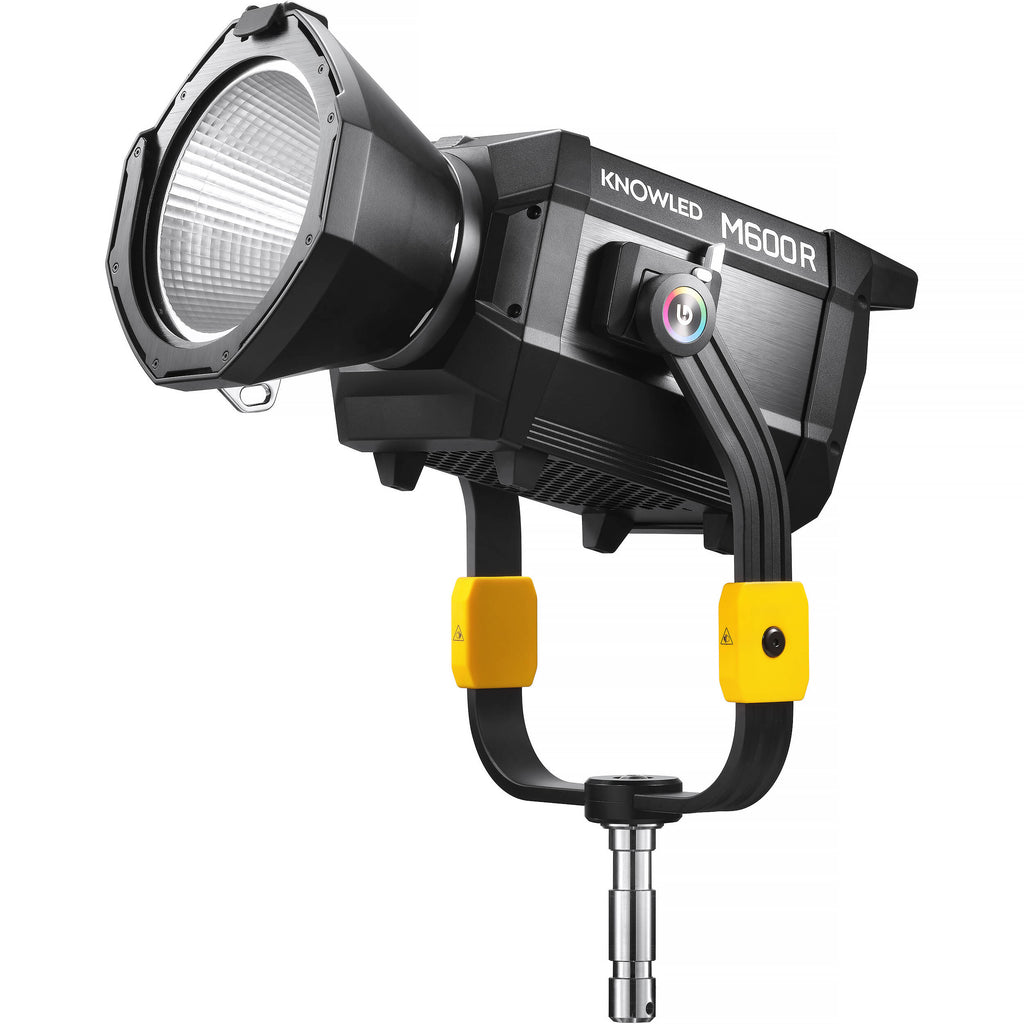

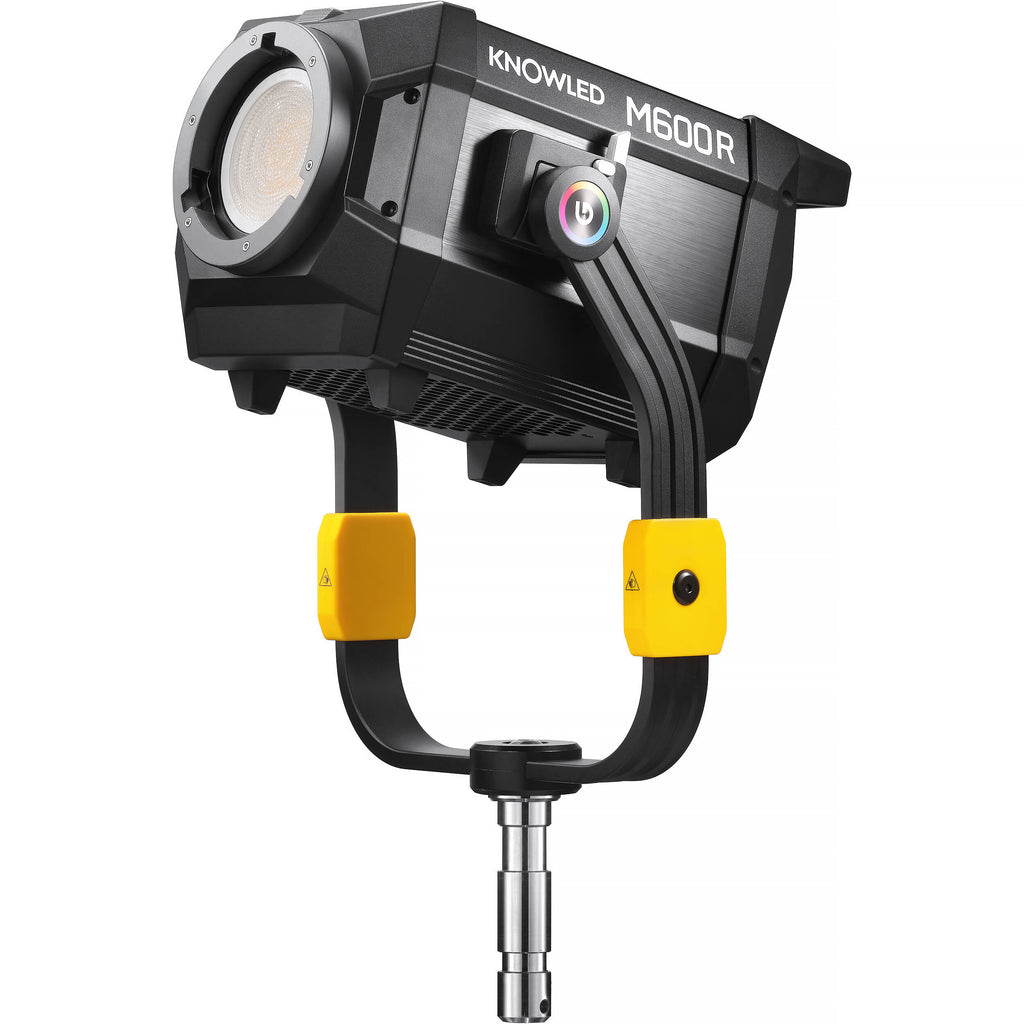

Godox KNOWLED M600R RGB LED Monolight

Exceptional Color Fixture

Designed to withstand demanding filming environments, the KNOWLED M600R RGB LED Monolight from Godox is a robust 600W fixture with full RGBWW color that gives you complete control over its operation. The M600R features advanced connectivity options, silent operation, 1800-10,000K CCT, and an IP54 rating to stand up to wet weather conditions. Users can easily access a range of 14 lighting effects to achieve different looks or modify the fixture thanks to its widely compatible Bowens front accessory mount. Made with flexibility in mind, lighting technicians will appreciate a 26.2' long power cable that facilitates installation and positioning on set. Godox also includes a soft case for storage and transportation.

High Brightness

The M600R outputs up to 136,000 lux at a distance of 3.3' in 5600K using its included 45° reflector.

Professional Connectivity

A variety of control methods allow you to adjust and control your light effortlessly and simplify your workflow. Control the fixture onboard, via app, or with wired DMX. Wireless control is also possible via LumenRadio CRMX or Ethernet, which supports the Art-Net and sACN protocols.

Silent Waterproof Fan

Godox introduces an air cooling system with a waterproof cooling fan that ensures reliable performance in temperatures as low as -4°F.

Widely Compatible Bowens Mount

The M600R is configured to accept optional Bowens mount light modifiers that will give you complete control of the light output. This includes the brand's Fresnel.

IP54 Rating

Rated IP54 for weather resistance, the light and its control box can withstand dust, water splashes, rain, fog, or other types of extreme weather.

Upgraded Optical Technology

To effectively manage temperature while maintaining the quality of light, the M600R incorporates an upgraded optical technology that extends its lifespan.

Other Details

• Flicker-free operation
• High CRI/TLCI scores of 96 for color accuracy
• 0-100% dimming
• Linear, S-curve, exponential, and logarithmic dimming curves
• Green/Magenta adjustments
• Firmware upgrades via USB-A port

Godox M600RSpecs

Item Type	1x LED Monolight
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Photometrics	45° at 3200K: 9364 fc / 100,800 Lux at 3.3' / 1 m (with Reflector)* 1040 fc / 11,200 Lux at 9.8' / 3 m (with Reflector) 367 fc / 3960 Lux at 16.4' / 5 m (with Reflector) *Standardized Measurement Calculated Internally Based on Closest Distance 45° at 5600K: 12,634 fc / 136,000 Lux at 3.3' / 1 m (with Reflector)  1198 fc / 12,900 Lux at 9.8' / 3 m (with Reflector) 422 fc / 4550 Lux at 16.4' / 5 m (with Reflector)
Color Temperature	1800 to 10,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 96
Dimming	App-Controlled / Controller Included / DMX (Continuous)  � 0 to 100%
Front Accessory Mount	Bowens S
Wireless Remote Control Type	Bluetooth Wireless CRMX
Power Source	AC Power (Cable Included) *Requires Power Supply/Controller (Included) Battery (Not Included) *Requires Power Supply/Controller (Included)
Battery	1x Battery Power Station, 48 VDC (Not Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	720 W (Maximum)
Fixture Mounting	1x 1-1/8" Stud (Via Yoke Mount)

Item Type	1x LED Monolight
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Photometrics	45° at 3200K: 9364 fc / 100,800 Lux at 3.3' / 1 m (with Reflector)* 1040 fc / 11,200 Lux at 9.8' / 3 m (with Reflector) 367 fc / 3960 Lux at 16.4' / 5 m (with Reflector) *Standardized Measurement Calculated Internally Based on Closest Distance 45° at 5600K: 12,634 fc / 136,000 Lux at 3.3' / 1 m (with Reflector)  1198 fc / 12,900 Lux at 9.8' / 3 m (with Reflector) 422 fc / 4550 Lux at 16.4' / 5 m (with Reflector)
Color Temperature	1800 to 10,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 96
Dimming	App-Controlled / Controller Included / DMX (Continuous)  � 0 to 100%
Cooling System	Fan
Beam Angle	45° with Included Reflector
Built-In Flash	No
Umbrella Mount	No
Front Accessory Mount	Bowens S

Wireless Remote Control Type	Bluetooth Wireless CRMX
Mobile App Compatible	Yes: Android & iOS Functionality: Remote Control
Wireless Channels	No
Wireless Groups	No
Wireless Range	131.2' / 40 m (Bluetooth)

Power Source	AC Power (Cable Included) *Requires Power Supply/Controller (Included) Battery (Not Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs	Light Fixture 1x Unspecified 3-Pin Power Input Power Supply/Controller 1x Unspecified 3-Pin Power Output 1x XLR 5-Pin Male DMX Input 1x XLR 5-Pin Female DMX Output 1x powerCON AC Power Input 1x XLR 3-Pin Male Power Input (48 VDC) 1x RJ45 Female Network Input 1x USB-A Female Service Input
Battery	1x Battery Power Station, 48 VDC (Not Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	1x Unspecified 3-Pin to Unspecified 3-Pin Cable 1x USA Type-A/B Plug to powerCON Cable
Inline Switch	No
Power Pass-Thru	No
Power Consumption	720 W (Maximum)

Yoke Type	Manually-Operated Yoke
Fixture Mounting	1x 1-1/8" Stud (Via Yoke Mount)

Display	Yes
Environmental Resistance	Dust/Water-Resistant (IP54)
Operating Conditions	-4 to 113°F / -20 to 45°C
Certifications	FCC
Dimensions	19.72 x 13.66 x 12.48" / 50.09 x 34.7 x 31.7 cm (Fixture with Yoke) 13.15 x 7.44 x 6.54" / 33.4 x 18.9 x 16.61 cm (Power Supply/Controller)
Weight	22 lb / 10 kg (Fixture with Reflector/Yoke) 13.2 lb / 6 kg (Power Supply/Controller)

Package Weight	65 lb
Box Dimensions (LxWxH)	31.75 x 18.5 x 13"
