Godox iT32 TTL Mini Flash with X5L Trigger Kit for Leica

One Modular System, Built for All

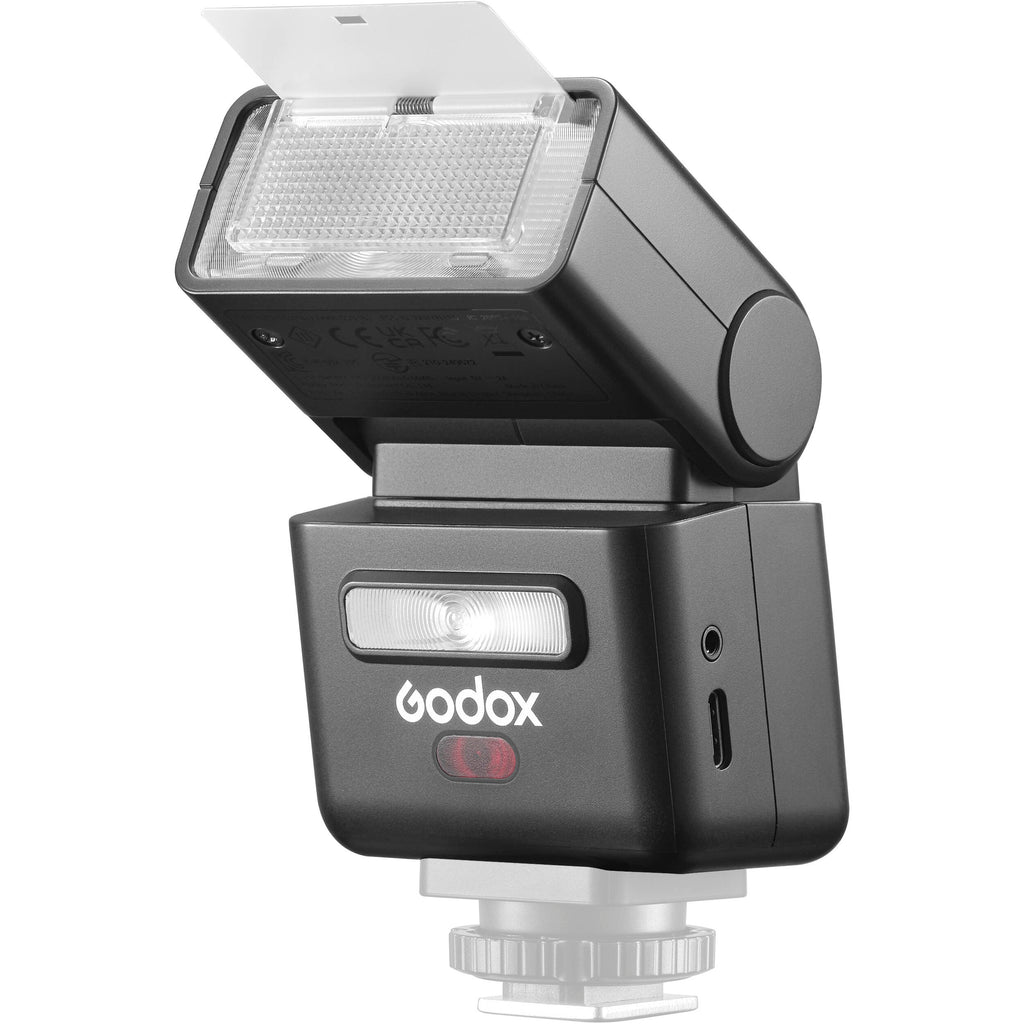

Offering auto TTL, Manual, Stroboscopic flash compatibility, and Godox's 2.4 GHz X wireless system, the iT32 TTL Mini Flash enables diverse lighting setups when paired with a separately available X5-series unit. Users can choose or switch between the X5C, X5N, X5F, X5O, or X5S to respectively find compatibility with a wide range of Canon, Nikon, FUJIFILM, Olympus/Panasonic, or Sony cameras; which means you can use a single iT32 flash body and opt for different hot shoes with wireless flash trigger capability. A compact and versatile lighting tool, this flash features an adjustable power range from 1/128 to 1/1 with fine-tuning options, 1.5 sec recycling, HSS support, a color touchscreen, and a convenient LED modeling lamp. The iT32 operates using a built-in USB-C rechargeable battery to provide up to 510 full-power flashes and still has a lightweight individual body at just 6 oz.

The iT32 enables instant transitions for on- and off-camera use or in complex multi-light setups thanks to its magnetic modularity, cross-brand compatibility, and Godox 2.4 GHz wireless integration. Auto, Manual, Multi flash mode compatibility, HSS, first- and second-curtain sync, and FEC are some of the handy functions of the iT32. The TTL capability simplifies shooting by automatically adjusting flash output so your subject and background are evenly exposed. Also featured are integrated Wi-Off, Sender, and Receiver modes using the separately available X5 unit.

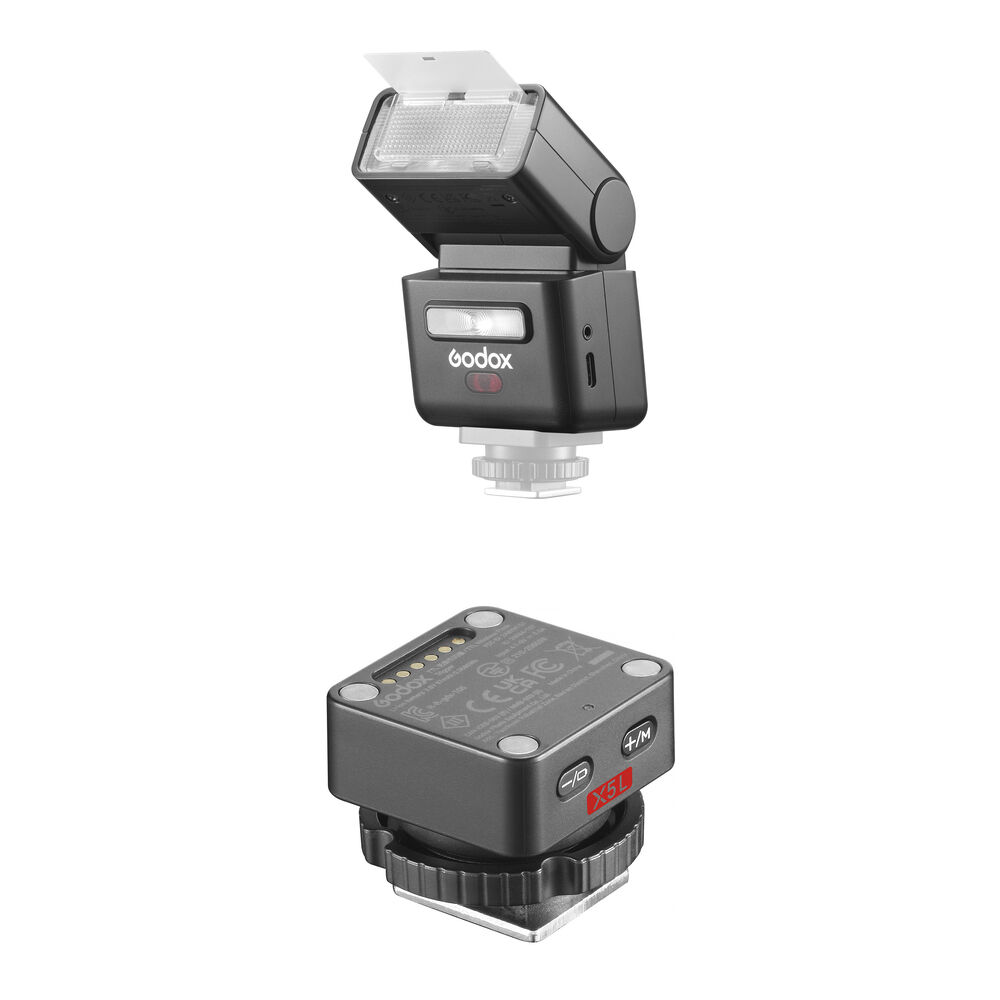

By simply aligning the separately available X5 with the bottom of the iT32, the flash will automatically absorb it for easy attachment. After this step, you can rotate the locking ring of the flash trigger to properly insert the optional X5 into the hot shoe mount of your camera, then rotate the locking ring until it's locked for secure attachment. The magnetic interface between iT32 and the optional X5 ensures a safe, one-click connection. When attached to iT32, the optional X5 functions as the hot shoe for on-camera shooting. If detached, it automatically switches to trigger mode for wireless control of the iT32.

Remove the separately available X5 from the iT32 body and connect it to your camera's hot shoe mount to achieve wireless control of select settings from a maximum range of 65.6'. When the iT32 and the optional X5 are used together (iT32+X5 setting), they are capable of sync triggering other Godox flashes to increase flexibility and creative control. In this case, the maximum control distance is from 262.4'. Together, the iT32 and the optional X5 act as a master unit to trigger multiple Godox flashes simultaneously. Separated, the optional X5 can still control the iT32 and other flashes of the Godox X wireless system.

• The iT32's intuitive touchscreen and simplified buttons enable easy operation
• The flash also has a convenient LED modeling light that supports brightness adjustments from level 1 to 10
• For power, it takes one hour and 10 minutes to fully charge the iT32's battery with the included USB-C cable

Portable Body & Included Accessories

This compact 4 x 2.2 x 1.5" flash has a transparent wide-angle diffuser, as well as a white catchlight panel for different light customization options. A photocell sensor and sync cord port are also available. Use the USB-C interface for charging and receiving firmware updates. Godox includes a USB-C charging cable, a magnetic mini stand, a diffuser, two magnetic color filters, and a simple bag for storage and transportation.

Additional Details

• The iT32 will automatically identify the attached separately available X5 version
• A battery level indicator lets you monitor the remaining battery level
• Guide number of 59' at ISO 100
• Flash durations from 1/1000 to 1/30,000 sec
• Power on/off switch
• Power 1/128 to 1/1 with +/-1/3 increments
• FEC from -3.0 to +3.0 with +/-1/3 increments
• S1/S2 settings
• Stroboscopic flash mode: fires up to 100 times with an output range from 1/128 to 1/4
• TCM conversion in Wi-Off mode
• Standby and auto off settings
• Global shutter sync shooting and radio wireless global shutter sync settings only available when using the iT32 with the optional X5S model
• Certain features such as HSS support and second-curtain sync limited depending on the camera model
• Over-temperature protection
• Also compatible with the optional X2T, XPro II, X3 series of triggers and Godox's MA02 magnetic accessory kit

Compatible Camera Models

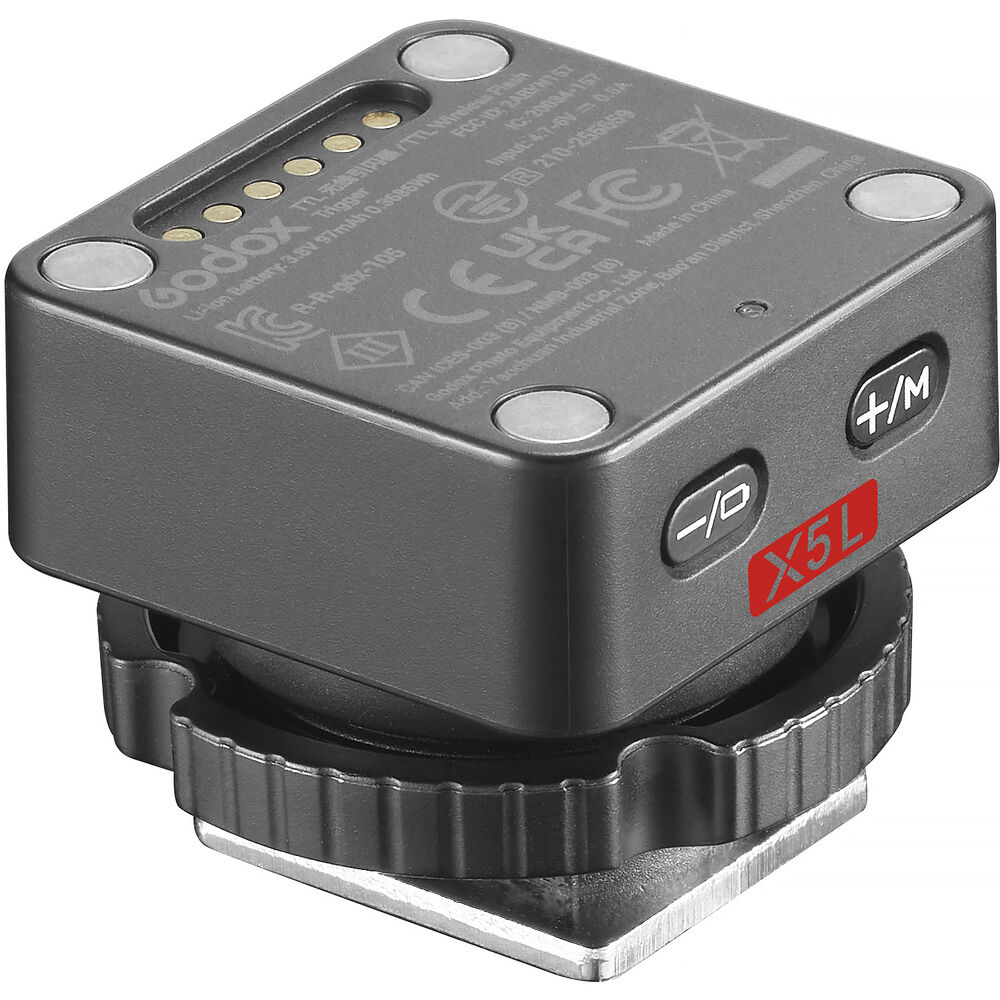

Use the X5L with the separately available iT32 mini flash for compatibility with these Leica camera models: M3, M4, M5, M6, M7, M8, M9, and M10.

Flexibility

When the separately available iT32 and the X5L are used together (iT32+X5 setting), the X5L is also capable of sync triggering other Godox flashes. As a sender unit with the optional iT32, the X5L is able to control various receiver units that are a part of Godox's wireless X system, such as AD100Pro II, AD200Pro II, AD600Pro II, AD600BM II, iT30Pro, V100, V480, and Lux Master models.

Additional Details

Please note: The X5L does not have power on/off function, but color indicators. Users can attach the X5L to the separately available iT32 and access the menu to check the battery level of the flash trigger. The X5L has an internal 3.8V, 100mAh lithium battery. It takes approximately three hours to fully charge the X5L after connecting it to your iT32, and about 16 hours to discharge from full battery level.

Kit Contains:

Godox iT32 TTL Mini Flash

Guide Number	59.1' / 18 m
Auto Zoom Head	No
Bounce/Vertical Adjustment	Yes
Swivel/Horizontal Adjustment	Yes
Exposure Control	Canon E-TTL / E-TTL II, FUJIFILM TTL, Nikon i-TTL, Sony ADI / P-TTL, Manual, Olympus TTL (SLR)
Wireless Operation	Radio (TTL) Up to 262.5' / 80 m
Internal Power	1x Rechargeable Lithium (Built-In)
Off-Camera Terminal	2.5 mm

Guide Number	59.1' / 18 m
Auto Zoom Head	No
Bounce/Vertical Adjustment	Yes
Swivel/Horizontal Adjustment	Yes
Flash Duration	1000 to 30000 Second
Recycle Time	Approx. 1.5 Seconds
Secondary Illumination	Modeling Light

Exposure Control	Canon E-TTL / E-TTL II, FUJIFILM TTL, Nikon i-TTL, Sony ADI / P-TTL, Manual, Olympus TTL (SLR)
Flash Modes	Hi-Speed Sync, Second-Curtain Sync, Stroboscopic
Power Range	1/1 to 1/128
Flash Compensation	-3 to +3 EV

Wireless Operation	Radio (TTL) Up to 262.5' / 80 m
Wireless Channels	32
Wireless Groups	4
Remote Timing Modes	Instant Sync Skip Preflash

Internal Power	1x Rechargeable Lithium (Built-In)
External Power Pack Compatible	No

Mount	Shoe
Off-Camera Terminal	2.5 mm
Mobile App Compatible	No
Dimensions (W x H x D)	4 x 2.2 x 1.5" / 101 x 56 x 39 mm
Weight	6 oz / 169 g

Package Weight	0.74 lb
Box Dimensions (LxWxH)	5.5 x 4 x 3"
