Description

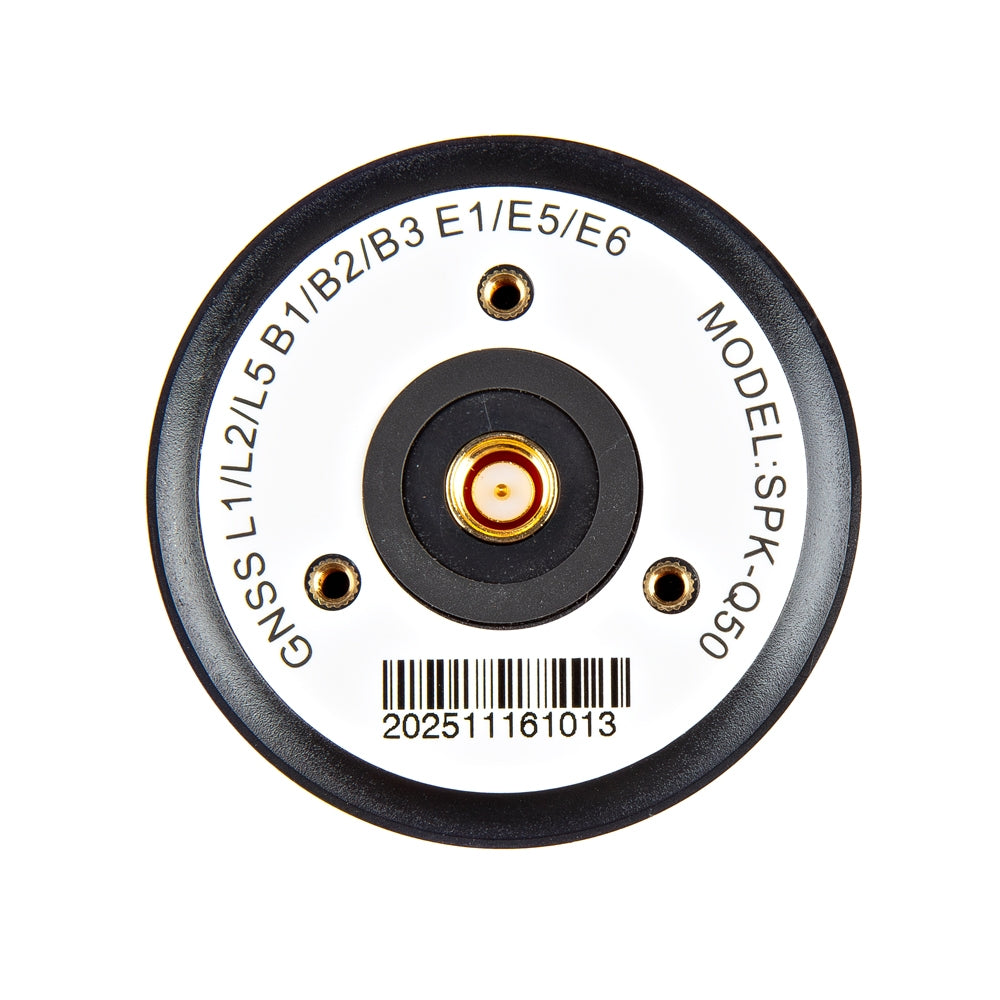

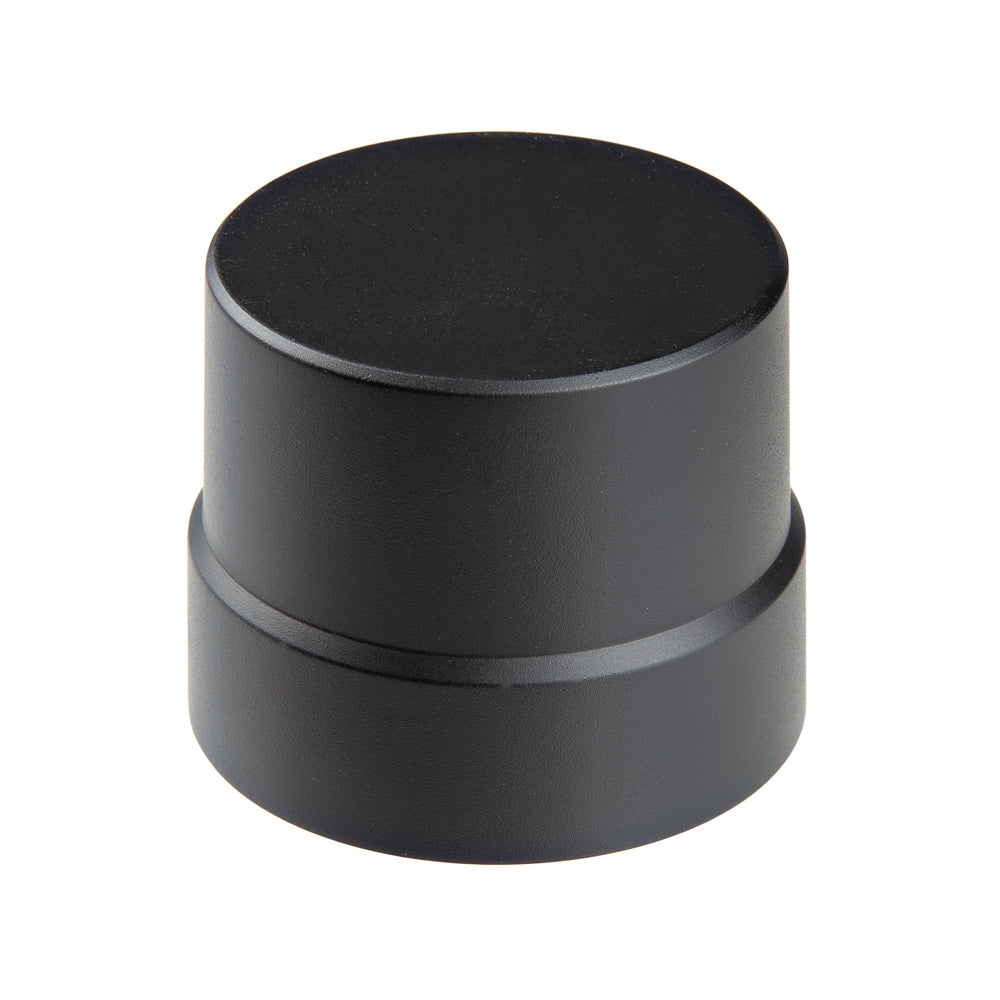

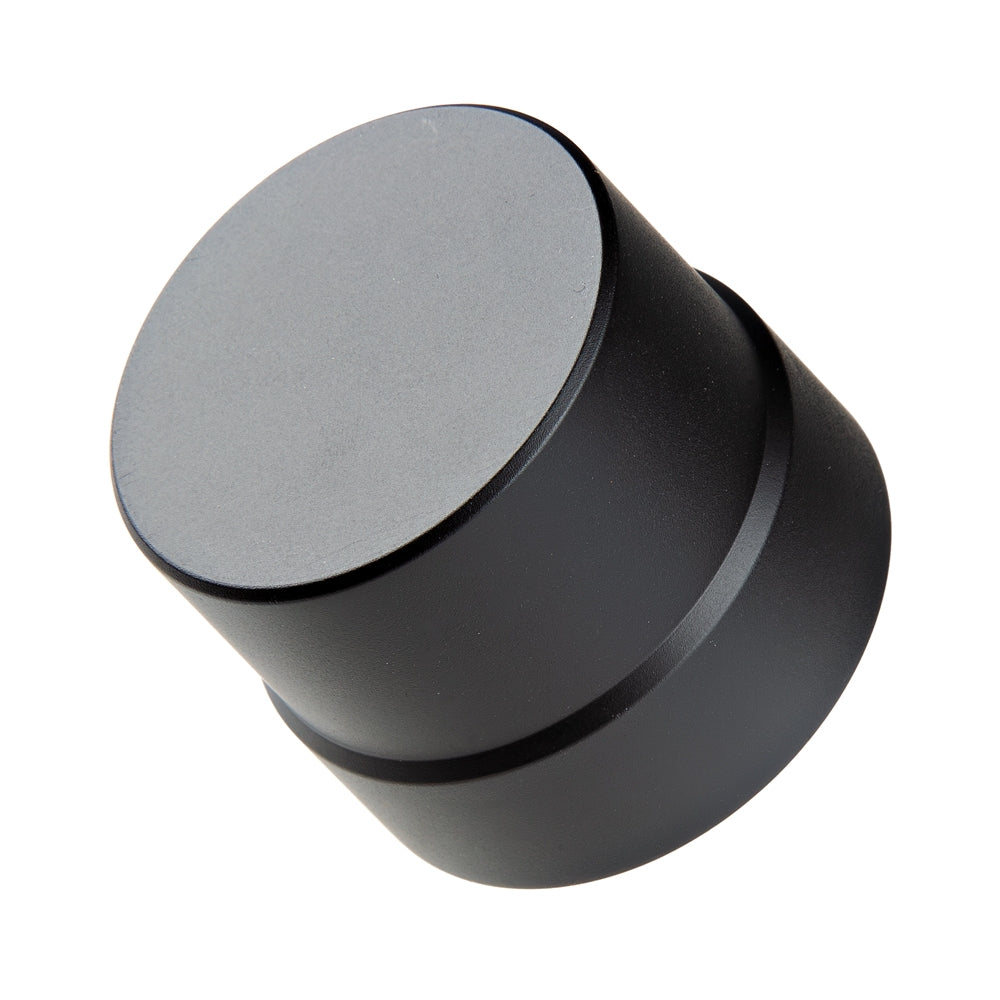

This multi-band L1/L2/L5 helical antenna connects to any SMA cable with a locking SMA flange for secure, vibration-proof mounting in high-vibration systems.
Features & Specs
- GNSS Frequency Bands:
- GPS: L1, L2, L5
- GLONASS: G1, G2
- Beidou: B1, B2a, B2b, B3i
- Galileo: E1, E5a, E5b, E6
- L-Band
- Gain: 28dB
- Noise Figure:
- Typical: 1.5dB
- Max: 2dB
- Voltage: 3.0-16V
- Current: 15-20mA
- Overall Antenna Weight: 25g

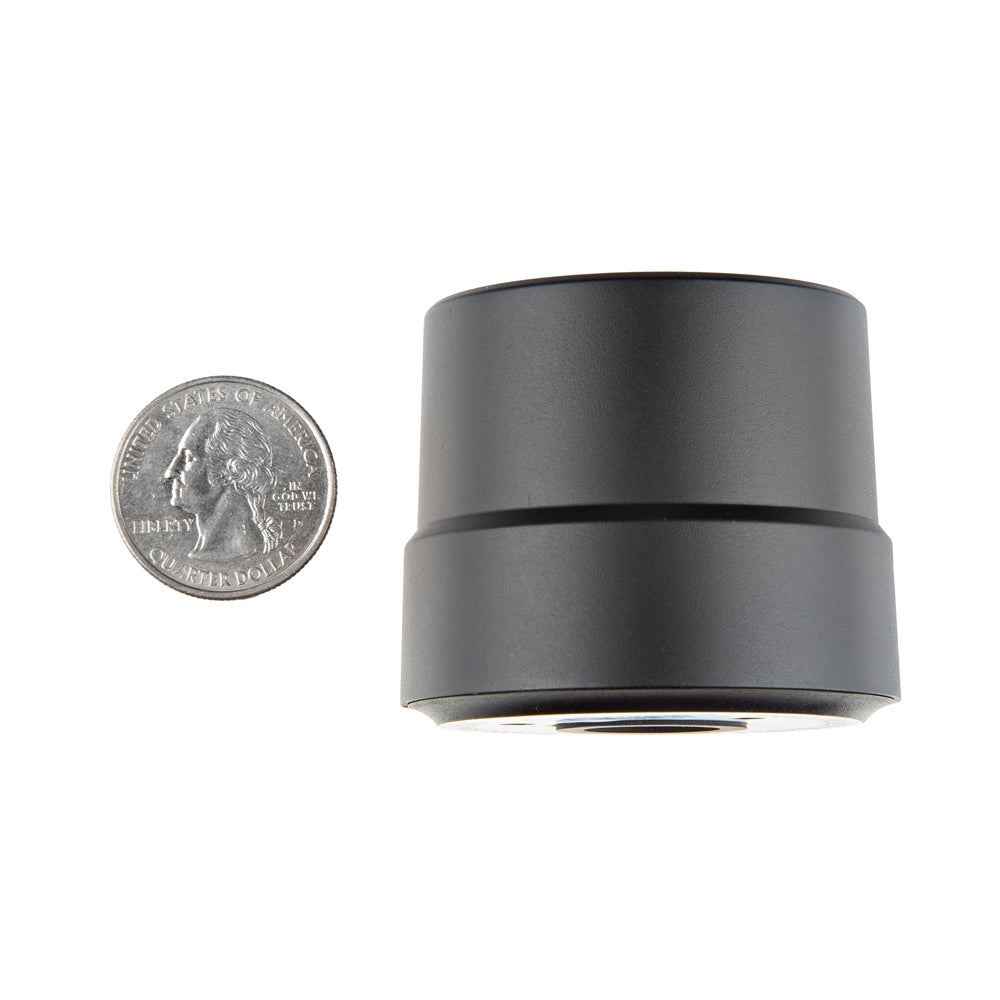

- Dimensions: 50mm x 50mm x 42.16mm
- IP67 Compliance
Features & Specs
- GNSS Frequency Bands:
- GPS: L1, L2, L5
- GLONASS: G1, G2
- Beidou: B1, B2a, B2b, B3i
- Galileo: E1, E5a, E5b, E6
- L-Band
- Gain: 28dB
- Noise Figure:
- Typical: 1.5dB
- Max: 2dB
- Voltage: 3.0-16V
- Current: 15-20mA
- Overall Antenna Weight: 25g
- Dimensions: 50mm x 50mm x 42.16mm
- IP67 Compliance
Documentation
- Datasheet (MAN1216Q50)
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 13715.1 |
| 3-5 | ₹ 13575.15 |
| 5-10 | ₹ 13295.25 |
| 10+ | ₹ 13015.35 |
Bulk discount will be automatically applied during checkout based on quantity.
