Description

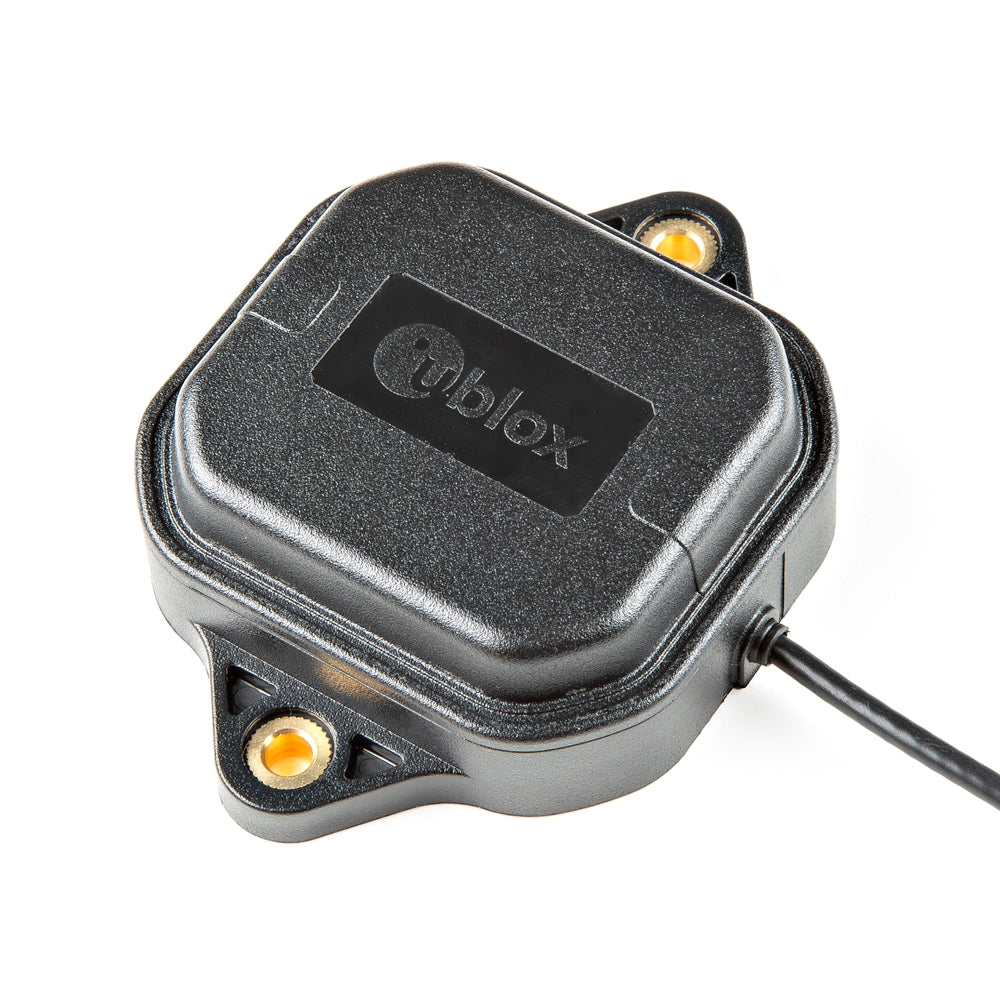

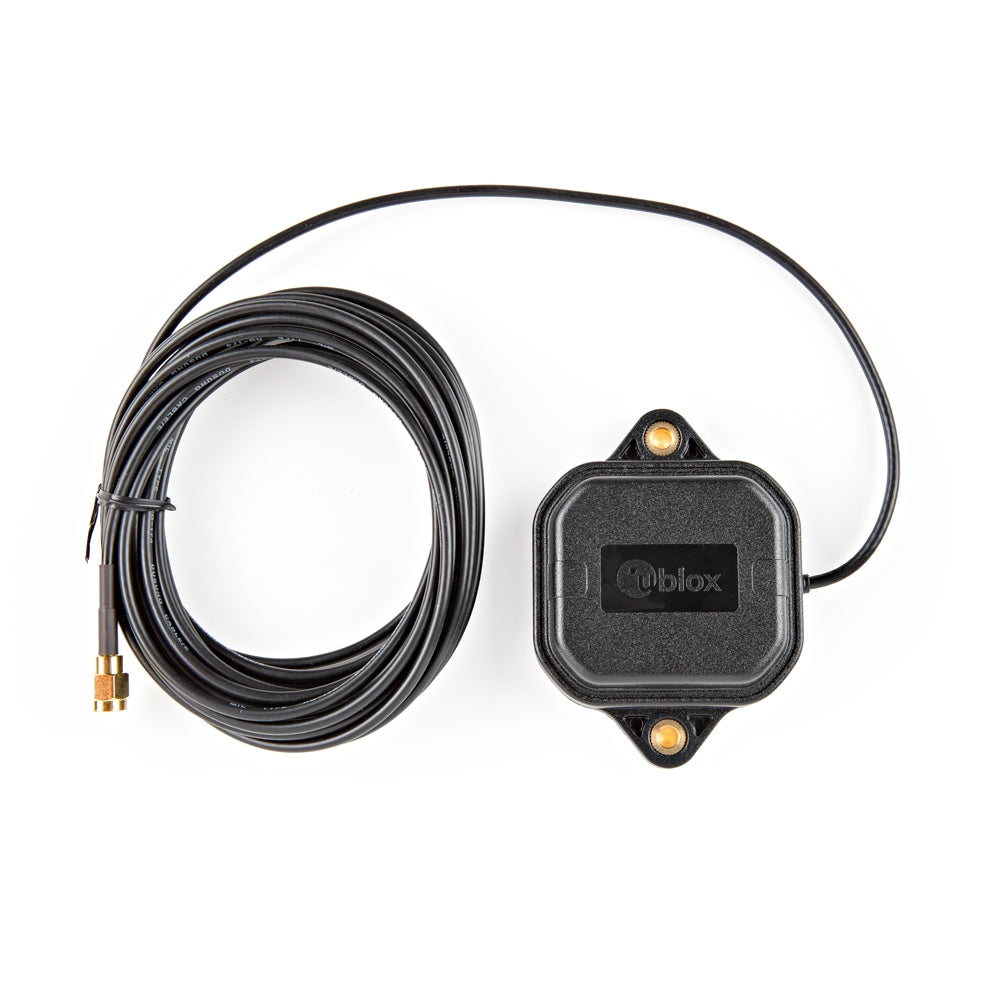

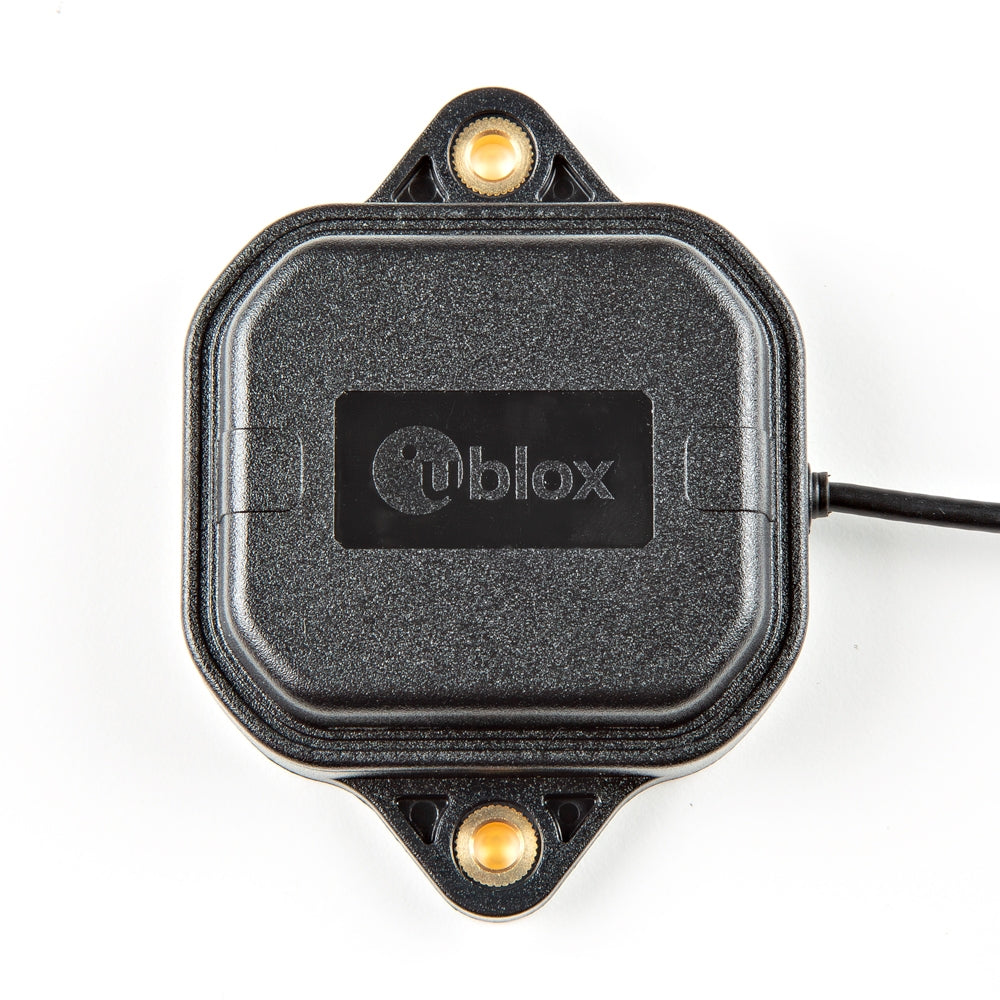

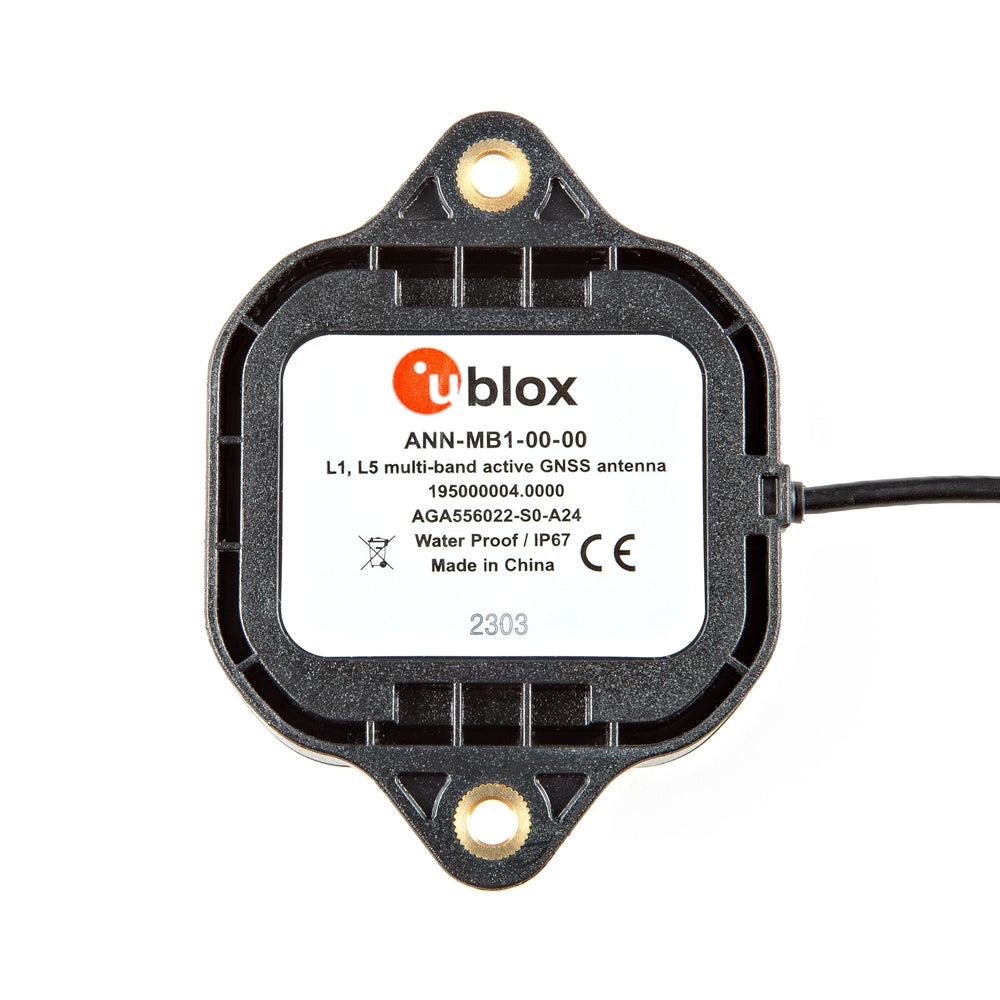

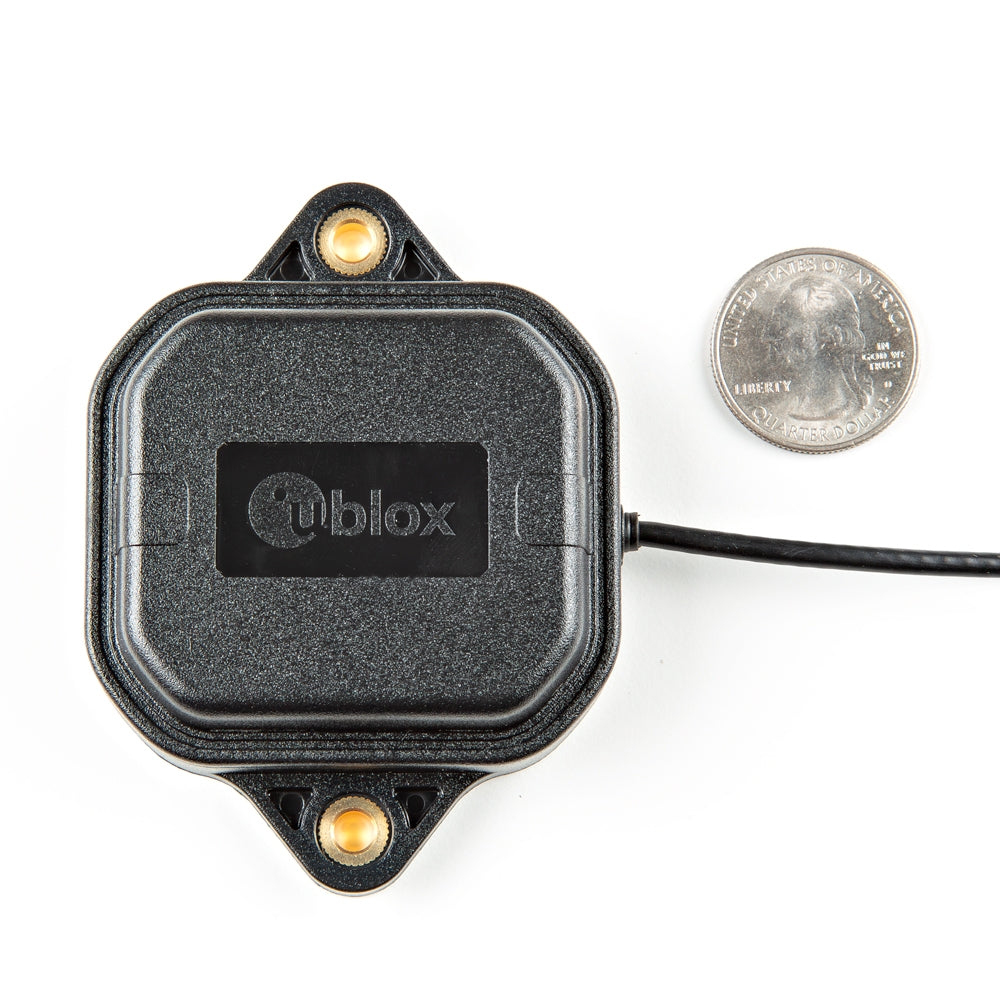

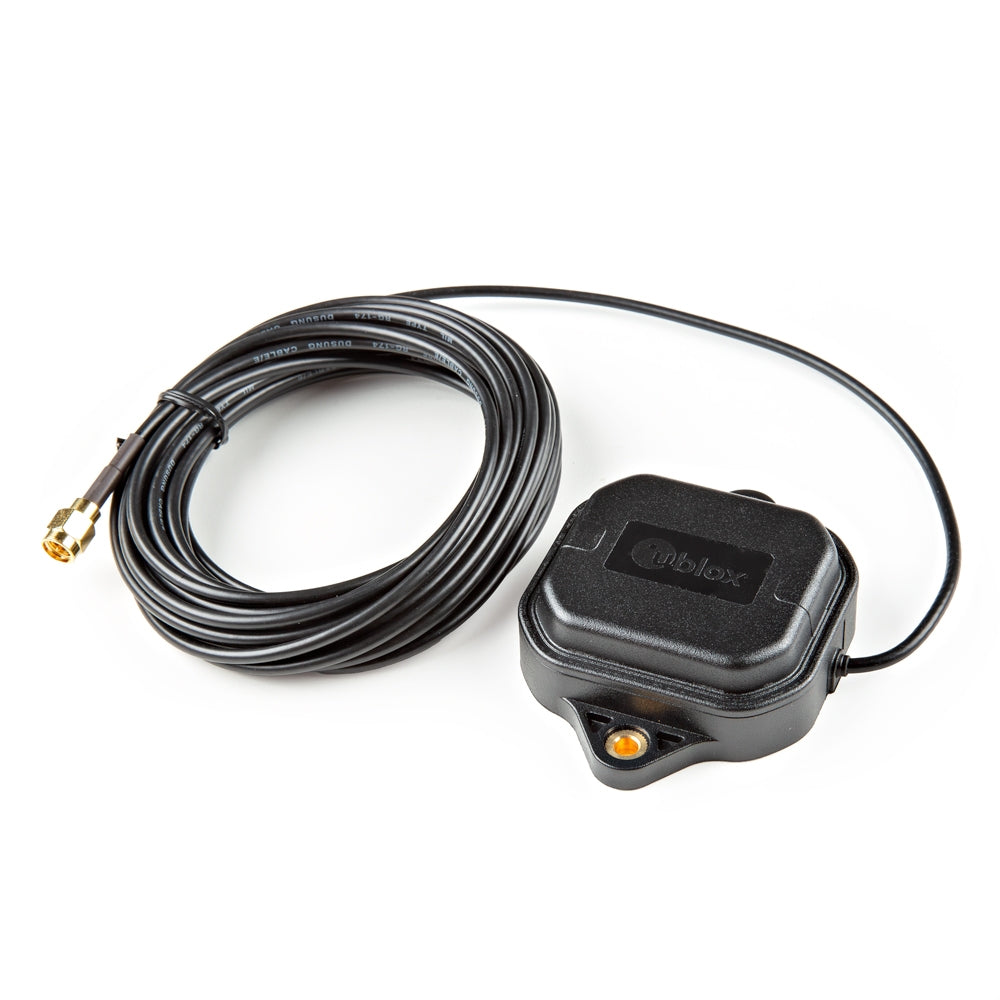

The u-blox ANN-MB1 multi-band L1/L5 active GNSS antenna is designed to reduce time-to-market for the new generation of high precision GNSS applications.
Features & Specs
- Weight: 164g (including cable)
- Size: 60 x 82 x 22.5mm

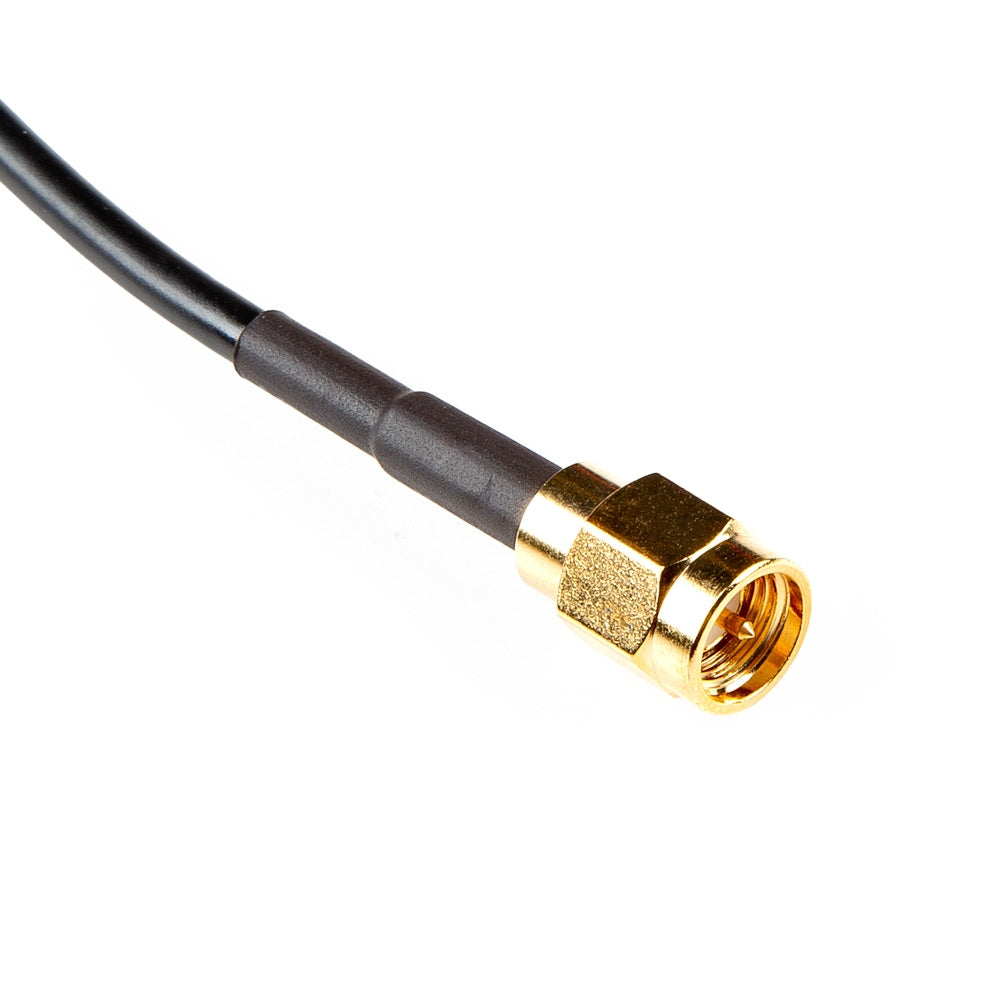

- SMA Commector
- Frequency:
- L1 Band: 1559-1606 MHz
- L5/E5a/B2a/NavIC Band: 1164-1188 MHz
- VSWR: Max. 2
- Impedance: 50 Ω
- Peak Gain (over 12 cm diameter ground plane):
- L1 Band: 3.8 dBic
- L5/E5a/B2a/NavIC Band: 1.3 dBic
- Axial Ratio:
- L1 Band: Typ. 3.3 dB (Zenith)
- L5/E5a/B2a/NavIC Band: Typ. 3.4 dB (Zenith)
- Efficiency:
- L1 Band: Typ. 55%
- L5/E5a/B2a/NavIC Band: Typ. 40%
- Polarization: RHCP
Features & Specs
- Weight: 164g (including cable)
- Size: 60 x 82 x 22.5mm
- SMA Commector
- Frequency:
- L1 Band: 1559-1606 MHz
- L5/E5a/B2a/NavIC Band: 1164-1188 MHz
- VSWR: Max. 2
- Impedance: 50 Ω
- Peak Gain (over 12 cm diameter ground plane):
- L1 Band: 3.8 dBic
- L5/E5a/B2a/NavIC Band: 1.3 dBic
- Axial Ratio:
- L1 Band: Typ. 3.3 dB (Zenith)
- L5/E5a/B2a/NavIC Band: Typ. 3.4 dB (Zenith)
- Efficiency:
- L1 Band: Typ. 55%
- L5/E5a/B2a/NavIC Band: Typ. 40%
- Polarization: RHCP
Documentation
