Description
Product Overview

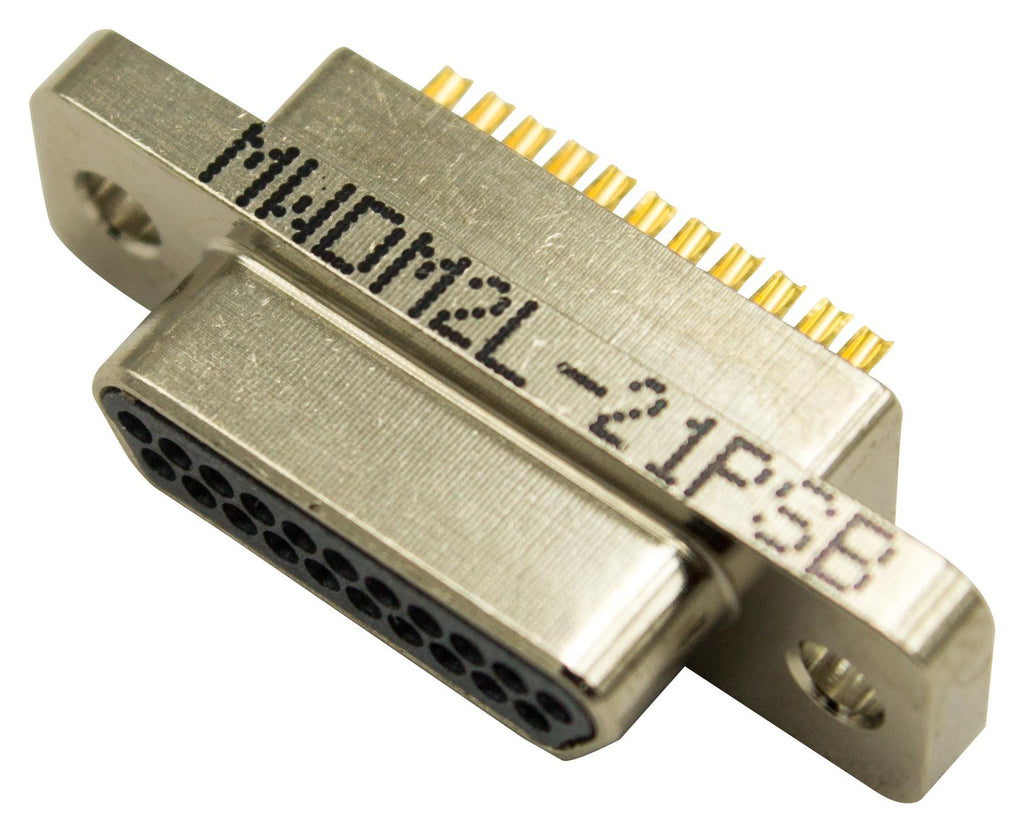

The MWDM2L-21PSB from Glenair is a Micro-D MWDM series solder cup metal shell connector with 21 contacts. Suitable for use with #26AWG wire.
- Aluminium alloy shell with nickel plating
- Liquid crystal polymer (LCP)/ polyphenylene sulphide(PPS) insulator
- Beryllium copper pin contacts with gold over nickel plating
- Blue colour fluorosilicone rubber interfacial seal
- Current rating is 3A, DWV is 600VAC sea level
- Minimum insulation resistance is 5000Mohm, maximum contact resistance is 8mohm
- Operating temperature range from -55°C to +150°C
- Through hole mounting hardware
Applications
Industrial
Product details
Other details
| Brand | GLENAIR |
| Part Number | MWDM2L-21PSB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 21069.25 |
| 3-5 | ₹ 20854.25 |
| 5-10 | ₹ 20424.27 |
| 10+ | ₹ 19994.28 |
Bulk discount will be automatically applied during checkout based on quantity.
