Description

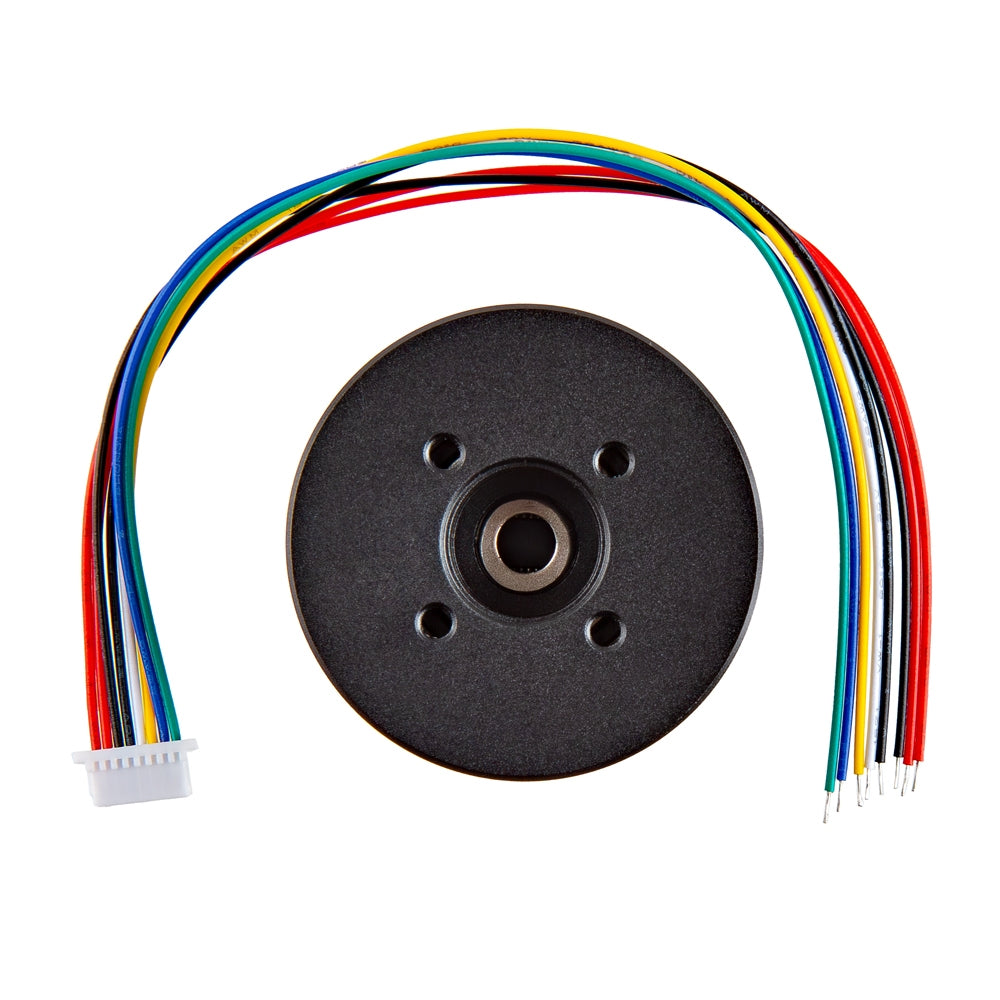

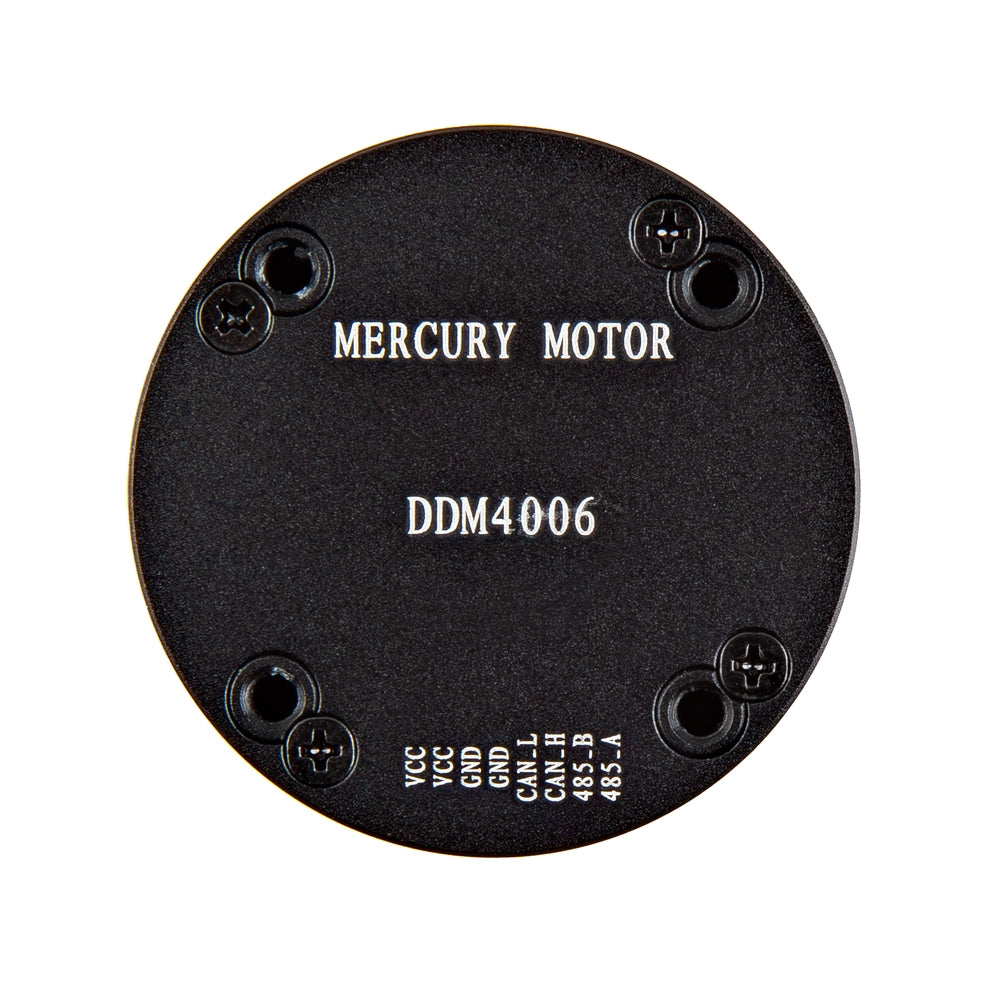

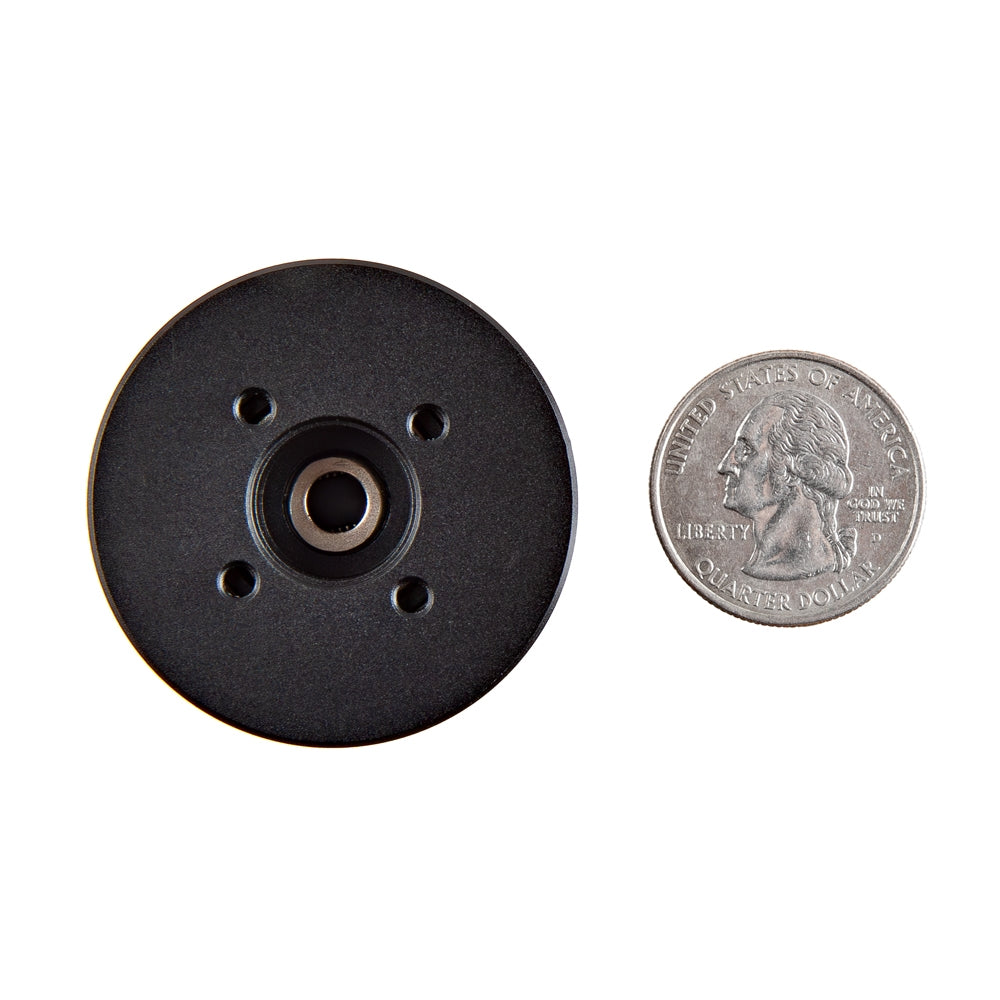

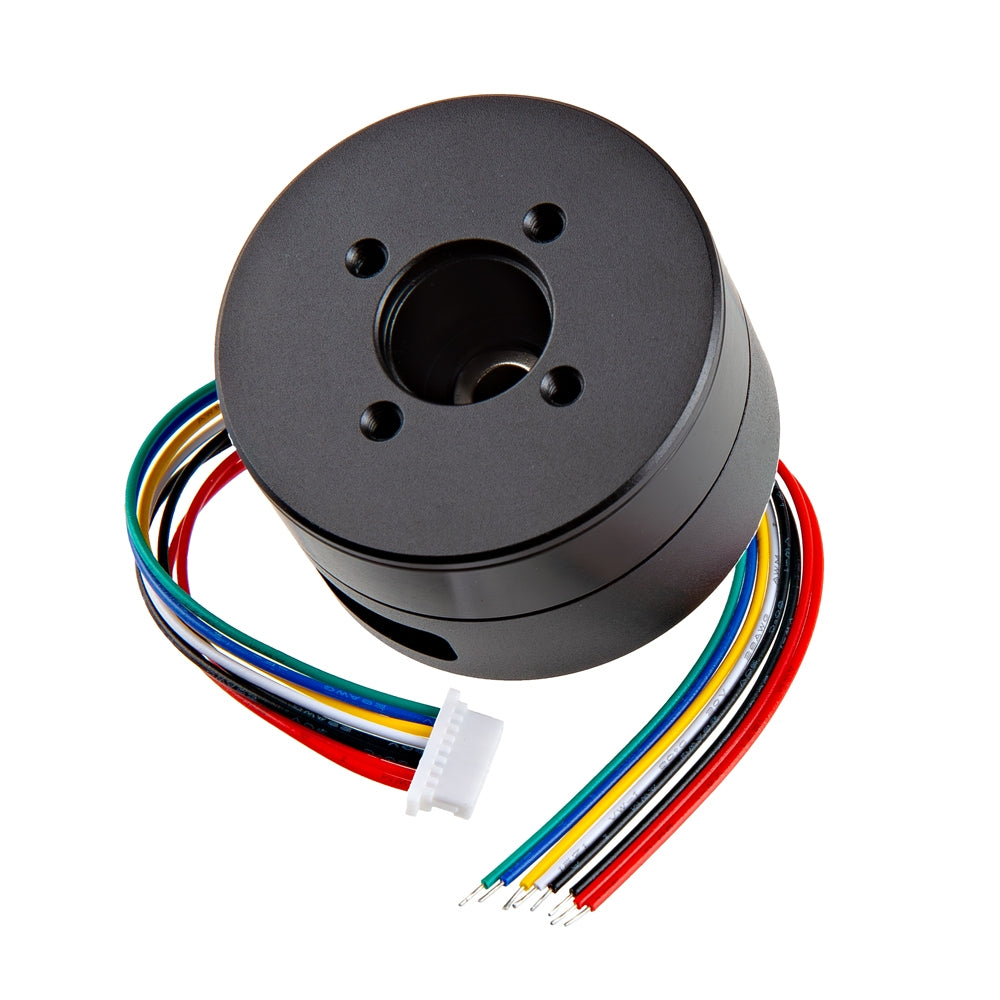

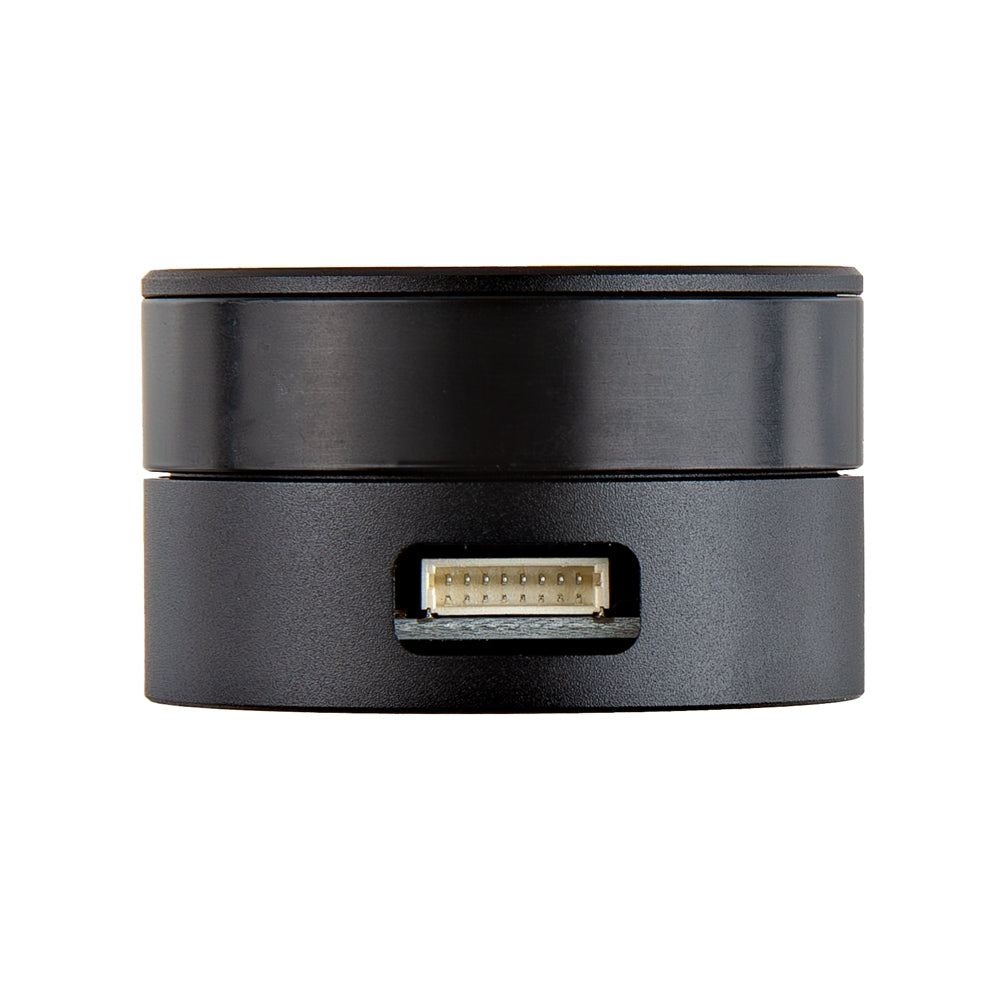

Here is a 40mm high quality gimbal servo for all your mechatronic needs.
Features & Specs
- Nominal Voltage: 12V
- Voltage Range: 5~28V
- Nominal Current: 1.1A
- Nominal Power: 13.2W
- Nominal Torque: 0.09N.m
- Nominal Speed: 467rpm
- Max Speed: 1412rpm
- Stall Torque: 0.15N.m
- Torque Constant: 0.08Nm/A
- Stall Current: 1.9A
- Speed Constant: 117rpm/V
- Number of Pole Pairs: 11
- Phase to Phase Resistance: 3.17Ω
- Phase to Phase Inductance: 0.54mH
- Communication: RS485/CAN
- Encoder Type: Single-turn absolute
- Resolution: 14bit
- Size: 40 x 24mm
- Weight: 70g
- Working Temperature: -20/80°C
Features & Specs
- Nominal Voltage: 12V
- Voltage Range: 5~28V
- Nominal Current: 1.1A
- Nominal Power: 13.2W
- Nominal Torque: 0.09N.m
- Nominal Speed: 467rpm
- Max Speed: 1412rpm
- Stall Torque: 0.15N.m
- Torque Constant: 0.08Nm/A
- Stall Current: 1.9A
- Speed Constant: 117rpm/V
- Number of Pole Pairs: 11
- Phase to Phase Resistance: 3.17Ω
- Phase to Phase Inductance: 0.54mH
- Communication: RS485/CAN
- Encoder Type: Single-turn absolute
- Resolution: 14bit
- Size: 40 x 24mm
- Weight: 70g
- Working Temperature: -20/80°C
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 21907.9 |
| 3-5 | ₹ 21684.35 |
| 5-10 | ₹ 21237.25 |
| 10+ | ₹ 20790.15 |
Bulk discount will be automatically applied during checkout based on quantity.
