Description

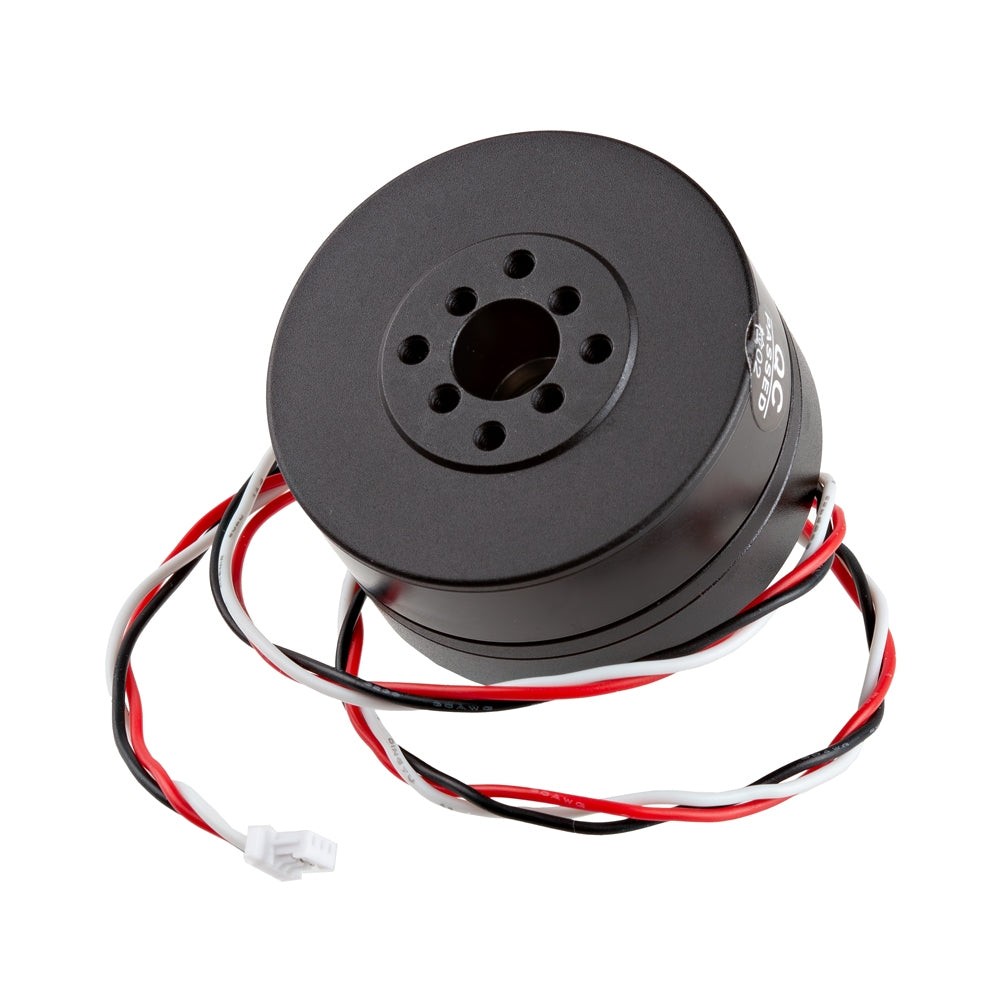

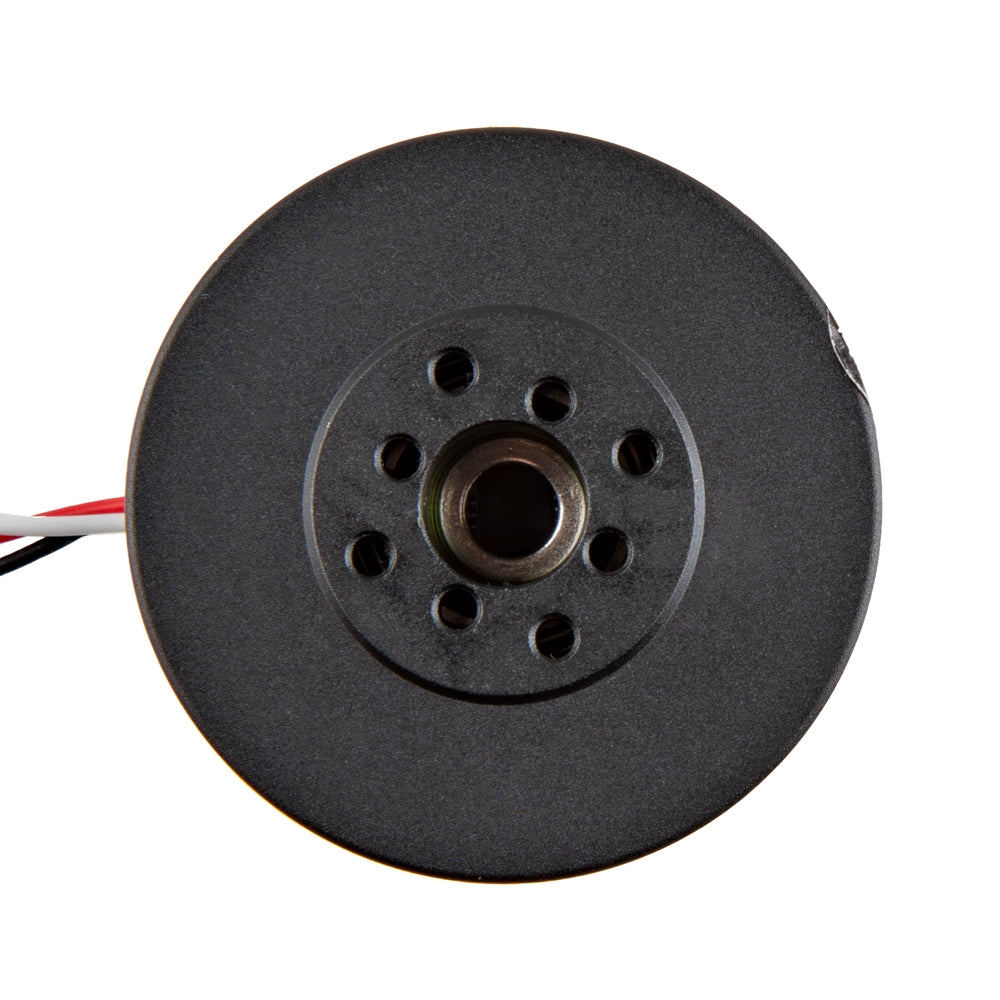

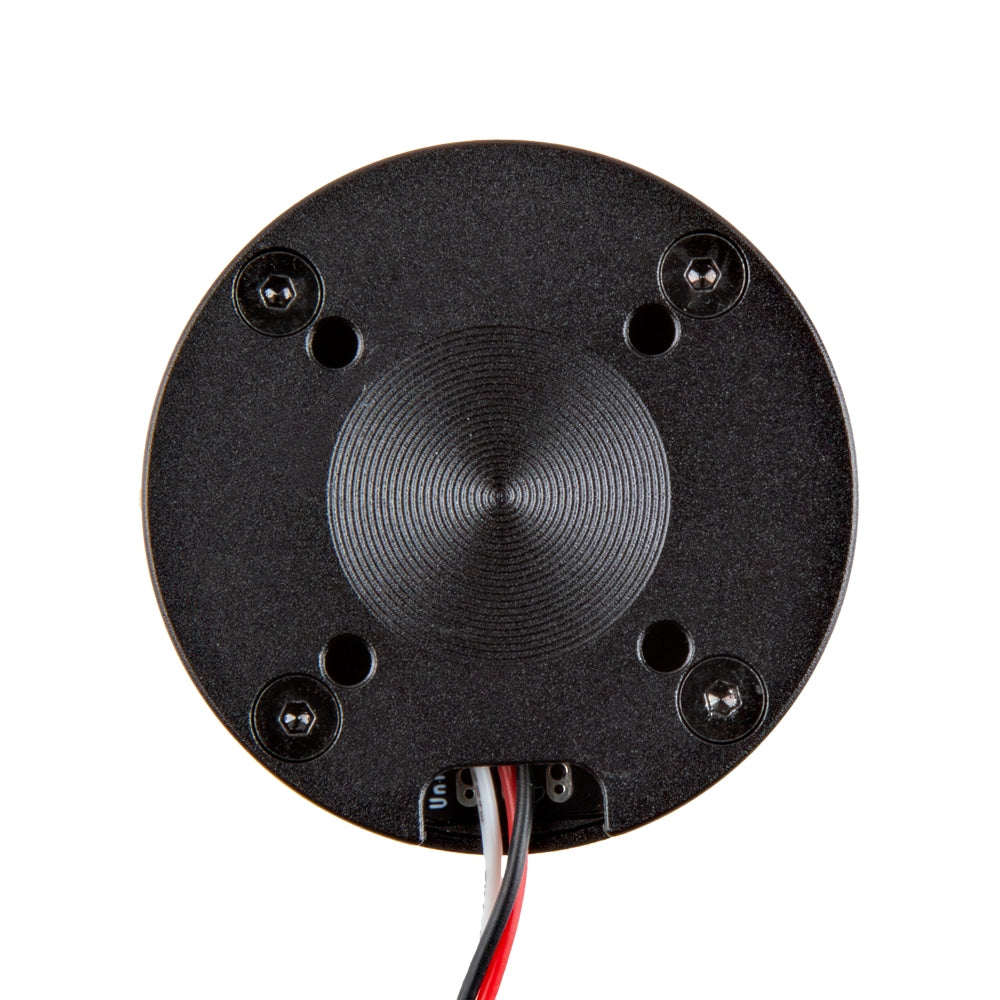

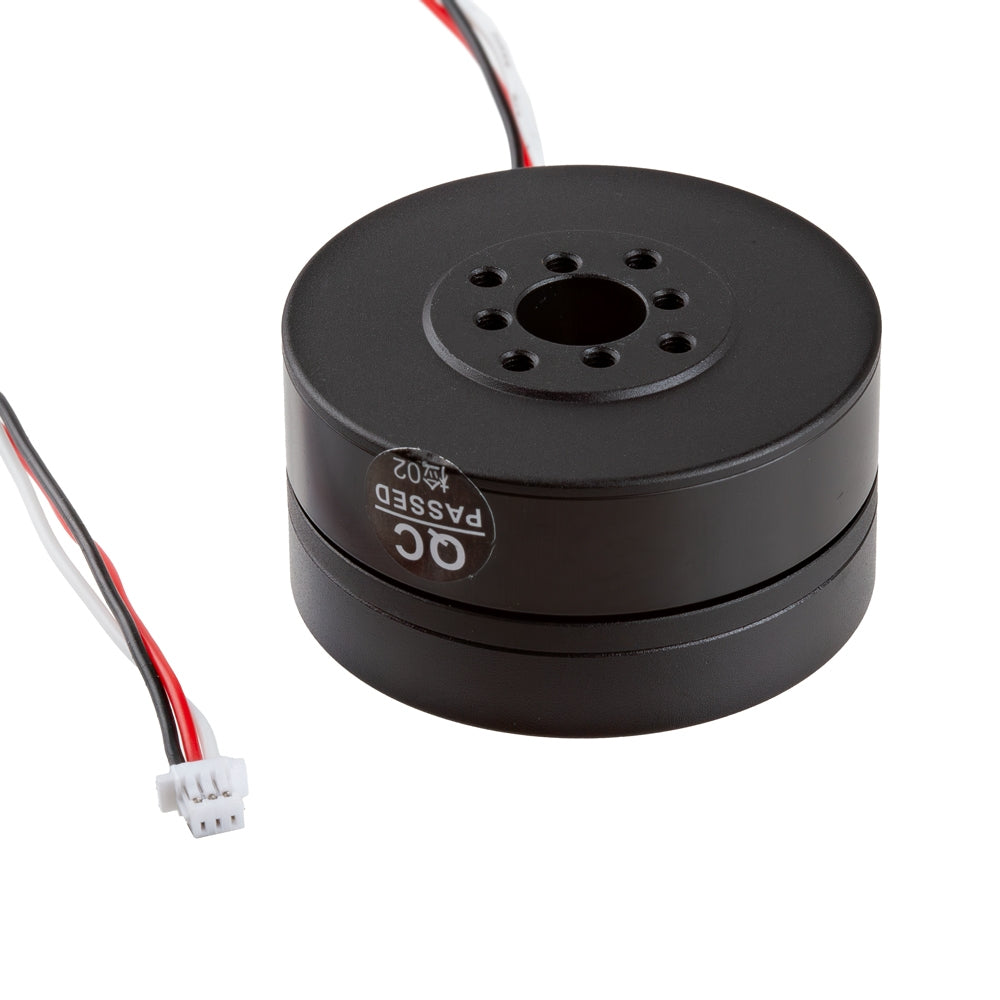

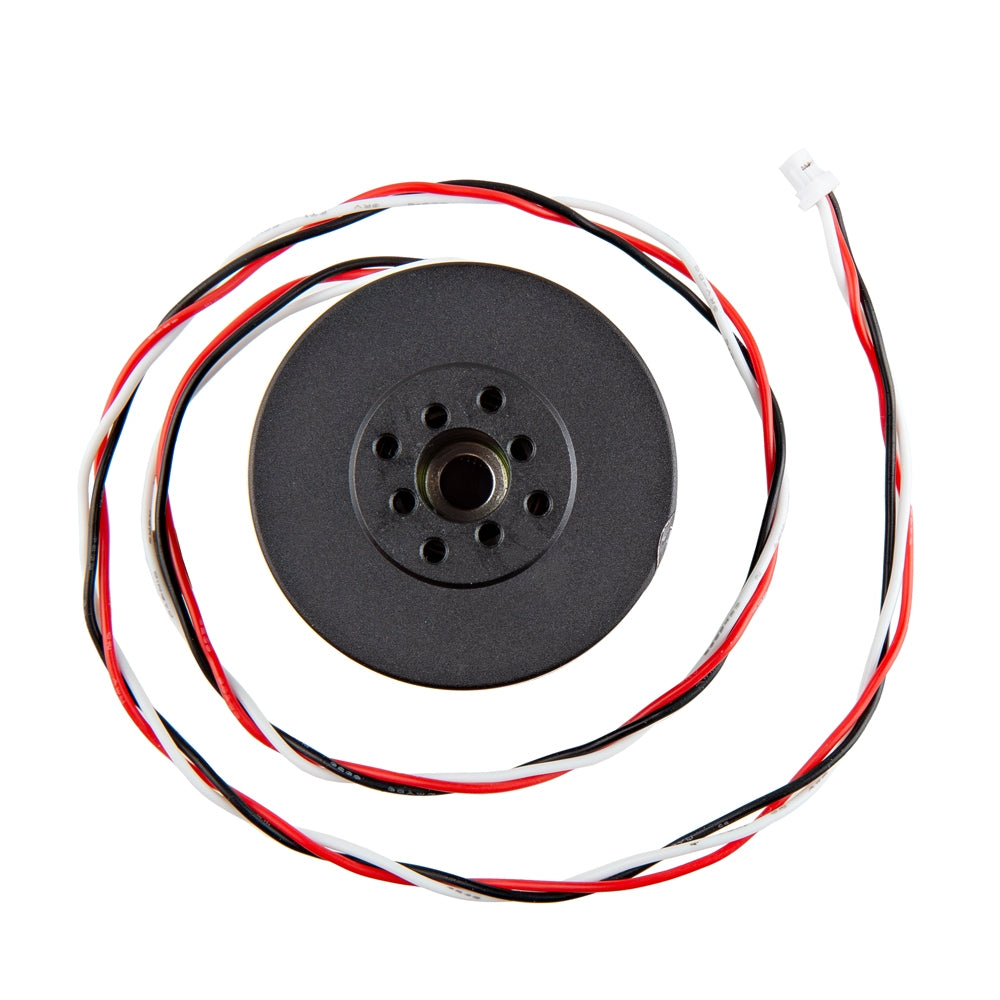

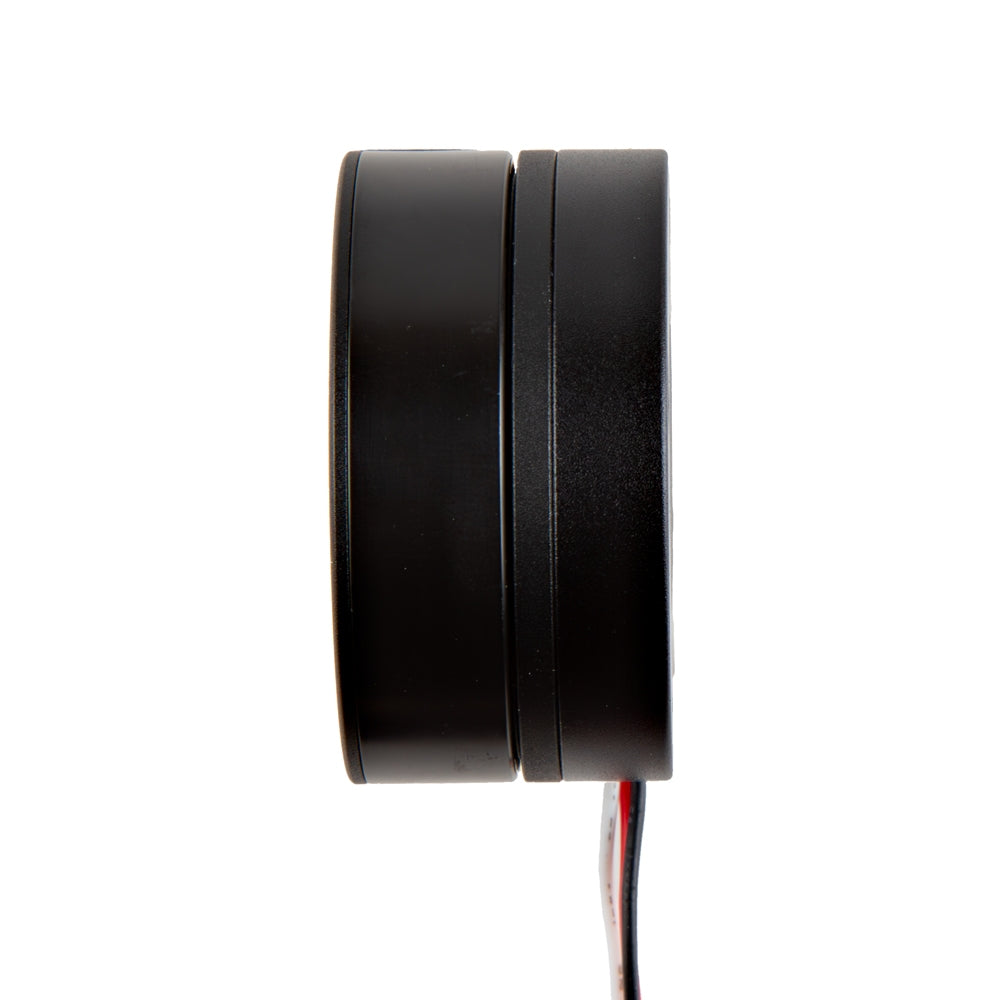

Here is a 40mm gimbal motor with attached encoder.
Features & Specs
- Nominal Voltage: 12V
- Nominal Current: 1.1A
- Nominal Torque: 0.09N.m
- Nominal Speed: 467rpm
- Max Speed: 1610rpm
- Stall Torque: 0.15N.m
- Stall Current: 1.9A
- Winding Turns of Motor: 40T
- Phase to Phase Resistance: 6.34Ω
- Phase to Phase Inductance: 1.08mH
- Speed Constant: 117rpm/V
- Torque Constant: 0.08Nm/A
- Rotor Inertia: 56gcm²
- Number of Pole Pairs: 11
- Size: 40 x 16mm
- Weight: 71g
- Working Temperature: 20/80°C
- Max Demagnetize Temperature: 120°C
- Encoder Type: AS5048A
Features & Specs
- Nominal Voltage: 12V
- Nominal Current: 1.1A
- Nominal Torque: 0.09N.m
- Nominal Speed: 467rpm
- Max Speed: 1610rpm
- Stall Torque: 0.15N.m
- Stall Current: 1.9A
- Winding Turns of Motor: 40T
- Phase to Phase Resistance: 6.34Ω
- Phase to Phase Inductance: 1.08mH
- Speed Constant: 117rpm/V
- Torque Constant: 0.08Nm/A
- Rotor Inertia: 56gcm²
- Number of Pole Pairs: 11
- Size: 40 x 16mm
- Weight: 71g
- Working Temperature: 20/80°C
- Max Demagnetize Temperature: 120°C
- Encoder Type: AS5048A
Documentation
