Description
Gigabyte Z790 GAMING X AX Overview
- 1Description
- 2Performance
- 3Enhanced Thermal Design
- 4Front Panel USB-C Connector
- 5Personalization & Customization
- 6Ultra Durable

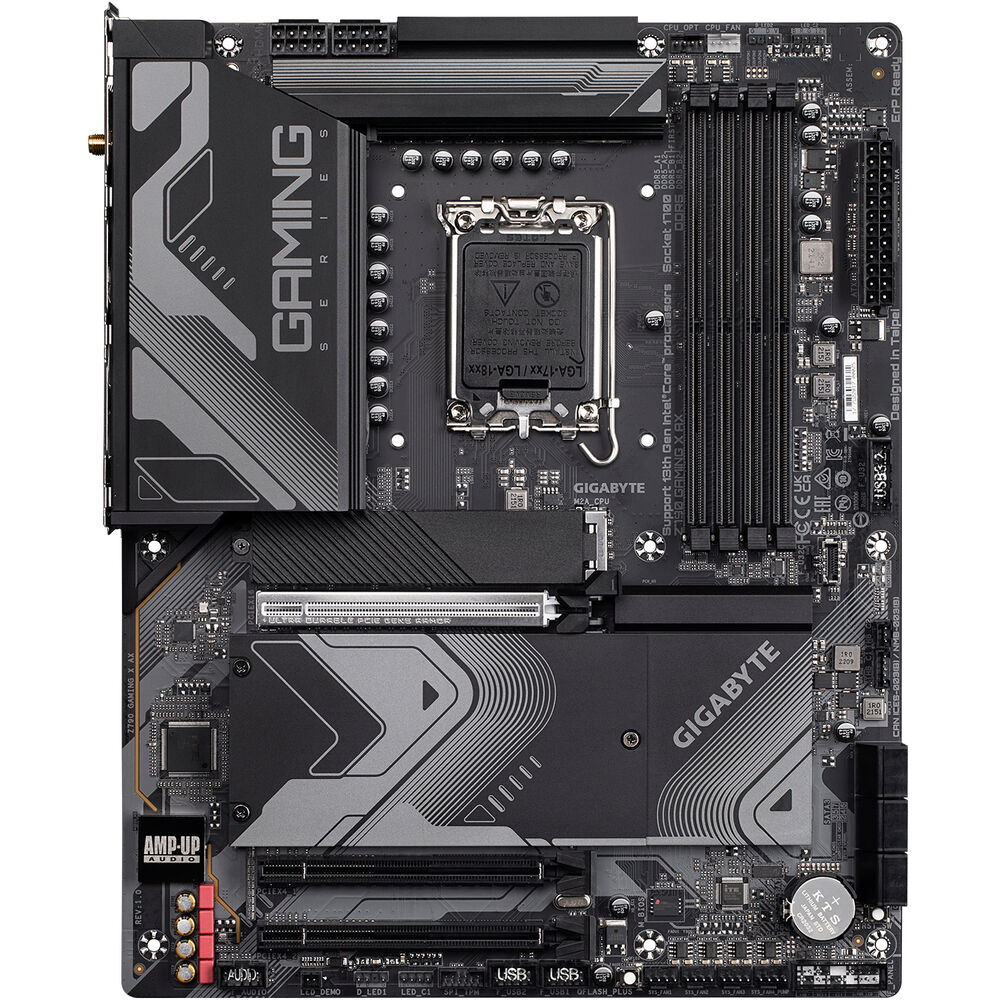

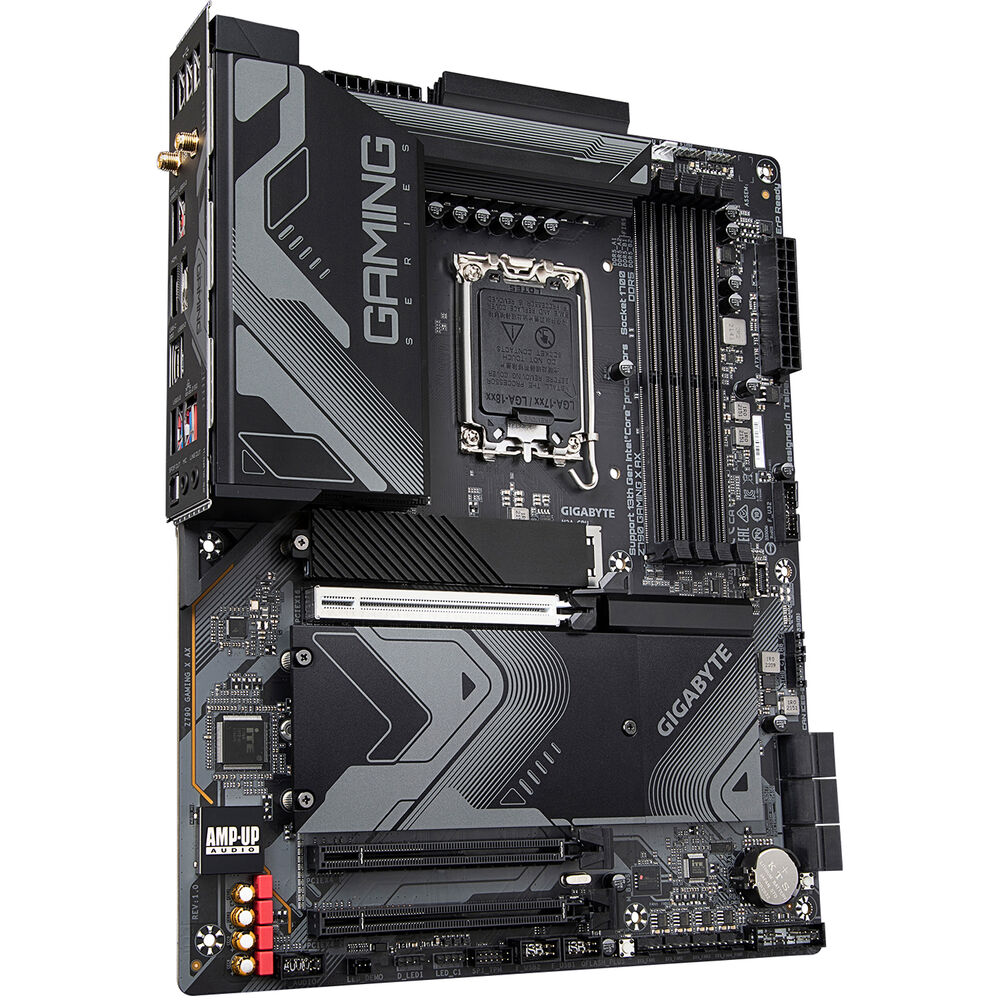

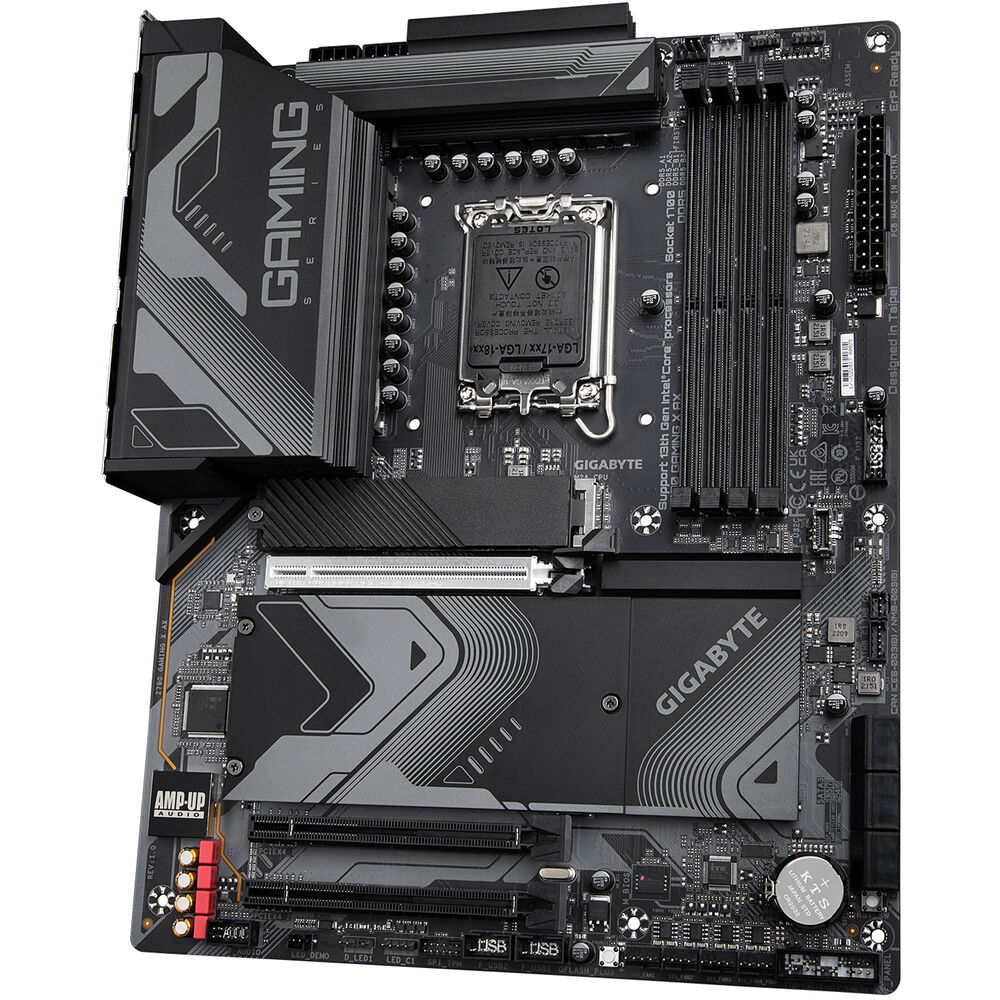

Get your next gaming rig up and running with the GIGABYTE Z790 GAMING X AX LGA 1700 ATX Motherboard. Designed to give new and seasoned builders the ability to install resource-demanding components while offering a unique and customizable aesthetic, the GAMING X lays a proper foundation for your next build.
Equipped with Intel's LGA 1700 socket and Z790 chipset, you can leverage a wide range of Core, Celeron, and Pentium processors, enhancing performance and responsiveness. Four dual-channel DDR5 RAM slots enable you to install up to 192GB of memory to enhance multitasking and rendering speeds. Install an array of storage drives for your media assets with six SATA III and four M.2 PCIe interfaces. The GAMING X also has one PCIe 5.0 x16, one PCIe 4.0 x16 (in x4 mode), and one PCIe 3.0 x16 (in x4 mode) expansion slot so you can equip your system with various graphics and utility cards. Connect your low-powered peripherals such as mice, keyboards, and controllers to the GAMING X with USB-A 2.0 ports while USB 3.2 Gen 1 and Gen 2 ports are reserved for resource-demanding devices such as external drives, audio interfaces, and more. You can also use Bluetooth 5.3 technology to support wireless devices for a true cable-free experience. Quickly access online assets with Wi-Fi 6E (802.11ax) technology for wireless connectivity or use the wired 2.5 Gigabit Ethernet port for a strong and reliable connection.
In the Box

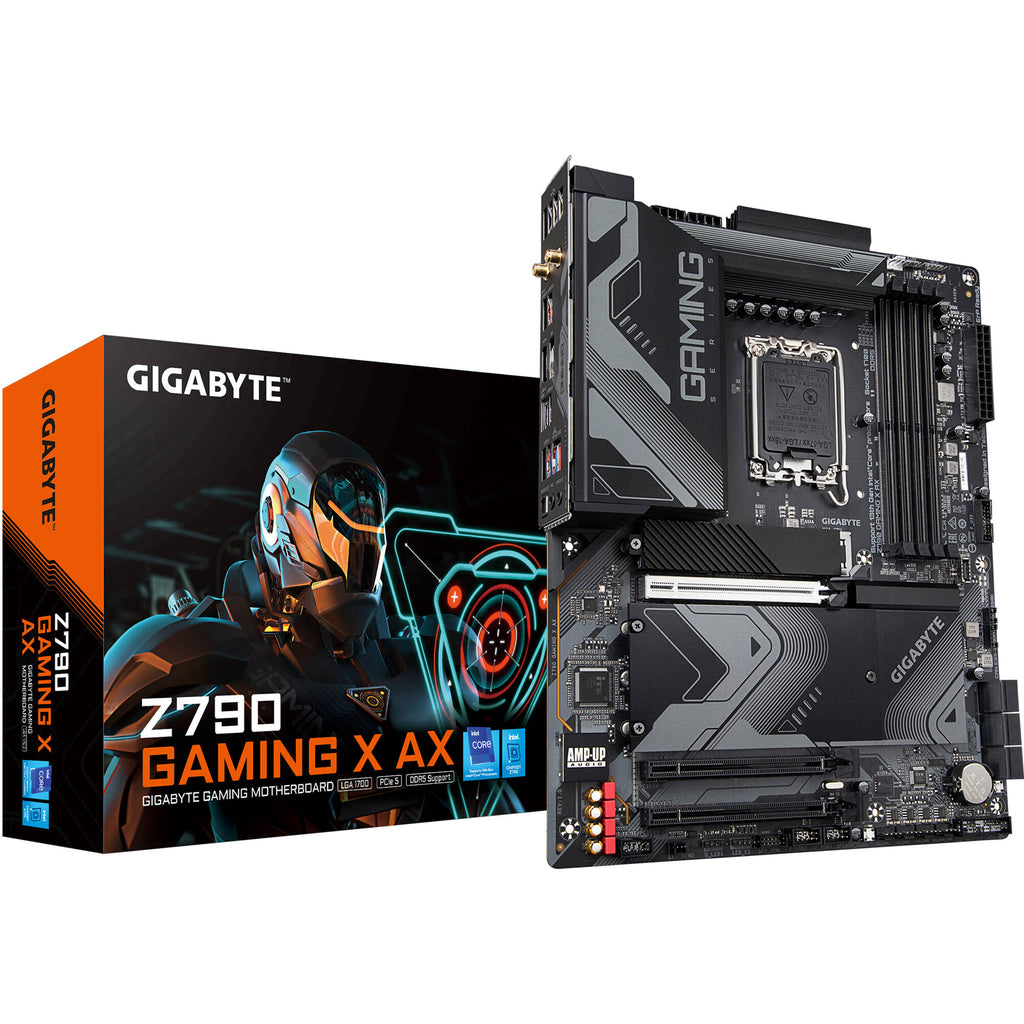

- Gigabyte Z790 GAMING X AX LGA 1700 ATX Motherboard
- Wi-Fi Antenna
- 2 x SATA Cables
- Limited 3-Year Manufacturer Warranty
- Description
- Performance
- Enhanced Thermal Design
- Front Panel USB-C Connector
- Personalization & Customization
- Ultra Durable
Gigabyte Z790 GAMING X AX Specs
Chipset |
Intel Z790
|
CPU Socket |
LGA 1700
|
Memory Slots |
4x 288-Pin
|
Memory Support |
DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
|
M.2 |
3x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M Key 2280, 22110 (PCIe 4.0 x4, SATA III) |
Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x4 mode) |
Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
Form Factor |
ATX
|
Chipset |
Intel Z790
|
CPU Socket |
LGA 1700
|
USB |
1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0) |
Thunderbolt |
No
|
Display |
1x HDMI 2.0
1x DisplayPort |
Audio |
2x 1/8" / 3.5 mm
1x S/PDIF |
Ethernet / Controller |
1x Realtek 2.5Gigabit
|
Wi-Fi Antenna |
2x Connector
|
Memory Slots |
4x 288-Pin
|
Memory Support |
DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
|
Maximum Capacity |
192 GB
|
Channel Architecture |
Dual Channel
|
ECC Support |
Non-ECC, ECC (Non-ECC Mode) Unbuffered
|
SATA |
6x SATA III
|
M.2 |
3x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M Key 2280, 22110 (PCIe 4.0 x4, SATA III) |
RAID Support |
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2) |
Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x4 mode) |
USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
Air Cooling |
1x 4-Pin CPU
4x 4-Pin System |
Liquid Cooling |
1x 4-Pin Pump
|
Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX |
Security |
TPM Header
|
LED Header |
4x RGB
|
Diagnostics |
Clear CMOS, Flash BIOS, Reset
|
Add-On |
2x Thunderbolt Header
|
ROM |
256 Mb
|
Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio Codec |
Realtek (7.1-Channel)
|
Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
Bluetooth |
5.3
|
OS Compatibility |
Windows 11
Windows 10 |
Form Factor |
ATX
|
Dimensions |
12.0 x 9.6" / 30.5 x 24.4 cm
|
Package Weight |
4.235 lb
|
Box Dimensions (LxWxH) |
13.2 x 10.7 x 3.2"
|
