Gigabyte Z790 AORUS MASTER X E-ATX Motherboard

Roll over image to zoom in

Gigabyte Z790 AORUS MASTER X E-ATX Motherboard


	₹ 71865.0 includes GST and import duties.
	B2B customers can avail ₹ 10959.41 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Gigabyte
SKU:	6996075708501
MPN:	Z790 AORUS MASTER X
UPC/HSN:	889523039335

Share this product

Gigabyte Z790 AORUS MASTER X Overview

1Description
2Performance
3Enhanced Thermal Design
4Front Panel USB-C Connector
5RGB Fusion
6Intuitive System Customization
7Ultra Durable

Get your next gaming rig up and running with the GIGABYTE Z790 AORUS MASTER X E-ATX Motherboard. Designed to give seasoned builders the ability to install resource-demanding components while offering a unique and customizable aesthetic, the AORUS MASTER X lays a proper foundation for your next build.

Equipped with Intel's LGA 1700 socket and Z790 chipset, you can leverage a wide range of Core, Celeron, and Pentium processors, enhancing performance and responsiveness. Four dual-channel DDR5 RAM slots enable you to install up to 192GB of memory to enhance multitasking and rendering speeds. Install an array of storage drives for your media assets and games with four SATA III and five M.2 PCIe interfaces. The AORUS MASTER also has one PCIe 5.0 x16, one PCIe 3.0 x16 (in x4 mode), and one PCIe 3.0 x16 (in x1 mode) expansion slot so you can equip your system with various graphics and utility cards. Connect your low-powered peripherals such as mice, keyboards, and controllers to the AORUS MASTER X with a series of USB 3.2 Gen 1 and Gen 2 ports which can also handle resource-demanding devices such as external drives, A/V interfaces, and more. You can also use Bluetooth 5.3 technology to support wireless devices for a true cable-free experience. Quickly access online assets with Wi-Fi 7 (802.11be) technology for wireless connectivity or use the wired 10 Gigabit Ethernet port for a strong and reliable connection.

Performance

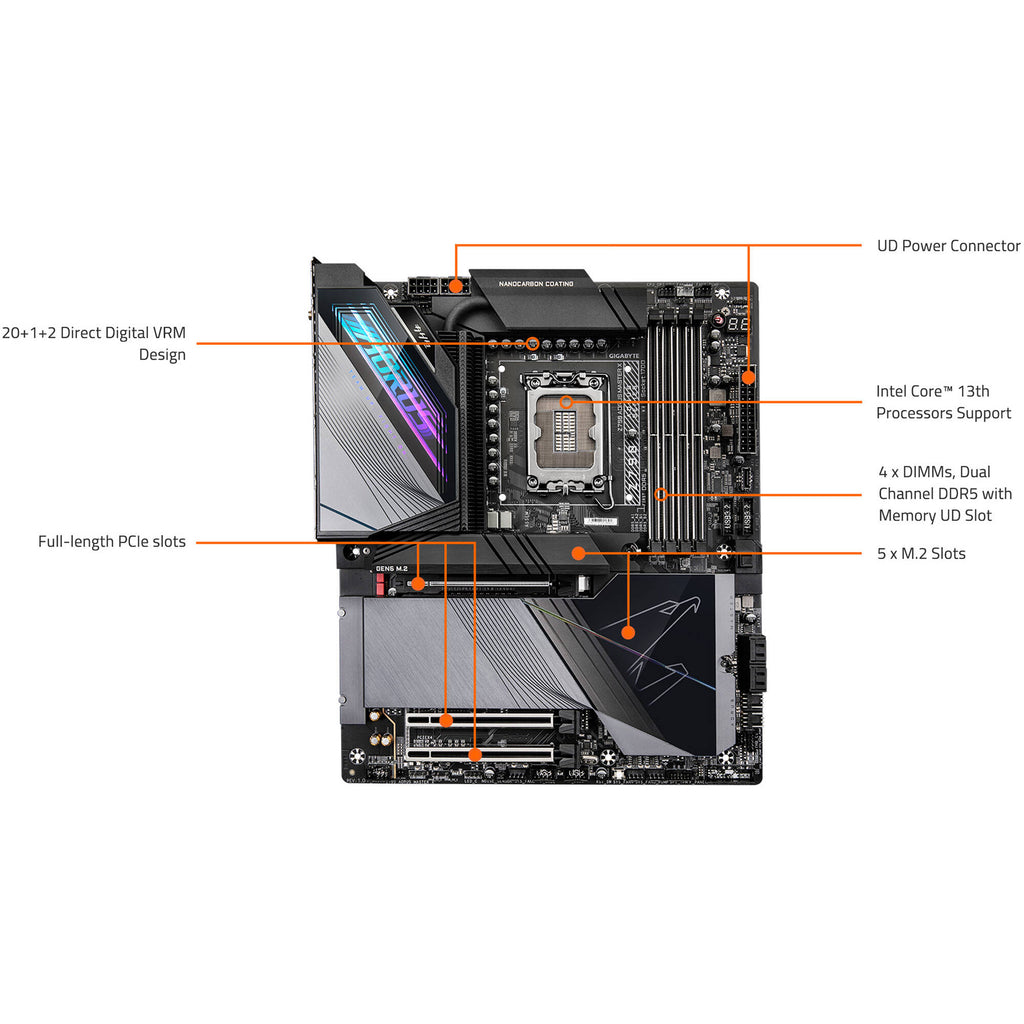

Twin Digital VRM design leverages 20 VCORE phases and 105A Power Stage to ensure electrical throughput that can handle 12th, 13th, and 14th Gen Intel Core, Pentium, and Celeron processors as well as extreme overclocking. DDR5 XMP overclocking boosts RAM up to 8266 MHz for enhanced multitasking and rendering performance.

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling and utilizing GIGABYTE'S VRM Thermal Armor Fins-Array technology, the AORUS MASTER X's fully covered MOSFET heat sink, M.2 Thermal Guard, 8-layer 2x copper PCB, vent holes, and Smart Fan6 application work together to ensure that onboard components are safe under heavy loads. Smart Fan6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

Front Panel USB-C Connector

The front and back USB-C 3.2 Gen 2x2 ports provide up to 20 Gb/s throughput while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.

RGB Fusion

With an array of RGB headers, you can use GIGABYTE's RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room.

Intuitive System Customization

UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile with a reimaged UX, Quick Access function, PerfDrive technology, and BIOS Cooling. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode. You also get access to various modes that unlock the potential of your processor including Optimization, Spec Enhance, Instant 6GHz+, and E-Core Disable modes.

Ultra Durable

Sporting an easy DIY design, the AORUS MASTER X provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch Plus provides quick removal for your graphics card and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor. You also get strong and reliable enhancements including a reinforced PCIe UD Slot X, Memory UD Slot D5, M.2 UD Slot PG5, UD Nanocarbon Backplate, and UD Power Connector.

UPC: 889523039335

In the Box

Gigabyte Z790 AORUS MASTER X E-ATX Motherboard
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
Performance
Enhanced Thermal Design
Front Panel USB-C Connector
RGB Fusion
Intuitive System Customization
Ultra Durable

Gigabyte Z790 AORUS MASTER X Specs

Key Specs

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Slots	4x 288-Pin
Memory Support	DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000 MHz
M.2	1x M Key 2280, 25110 (PCIe 5.0 x4) 2x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M Key 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 3.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x1 mode)
Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor	E-ATX

CPU

Chipset	Intel Z790
CPU Socket	LGA 1700

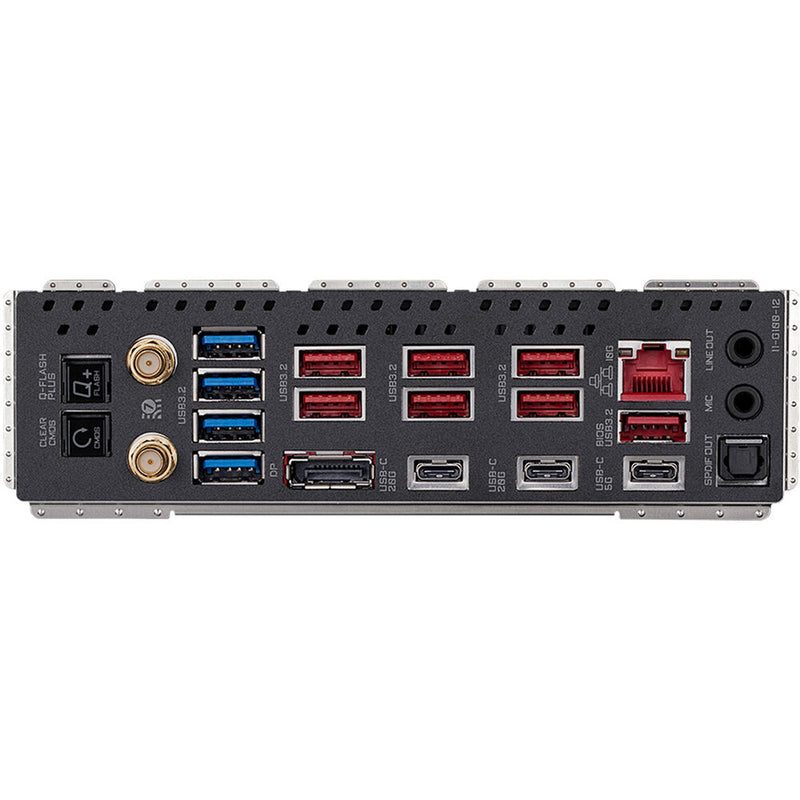

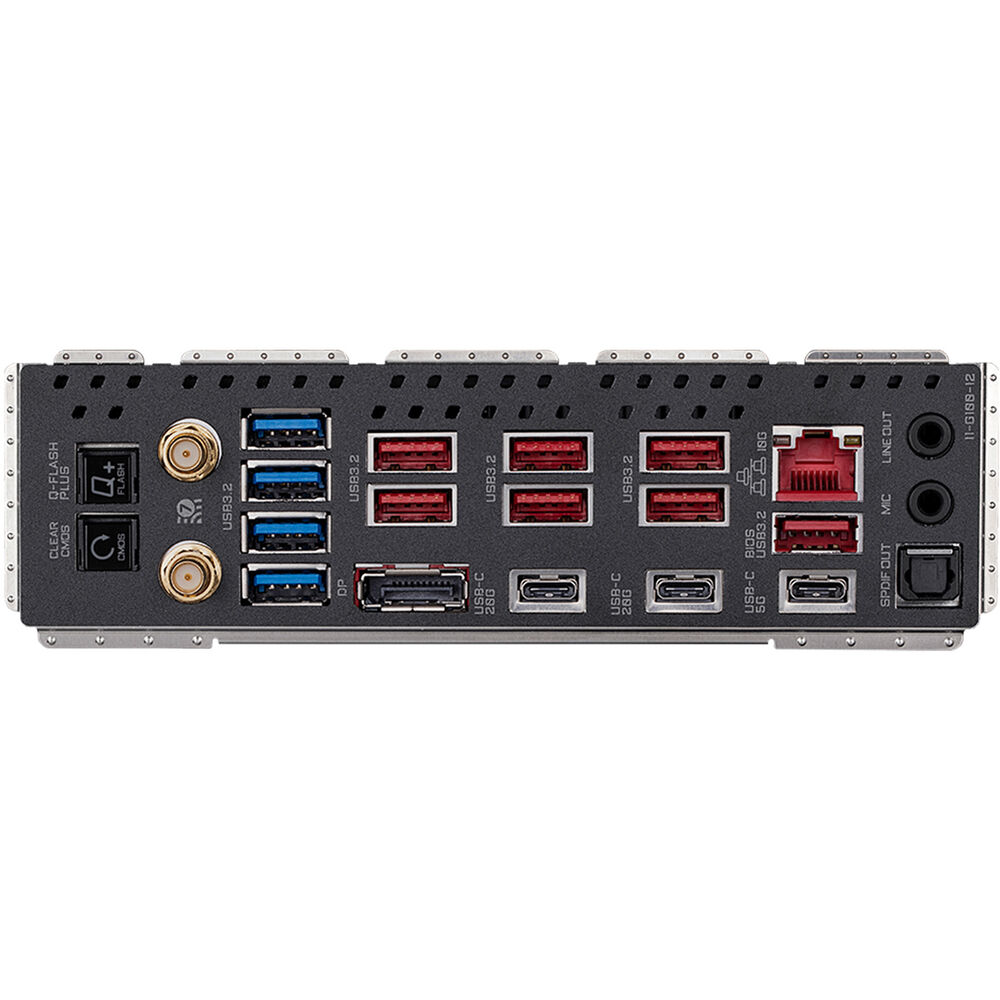

Back Panel I/O

USB	1x USB-C (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-C (USB 3.2 Gen 2x2) 7x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt	No
Display	1x DisplayPort
Audio	2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x Marvell 10GbE
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000 MHz
Maximum Capacity	192 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC Unbuffered

Storage Expansion

SATA	4x SATA III
M.2	1x M Key 2280, 25110 (PCIe 5.0 x4) 2x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M Key 2280 (PCIe 4.0 x4, SATA III)
RAID Support	RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 3.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x1 mode)
USB	1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port) 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU 8x 4-Pin System 1x Noise Sensor 2x Thermal Sensor
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin ATX
Security	TPM Header
LED Header	4x RGB
Diagnostics	Clear CMOS, Power, Reset, Voltage Regulation
Add-On	2x Thunderbolt Header

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec	Realtek ALC1220-VB (5.1-Channel)
DAC	ESS ES9118

Wireless

Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth	5.3

Software

OS Compatibility

Windows 11

Physical

Form Factor	E-ATX
Dimensions	12.0 x 10.2" / 30.5 x 26 cm

Packaging Info

Package Weight	6.775 lb
Box Dimensions (LxWxH)	14.8 x 11.5 x 3.4"
