Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard

Roll over image to zoom in

Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard


	₹ 38865.0 includes GST and import duties.
	B2B customers can avail ₹ 5926.91 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Gigabyte
SKU:	6996066992213
MPN:	Z790 AORUS ELITE X WIFI7
UPC/HSN:	889523039298

Share this product

Gigabyte Z790 AORUS ELITE X WIFI7 Overview

1Description
2Performance
3Enhanced Thermal Design
4Front Panel USB-C Connector
5Personalization & Customization
6Ultra Durable

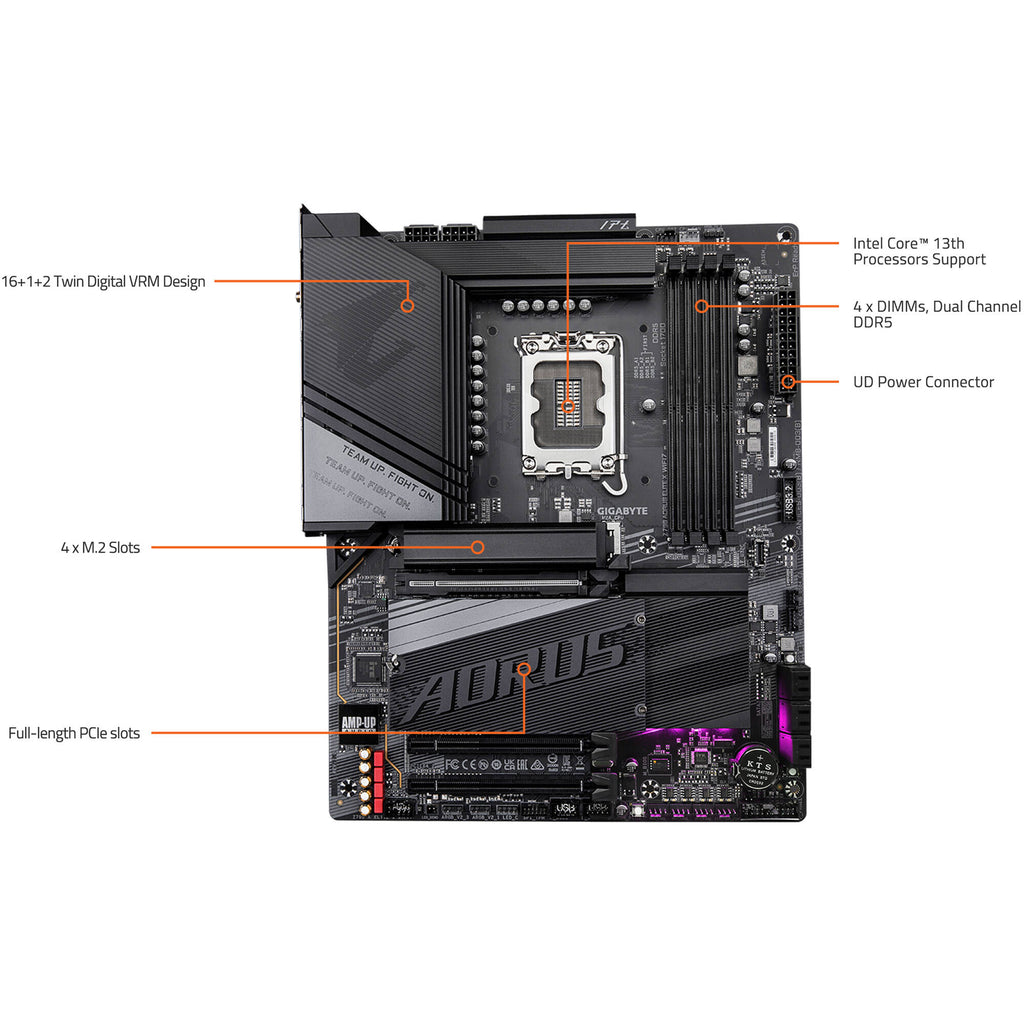

Get your next gaming rig up and running with the GIGABYTE Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard. Designed to give new and seasoned builders the ability to install resource-demanding components while offering a unique and customizable aesthetic, the AORUS ELITE X WIFI7 lays a proper foundation for your next build.

Equipped with Intel's LGA 1700 socket and Z790 chipset, you can leverage a wide range of Core, Celeron, and Pentium processors, enhancing performance and responsiveness. Four dual-channel DDR5 RAM slots enable you to install up to 192GB of memory with support for speeds up to 8266 MHz, enhancing multitasking and rendering speeds. Build a large digital library with six SATA III and four M.2 PCIe interfaces, saving your games, media, and more. The AORUS ELITE X WIFI7 also has one PCIe 5.0 x16 and two PCIe 4.0 x16 (in x4 mode) expansion slots so you can equip your system with various graphics and utility cards. Connect your low-powered peripherals such as mice, keyboards, and controllers to the AORUS ELITE X WIFI7 with USB-A 2.0 ports while USB 3.2 Gen 1 and Gen 2 ports are reserved for resource-demanding devices such as external drives, audio interfaces, and more. You can also use Bluetooth 5.3 technology to support wireless devices for a true cable-free experience. Quickly access online assets with Wi-Fi 7 (802.11be) technology for wireless connectivity or use the wired 2.5 Gigabit Ethernet port for a strong and reliable connection.

Performance

Twin Digital VRM design leverages 16 VCORE phases and 70A Power Stage to ensure electrical throughput that can handle Intel Core, Pentium, and Celeron processors as well as extreme overclocking. DDR5 XMP overclocking boosts RAM up to 8266 MHz for enhanced multitasking and rendering performance.

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling, the AORUS ELITE X WIFI7's fully covered VRM Thermal Armor Advanced heat sink, M.2 Thermal Guard L, 8-layer copper PCB, 7 W/mK Thermal Pad, and 8mm heatpipe work together to ensure that onboard components are safe under heavy loads. Smart Fan6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

Front Panel USB-C Connector

The USB 3.2 Gen 2 port has a throughput up to 10 Gb/s while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.

Personalization & Customization

With an array of RGB headers, you can use GIGABYTE's RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.

Ultra Durable

Sporting an easy DIY design, the AORUS ELITE X WIFI7 provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch provides quick access to your M.2 storage drives and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor. You also get PCIe UD Slot X, M.2 UD Slot PG4, and UD Power Connector, adding more flexibility and utility to your system.

UPC: 889523039298

In the Box

Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
Performance
Enhanced Thermal Design
Front Panel USB-C Connector
Personalization & Customization
Ultra Durable

Gigabyte Z790 AORUS ELITE X WIFI7 Specs

Key Specs

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Slots	4x 288-Pin
Memory Support	DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266 MHz
M.2	3x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M Key 2280, 22110 (PCIe 4.0 x4, SATA III)
Expansion Slots	1x PCIe 5.0 x16 2x PCIe 4.0 x16 (x4 mode)
Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor	ATX

CPU

Chipset	Intel Z790
CPU Socket	LGA 1700

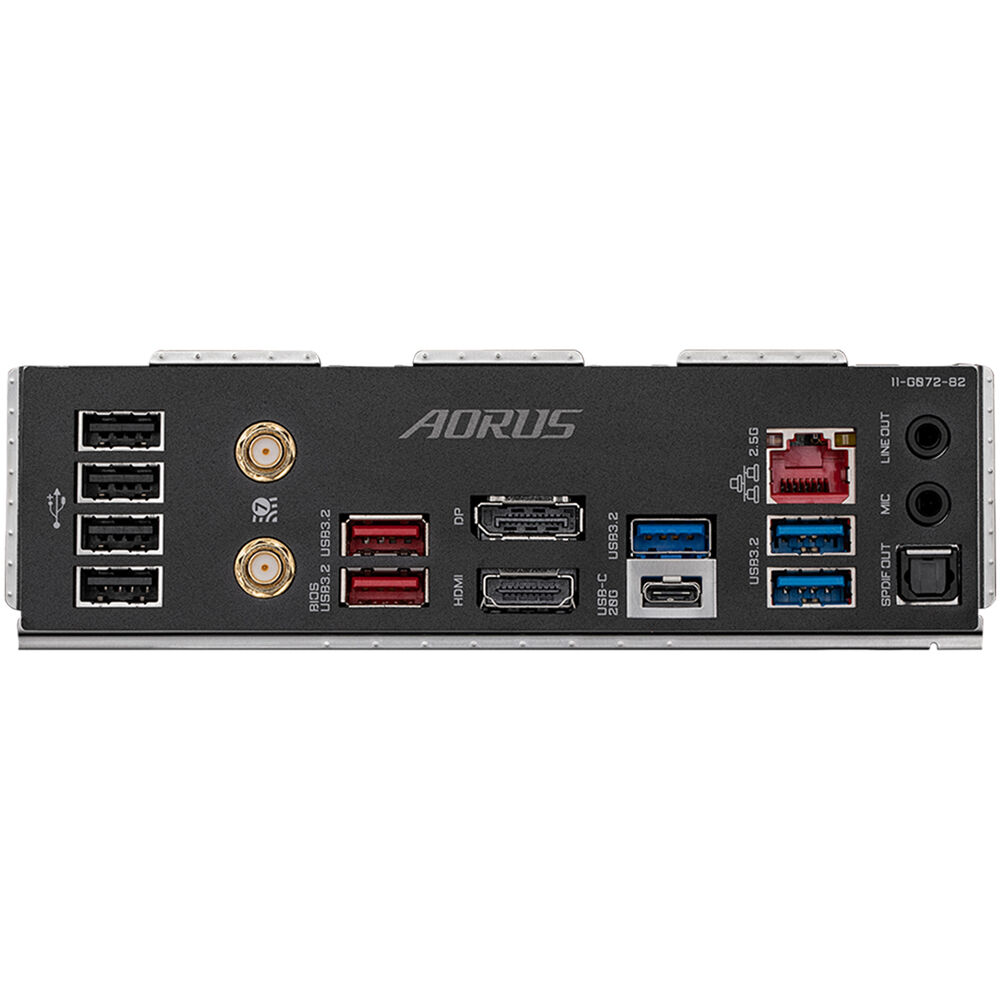

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2x2) 2x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 2.0 1x DisplayPort
Audio	2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x Intel 2.5Gigabit
Wi-Fi Antenna	2x Connector

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266 MHz
Maximum Capacity	192 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC Unbuffered

Storage Expansion

SATA	6x SATA III
M.2	3x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M Key 2280, 22110 (PCIe 4.0 x4, SATA III)
RAID Support	RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 2x PCIe 4.0 x16 (x4 mode)
USB	1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin ATX
Security	TPM Header
LED Header	4x RGB
Diagnostics	Clear CMOS, Flash BIOS, Reset
Add-On	2x Thunderbolt Header

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec	Realtek ALC1220-VB (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth	5.3

Software

OS Compatibility

Windows 11

Physical

Form Factor	ATX
Dimensions	12.0 x 9.6" / 30.5 x 24.4 cm

Packaging Info

Package Weight	4.945 lb
Box Dimensions (LxWxH)	13.3 x 11.1 x 3.2"
