Description
Gigabyte aero x3d wood Overview
Integrate elegant style into your desktop computer build with the Gigabyte X870E AERO X3D WOOD AM5 ATX Motherboard, which features beautiful wood accents. But it's not all about the looks. This ATX motherboard supports AMD 7000, 8000, and 9000 series processors with the AM5 socket with high-speed connections that help professionals make short work of demanding projects.
You can install up to 256GB of 9000 MT/s overclocked DDR5 memory across four slots to smoothly multitask applications. For storage, you can add up to two M.2 PCIe 5.0 and two PCIe 4.0 SSDs alongside four SATA III drives. With PCIe 5.0 x16, PCIe 5.0 x16 (x8), and PCIe 4.0 x16 (x4) slots, you can install a powerful graphics card and other expansions. Connect to compatible networks with built-in Wi-Fi 7 (802.11be) support and two 5 Gb/s compatible RJ45 Ethernet LAN ports. Install Windows 11 (64-bit) to take full advantage of all the features of this motherboard.

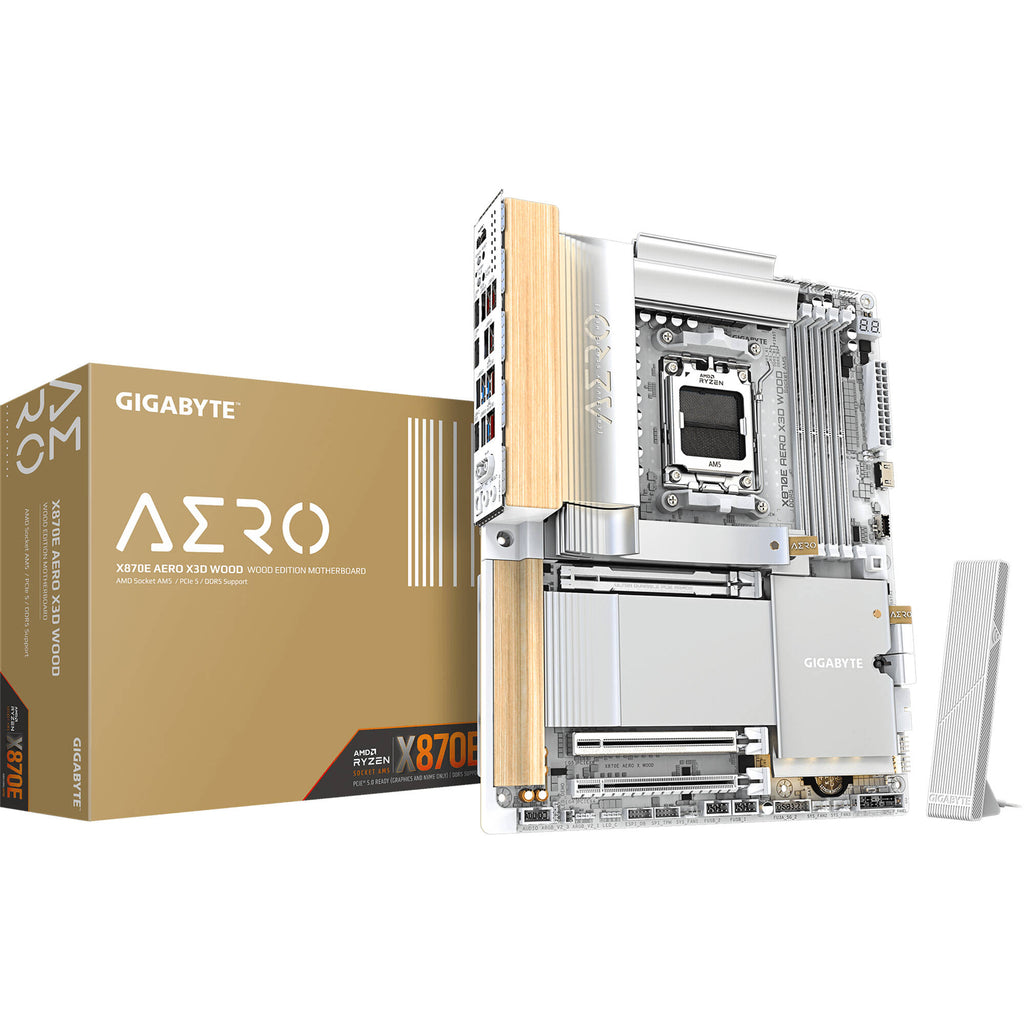

- Gigabyte X870E AERO X3D WOOD AM5 ATX Motherboard
- 2 x SATA Cable
- Antenna
- G Connector
- 3 x M.2 Rubber Pad Packs
- Limited 3-Year Manufacturer Warranty
Gigabyte aero x3d wood Specs
| Chipset |
AMD X870E
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5
|
| M.2 Slots |
22110 / 2580
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode) 1x PCIe 4.0 x8 (x4 mode) |
| Wi-Fi |
Wi-Fi 7 (802.11be)
|
| Form Factor |
ATX
|
| Chipset |
AMD X870E
|
| CPU Socket |
AM5
|

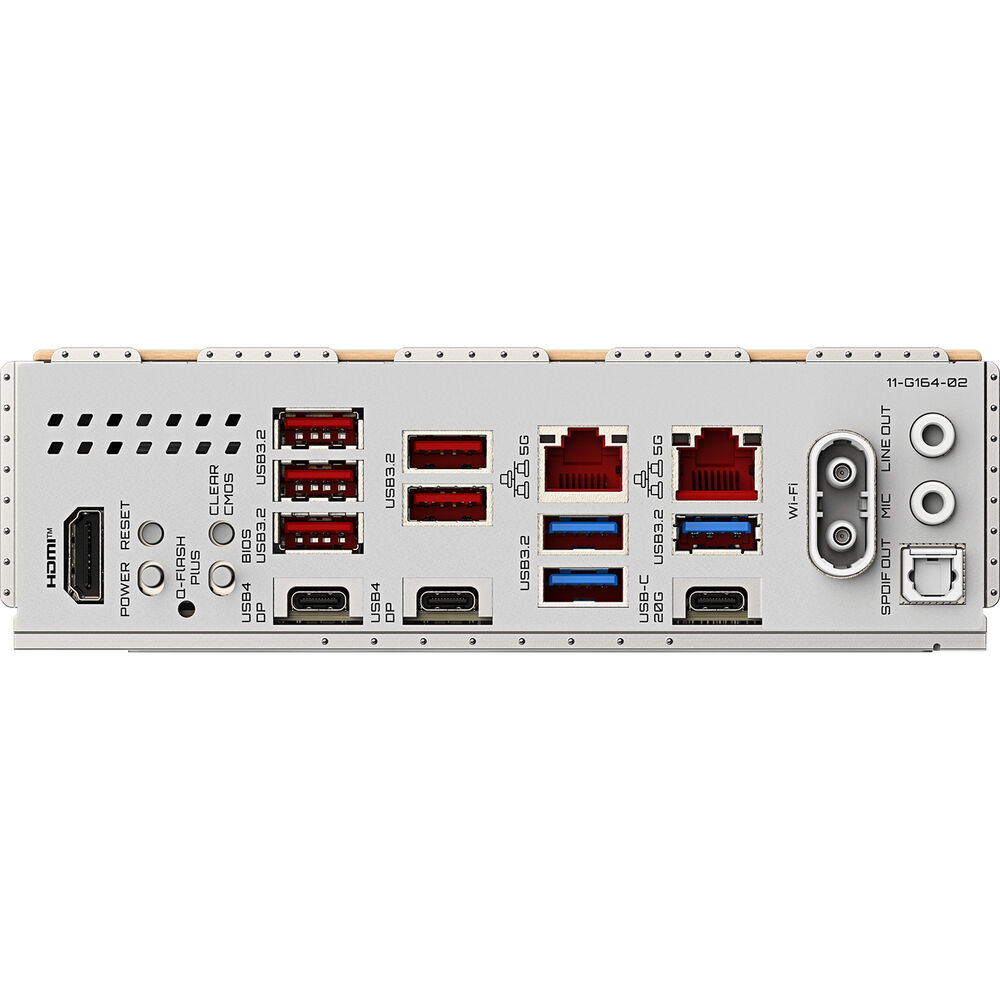

| USB |
2x USB-C (USB4)
1x USB-C (USB 3.2 Gen 2x2) 5x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Thunderbolt |
No
|
| Display |
1x HDMI
|
| Audio |
2x 1/8" / 3.5 mm
1x S/PDIF |
| Ethernet / Controller |
2x Realtek 5GbE
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback, Clear CMOS, Power / Reset
|
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
| SATA |
4x SATA III
|
| M.2 Slots |
1x M.2 (M Key) 2580/2280 (PCIe 5.0 x4)
1x M.2 (M Key) 22110/2280 (PCIe 5.0 x4) 2x M.2 (M Key) 22110/2280 (PCIe 4.0 x4) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 10 (SATA)
RAID 0, 1, 5, 10 (M.2) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode) 1x PCIe 4.0 x8 (x4 mode) |
| USB |
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
3x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX |
| Security |
TPM Header
|
| LED Header |
4x RGB
|
| ROM |
256 Mb
|
| Front Panel I/O |
AAFP
|
| Audio Codec |
Realtek ALC1220 (7.1-Channel)
|
| DAC |
No
|
| Wi-Fi |
Wi-Fi 7 (802.11be): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Bluetooth |
Bluetooth 5.4
|
| OS Compatibility |
Windows 11 (64-Bit Only)
|
| Form Factor |
ATX
|
| Dimensions |
12.0 x 9.6" / 30.5 x 24.4 cm
|
| Package Weight |
6.965 lb
|
| Box Dimensions (LxWxH) |
13.8 x 12.7 x 3.5"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
