Description
Gigabyte UD850GM Overview
- 1Description
- 2PCIe 5.0 GPU Support
- 3Intel ATX 3.0 Standard
- 4Ultra Durable by Design
- 5Robust Capacitors
- 6Enhanced Thermal Offloading
- 7120mm Smart Hydraulic Bearing Fan
- 8Built-In Protection
- 9Fully Modular Design
- 1080 PLUS Gold Certified
- 11Compact Design

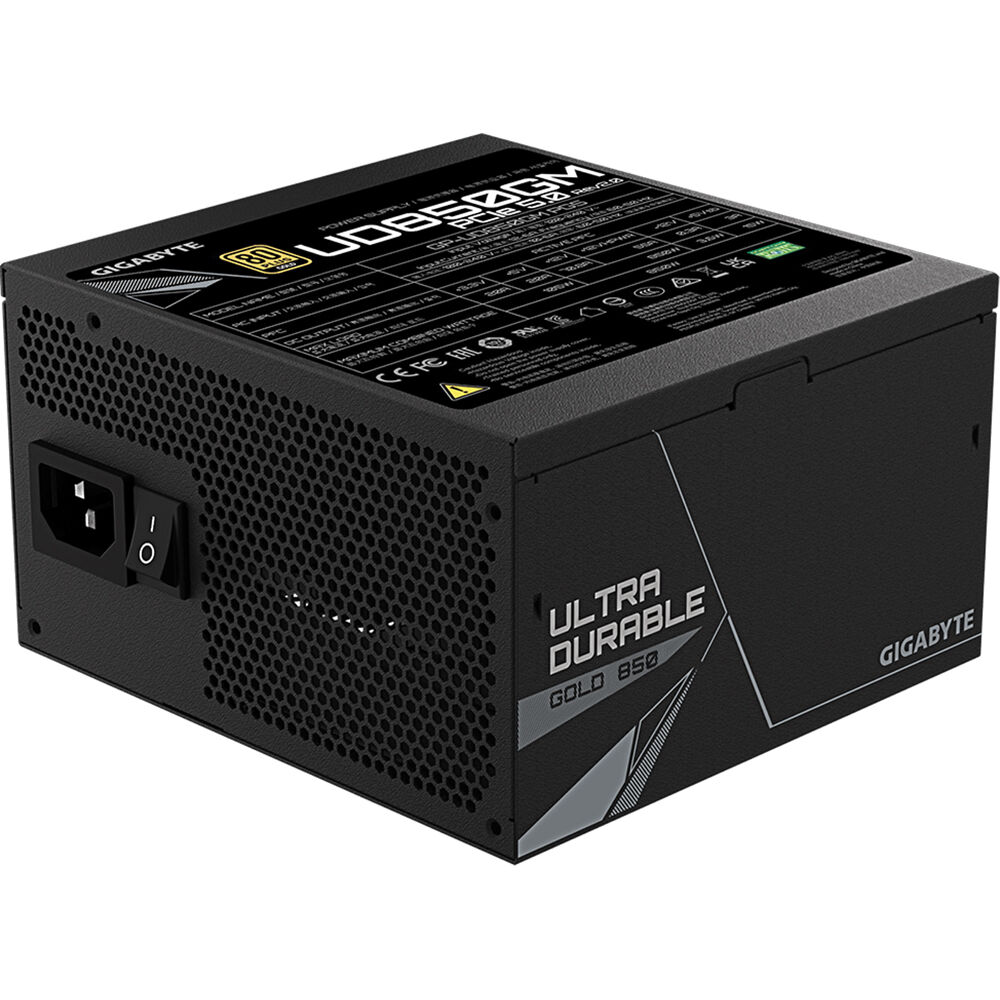

Bring reliable power to PCIe 5.0 graphics cards and more with the UD850GM PG5 Rev. 2.0 850W 80 PLUS Gold Modular Power Supply in black from Gigabyte. Featuring a single +12V rail and utilizing the Intel ATX12V 3.0 specification, this 850W power supply features a 16-pin PCIe connector for up to 600W of power to PCIe 5.0 graphics cards. Four 8-pin PCIe, eight SATA, and three 4-pin connectors are also present, along with a floppy connector for legacy drives. The modular and compact design allows for easy building and optimal airflow and heat dissipation, while a 120mm smart hydraulic bearing cooling fan ensures reliable cooling.
PCIe 5.0 GPU Support
Use the 16-pin PCIe cable to connect to PCIe 5.0 graphics cards and deliver up to 600W of power.
Intel ATX 3.0 Standard
The UD850GM PG5 utilizes the Intel ATX 3.0 standard for up to 200% power excursion support and allowing it to sustain three times the GPU power excursions and twice the total power excursions of previous iterations. Fully compatible with Intel's Power Supply Design Guide (PSDG), the ATX 3.0 standard reaches 70% low load efficiency and complies with required power supply timing standards.
Ultra Durable by Design
Gigabyte's Ultra Durable label denotes quality materials and design, including robust capacitors, enhanced thermal offloading, a 120mm smart hydraulic bearing fan, and six circuit protection designs for stable long-term power.
Robust Capacitors
Robust capacitors ensure efficient and reliable performance.
Enhanced Thermal Offloading
Optimized airflow is achieved via a heatsink that is 200% larger than standard thermal designs, and heat dissipation is increased by more than 10% for a prolonged lifespan of components.

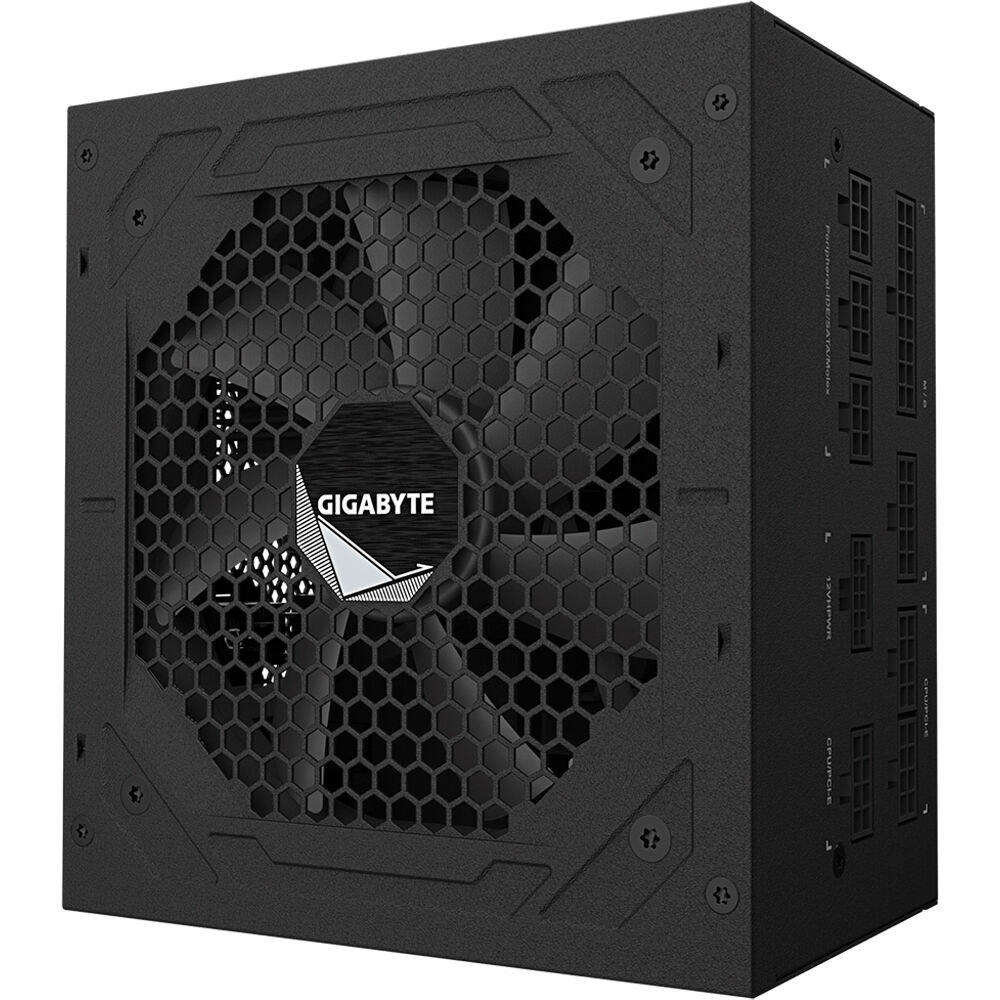

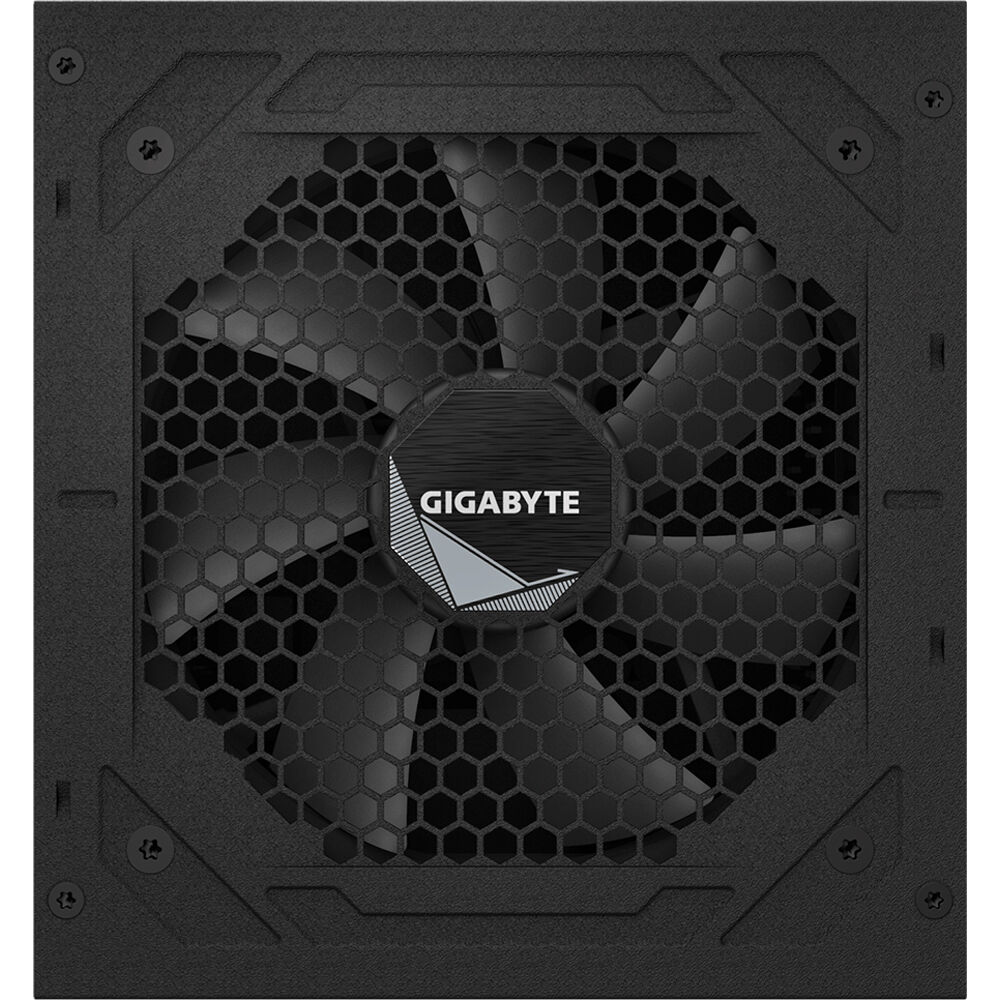

120mm Smart Hydraulic Bearing Fan
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under less than 20% load, ensuring stable operation for a longer lifespan.
Built-In Protection
Built-in protections ensure stable operation and keep you safe from over-current, over-temperature, over-voltage, over-power, under-power, and short-circuit scenarios.

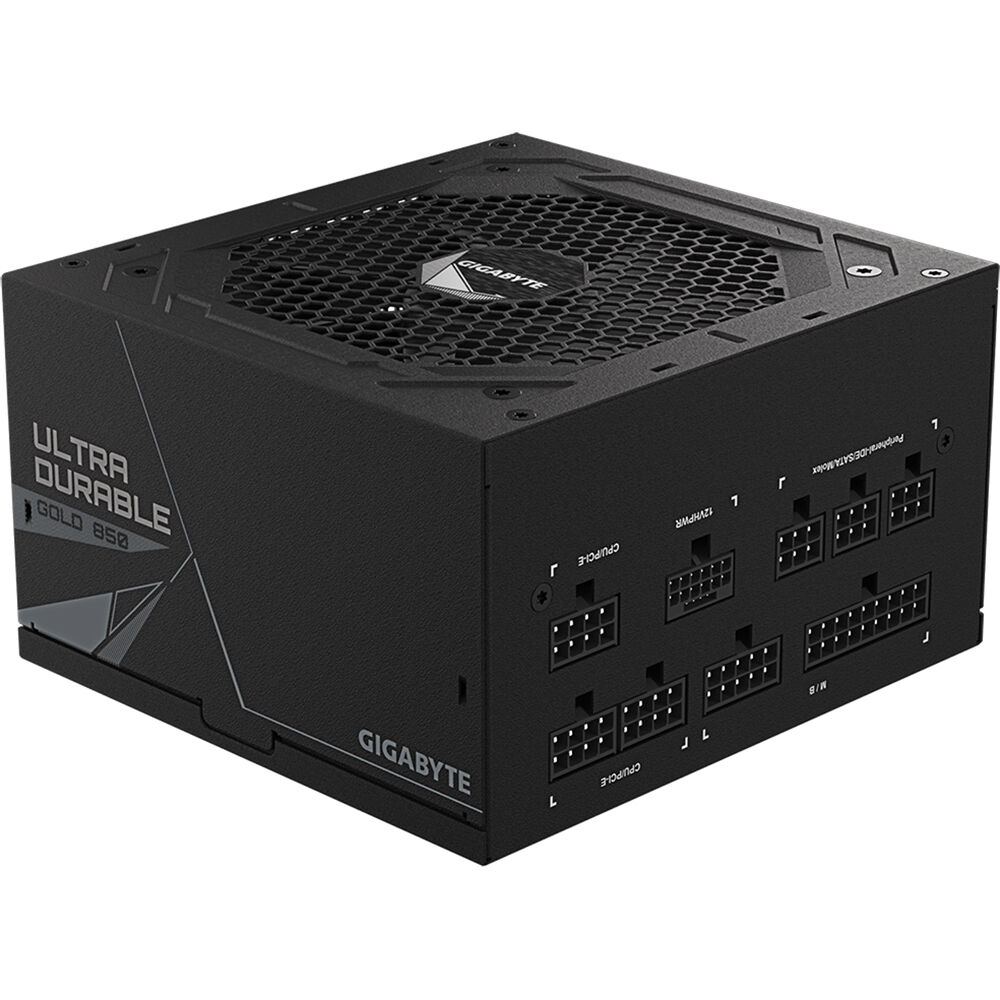

Fully Modular Design
Install the cables you need and stash the ones you don't; the modular design reduces clutter for increased airflow and improved thermal offloading. Plus, the flat black cable design enables easy routing and a clean build.
80 PLUS Gold Certified
80 PLUS Gold certified ensures up to 90% efficiency at 50% load. Higher efficiency means less power waste, heat, and fan noise.
Compact Design
Measuring just 5.5" on its longest side, the UD850GM PG 5 Rev. 2.0 easily installs to a wide range of computer cases.
UPC: 810075655469
In the Box
- Gigabyte UD850GM PG5 Rev. 2.0 850W 80 PLUS Gold Modular Power Supply (Black)
- Motherboard Cable
- CPU/EPS Cable
- PCIe 16-Pin Cable
- 2 x PCIe 6+2 Pin Cable
- 2 x SATA Cables
- 4-Pin/Floppy Cable
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- PCIe 5.0 GPU Support
- Intel ATX 3.0 Standard
- Ultra Durable by Design
- Robust Capacitors
- Enhanced Thermal Offloading
- 120mm Smart Hydraulic Bearing Fan
- Built-In Protection
- Fully Modular Design
- 80 PLUS Gold Certified
- Compact Design

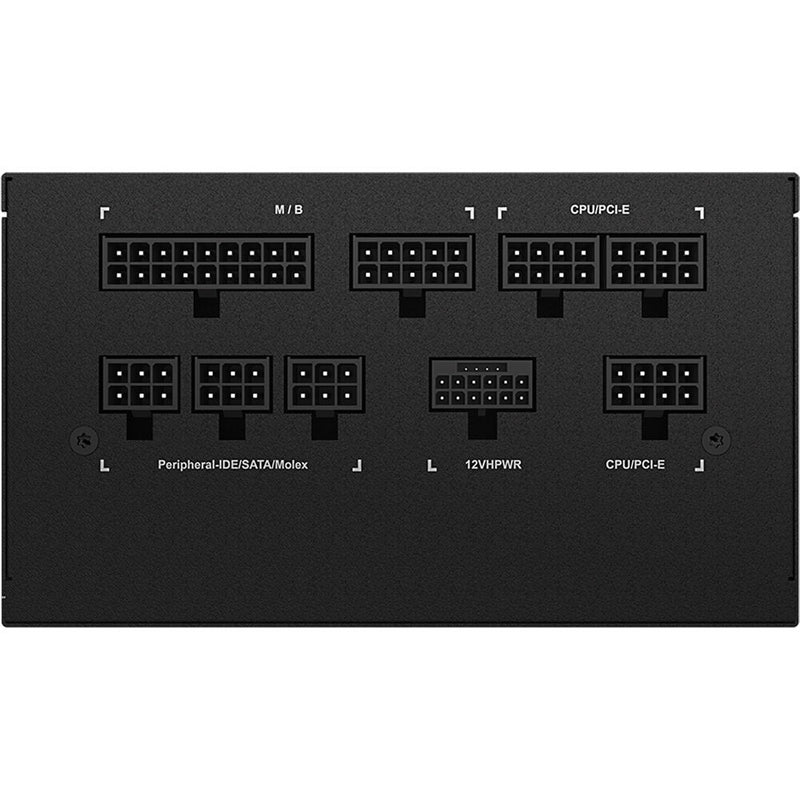

Gigabyte UD850GM Specs
Key Specs
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 4x 6+2-Pin PCIe 8x 15-Pin SATA 3x 4-Pin Peripheral / Molex 1x 4-Pin Floppy |
| Cable Design |
Flat, Modular
|
| Total Wattage |
850 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Gold
|
| Form Factor |
ATX
|
Connectivity
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 4x 6+2-Pin PCIe 8x 15-Pin SATA 3x 4-Pin Peripheral / Molex 1x 4-Pin Floppy |
| Cable Design |
Flat, Modular
|
| PCIe Connector Distances |
27.6" / 700 mm
23.6" / 600 mm 5.9" / 150 mm |
| SATA Connector Distances |
23.6" / 600 mm
5.9" / 150 mm 5.9" / 150 mm 5.9" / 150 mm |
| Peripheral Connector Distances |
19.7" / 500 mm
4.7" / 120 mm 4.7" / 120 mm |
| Floppy Connector Distances |
5.9" / 150 mm
|
| ATX Connector Distance |
24" / 610 mm
|
| EPS Connector Distances |
23.6" / 600 mm
7.9" / 200 mm |

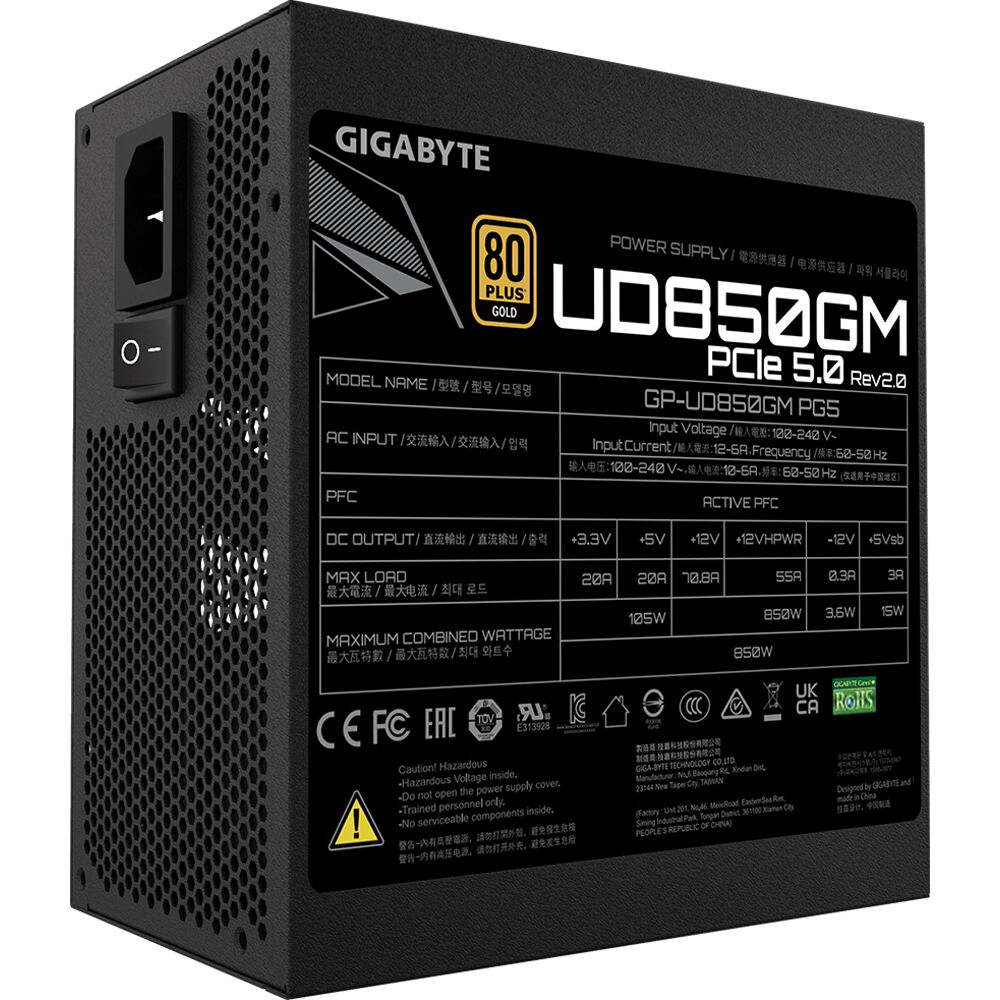

Electrical
| Total Wattage |
850 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
850 W
|
| Max Load for +12 V |
70.8 A
|
| Combined Power for +3.3/+5 V |
105 W
|
| Max Load for +3.3 V |
20 A
|
| Max Load for +5 V |
20 A
|
| Max Power for +5 Vsb |
15 W
|
| Max Load for +5 Vsb |
3 A
|
| Max Power for -12 V |
3.6 W
|
| Max Load for -12 V |
0.3 A
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 6 to 12 A
|
General
| Efficiency Rating |
80 PLUS Gold
|
| Active Power Factor Correction |
Yes
|
| Efficiency |
90% at 50% Load
|
| Hold up Time |
16 ms
|
| Power-Good Signal |
100 to 150 ms
|
Cooling
| Fan Size |
120 mm
|
| Bearing Type |
Hydraulic
|
Physical
| Form Factor |
ATX
|
| Compliance |
ATX 12 V v3.0
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
| Mean Time Between Failures (MTBF) |
100,000 Hours
|
| Dimensions |
5.9 x 5.5 x 3.4" / 150 x 140 x 86 mm
|
Packaging Info
| Package Weight |
5.965 lb
|
| Box Dimensions (LxWxH) |
10.8 x 9 x 4.8"
|
