Description

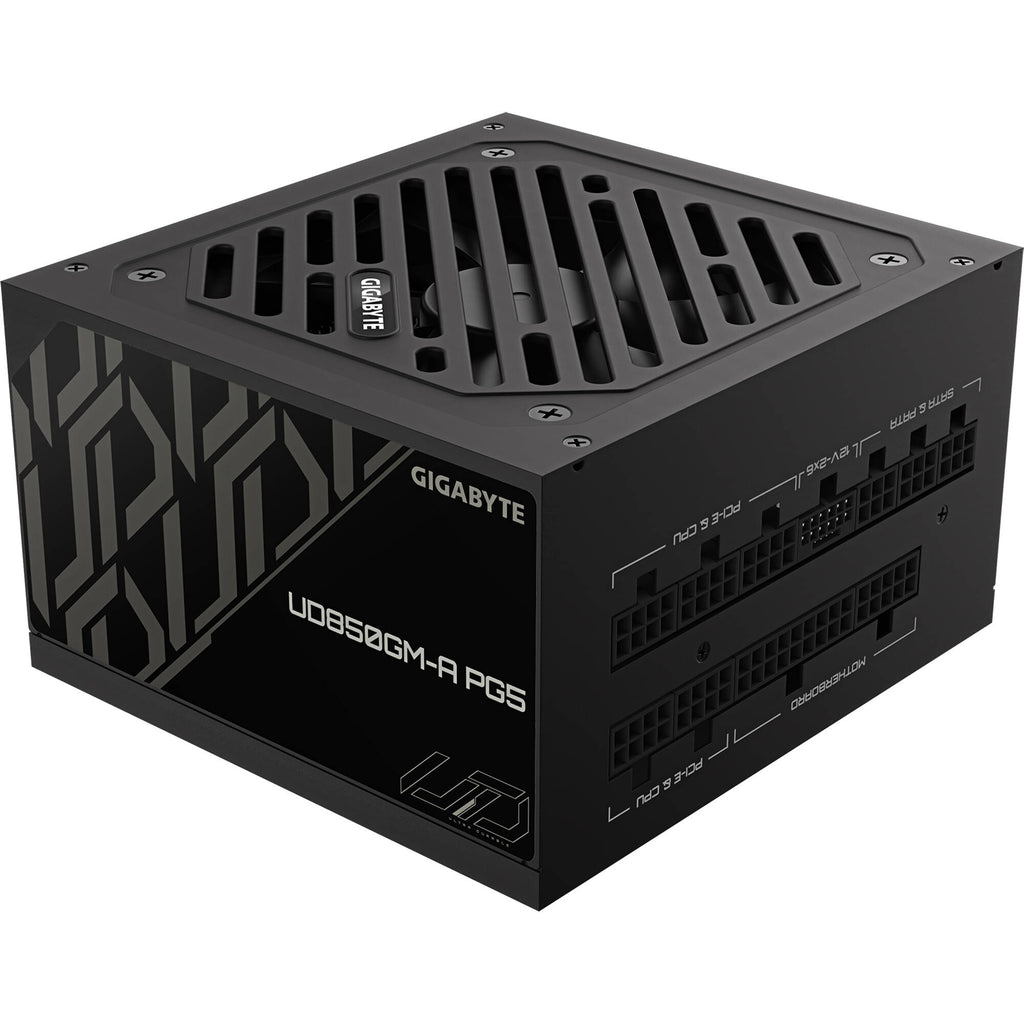

Gigabyte GP-UD850GM-A PG5 Overview
Bring reliable power to PCIe 5.0 graphics cards and more with the UD850GM-A PG5 850W 80 PLUS Gold Modular Power Supply from Gigabyte. In addition to its single +12V rail and compliance with the Intel ATX12V 3.1 specification, this 850W power supply features a 16-pin PCIe connector for up to 600W of power to PCIe 5.0 graphics cards. Six 8-pin PCIe, ten SATA, and two 4-pin peripheral connectors are also present. The modular and compact design allows for easy building, optimal airflow, and heat dissipation, while a 120mm smart hydraulic bearing cooling fan ensures reliable cooling.
PCIe 5.0 GPU Support
Use the native 16-pin PCIe cable to connect to PCIe 5.0 graphics cards and deliver up to 600W of power.
Intel ATX 3.1 Standard
The UD850GM-A PG5 utilizes the Intel ATX 3.1 standard for up to 200% power excursion support, allowing it to sustain three times the GPU power excursions and twice the total power excursions of previous iterations. Fully compatible with Intel's Power Supply Design Guide (PSDG), the ATX 3.1 standard reaches 70% low load efficiency and complies with required power supply timing standards.
Ultra Durable by Design
Gigabyte's Ultra Durable label denotes quality materials and design, including robust capacitors, enhanced thermal offloading, a 120mm smart hydraulic bearing fan, and six circuit protection designs for stable long-term power.
Robust Capacitors
Robust capacitors ensure efficient and reliable performance.
Enhanced Thermal Offloading
Optimized airflow is achieved via a heatsink that is larger than standard thermal designs, and heat dissipation is increased for a prolonged lifespan of components.

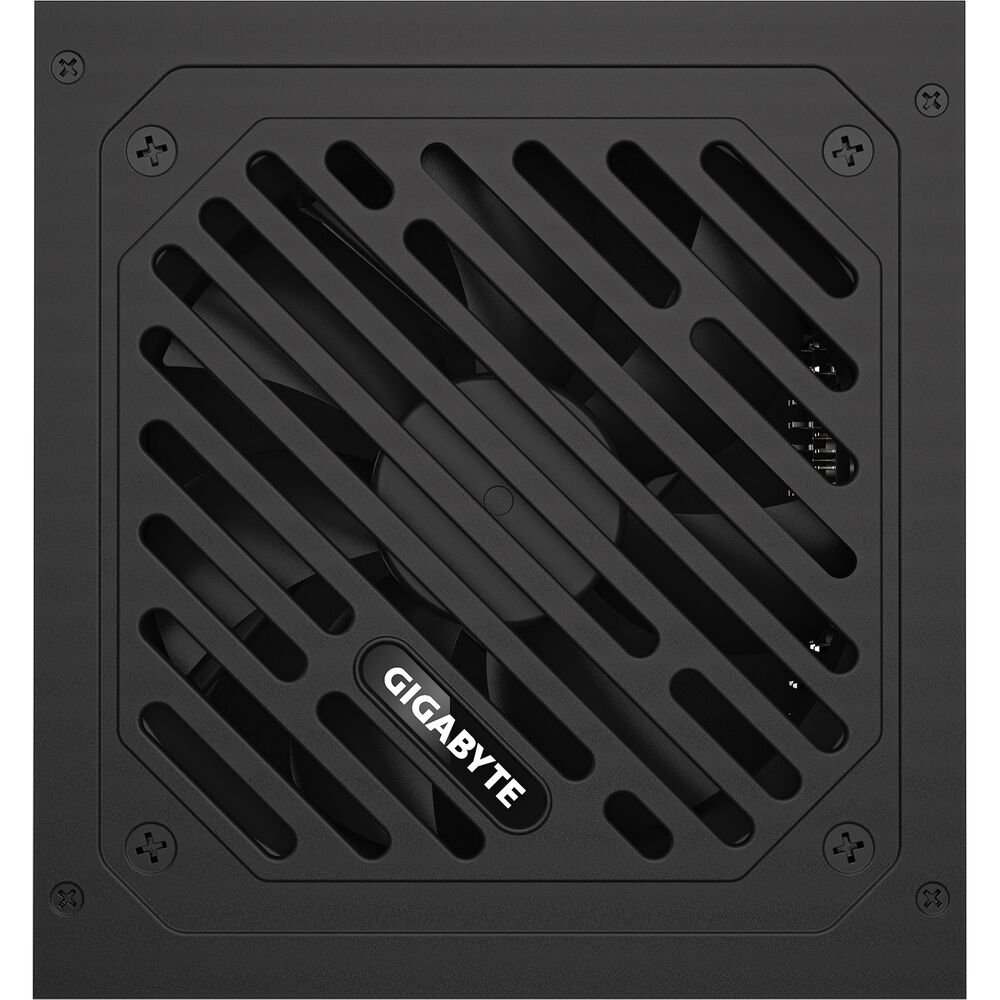

120mm Hydraulic Bearing Fan with Smart Fan Switch
The power supply automatically detects current power usage and temperature to adjust fan speed for optimal cooling performance. When the smart fan switch is toggled on, the fan will turn off when your system is idle or below 50% load to minimize noise.
Built-In Protection
Built-in protections ensure stable operation and keep you safe from over-current, over-temperature, over-voltage, over-power, under-power, and short-circuit scenarios.

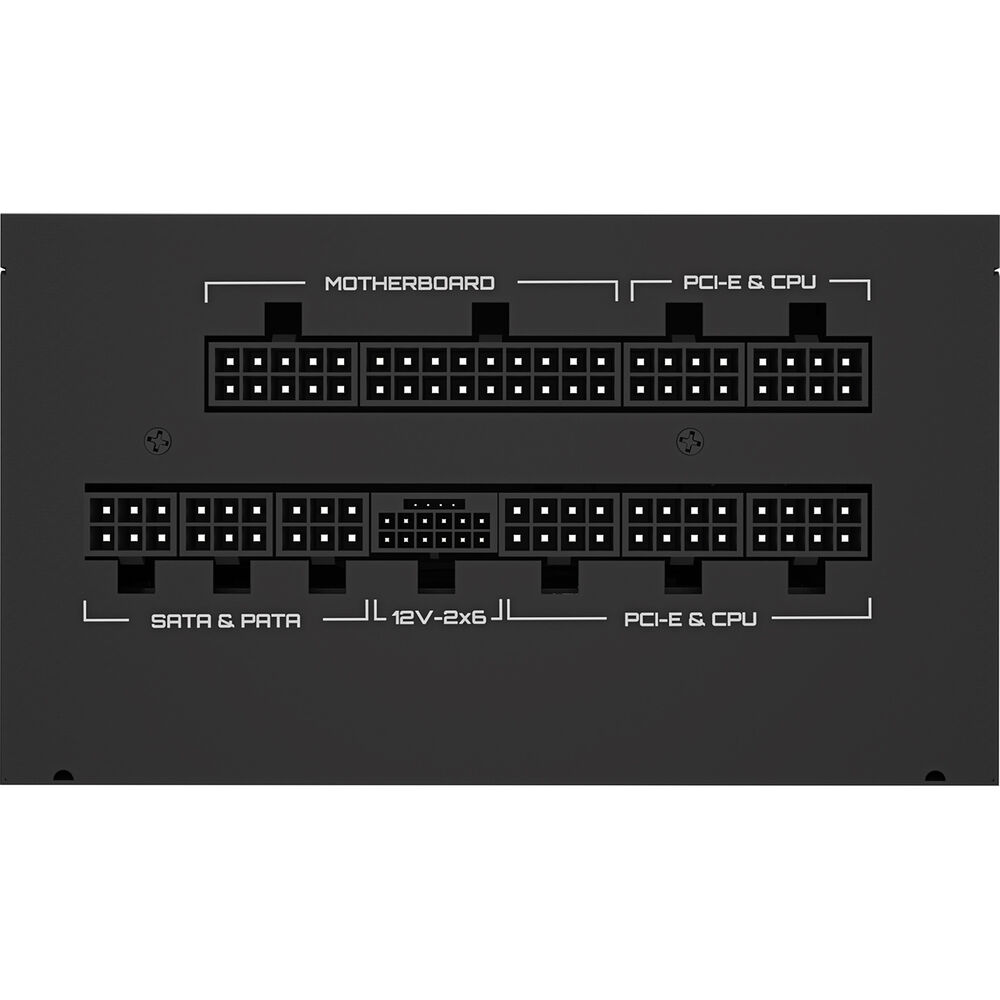

Fully Modular Design
Install the cables you need and stash the ones you don't; the modular design reduces clutter for increased airflow and improved thermal offloading. Plus, the flat black cable design enables easy routing and a clean build.
80 PLUS Gold Certified
80 PLUS Gold certified ensures up to 90% efficiency at 50% load. Higher efficiency means less power waste, heat, and fan noise.
Compact Design
Measuring just 5.5" in length, the UD850GM-A PG5 easily installs into a wide range of computer cases.
UPC: 810162140595
Items Included
- Gigabyte UD850GM-A PG5 850W 80 PLUS Gold Modular Power Supply
- 1 x Motherboard (20+4 Pins) Cable
- 2 x CPU (4+4 Pins) Cable
- 1 x PCIe 16-Pin Cable
- 6 x PCIe (6+2 Pins) Cable
- 10 x SATA Cable
- 2 x 4-Pin Peripheral Cable
- Limited 5-Year Manufacturer Warranty
Additional Resources
Gigabyte GP-UD850GM-A PG5 Specs
Key Specs
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 6x 6+2-Pin PCIe 8x 15-Pin SATA 2x 4-Pin Peripheral / Molex |
| Cable Design |
Flat
|
| Total Wattage |
850 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Gold
|
| Form Factor |
ATX
|
Connectivity
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 6x 6+2-Pin PCIe 8x 15-Pin SATA 2x 4-Pin Peripheral / Molex |
| Cable Design |
Flat
|
| PCIe Connector Distances |
25.6" / 650 mm
27.6" / 700 mm 29.5" / 750 mm |
| SATA Connector Distances |
23.6" / 600 mm
29.5" / 750 mm 35.4" / 900 mm 41.3" / 1050 mm |
| Peripheral Connector Distances |
23.6" / 600 mm
29.5" / 750 mm 35.4" / 900 mm 41.3" / 1050 mm |
| ATX Connector Distance |
25.6" / 650 mm
|
| EPS Connector Distances |
25.6" / 650 mm
|
Electrical
| Total Wattage |
850 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
849.6 W
|
| Max Load for +12 V |
70.8 A
|
| Combined Power for +3.3/+5 V |
100 W
|
| Max Load for +3.3 V |
20 A
|
| Max Load for +5 V |
20 A
|
| Max Power for +5 Vsb |
15 W
|
| Max Load for +5 Vsb |
3 A
|
| Max Power for -12 V |
3.6 W
|
| Max Load for -12 V |
0.3 A
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 6 to 12 A
|
General
| Efficiency Rating |
80 PLUS Gold
|
| Active Power Factor Correction |
Yes
|
| Efficiency |
90%
|
Cooling
| Fan Size |
120 mm
|
| Bearing Type |
Hydraulic
|
Physical
| Form Factor |
ATX
|
| Compliance |
ATX v3.1
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
| Mean Time Between Failures (MTBF) |
100,000 Hours
|
| Dimensions |
150 x 140 x 86" / 3810 x 3556 x 2184.4 mm
|
Packaging Info
| Package Weight |
6.87 lb
|
| Box Dimensions (LxWxH) |
12.5 x 8.3 x 4.7"
|
