Description
Gigabyte GP-UD750GM-A Overview
Power your next build with the durable and reliable design of the Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply. It gives you ample connectivity options, thermal enhancements, and ample electrical protections to empower your high-end components so you can game with peace of mind.
The UD750GM-A operates on the Intel ATX12V version 2.52 standard, delivering 750W of power via single +12V rail, making this ideal for a wide range of gaming-focused components. Use only the cables you need with the modular design, saving space in your case. Flat low-profile cables make wire management and organization easier, allowing you to easily snake wires through any potentially tight areas. High-quality Japanese capacitors balance and drive power to your components while ensuring up to 90% efficiency at typical load, earning this PSU an 80 PLUS Gold certification.
Items Included
- Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply
- Limited 5-Year Manufacturer Warranty
Additional Resources
Gigabyte GP-UD750GM-A Specs

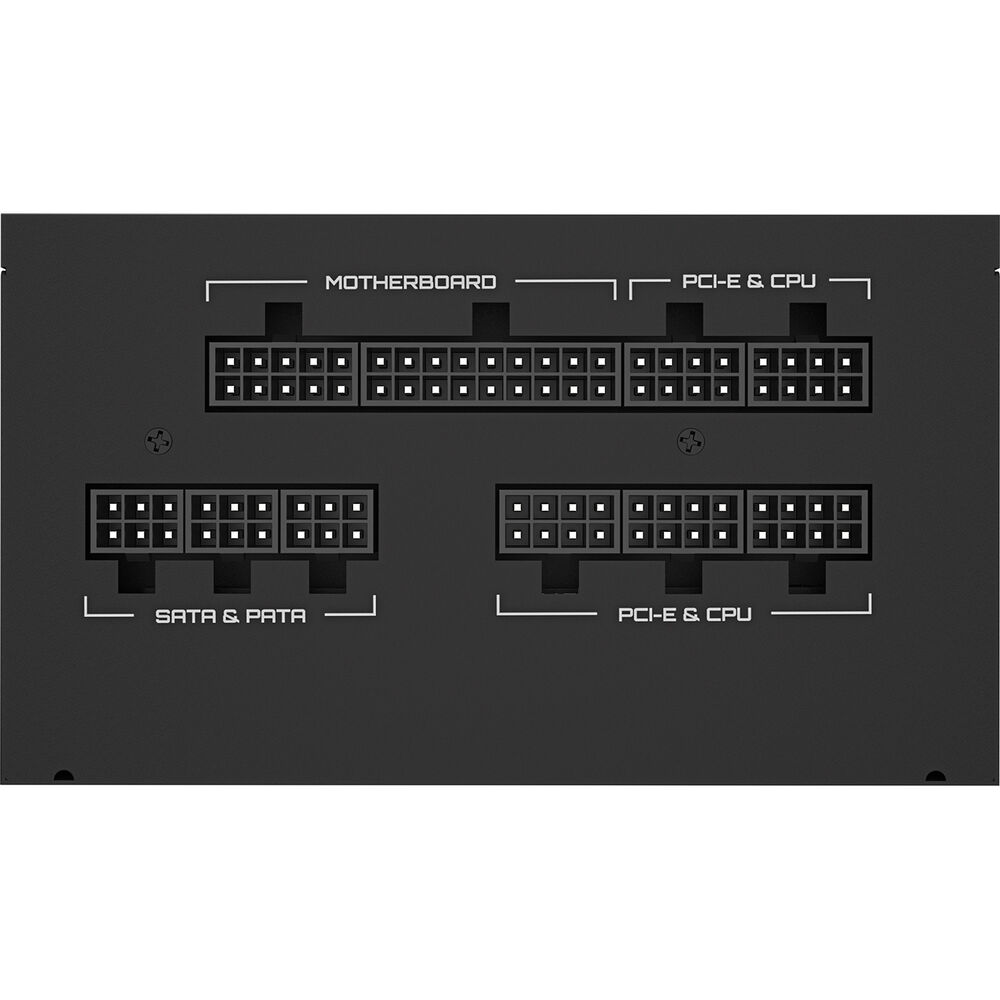

| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 6x 6+2-Pin PCIe 8x 15-Pin SATA |
| Cable Design |
Flat
|
| Total Wattage |
750 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Gold
|
| Form Factor |
ATX
|
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 6x 6+2-Pin PCIe 8x 15-Pin SATA |
| Cable Design |
Flat
|
| PCIe Connector Distances |
25.6" / 650 mm
29.5" / 750 mm |
| SATA Connector Distances |
23.6" / 600 mm
29.5" / 750 mm 35.4" / 900 mm 41.3" / 1050 mm |
| Peripheral Connector Distances |
23.6" / 600 mm
29.5" / 750 mm 35.4" / 900 mm 41.3" / 1050 mm |
| ATX Connector Distance |
25.6" / 650 mm
|
| EPS Connector Distances |
25.6" / 650 mm
|
| Total Wattage |
750 W
|
| Number of +12 V Rails |
1
|

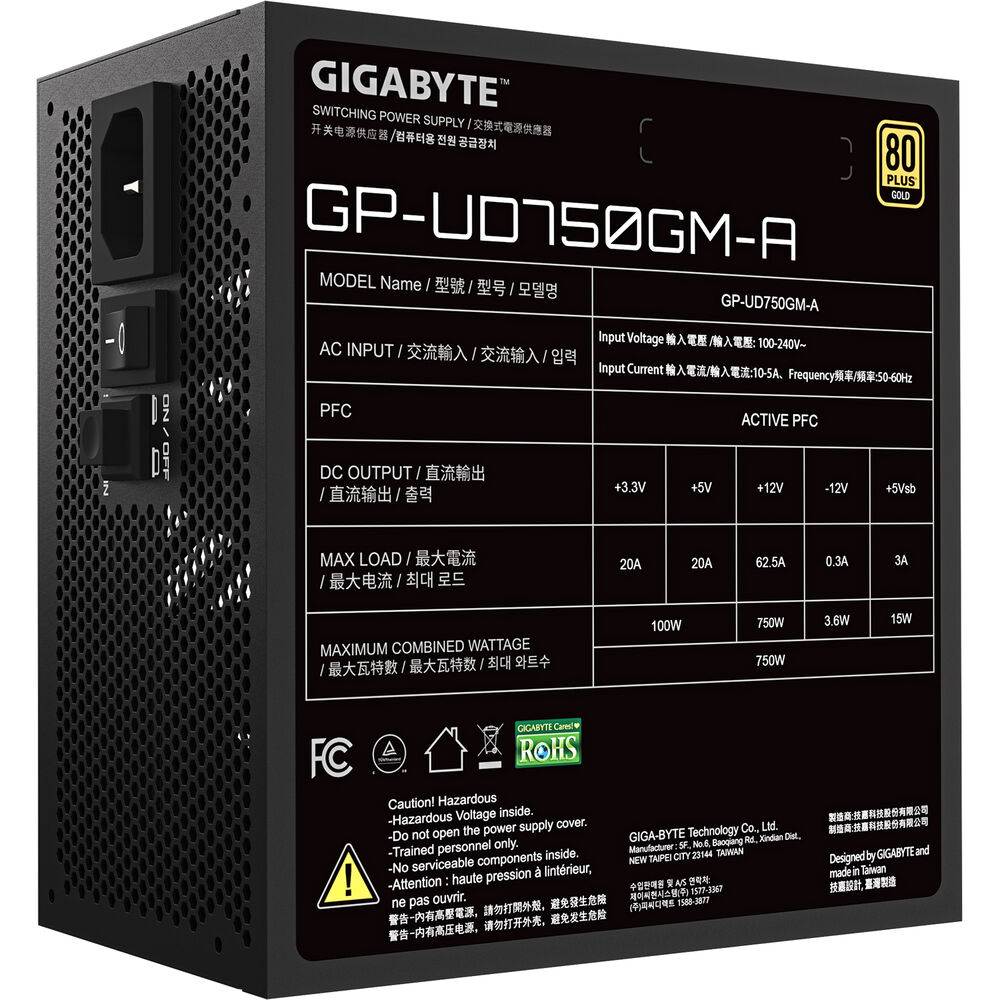

| Combined Power for +12 V |
750 W
|
| Max Load for +12 V |
62.5 A
|
| Combined Power for +3.3/+5 V |
100 W
|
| Max Load for +3.3 V |
20 A
|
| Max Load for +5 V |
20 A
|
| Max Power for +5 Vsb |
15 W
|
| Max Load for +5 Vsb |
3 A
|
| Max Power for -12 V |
3.6 W
|
| Max Load for -12 V |
0.3 A
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Efficiency Rating |
80 PLUS Gold
|
| Active Power Factor Correction |
Yes
|

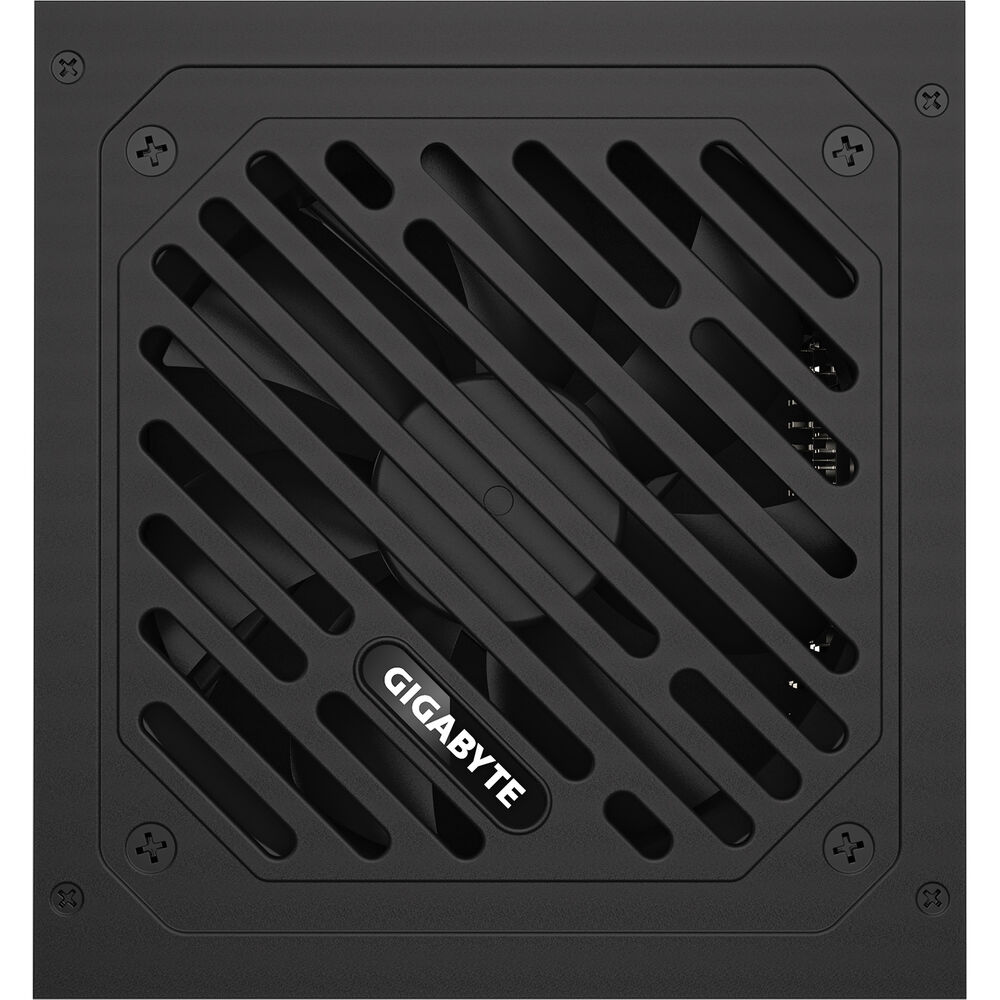

| Fan Size |
120 mm
|
| Bearing Type |
Hydraulic
|
| Form Factor |
ATX
|
| Compliance |
ATX 12 V v2.52
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
| Mean Time Between Failures (MTBF) |
100,000 Hours
|
| Dimensions |
5.9 x 5.5 x 3.4" / 150 x 140 x 86 mm
|
| Package Weight |
6.31 lb
|
| Box Dimensions (LxWxH) |
12.6 x 8.5 x 4.7"
|
