Description

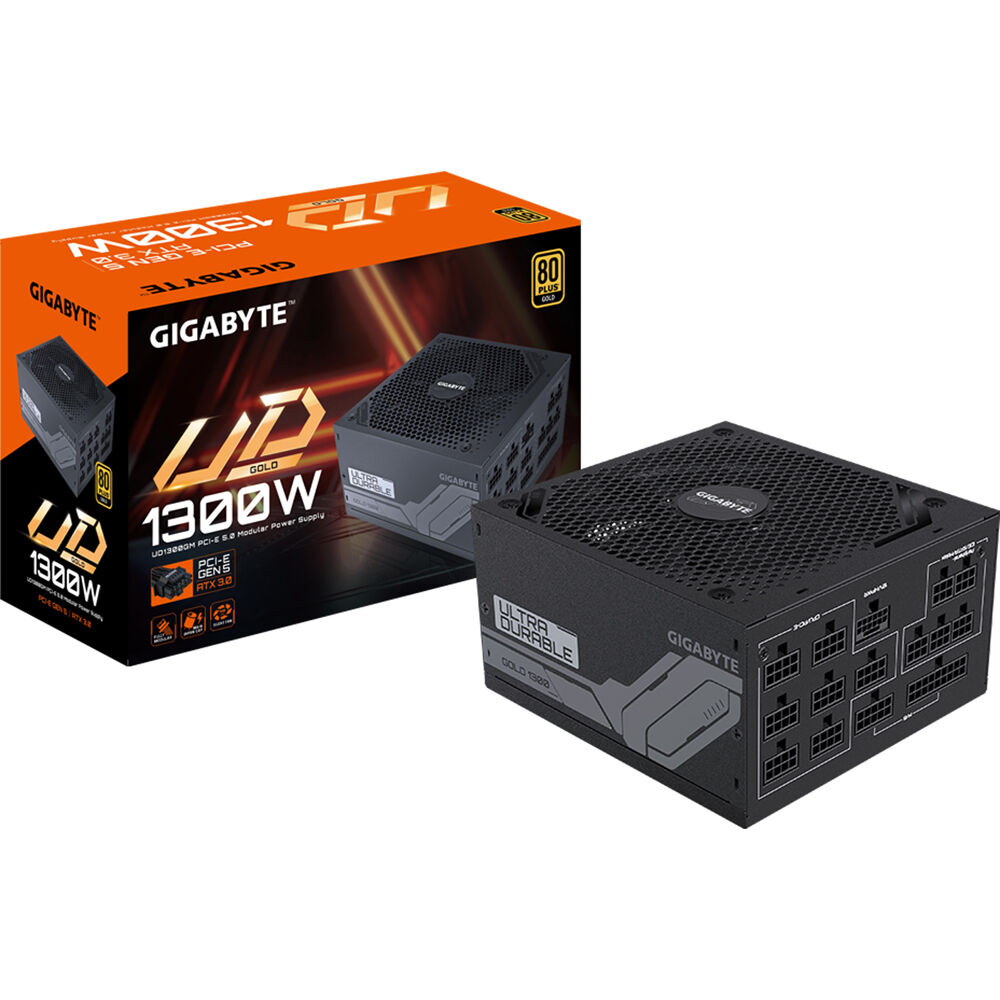

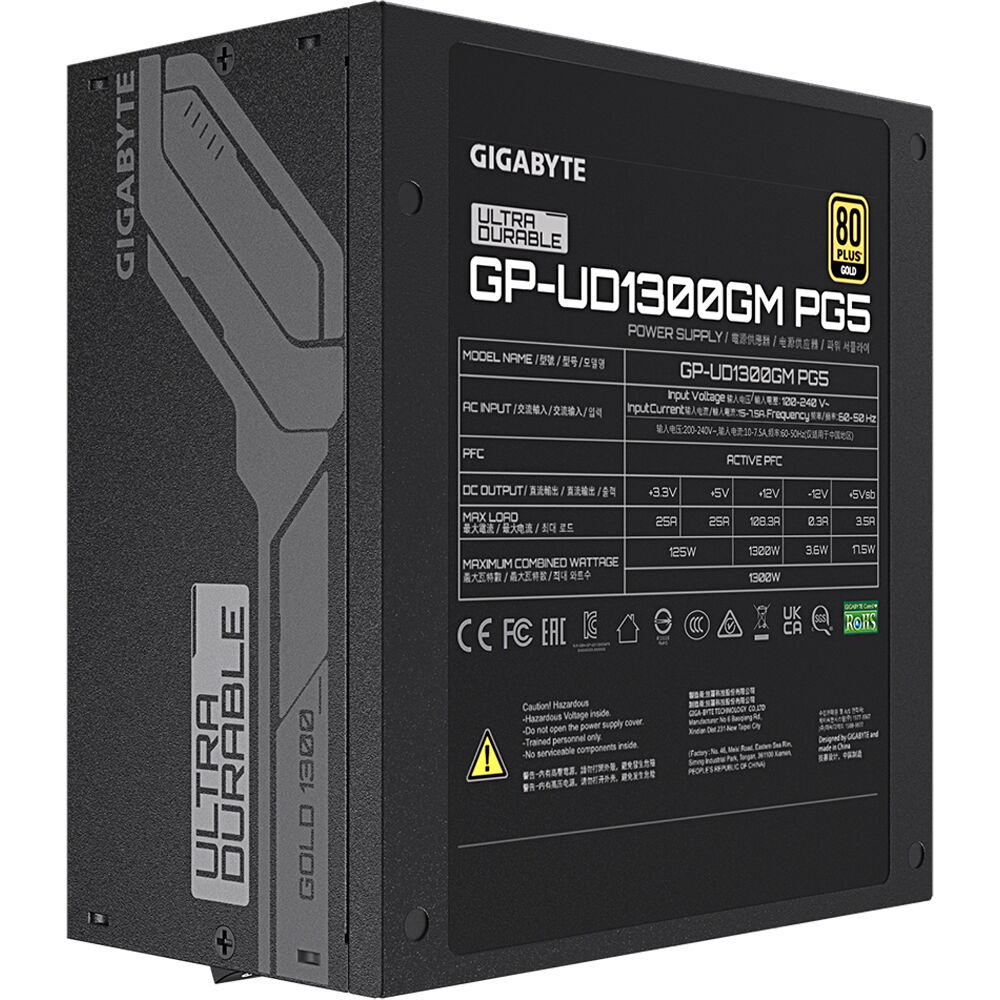

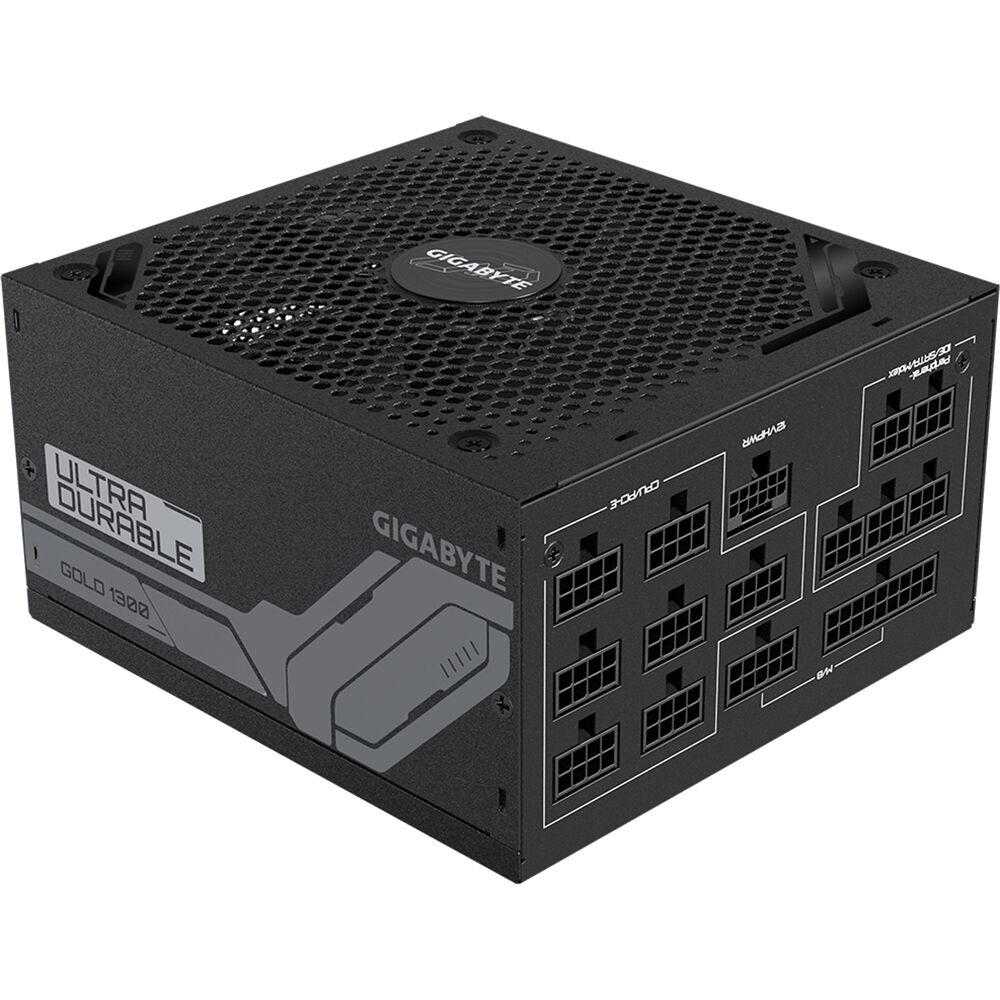

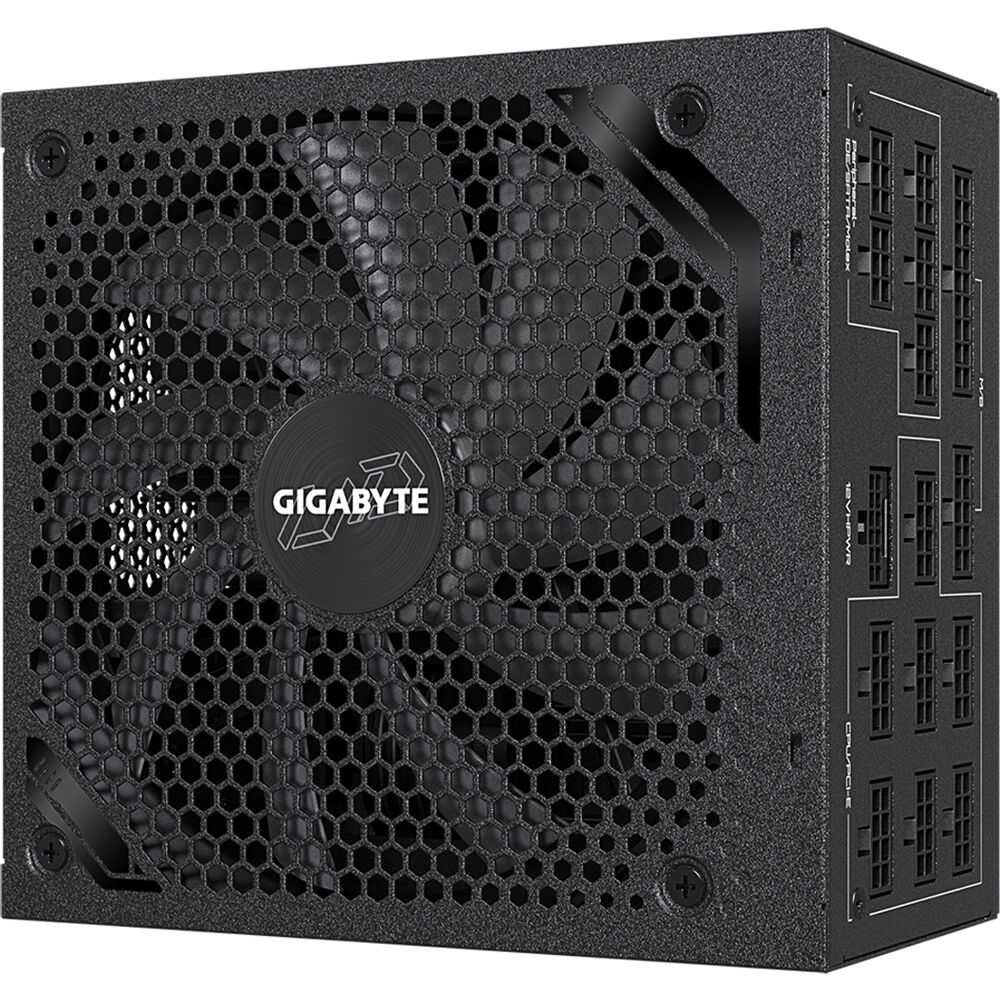

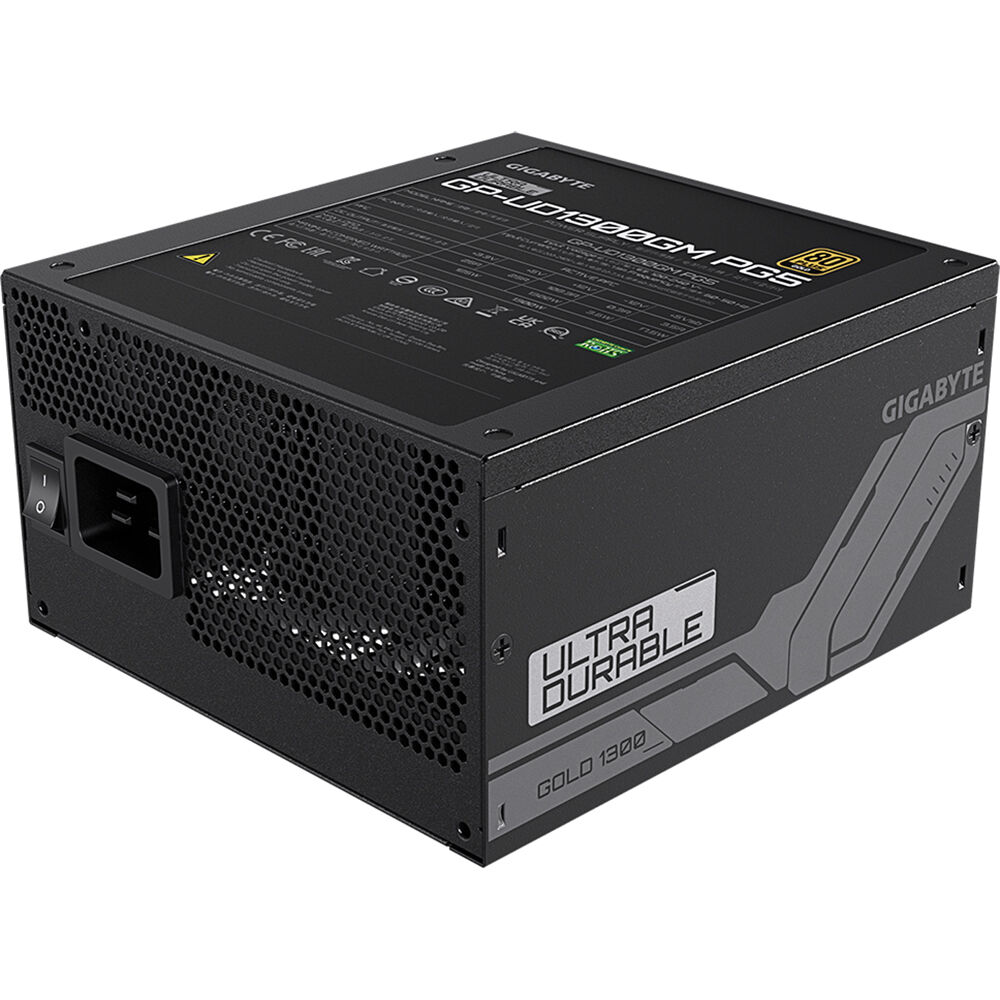

Gigabyte GP-UD1300GM PG5 GUS Overview
- 1Description
- 2ATX 3.0
- 3Ultra-Durable Design
- 480 Plus Gold
- 5+12VHPWR Connector
Increase power efficiency for your entire system with the Gigabyte UD1300GM PG5 1300W 80 Plus Gold Power Supply. Designed for long-lasting performance, the UD1300GM PG5 balances raw power and efficiency to empower your gaming level components.

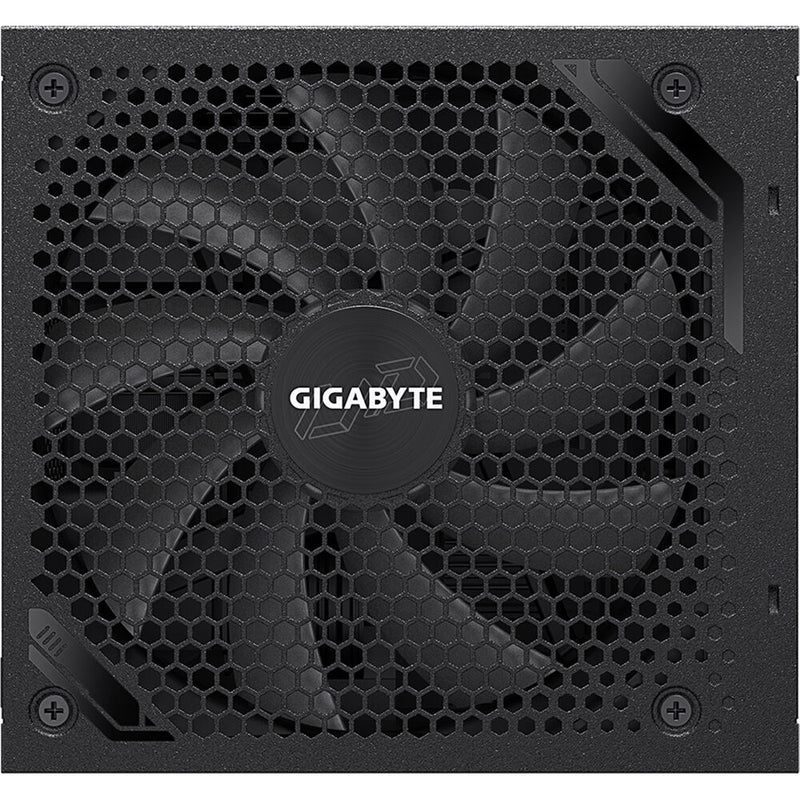

Equipped with a 1300W single +12V rail and utilizing Intel ATX12V 3.0 technology, the UD1300GM PG5 enhances throughput with an 80 Plus Gold efficiency rating. A modular cable design allows you to pick and choose the cables you need for your system which reduces internal clutter and promotes airflow. The UD1300GM PG5 includes eight PCIe 6+2-pin connectors to support various peripherals as well as utility and graphics cards. A dedicated PCIe 5.0 x 16-pin connector supports high-end NVIDIA graphics cards. You also get 12 SATA and two 4-pin connectors. A 140mm internal fan equipped with Fluid Dynamic Bearings keeps your internal components cool under heavy loads.
In the Box
- Gigabyte UD1300GM PG5 1300W 80 Plus Gold Power Supply
- Limited 10-Year Manufacturer Warranty
- Description
- ATX 3.0
- Ultra-Durable Design
- 80 Plus Gold
- +12VHPWR Connector

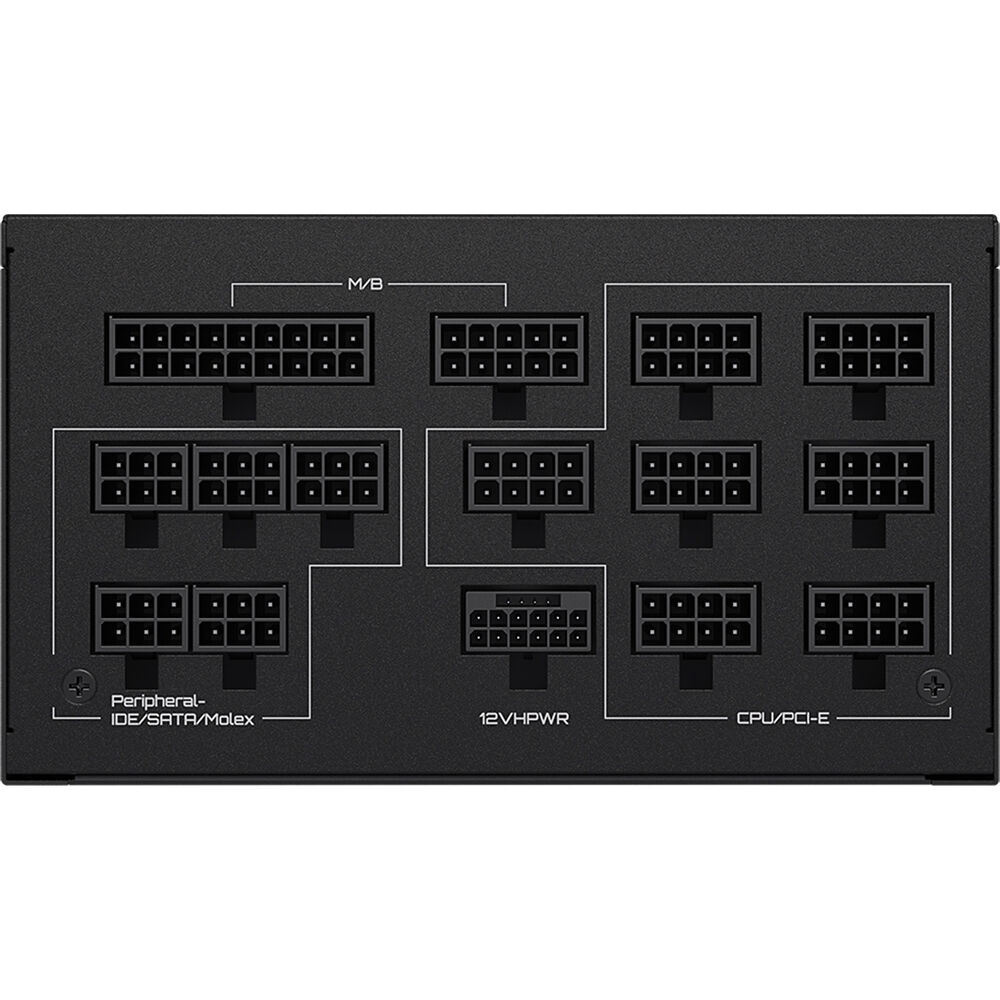

Gigabyte GP-UD1300GM PG5 GUS Specs
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 8x 6+2-Pin PCIe 12x 15-Pin SATA 6x 4-Pin Peripheral / Molex 2x 4-Pin Floppy |
| Cable Design |
Modular
|
| Total Wattage |
1300 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Gold
|
| Form Factor |
ATX
|
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 8x 6+2-Pin PCIe 12x 15-Pin SATA 6x 4-Pin Peripheral / Molex 2x 4-Pin Floppy |
| Cable Design |
Modular
|
| PCIe Connector Distances |
27.6" / 700 mm
|
| SATA Connector Distances |
25.6" / 650 mm
5.9" / 150 mm 5.9" / 150 mm 5.9" / 150 mm |
| Peripheral Connector Distances |
23.6" / 600 mm
5.9" / 150 mm 5.9" / 150 mm 5.9" / 150 mm |
| ATX Connector Distance |
24" / 610 mm
|
| EPS Connector Distances |
25.6" / 650 mm
|
| Total Wattage |
1300 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
1300 W
|
| Max Load for +12 V |
108.3 A
|
| Combined Power for +3.3/+5 V |
125 W
|
| Max Load for +3.3 V |
25 A
|
| Max Load for +5 V |
25 A
|
| Max Power for +5 Vsb |
17.5 W
|
| Max Load for +5 Vsb |
3.5 A
|
| Max Power for -12 V |
3.6 W
|
| Max Load for -12 V |
0.3 A
|
| Peak Power |
1300 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Efficiency Rating |
80 PLUS Gold
|
| Active Power Factor Correction |
No
|
| Efficiency |
87% at 100% Load
90% at 50% Load 87% at 20% Load |
| Fan Size |
140 mm
|
| Bearing Type |
Ball
|
| Form Factor |
ATX
|
| Compliance |
ATX 12 V v3.0
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
| Dimensions |
5.9 x 3.4 x 6.3" / 150 x 86 x 160 mm
|
| Package Weight |
9.325 lb
|
| Box Dimensions (LxWxH) |
13.6 x 9.9 x 5.7"
|
