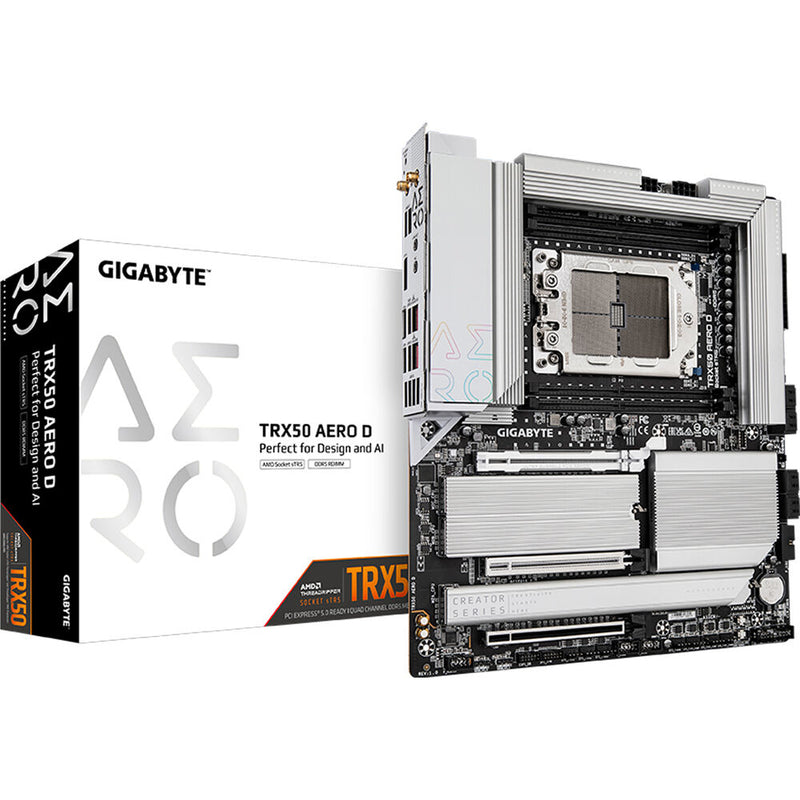

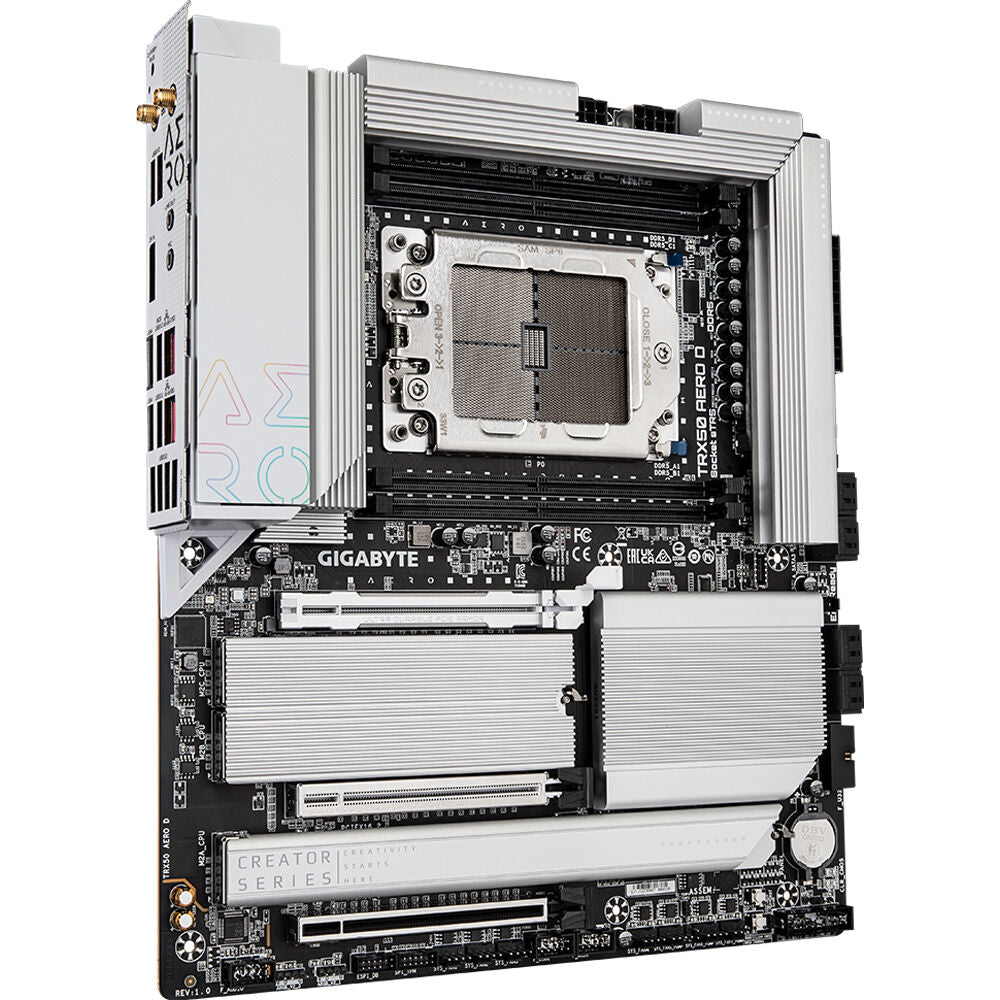

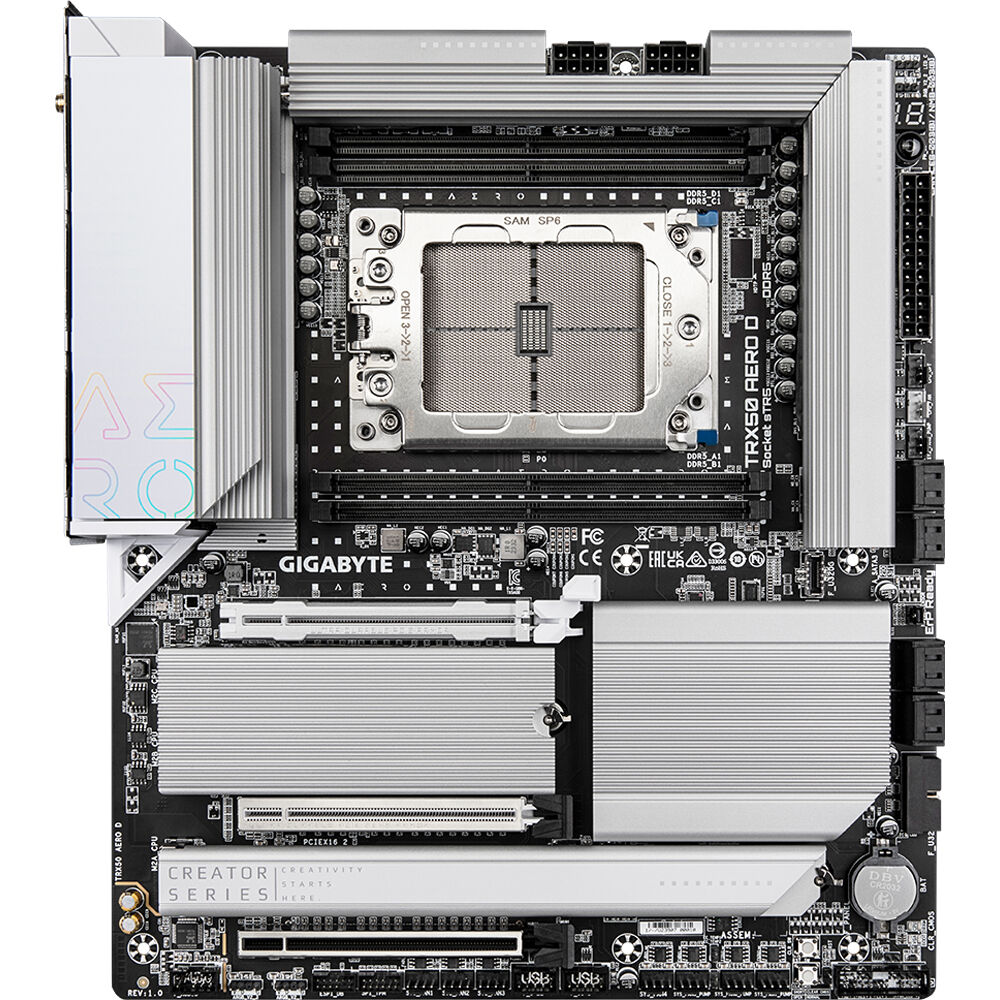

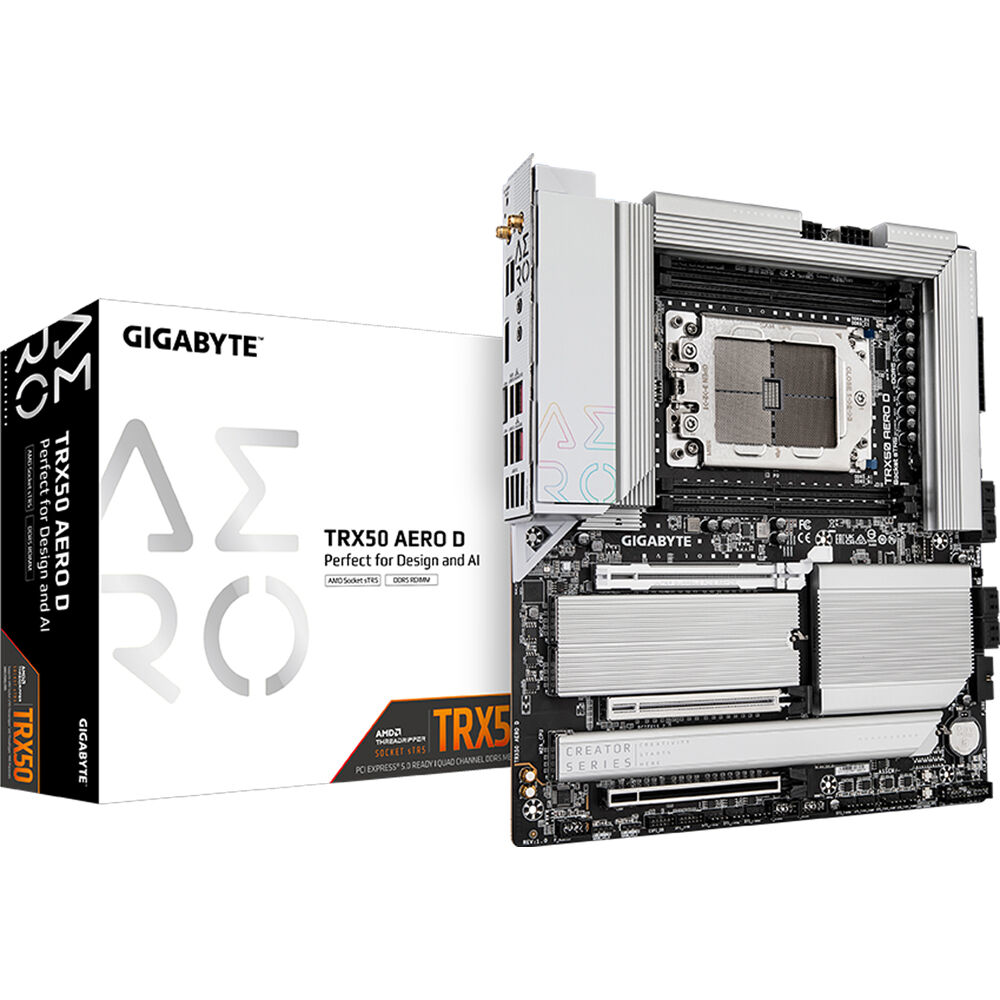

Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard

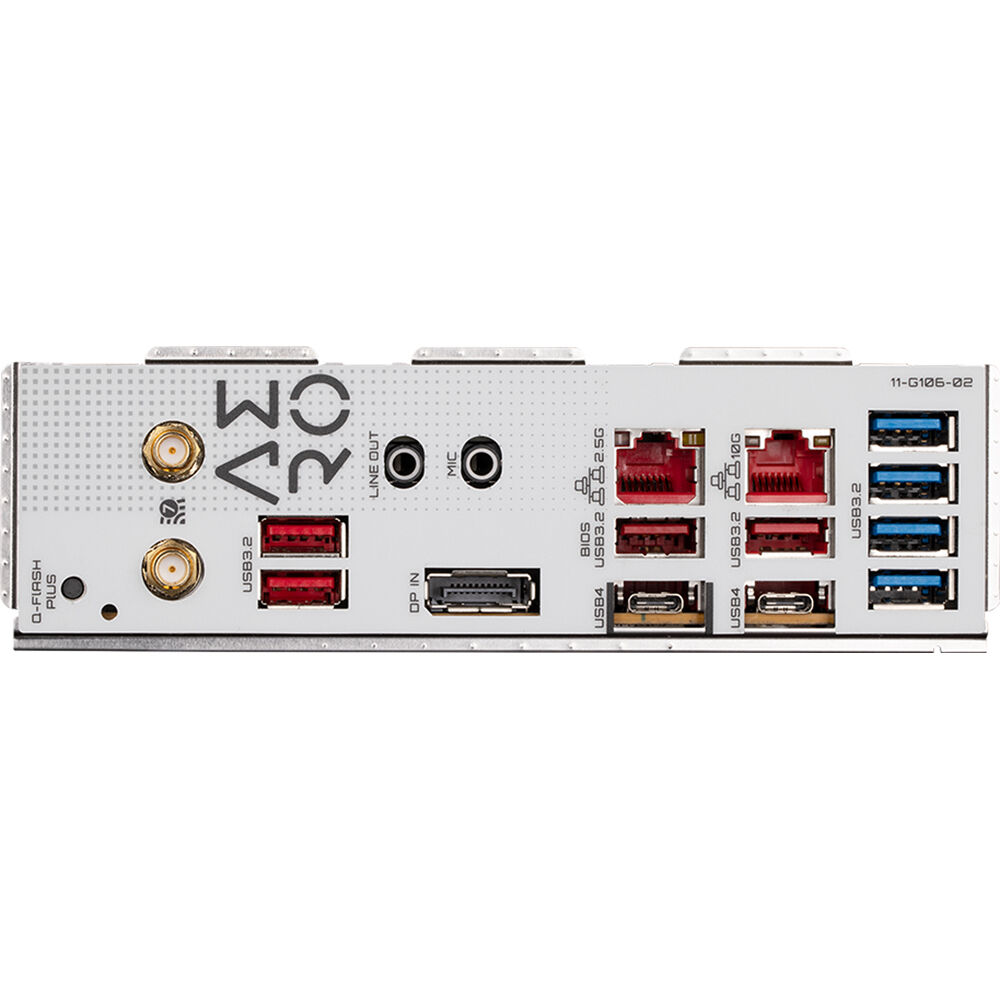

Rear I/O

The rear panel of the motherboard includes a single DisplayPort output, two Wi-Fi 7 antenna connectors, and two 3.5mm audio jacks for inputting and outputting speakers or headphones. The Realtek ALC4080 audio supports 2-channel HD audio output. Use the 2.5 or 10 GbE Ethernet ports for a wired internet connection.

Connect a range of peripherals using several USB ports. Four USB-A 3.2 Gen 1 ports and four USB-A 3.2 Gen 2 ports offer transfer speeds of up to 5 Gb/s and 10 Gb/s respectively. Two USB4 ports offer speeds up to 40 Gb/s which is perfect for external SSDs and other high-speed peripherals. One of these ports also supports DisplayPort output for external displays.

Memory and Storage Compatibility

Improve multitasking and efficiency by installing up to 1TB of 8000 MT/s quad-channel DDR5 memory in overclocked mode across four slots.

For long-term storage, three M.2 Gen 5.0 x4 slots and a single M.2 PCIe 4.0 x4 SSD slot, as well as eight SATA III ports, are available for initial building and future expansion.

Expansion Slots

This motherboard has two PCIe 5.0 x16 slots and one PCIe 4.0 x16 slot supporting the use of multiple graphics cards.

Internal Connectivity

Internal headers allow you to connect one USB-C 3.2 Gen 2x2 port, one USB-A 3.2 Gen 1 port, and two USB-A 2.0 ports to the front panel of a case. For troubleshooting and ease of use, this motherboard features a reset jumper, clear CMOS and CMOS jumper buttons, two temperature sensor headers, and a Trusted Platform Module header.

Gigabyte TRX50 AERO DSpecs

Chipset	AMD TRX50
CPU Socket	sTR5
Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 6000, 6400, 6800, 7000, 7200, 7600, 7800 MT/s
Storage Slots	1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4, PCIe 4.0 x2) 2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	2x PCIe 5.0 x16 (x16 mode) 1x PCIe 4.0 x16 (x16 mode)
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)   (2 x 2)
Form Factor	E-ATX

Chipset	AMD TRX50
CPU Socket	sTR5

USB	2x USB-C (USB4) 4x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt	No
Display	1x DisplayPort Input
Audio	2x 1/8" / 3.5 mm
Ethernet / Controller	1x 10GbE 1x 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 6000, 6400, 6800, 7000, 7200, 7600, 7800 MT/s
Maximum Capacity	1 TB
Channel Architecture	Quad Channel
ECC Support	ECC Buffered

SATA	8x SATA III
Storage Slots	1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4, PCIe 4.0 x2) 2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support	RAID 0, 1, 10 (SATA) RAID 0, 1, 10 (M.2)

Expansion Slots	2x PCIe 5.0 x16 (x16 mode) 1x PCIe 4.0 x16 (x16 mode)
USB	1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port) 2x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling	1x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	5x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin ATX
Security	TPM Module, TPM Header
LED Header	1x RGB
Audio	1x Speaker
Diagnostics	Clear CMOS, Reset

ROM

256 Mb

Audio Codec	Realtek ALC4080 (2-Channel)
DAC	No

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)   (2 x 2)
Bluetooth	5.3

OS Compatibility

Windows 11 (64-Bit Only)

Form Factor	E-ATX
Dimensions	12.0 x 10.4" / 30.5 x 26.4 cm

Package Weight	6.705 lb
Box Dimensions (LxWxH)	14.3 x 11.5 x 3.3"
