Description
Gigabyte B860 GAMING X WIFI6E Overview

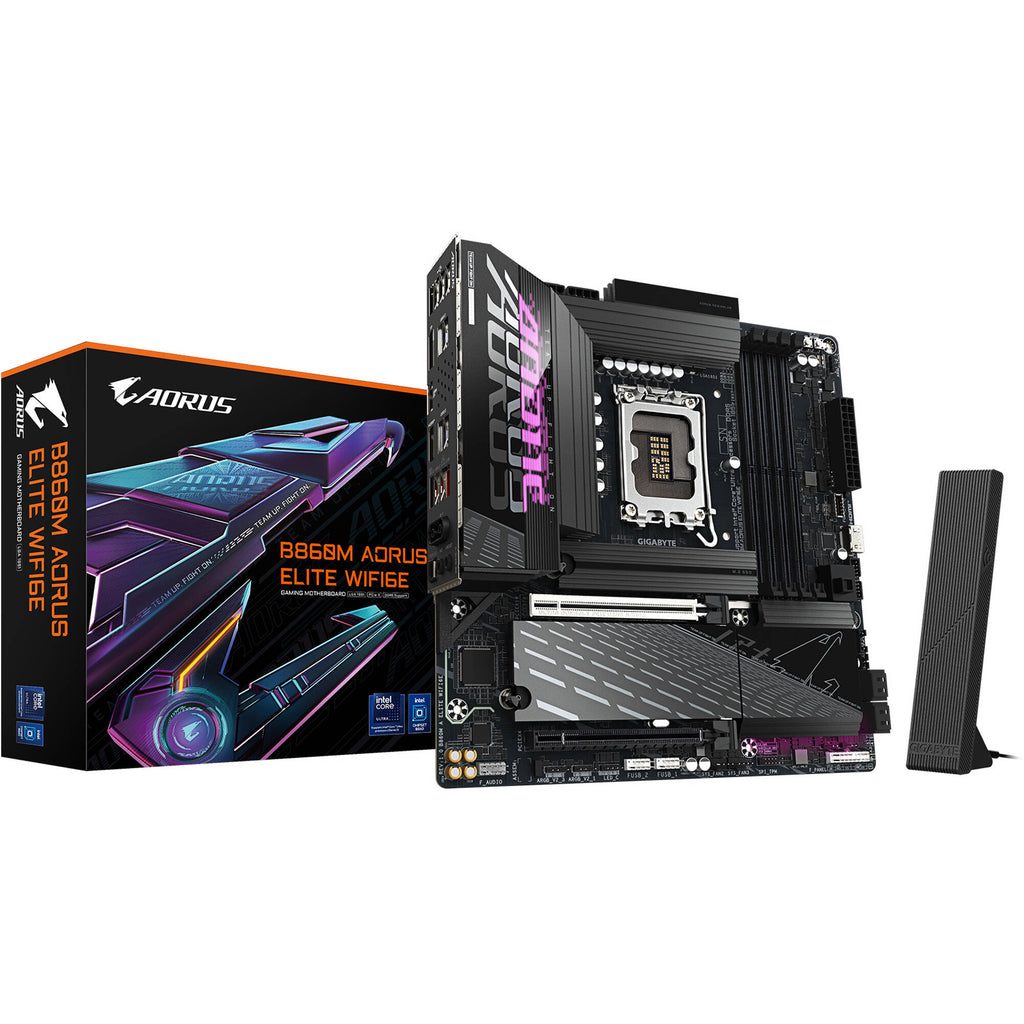

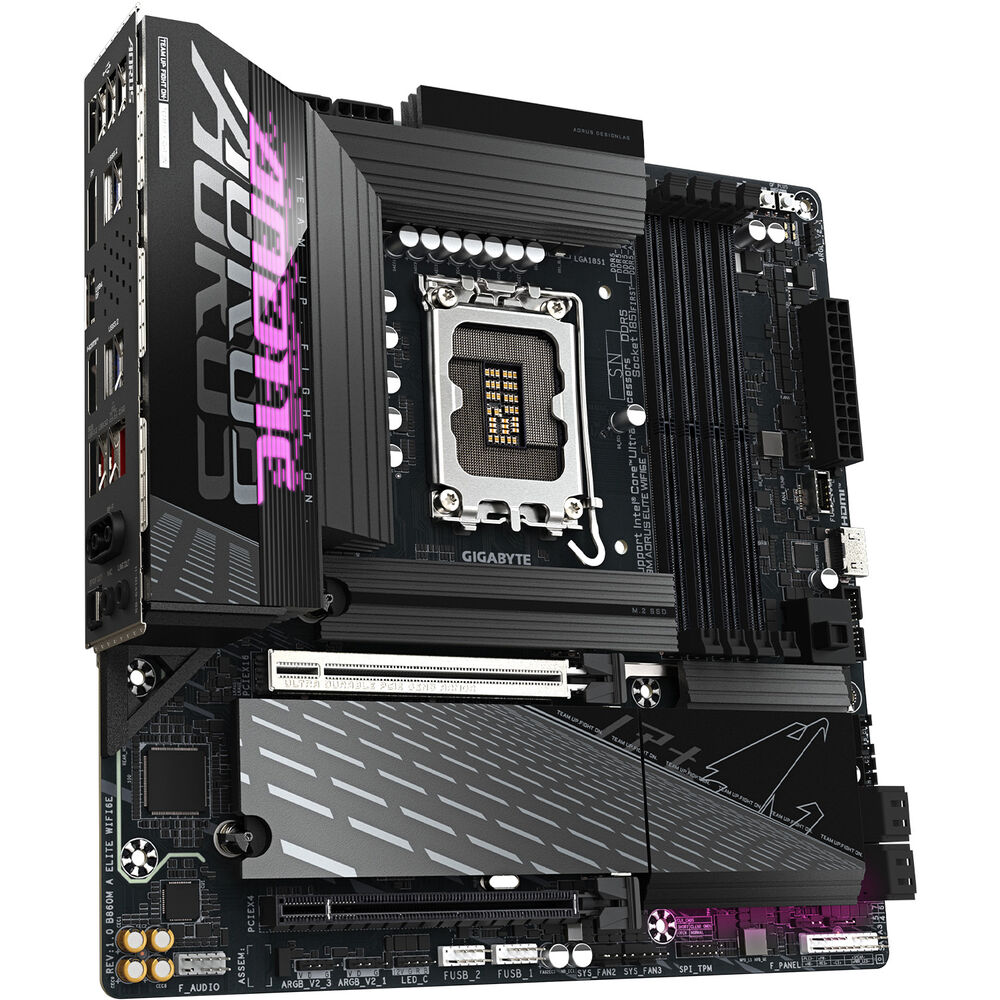

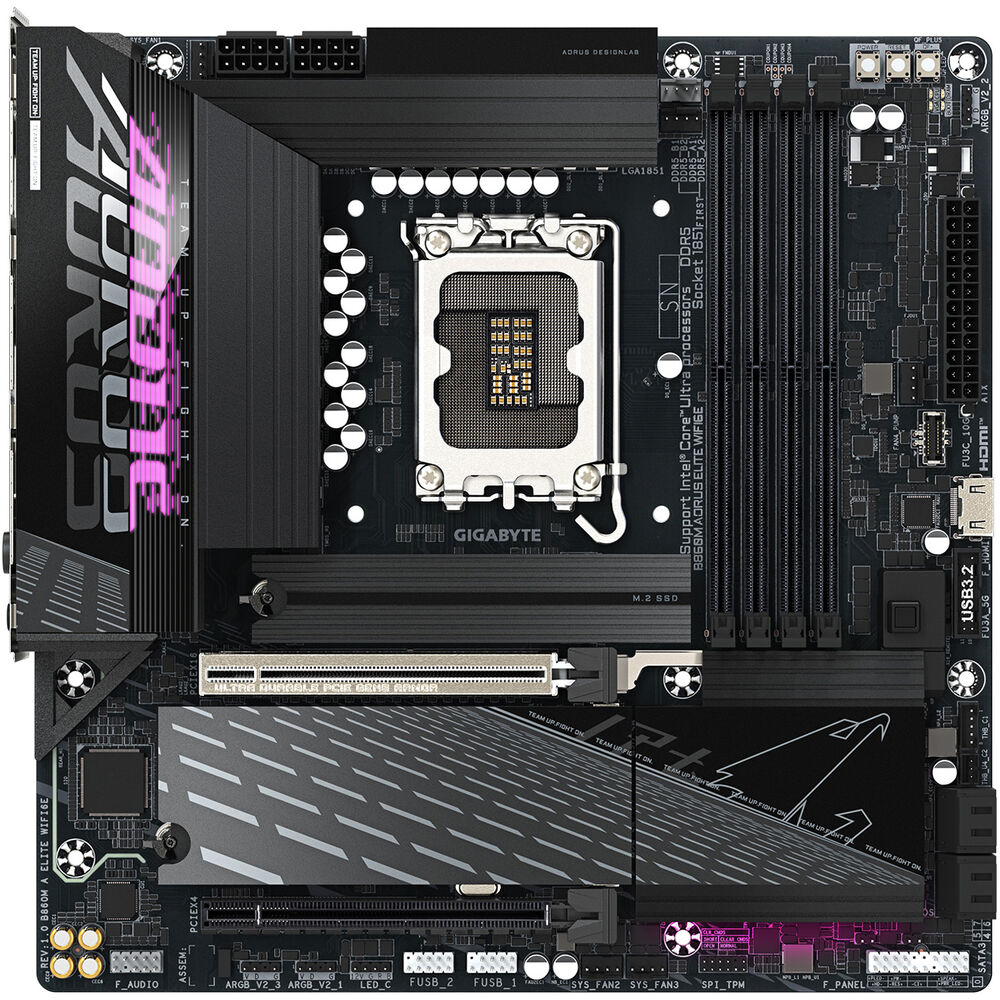

Designed for both gamers and creative professionals who want to build a compact PC, the black Gigabyte B860M AORUS ELITE WIFI6E LGA 1851 Micro-ATX Motherboard supports Intel Core Ultra processors (Series 2), which utilize the LGA 1851 socket. With support for DDR5, PCIe 5.0, M.2, and SATA, you'll be able to build a powerful PC with this motherboard. With EZ-Latch, installing certain components is user-friendly and doesn't require tools. For online connectivity, the motherboard provides fast 2.5GbE LAN and Wi-Fi 6E. Install Windows 11 (64-bit) to take full advantage of all the features of this motherboard.
AORUS AI Snatch
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.
Digital Twin VRM Design
This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 12 VCORE phases unlock the full power of your multi-core CPU while 1 VCCGT phase is optimized for integrated GPU performance and memory management within the CPU. 2 VCCSA phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Wi-Fi EZ-Plug
The Wi-Fi EZ-Plug design integrates Wi-Fi antenna plugs into a single adapter, making it easy to install.
2.5GbE LAN
Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you'll be able to elevate your gaming rig for online competition.
PCIe UD Slot
The reinforced PCIe UD slot features Gigabyte's one-piece stainless steel shielding design, providing the extra strength required to support heavy graphics cards. The UD power connector enhances power conductivity and thermal dissipation. The solid pins deliver optimal conductivity and signal transmission and reduce metal wear from repeated connections.
EZ-Latch Designs
PCIe EZ-Latch Plus
Easy ejection with a single click for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Easy ejection with a single click for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Gigabyte Control Center
With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.
UPC: 889523046609
Items Included
- Gigabyte B860M AORUS ELITE WIFI6E LGA 1851 Micro-ATX Motherboard
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Gigabyte B860 GAMING X WIFI6E Specs
Key Specs
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9200 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x4 |
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support
|
| Form Factor |
Micro-ATX
|
CPU
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|
Back Panel I/O
| USB |
1x USB-C (USB4)
2x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI Output
1x DisplayPort Output |
| Audio |
2x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x 2.5Gigabit
|
| Wi-Fi Antenna |
1x Connector
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9200 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10 (SATA)
|
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x4 |
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
3x 4-Pin System |
| Liquid Cooling |
2x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX |
| Security |
TPM Header
|
| Audio |
No
|
| Diagnostics |
Clear CMOS, Flash BIOS, Power, Reset
|
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
Realtek (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support
|
| Bluetooth |
5.3
|
Software
| OS Compatibility |
Windows 11 (64-Bit Only)
|
Physical
| Form Factor |
Micro-ATX
|
| Dimensions |
9.6 x 9.6" / 24.4 x 24.4 cm
|
Packaging Info
| Package Weight |
3.715 lb
|
| Box Dimensions (LxWxH) |
10.8 x 10.6 x 2.8"
|
